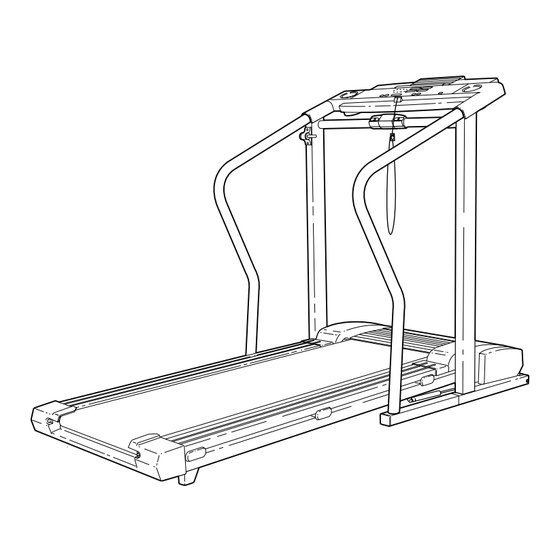

Model No. WLTL59320
Serial No.
Find the serial number in the location
shown below. Write the serial number
in the space above for reference.
QUESTIONS?
If you have questions, or if there
are missing or damaged parts,
we will guarantee complete sat-
isfaction through direct assis-
tance from our factory.
TO AVOID UNNECESSARY DE-
LAYS, PLEASE CALL DIRECT TO
OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our Customer Hot Line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Serial
Number
Decal
®
USER'S MANUAL
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
Patent Pending
Advertisement
Table of Contents
Related Manuals for Weslo Cadence Ds23
Summary of Contents for Weslo Cadence Ds23
- Page 1 Patent Pending 1-800-999-3756 Mon.–Fri., 6 a.m.–6 p.m. MST CAUTION Visit our website at Read all precautions and instruc- tions in this manual before using www.weslo.com this equipment. Save this manual new products, prizes, for future reference. fitness tips, and much more!
-
Page 2: Table Of Contents
LIMITED WARRANTY ............. . .Back Cover Note: An EXPLODED DRAWING is attached in the center of this manual. WESLO is a registered trademark of ICON Health & Fitness, Inc. -
Page 3: Important Precautions
8. To purchase a surge suppressor, see 21. When folding or moving the treadmill, make your local WESLO dealer or call 1-800-806- sure that the storage latch is fully closed. 3651 and order part number 146148. - Page 4 22. When using iFIT.com CD’s and videos, an 25. Inspect and tighten all parts of the treadmill electronic “chirping” sound will alert you regularly. when the speed and/or incline of the treadmill is about to change. Always listen for the 26.
-
Page 5: Before You Begin
BEFORE YOU BEGIN Thank you for selecting the revolutionary WESLO CA- at 1-800-999-3756, Monday through Friday, 6 a.m. DENCE ® DS23 treadmill. The DS23 treadmill combines until 6 p.m. Mountain Time (excluding holidays). To advanced technology with innovative design to help... -
Page 6: Assembly
ASSEMBLY Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench and your own phillips screwdriver and rubber mallet Note: The underside of the treadmill walking belt is coated with high-performance lubricant. - Page 7 4. Slide the upper end of a Handrail (85) and then the Extension Leg (103) into the right Upright (82) as shown. (Note: It may be helpful to tip the Uprights [82] forward as you insert the Extension Leg. If necessary, tap the Extension Leg with a rubber mallet to fully insert it.) Slide the other Handrail (85) into the left Upright (82) as described above.
-
Page 8: Operation And Adjustment
Adapter drawing 1 at the right). To purchase a surge sup- Surge Suppressor pressor, see your local WESLO dealer or call 1-800- 806-3651 and order part number 146148. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup- pressor (TVSS). - Page 9 CONSOLE DIAGRAM Displays LED Track Displays Manual/Program Indicators Speed Buttons Note: If there is a thin sheet of clear plastic Clip on the face of the console, remove it. The console also features advanced iFIT.com interac- CAUTION: tive technology. iFIT.com technology is like having a Before operating the personal trainer right in your home.
- Page 10 HOW TO TURN ON THE POWER As you exercise, change the speed of the walking belt as desired by press- Plug in the power cord (see HOW TO PLUG IN ing the SPEED THE POWER CORD on page 8). buttons. Each time one of the buttons is Locate the on/off pressed, the speed will change by 0.1 mph.
- Page 11 TIME/INCLINE Measure your heart rate, if desired. display—When the man- ual mode or an iFIT.com Note: When using the pulse sensor, make sure program is selected, this that your hands are clean. The pulse sensor display will show the should also be kept clean with a damp cloth and elapsed time and the in- mild detergent.
- Page 12 The program will con- HOW TO USE PERSONAL TRAINER PROGRAMS tinue in this way until the TIME/INCLINE display counts down to zero. The Insert the key into the console. walking belt will then slow to a stop. See HOW TO TURN ON THE POWER on 10. If the speed or incline setting for the current period Select one of the personal trainer programs.
- Page 13 HOW TO CONNECT YOUR PORTABLE STEREO HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a 3.5mm LINE OUT jack, see instruction B. If your To use iFIT.com CD’s, the treadmill must be con- stereo has only a PHONES jack, see instruction C.
- Page 14 HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER Note: If your stereo has an unused LINE OUT jack, Note: If your computer has a 3.5mm LINE OUT jack, see instruction A below. If the LINE OUT jack is see instruction A.
- Page 15 HOW TO CONNECT YOUR VCR HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV To use iFIT.com CD’s or videocassettes, the treadmill with a built-in VCR, see instruction B.
- Page 16 If the speed or incline settings are too high or too • adjust the volume of your CD player or VCR. If low, you can manually override the settings at any the volume is too high or too low, the console time by pressing the SPEED or INCLINE buttons may not detect the program signals on the console.
- Page 17 Return to the treadmill and stand on the foot HOW TO USE PROGRAMS DIRECTLY FROM rails. Find the clip attached to the key and slide OUR INTERNET SITE the key onto the waistband of your clothes. When the on-screen countdown ends, the program Our Web site at www.iFIT.com allows you to access will begin and the walking belt will begin to move.
- Page 18 INFORMATION MODE/DEMO MODE An “E,” for English miles, or an “M,” for metric kilometers, will The console features an information mode that keeps appear in the SPEED/MIN- track of the total number of hours that the treadmill has MILE display. Press the been operated and the total number of miles that the SPEED button to change...
-
Page 19: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be permanently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill. -
Page 20: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). PROBLEM: The power does not turn on SOLUTION: a. - Page 21 PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. b. If the walking belt is overtightened, treadmill perfor- 3”–4” mance may decrease and the walking belt may be- come damaged.
-
Page 22: Conditioning Guidelines
CONDITIONING GUIDELINES ergy. Only after the first few minutes does your body WARNING: begin to use stored fat calories for energy. If your goal Before beginning this is to burn fat, adjust the speed and incline of the tread- or any exercise program, consult your physi- mill until your heart rate is near the lowest number in cian. -
Page 23: Part List
PART LIST—Model No. WLTL59320 R0802A To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual. No. Qty. Description No. Qty. Description No. Qty. Description Motor Belt Isolator Incline Motor Plate Pulley/Flywheel/Fan Isolator Screw Audio Wire Nut Motor Nut Belly Pan Fastener... - Page 24 EXPLODED DRAWING—Model No. WLTL59320 R0802A...
- Page 25 EXPLODED DRAWING—Model No. WLTL59320 R0802A...
-
Page 26: Ordering Replacement Parts
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give the following information: • The MODEL NUMBER OF THE PRODUCT (WLTL59320) • The NAME OF THE PRODUCT (WESLO CADENCE ® DS23 treadmill) •...
