Model No. WLTL11092
Serial No.
Number Decal
QUESTIONS?
As a manufacturer,
we are com-
mitted to providing complete
customer satisfaction.
If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satis-
faction through direct assistance
from our factory.
TO AVOID UNNECESSARY
DE-
LAYS, PLEASE CALL DIRECT TO
OUR TOLL-FREE
CUSTOMER
HOT LINE. The trained techni-
cians on our Customer Hot Line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER
HOT LINE:
1-800-999-3756
Mon.-Fri.,
6 a.m.-6 p.m. MST

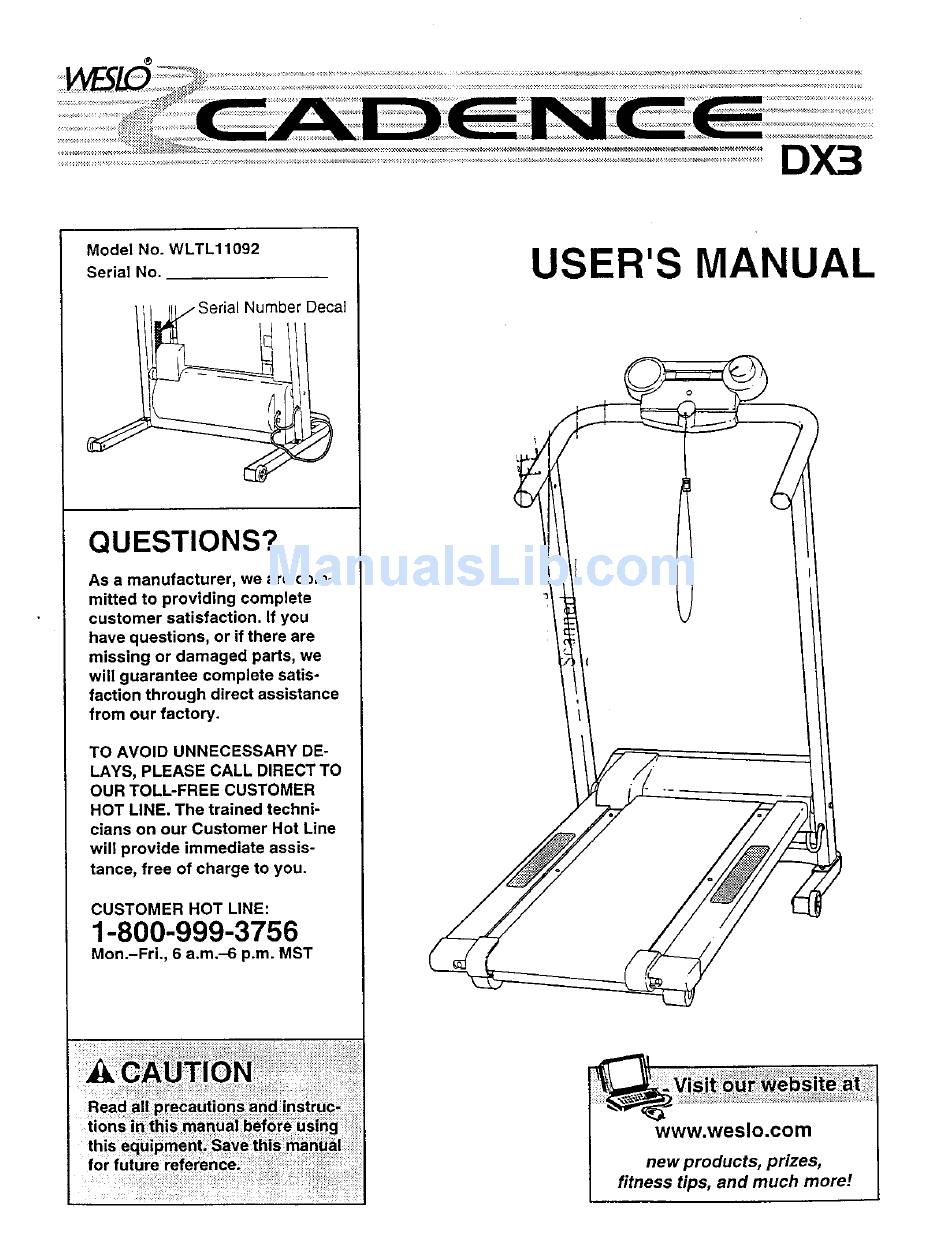

USER'S MANUAL
teat
www.weslo.con,
new products,
prizes,
fitness tips, and much morel
Advertisement
Table of Contents
Related Manuals for Weslo CADENCE DX3
Summary of Contents for Weslo CADENCE DX3
- Page 1 HOT LINE. The trained techni- cians on our Customer Hot Line will provide immediate assis- tance, free of charge to you. CUSTOMER HOT LINE: 1-800-999-3756 Mon.-Fri., 6 a.m.-6 p.m. MST teat www.weslo.con, new products, prizes, fitness tips, and much morel...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT PRECAUTIONS ..............BEFORE YOU BEGIN ............... ASSEMBLY ................OPERATION AND ADJUSTMENT ............. HOW TO FOLD AND MOVE THE TREADMILL ..........MAINTENANCE AND TROUBLE-SHOOTING ........... CONDITIONING GUIDELINES ............... ORDERING REPLACEMENT PARTS ..........Back Cover LIMITED WARRANTY ............... Back Cover Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual. - Page 3 16.Neverleavethe treadmillunattended while it 21. Never drop or insert any object into any opening. ks running. Always remove the key and unplug the power cord when the treadmill is not in 22. D A N G E R: Always unplug the power use, cord immediately after use, before cleaning 17.
-
Page 4: Before You Begin
BEFORE YOU BEGIN Thank you for selecting the WESLO _ CADENCE DX3 please call our Customer Service Department toll-free treadmill. The CADENCE DX3 treadmill combines at 1-800-999-3756, Monday through Friday, 6 a.m. advanced technology with innovative design to let you until 6 p.m. -
Page 5: Assembly
ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. - Page 6 4. Using two adjustable wrenches, attach the Wheels (15) to the Base (80) with the two Wheel Bolts (14) and the two Wheel Nuts (42) as shown. Do not overtighten Bolts. The Wheels should turn freely. Note: You must be able to safely lift 45 pounds kg) in order to do this step.
-
Page 7: Operation And Adjustment
OPERATION AND ADJUSTMENT THE PERFORMANT LUBE WALKING BELT electric shock. This product is equipped with a cord having an equipment-grounding conductor and a Your treadmill features a walking belt coated with grounding plug. Plug the power cord into a surge PERFORMANT LUBE a high-performance lubricant. - Page 8 DIAGRAM OF THE CONSOLE Monitor Display Water Bottle Speed Control Holder (Water bottle is not included) STEP BY STEP CONSOLE OPERATION Insert the key fully into the power switch. Before the console can be operated, two "AA" Note: Inserting the key ©...
- Page 9 Reset the console and start the walking belt. When you are finished exercising, stop the _valking belt and remove the key. Turn the speed control to the RESET Step onto the grip tape, stop the walking belt and position. Note: Each remove the key from the console.
-
Page 10: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Unplug the power cord. Caution: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill. 1. Hold the treadmill with your hands in the locations shown at the right. - Page 11 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, slide the latch pin to the right. Lock the pin in place by pressing the end of the pin into the slot in the storage latch as shown in the inset drawing.
-
Page 12: Maintenance And Trouble-Shooting
MAINTENANCE AND TROUBLE-SHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). PROBLEM: The power does not turn on SOLUTION:... - Page 13 PROBLEM: The walking belt is off-center SOLUTION: a. If the walking belt has shifted to the left, first remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn the right adjustment bolt coun- terclockwise 1/4 of a turn. Plug in the power cord, in- sert the key and run the treadmill for a few minutes.
-
Page 14: Conditioning Guidelines
CONDITIONING GUIDELINES Burning WARNING: Before beginning To burn fat, you must exercise at a low intensity levef this or any exercise program, consult your for a sustained period of time. During the first few physician. This is especially important for in- minutes of exercise, your body uses easily accessible dividuals over the age of 35 or individuals... - Page 15 to cool down. This will increase the flexibility of your Training Zone Exercise muscles and will help to prevent post-exercise problems. After warming up, increase the intensity of your exer- Exercise Frequency cise until your pulse is in your training zone for 20 to 60 minutes.
- Page 16 EXPLODED DRAWING--Model No. WLTL11092 R1099A _--59 ' oo...
- Page 17 PART LIST--Model No. WLTL11092 R1099A Key No. Qty. Description Key No. Qty. Description REMOVE THIS EXPLODED DRAWING Console Pulley/Flywheel Motor Speed Control Reed Switch Key/Clip AND PART LIST FROM THE MANUAL. Console Plate Wire Tie Clamp Screw Reed Switch Clip Save this page for future reference.
-
Page 18: Ordering Replacement Parts
ING in the center of this manual) If possible, place the treadmill near your telephone for easy reference when calling. WESLO is a registered trademark of ICON Health & Fitness, Inc. LIMITED WARRANTY ICON Health & Fitness, Inc. (ICON), warrants...
