- Page 1 Second Wind Air Purifiers Installation Manual 2414 2414-S 24 Volt Remote Units...
- Page 2 7&8 Warranty Please read all instructions carefully to help ensure a correct and SAFE installation of your Second Wind purifier (Ultraviolet Germicidal Photo-catalytic Air Purifier). Failure to do so could damage the equipment or cause harm to yourself or others. Only qualified Heating Ventilation and Air Conditioning (HVAC) technicians should per- form the installation.

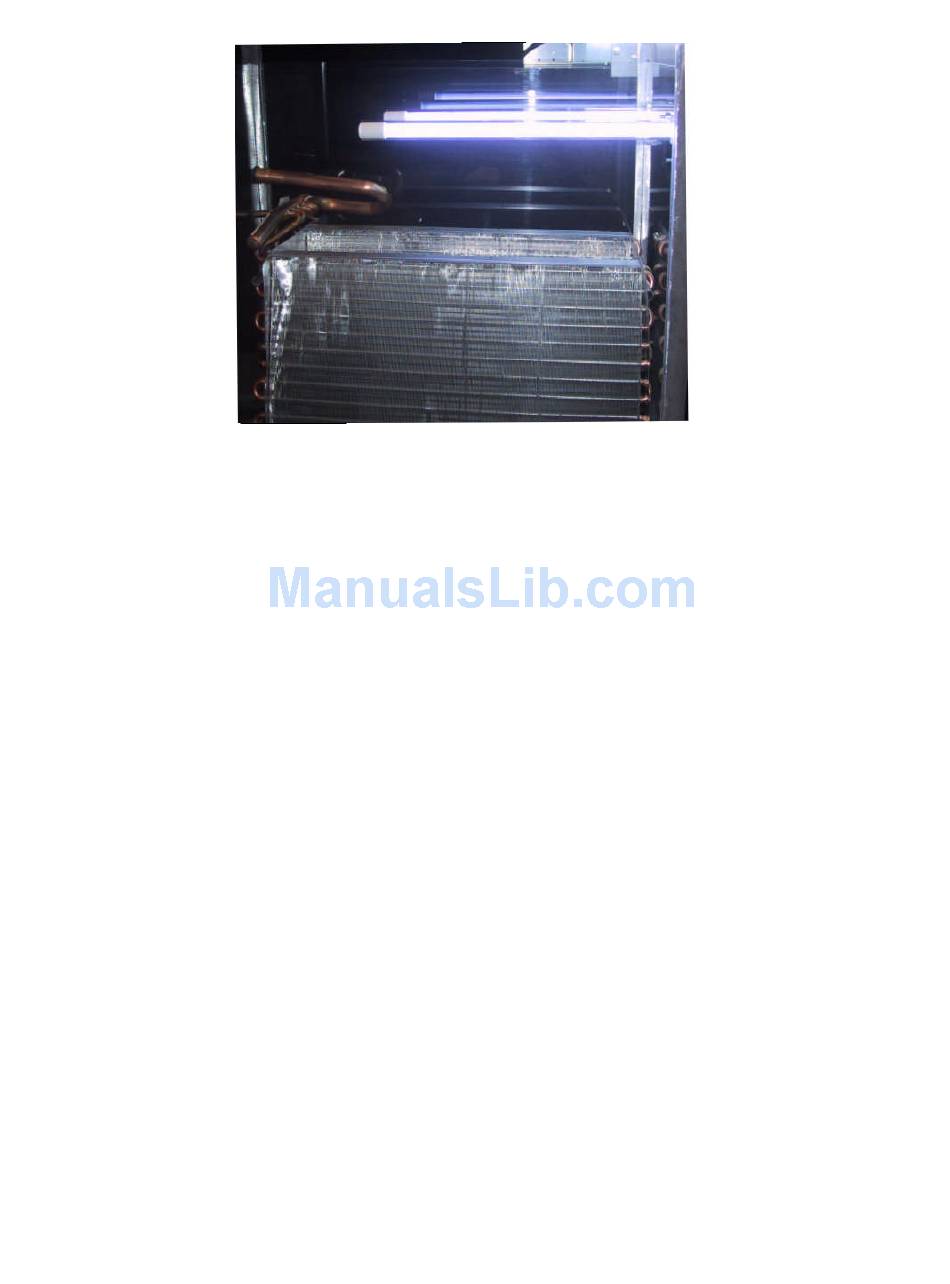

- Page 3 1. Install the lamp where you have easy access. 2. Make sure before drilling into equipment that there is nothing in the way that would be damaged. 3. The lamp should be installed a minimum of 2-3 inches, maximum 36 inches away from the coil or pan surface.
- Page 4 UVexposure with mechanical codes. Failure to do so will void UL aluminum tape or metal conduit. safety listing and Second Wind warranty. Read all safety instructions at the beginning of this CAUTION: Ultraviolet light can be manual.
- Page 5 The Second Wind Ultraviolet Germicidal Photo-catalytic 24 Volt Lamp is designed for 9000-11,000 hours of con- tinuous operation. After 9000 hours intensity of the lamp inside the duct diminishes and should be replaced. Even if the lamp is still illuminated replacement of the lamp is recommended, by a qualified HVAC Service Technician.
- Page 6 2414, 2414-S) TWO (2) YEAR COVERAGE LAMPS The lamps are warranted by Second Wind for a period of two (2) years from the date of the original installation, when installed and operated in accordance with Second Wind recommendations. If during this period a lamp fails, Second Wind will provide a free replacement.
- Page 7 All Second Wind Air Purification systems that are attached to your Heating, Ventilation and Air Conditioning System (HVAC) have a limited lifetime unit warranty. The lamps for all the HVAC attached units have a two (2) year warranty.(MODELS: 2414, 24 14-S, 2414FC)
- Page 8 24 volt Power White wire– 24 VAC Red Black Wire– 24 VAC Black...
