Summary of Contents for Second Wind 2124

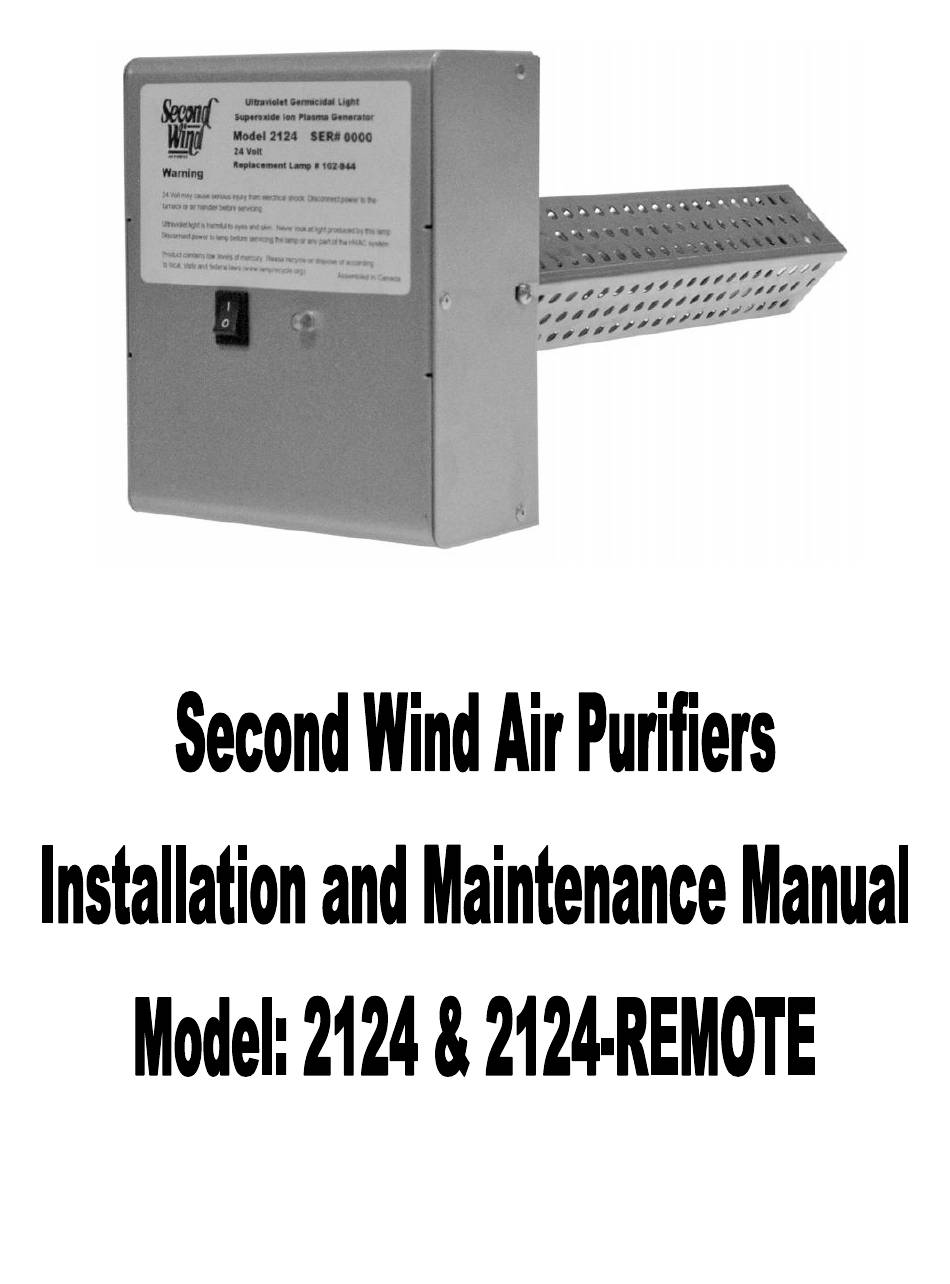

- Page 1 Model 2124 Revision: D Issued 04/15/2013...
- Page 2 7 & 8 Please read all instructions carefully to help ensure a correct and SAFE installation of your Second Wind Ultravio- let Germicidal Air Purifier. Failure to do so could damage the equipment or cause harm to yourself or others. Only qualified Heating Ventilation and Air Conditioning (HVAC) technicians should perform the installation.
- Page 3 Shield these components using sheet metal, aluminum tape, or metal con- duit (see page 2, CAUTION notes) 2124 REMOTE unit can be mounted in secure location within 4-5ft of predetermined lamp location. Lamp leads can reach approximately 5ft from chassis mount location. Measure and check mount location for chas- sis and lamp before securing in place ...
- Page 4 Lamp hole Wingnut Enclosure Screw Lamp Module separate from Chassis in 2124-REMOTE Lamp leads extend from top of chassis...
- Page 5 1 Mark mounting hole locations with Ø1/8” drill tip or market on mounting surface. Drill Ø1/8” holes in mount locations. 2 For 2124 Model Only. Trace location of lamp cutout opening. OPTION: If you will not be using a hole saw, punch Ø1/2” hole in center of lamp cutout opening.
- Page 6 The Second Wind 2124 Model Air Ultraviolet Germicidal Lamp is designed for 16,000 hours of continuous opera- tion. After 16,000 hours intensity of the lamp inside the duct diminishes and should be replaced. Even if the lamp is still illuminated, replacement of the lamp is recommended by a qualified HVAC Service Technician.
- Page 7 ONE (1) YEAR COVERAGE LAMPS AND LIFETIME COVERAGE BALLAST The lamps are warranted by Second Wind for a period of one (1) year from the date of the original installation. The ballast is warranted for the lifetime of the product when the unit is installed.
- Page 8 If you intend to submit a warranty request to Second Wind Air Purifiers, please be follow the instructions below and be prepared to furnish the following information:...
