PART IDENTIFICATION CHART

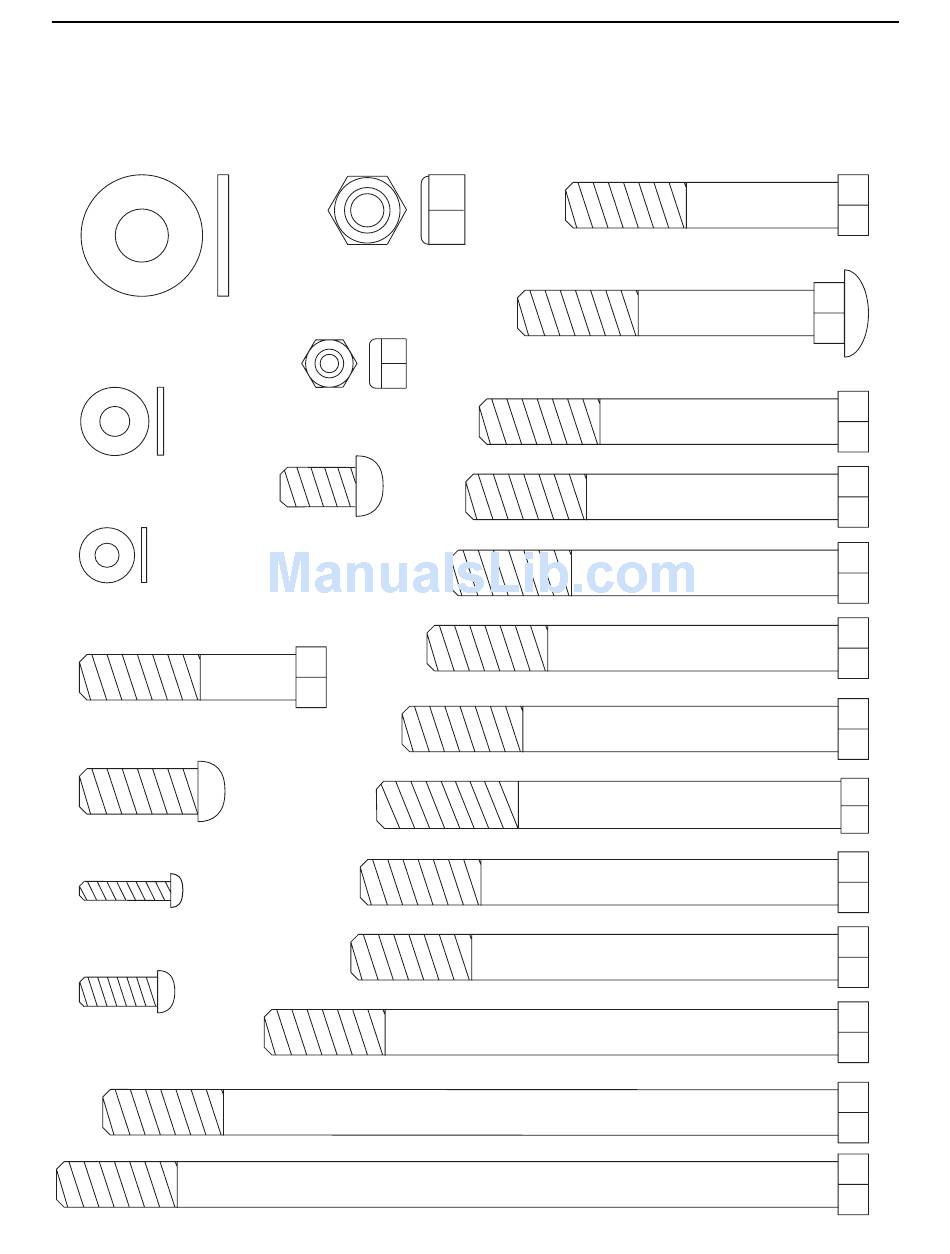

Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST in the center of this manual. Note: Some small parts
may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
M10 Washer (79)
M6 Washer (62)
M5 Washer (92)
M10 x 45mm Bolt (76)
M10 x 25mm Button Bolt (81)
M4 x 19mm Screw (68)
M6 x 16mm
Bolt (72)
M10 Nylon Locknut (77)
M6 Locknut (80)
M8 x 12mm Screw (43)
M10 x 57mm Bolt (78)
M10 x 62mm Carriage Bolt (74)
M10 x 75mm Bolt (73)
M10 x 78mm Bolt (70)
M10 x 81mm Bolt (65)
M10 x 86mm Bolt (63)
M10 x 91mm Bolt (67)
M10 x 97mm Bolt (90)
M10 x 100mm Bolt (66)
M10 x 102mm Bolt (91)
M10 x 120mm Bolt (75)
M10 x 154mm Bolt (69)
M10 x 164mm Bolt (71)
5
