Avanti DW6W Parts List

Avanti dw6w dishwasher parts list
Hide thumbs Also See for DW6W:
1
2
3

Advertisement

Table of Contents

See also: Instruction Manual
C0056
C0092
C0088
C0089
C0093
C0090
C0091

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW6W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avanti DW6W

Summary of Contents for Avanti DW6W

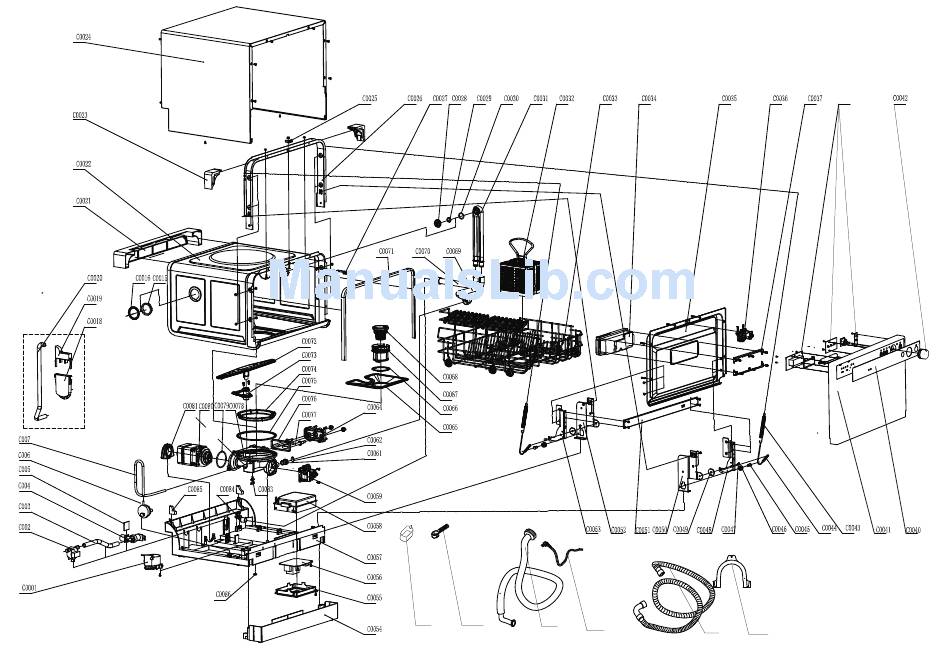

  • Page 1 C0056 C0092 C0088 C0089 C0093 C0090 C0091...
  • Page 2 DW6W Parts List # in PART CODE DESCRIPTION explosion view C0001 673002300125 Float holder C0002 674006100000 Flowmeter C0003+C0010 673005400096 Inlet hose C0004 674000200006 Inlet valve C0005 673005700084 Inlet valve block C0006 674000300035 Pressure switch pressure switch C0007 673000900073 PVC hose C0009 673001500046 O ring 10.5×4.5...
  • Page 3 C0043 672005000070 Door spring C0044 672005000067 door rope C0045 672005600037 ROLLER pin C0046 673001000022 gemel HINGE C0047 672005600034 gemel pin C0048 672005600036 right gemel C0049 673006400095 rub slice C0050 672006000023 right supporting C0051 672005600040 gemel link C0052 672006000022 left supporting C0053 672005600035 left gemel C0054...
