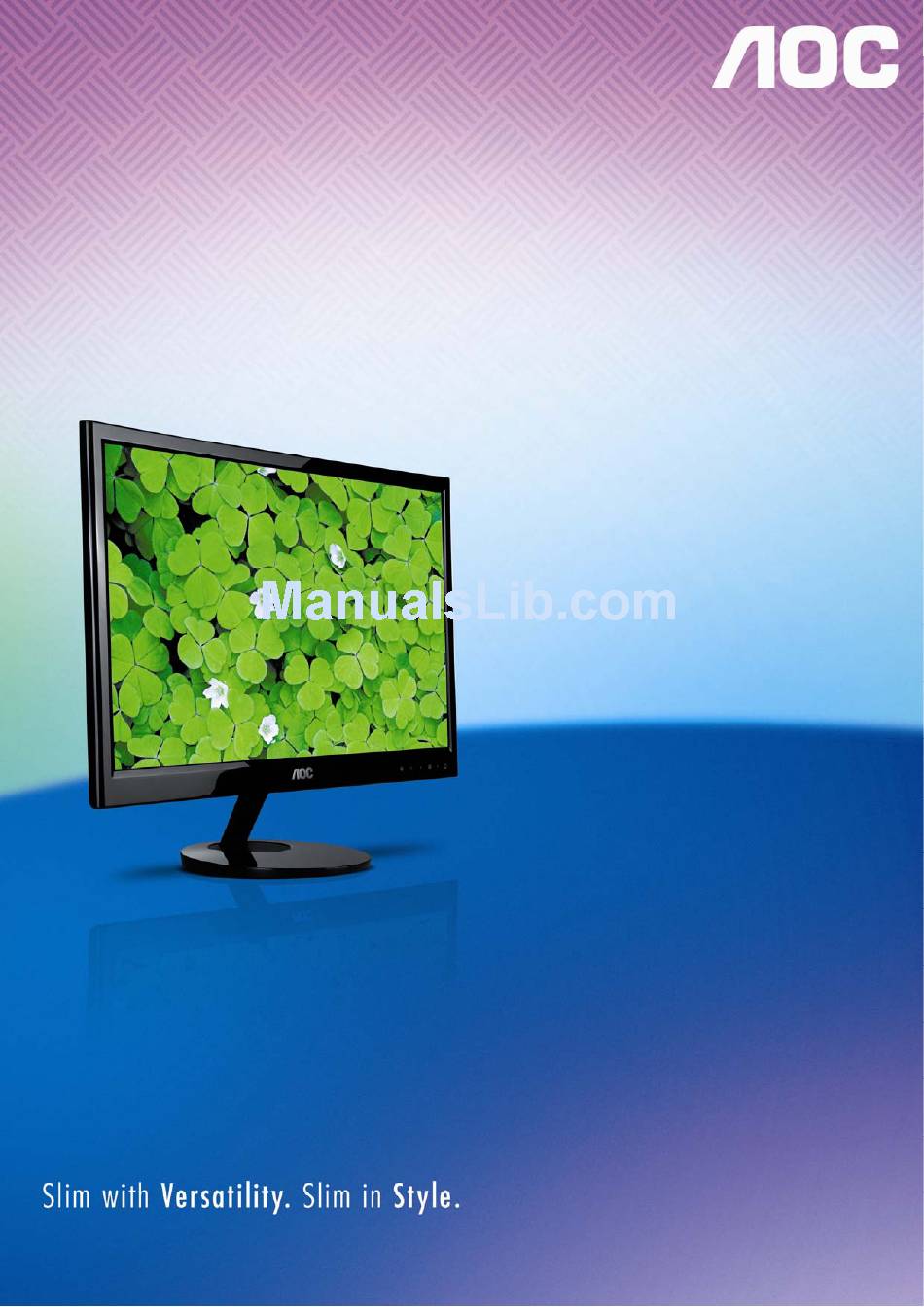

- Page 1 LCD Monitor User Manual 2351F www.aoc.com ®2011 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
Safety ..................................4 National Conventions ............................4 Power ................................5 Installation ................................6 Cleaning ................................7 Other .................................. 8 Setup ..................................9 Contents in Box ..............................9 Setup Stand & Base ............................10 ... - Page 3 Service ..................................55 Warranty Statement for Europe ........................55 Warranty Statement for North & South America (excluding Brazil) ............57 ...
-
Page 4: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 5: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 6: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 7: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 8: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 9: Setup
CD Manual Monitor Base Stand Power Cable Analog Cable DVI Cable HDMI Not all signal cables (Analog, DVI, and HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 10: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... - Page 11 Unit standing without base is available. (Caution: must put unit in flat surface. Any uneven or sloped surface may result unit damaged or injury to user.)
-
Page 12: Adjusting Viewing Angle
Adjusting Viewing Angle For optimal viewing, it is recommended to look at the full face of the monitor, and then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. You are able to adjust the monitor's angle from -3°... -
Page 13: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: D-SUB Power To protect equipment, always turn off the PC and LCD monitor before connecting. Connect the power cable to the AC port on the back of the monitor. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port. -
Page 14: Adjusting
Adjusting Setting Optimal Resolution Windows Vista For Windows Vista: 1 Click START. 2 Click CONTROL PANEL. 3 Click Appearance and Personalization. 4 Click Personalization... - Page 15 5 Click Display Settings. 6 Set the resolution SLIDE-BAR to 1920 by 1080.
-
Page 16: Windows Xp
Windows XP For Windows XP: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Click Appearance and Themes. 5 Double click DISPLAY. -
Page 17: Windows Me/2000
6 Click SETTINGS. 7 Set the resolution SLIDE-BAR to 1920 by 1080. Windows ME/2000 For Windows ME/2000: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Double click DISPLAY. 5 Click SETTINGS. 6 Set the resolution SLIDE-BAR to 1920 by 1080. -
Page 18: Hotkeys
Hotkeys Power Press the Power button to turn on/off the monitor. Menu/Enter Press to display the OSD or confirm the selection. Eco (DCR)/ - Press the Eco key continuously to select the Eco mode of brightness and DCR on when there is no OSD. (Eco mode hot key may not be available in all models). -
Page 19: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Press the MENU-button to activate the OSD window. Press to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it. If there is a sub-menu, press to navigate through the sub-menu functions. -
Page 20: Luminance
Luminance Press (Menu) to display menu. Press to select (Luminance), and press to enter. Press to select submenu, and press to enter. - Page 21 Press to adjust. Press to exit Brightness 0-100 Backlight Adjustment Contrast 0-100 Contrast from Digital-register. Standard Standard Mode Text Text Mode Internet Internet Mode Eco mode Game Game Mode Movie Movie Mode Sports Sports Mode Gamma1 Adjust to Gamma1 Gamma Gamma2 Adjust to Gamma 2 Gamma3...
-
Page 22: Image Setup
Image Setup Press (Menu) to display menu. Press to select (Image Setup), and press to enter. Press to select submenu, and press to enter. - Page 23 Press to adjust. Press to exit Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise. Phase 0-100 Adjust Picture Phase to reduce Horizontal-Line noise Sharpness 0-100 Adjust picture sharpness H.Position 0-100 Adjust the horizontal position of the picture. V.Position 0-100 Adjust the vertical position of the picture.
-
Page 24: Color Setup
Color Setup Press (Menu) to display menu. Press to select (Color Setup), and press to enter. Press to select submenu, and press to enter. - Page 25 Press to adjust. Press to exit Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. Cool Recall Cool Color Temperature from EEPROM. Color setup. sRGB Recall SRGB Color Temperature from EEPROM. Red Gain from Digital-register User Green Green Gain Digital-register.
-
Page 26: Picture Boost
Picture Boost Press (Menu) to display menu. Press to select (Picture Boost), and press to enter. Press to select submenu, and press to enter. - Page 27 Press to adjust. Press to exit Frame Size 14-100 Adjust Frame Size Brightness 0-100 Adjust Frame Brightness Contrast 0-100 Adjust Frame Contrast H. position 0-100 Adjust Frame horizontal Position V.position 0-100 Adjust Frame vertical Position Bright Frame on or off Disable or Enable Bright Frame...
-
Page 28: Osd Setup
OSD Setup Press (Menu) to display menu. Press to select (OSD Setup), and press to enter. Press to select submenu, and press to enter. - Page 29 Press to adjust. Press to exit Adjust the horizontal position of H.Position 0-100 V.Position 0-100 Adjust the vertical position of OSD Timeout 5-120 Adjust the OSD Timeout Transparence 0-100 Adjust the transparence of OSD Language Select the OSD language...
-
Page 30: Extra
Extra Press (Menu) to display menu. Press to select (Extra), and press to enter. Press to select submenu, and press to enter. - Page 31 Press to adjust. Press to exit Input Select Analog Select Analog Signal Source as Input Auto Config yes or no Auto adjust the picture to default Off timer 0-24hrs Select DC off time Image Ratio wide or 4:3 Select wide or 4:3 format for display DDC-CI yes or no Turn ON/OFF DDC-CI Support...
-
Page 32: Exit
Exit Press (Menu) to display menu. Press to select (Exit), and press to exit. Exit Exit the main OSD LED Indicator Status LED Color Full Power Mode Blue Active-off Mode Orange... -
Page 33: Driver
Driver Monitor Driver Windows 7 Start Windows® 7 Click on the 'Start' button and then click on 'Control Panel'. Click on the 'Display' icon. - Page 34 Click on the “Change display settings” button. “ Click the Advanced Settings” button. button. Click the “Monitor” tab and then click the “Properties”...
- Page 35 Click the “Driver” tab. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button. Select "Let me pick from a list of device drivers on my computer".
- Page 36 10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button. 12.
-
Page 37: Windows Vista
Windows Vista Click "Start" and "Control Panel". Then, double-click on "Appearance and Personalization". Click "Personalization" and then "Display Settings". Click "Advanced Settings...". - Page 38 Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue". Click "Update Driver..."...
-
Page 39: Windows Xp
Windows XP Start Windows® XP. Click on the 'Start' button and then click on 'Control Panel'. Select and click on the category ‘Appearance and Themes’. Click on the 'Display' Item. - Page 40 Select the 'Settings' tab then click on the 'Advanced' button. Select 'Monitor' tab - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. - If the 'Properties' button is active, click on 'Properties' button. Please follow the steps below.
- Page 41 Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button. 10. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive).
-
Page 42: Windows 2000
Windows 2000 Start Windows® 2000. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. Double click on the 'Display' Icon. Select the 'Settings' tab then click on 'Advanced...'. Select 'Monitor' - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. - If the 'Properties' button is active. -
Page 43: I-Menu
Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide. -
Page 44: E-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below). -
Page 45: Screen
Screen+ Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the... -
Page 46: Troubleshoot
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press to auto adjust. Picture Is Fuzzy & Has Make sure you are not using an extension cable or switch box. - Page 47 The Computer Power Switch should be in the ON position. The Computer Video Card should be snugly fitted in its slot. Make sure the monitor's video cable is properly connected to the computer. Monitor Is Stuck In Active Inspect the monitor's video cable and make sure no pin is bent. Off-Mode"...
-
Page 48: Specification
Specification General Specification Model name e2351F Driving system TFT Color LCD Viewable Image Size 584.2 mm diagonal Pixel pitch 0.0883*RGB(H)mm x 0.265(V)mm Panel Video R, G, B Analog lnterface Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock 170 MHz... -
Page 49: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STAND RESOLUTION FREQUENCY(kHZ) FREQUENCY(Hz) 640x480@60Hz 31.469 59.940 640x480@72Hz 37.861 72.809 640x480@75Hz 37.500 75.00 800x600@56Hz 35.156 56.250 800x600@60Hz 37.879 60.317 SVGA 800x600@72Hz 48.077 72.188 800x600@75Hz 46.875 75.000 1024x768@60Hz 48.363 60.004 1024x768@70Hz 56.476 70.069 1024x768@75Hz 60.023 75.029 1280x1024@60Hz 63.981 60.020... -
Page 50: Pin Assignments
Pin Assignments Pin Number 15-Pin Side of the Signal Cable Pin Number 15-Pin Side of the Signal Cable Video-Red Video-Green Ground Video-Blue N.C. N.C. DDC-Serial data Detect Cable H-sync GND-R V-sync GND-G DDC-Serial clock GND-B 24-Pin Color Display Signal 24-Pin Color Display Signal Pin Number Pin Number Cable... -
Page 51: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 52: Regulation
Regulation FCC Notice FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 53: Weee Declaration
WEEE Declaration Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 54: Epeat Declaration
AOC believes in protecting the environment. With a key concern for the conservation of natural resources, as well as land ll protection, AOC announces the launch of AOC monitor’s packaging recycling program. This program is designed to help you discard of your monitor carton and ller materials properly. -
Page 55: Warranty Statement For Europe
AOC Color Monitors sold within Europe AOC International (Europe) GmbH warrants this product to be free from defects in material and workmanship for a period of Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) GmbH will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. - Page 56 THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) GMBH BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE.
-
Page 57: Warranty Statement For North & South America (Excluding Brazil)
In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty. * This limited warranty does not cover any losses or damages that occur as a result of:... - Page 58 ARGENTINA: http://ar.aoc.com/support/find_service_center BOLIVIA: http://bo.aoc.com/support/find_service_center CHILE: http://cl.aoc.com/support/find_service_center COLOMBIA: http://co.aoc.com/support/find_service_center COSTA RICA: http://cr.aoc.com/support/find_service_center DOMINICAN REPUBLIC: http://do.aoc.com/support/find_service_center ECUADOR: http://ec.aoc.com/support/find_service_center EL SALVADOR: http://sv.aoc.com/support/find_service_center GUATEMALA: http://gt.aoc.com/support/find_service_center HONDURAS: http://hn.aoc.com/support/find_service_center NICARAGUA: http://ni.aoc.com/support/find_service_center PANAMA: http://pa.aoc.com/support/find_service_center PARAGUAY: http://py.aoc.com/support/find_service_center PERU: http://pe.aoc.com/support/find_service_center URUGUAY: http://pe.aoc.com/support/find_service_center VENEZUELA: http://ve.aoc.com/support/find_service_center IF COUNTRY NOT LISTED: http://latin.aoc.com/support/find_service_center...
- Page 59 *AOC will need to obtain a credit card number if you would like to get a new AOC monitor advanced shipped to your location, prior to the defective unit arriving at AOC’s service center. If you do not wish to supply a credit card, AOC will only ship the new monitor, once the defective unit arrives at the AOC service center.
