AOC e2350Sd Servise Manual

AOC e2350Sd Servise Manual

23" lcd monitor
Hide thumbs Also See for e2350Sd:

Advertisement

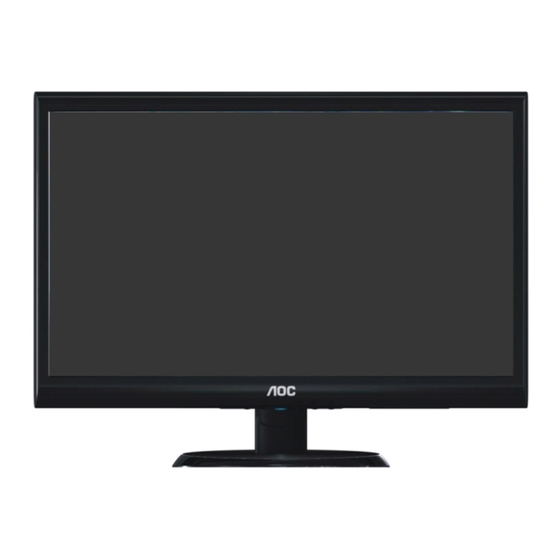

23" LCD Monitor
Service
Service
Service
Table of Contents....................................................1
Revision List...................................................................2
Important Safety Notice.................................................3
1.Monitor Specification...................................................4
2.LCD Monitor Description.........................................5
3.Operation Instruction.................................................7
3.1.General Instructions..................................................7
3.2.Control Buttons and Connections...............................7
3.3.OSD Setting.............................................................9
4.Input/Output Specification........................................25
4.1.Input Signal Connector..........................................25
4.2.Preset Display Modes................................26
4.3.Panel Specification...........................................27
5.Block Diagram............................................................30
5.1.Main Board.....................................................30
5.2.Power Board..................................................31
6.Schematic..........................................................32
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE
CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

Table of Contents

Page Description
6.1.Main Board.......................................................31
6.2.Power Board....................................................37
7.PCB Layout.........................................................39
7.1.Main Board......................................................39
7.2.Power Board.....................................................41
7.3.Key Board........................................................43
8.Maintainability.....................................................44
8.2.Trouble Shooting.............................................45
9. FOS Testing.............................................49
10.Firmware and DDC Instruction.......................53
12.Mechanical Instructions ............... ..............73
13.Monitor Exploded View......................................81
14.BOM List......................................................82
SAFETY NOTICE
1
AOC e2350Sd
Horizontal Frequency
30 - 83kHz
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e2350Sd and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AOC e2350Sd

  • Page 1: Table Of Contents

    23" LCD Monitor AOC e2350Sd Service Service Service Horizontal Frequency 30 - 83kHz Table of Contents Description Page Description Page Table of Contents…………………..…………………..…...1 6.1.Main Board..…….…...........31 Revision List.…...........……..2 6.2.Power Board..……….........37 Important Safety Notice.….…......……..3 7.PCB Layout..………..........39 1.Monitor Specification......………....4 7.1.Main Board………..…........39 2.LCD Monitor Description……….……………………..5 7.2.Power Board….…..........41...
  • Page 2: Revision List

    Revision List Version Release Date Revision History TPV Model Name TDAGN22EAGA1HNE Initial release May.-10-2011 TDAGN22DAGA1HNE TDAGN22QAGA1HNE TDBSN22DAGA1HNE Dec.-01-2011 Add new models TDBSN22EAGA1HNE...
  • Page 3: Important Safety Notice

    Important Safety Notice Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service procedures recommended by AOC and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose. The special tools should be used when and as recommended.
  • Page 4: Monitor Specification

    1.Monitor Specifications...
  • Page 5: Lcd Monitor Description

    2.LCD Monitor Description The LCD monitor will contain a main board, an adapter board, a converter board and a key board which house the flat panel control logic, brightness control logic and DDC. The power part will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips each voltage.
  • Page 6 View and Dimension...
  • Page 7: Operation Instruction

    3. Operating Instructions 3.1 General Instructions Press the power button to turn the monitor on or off. The other control knobs are located at front panel of the monitor (See Figure ). By changing these settings, the picture can be adjusted to your personal preferences. * The power cord should be connected.
  • Page 8 1. Power 2. Analog (DB-15 VGA cable) 3. DVI To protect equipment, always turn off the PC and LCD monitor before connecting. Connect the power cable to the AC port on the back of the monitor. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port.
  • Page 9: Osd Setting

    3.3 OSD Setting Basic and simple instruction on the control keys. 1) Press the MENU-button to activate the OSD window. 2) Press - or + to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it. press - or + to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it.
  • Page 10 Luminance Press (Menu) to display menu. Press to select (Luminance), and press to enter. Press to select submenu, and press to enter. Press to adjust.
  • Page 11 Press two times to exit. Brightness 0-100 Backlight Adjustment Contrast 0-100 Contrast from Digital-register. Standard Standard Mode Text Text Mode Eco mode Internet Internet Mode Game Game Mode Movie Movie Mode Sports Sports Mode Gamma1 Adjust to Gamma1 Gamma Gamma2 Adjust to Gamma 2 Gamma3 Adjust to Gamma 3...
  • Page 12 Image Setup Press (Menu) to display menu. Press to select (Image Setup), and press to enter. Press to select submenu, and press to enter. Press to adjust.
  • Page 13 Press two times to exit. Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise. Phase 0-100 Adjust Picture Phase to reduce Horizontal-Line noise Sharpness 0-100 Adjust picture sharpness H.Position 0-100 Adjust the horizontal position of the picture. V.Position 0-100 Adjust the vertical position of the picture.
  • Page 14 Color Setup Press (Menu) to display menu. Press to select (Color Setup), and press to enter. Press to select submenu, and press to enter. Press to adjust.
  • Page 15 Press two times to exit. Color setup. Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. Cool Recall Cool Color Temperature from EEPROM. sRGB Recall SRGB Color Temperature from EEPROM. Red Gain from Digital-register User Green Green Gain Digital-register.
  • Page 16: Picture Boost

    Picture Boost Press (Menu) to display menu. Press to select (Picture Boost), and press to enter. Press to select submenu, and press to enter. Press to adjust.
  • Page 17 Press two times to exit. Frame Size 14-100 Adjust Frame Size Brightness 0-100 Adjust Frame Brightness Contrast 0-100 Adjust Frame Contrast H. position 0-100 Adjust Frame horizontal Position V.position 0-100 Adjust Frame vertical Position Bright Frame on or off Disable or Enable Bright Frame...
  • Page 18 OSD Setup Press (Menu) to display menu. Press to select (OSD Setup), and press to enter. Press to select submenu, and press to enter. Press to adjust.
  • Page 19 Press two times to exit. H.Position 0-100 Adjust the horizontal position of OSD V.Position 0-100 Adjust the vertical position of OSD Timeout 5-120 Adjust the OSD Timeout Transparence 0-100 Adjust the transparence of OSD Language Select the OSD language...
  • Page 20 Extra Press (Menu) to display menu. Press to select (Extra), and press to enter. Press to select submenu, and press to enter. Press to adjust.
  • Page 21 Press two times to exit. Auto Select to Auto Detect input signal Input Select Analog Select Analog Sigal Source as Input Select Analog Signal Source as Input Auto Config yes or no Auto adjust the picture to default Off timer 0-24hrs Select DC off time Image Ratio...
  • Page 22 Exit Press (Menu) to display menu. Press to select (Exit), and press to enter. Press two times to exit Exit Exit the main OSD...
  • Page 23: Led Indicators

    Orange or red e-Saver Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver);...
  • Page 24 Screen+ Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it.
  • Page 25: Input/Output Specification

    4. Input/Output Specification 4.1 Input Signal Connector Analog connector...
  • Page 26: Preset Display Modes

    4.2 Preset Display Modes...
  • Page 27: Panel Specification

    4.3 Panel Specification 4.3.1 General Features LM230WF5-TLD3 is a Color Active Matrix Liquid Crystal Display Light Emitting Diode ( White LED) backlight system without LED driver. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode.
  • Page 28 LED array electrical characteristics LED driver design guide: The design of the LED driver must have specifications for the LED in LCD Assembly. The performance of the LED in LCM, for example life time or brightness, is extremely influenced by the characteristics of the LED driver.
  • Page 29 4.3.4 Optical Characteristics 25°C =120mA =5.0V, f =60Hz =119MHz,...
  • Page 30: Block Diagram

    5. Block Diagram 5.1 Main Board 04.SCALER 02.INPUT VCC3.3 SOG_DET SOG_DET VCC1.8 05.PANEL INTERFACE EDID_WP AHS0 AHS0 AVS0 AVS0 AVS0 PA[0..9] DDCSDA1 DDCSDA1 DDCSDA1 PA[0..9] PA[0..9] DDCSCL1 DDCSCL1 DDCSCL1 VGA_CABLE_DET VGA_CABLE_DET VGA_CABLE_DET PB[0..9] 02.D-SUB INPUT PB[0..9] PB[0..9] EDID_WP EDID_WP P_SCL P_SCL VLCD P_SDA...
  • Page 31: Power Board

    5.2 Power Board AC input Transformer Rectifier Bridge 14.5 EMI filter (T901) diodes Rectifier and Filter Start Resistor (R908,R911) Feedback PWM Control Circuit Power Switch LD7576AGR (Q901) (U901) Photo coupler Regulator (U902) (IC903) L801 D801 14.5V C809 MOSFET (Q801) (CN805) PWM Control ON/OFF MP3389EF...
  • Page 32: Schematic

    6. Schematic 6.1 Main Board 715G4502M01000004C CN101 DET_VGA R102 100R 1/16W 5% VGA_CABLE_DET VGA_CABLE_DET 5 D-SUB 15P VGA_5V DDCSCL1 R101 DDCSCL_A DDCSCL1 VGA_5V 100R 1/16W 5% VSIN0 BIN0- HSIN0 BIN0 R103 R104 R105 C102 GIN0- BIN0 ZD101 0R05 1/16W 0R05 1/16W 100R 1/16W 5% 47N16V B0+ 5...
  • Page 33 CN102 R127 DVI_CABLE_DET 5 JACK 100R 1/16W 5% DVI5V 3,5,7 VSY NC DET_DVI DVI5V SY NC GND SCL_DVI R128 100R 1/16W 5% D102 DDC SCL SDA_DVI R129 100R 1/16W 5% ESD_DVI BAV70 DDC SDA DVI5V R130 1K 1/16W 5% U104 ESD_DVI Q101 ESD_DVI...
  • Page 34 VCC1.8 U401 NT68660FG FB401 and FB402 is VCC1.8 7 PB[0..9] R402 NC/2K2 1/16W 5% PB[0..9] NC==>3.3V use TO252 type LVB3P FB401 R403 NC/2K2 1/16W 5% CVDD LVB3M 300OHM U401 NT68660UFG FB402 is NC==>3.3V LVBCKP LVBCKM VCC3.3 and 1.8V LDO use SOT-223 type LVB2P C401 C402...
  • Page 35 PA[0..9] PB[0..9] PA[0..9] PB[0..9] LVB3P CN408 LVA3P LVB3M CONN LVA3M LVBCKP LVB0M RXO0- LVACKP LVBCKM LVB0P RXO0+ LVACKM LVB2P LVB1M RXO1- LVA2P LVB2M LVB1P RXO1+ LVA2M LVB1P LVB2M RXO2- LVA1P LVB1M LVB2P RXO2+ LVA1M LVB0P LVA0P LVB0M LVBCKM RXOC- LVA0M LVBCKP RXOC+ LVB3M...
  • Page 36 VCC3.3 CN702 U701 AZ1117H-3.3TRG1 FB701 0 OHM +-5% 1/8W 3,4,5 VCC3.3 5 INPUT OUTPUT VCC3.3 ADJ/GND ON/OFF NC/CONN C701 R702 4K7 1/16W 5% 100N 16V +5V 3,4,5 CN701 R703 100R 1/16W 5% Adj_BACKLIGHT 5 C706 U702 VCC3.3 100N 16V C705 NC/G1117-33T43UF 100uF16V ON/OFF...
  • Page 37: Power Board

    6.2 Power Board Adapter 715G4744P01000001C R929 100 OHM 1/4W BD901 C916 C928 F801 KBP208G R930 100 OHM 1/4W 2N2 500V 2N2 500V 0R05 1/4W +14.5V R903 100 OHM 1/4W R904 ZD901 250OHM2W MTZJ T-72 16B 80GL22T-3 C918 NC/470UF/25V T901 D901 POWER X'FMR SR515 R905...
  • Page 38 Converter 715G4013P01002004S +12V D801 F801 L801 0R05 4A 1/4W 33uH C810 C809 0.47uF 50V 100uF 50V SK310B ON/OFF U801 C803 0.22uf 50V MP3389EF Q806 C807 Q801 CN801 VFAULT 4.7UF 100V Gate APM8005 R801 R805 GATE 300KOHM 1/10W COMP PGND C801 470N 25V C804 ISENSE 10 OHM 1% 1/4W...
  • Page 39: Main Board

    7. PCB Layout 7.1 Main Board 715G4502M01000004C...
  • Page 41: Power Board

    7.2 Power Board Adapter 715G4744P01000001C...
  • Page 42 Converter 715G4013P01002004S...
  • Page 43: Key Board

    7.3 Key Board 715G4747K0E000001C...
  • Page 44: Maintainability

    8. Maintainability 8.1 Equipments and Tools Requirement Voltmeter. Oscilloscope. Pattern Generator. DDC Tool with an IBM Compatible Computer. Alignment Tool. LCD Color Analyzer. Service Manual. User Manual.
  • Page 45: Trouble Shooting

    8.2 Trouble Shooting 1. No Power No power Check power cable is Re-plug the power cable tightened? Check Power “On/Off” Turn on the Power “On/Off” switch is “On”? Check the LED Check the AC power indicate is OK? Replace the converter board Replace main board and check connections Replace key board and check connections...
  • Page 46 2. No Video (Power LED Blue) No Video (Power LED Blue) Press the power Replace the main board button is OK? Replace the converter The end board Replace the main The end board and connection Replace the LVDS/FFC Check the LVDS/FFC cable or panel cable or panel Replace the key board...
  • Page 47 3. DIM DIM (image overlap, focus or flicker) Reset in factory mode The end Set to the optimal The end frequency, select the recommended frequency Readjust the phase and pixel The end clock in the user mode Pull out signal cable and Check the signal cable check “Self Test Feature and the PC...
  • Page 48 4. Color is not optimal Color is not optimal Color shift Miss color Reset the factory mode Replace the signal cable In the user mode, set the” color settings” until customer satisfy The end Pull out the signal cable and check the screen color display is normal? Replace the signal cable or PC Replace the main board...
  • Page 49: Fos Testing

    9. FOS Testing 9.1 Brightness Measurement Max. Brightness>250 cd/㎡(typ). Test conditions: - Center of display - Video input (RGB) = 0,700V for Analog Input - Brightness control is set to max - Contrast control is set to max. Min. brightness measurement: <...
  • Page 50 1. 1920 x 1080 (60 Hz) Cross line 2. Black pattern 1. 1920 x 1080 (60 Hz) 2. Black pattern or White Half line pattern 1. 1920 x 1080 (60 Hz) 2. Black pattern, Red H-Line pattern, Green pattern or Blue pattern.
  • Page 51 1. 1920 x 1080 (60 Hz) 2. Black pattern, Gray scale V-Strip pattern, Red pattern, Green pattern or blue pattern . Abnormal 1. 1920 x 1080 (60 Hz) display 2. Gray scale pattern 1. 1920 x 1080 (60 Hz) Gray defect 2.
  • Page 52 Gray scale 1. 1920 x 1080 (60 Hz) failure 2. Gray scale pattern 1. 1920 x 1080 (60 Hz) Light 2. Black pattern or White leakage pattern 1. 1920 x 1080 (60 Hz) Fuzzy 2. Pane picture video...
  • Page 53: Firmware And Ddc Instruction

    10. Firmware and DDC Instruction 10.1 Firmware Instruction(Novatek ISP for exemple NT68676) Step 1 :OPERATION CONDITIONS: 1) An i486 (or above) personal computer or compatible. 2) Microsoft operation system Windows 95/98/2000/XP. 3) ISPTool programs programs. 4) Printer cable and VGA cable. 5) ISP board (PN: 715GT034-B,715GT048-1 or715GT035-A).
  • Page 54 ISP TOOL front side ISP TOOL reverse side Step 3: Programming: 1. Double-click the icon to install Port95nt print driver, 2. Install tool programme 2.1 decompress PS:NT68168F Scale IC must use V4.566 version. 2.2 Double-click 3. ISP Tool 3.1. Choose ”writer” as follow picture.
  • Page 55 3.2.Double-click icon and run it: 4.Click TOOL “Option”, ”FE2P Mode Enable” TOOL show“√”...
  • Page 56 5.Click tool “Option” choose” Setup ISP tool” and then choose LPT Port,the next ,choose NVT Type (default),click “Auto Detect”to choose the appropriate speed。Click”Confirm change”。 6.Click“Load File” to use the proper software:...
  • Page 57 Click“Auto” AUTO Click “Send MX2026 CMD” Click“AUTO”,when appear “pass” as follow picture that burning is successful:...
  • Page 58 Note: After installation, you must restart the PC to take the setup to effect. Step4:Check whether the FW version is correct, then do “Auto Color” and “Reset”. a. For VGA, if can’t use the recommended optimal resolution; for DVI, if no video with PC source, while picture is normal with chroma source, it’s the reason for “DDC Loss”, so pls do DDC programming.
  • Page 59 II. HDCP Write Step: Step1. Double click “HDCP20091026.exe” Step2. Click “Load HDCP…”. choose the corresponding “*.BIN” by scaler IC (MST Scaler) ,then click “Open” as below.
  • Page 60 Step3. Pls choose the item remarked in red (i.e.: New CMD/Only Connect One Monitor/MST Scaler), then click “Start” to write HDCP, when display “Monitor 1 PASS” means Write OK.
  • Page 61: White-Balance,Luminance Adjustment

    III. Check HDCP. USE “Blu-Ray Disc” DVD to check whether the monitor with DVI connector displays normally. If error message appeared “ ” as below: 1. Check whether the HDCP writer is correct. 2. Check whether the tool is correct or not, and check the connection between PC, Monitor and tool. In addition, check whether the tool’s power supply is available.
  • Page 63 350 ->500 150 ->300 500 ->700...
  • Page 64: Ddc Instruction

    10.2 DDC Instruction Tool list: 1. DDC board:715GT034-B 2. Software (WA.DAT&WD.DAT&*. CONFIG.INI) 3. LPT driver software 4. LPT cable, D-SUB CABLE ,DVI CABLE and DVI to HDMI CABLE 5. 12V( Adapter) 6. TPVDDCHDMI and TPVDDC6.0 7. PC Tool picture For VGA&DVI BURNING: DDC Board as the follow picture: TO PC LPT DC 12V power LCD DVI port...
  • Page 65 1.Double-click the icon “ ” to install Port95nt print driver, and then restart the computer. Double-click select “Analog and DVI” show as follow picture 2. Click “Load file” and select as follow picture.then click “LCDDDC” EX: DDCModelName:CHIMEI96VS 3. Click “ok” show as follow picture.
  • Page 66 4.Input same SN twice and date. Click “Pragram” to burn. When appear “pass” as follow picture that burning is successful.
  • Page 67 5. Click “program”, Note:1. Appear fault as follow , please input SN twice and burning again.
  • Page 68 Note:2. When appear “pass” as follow picture that burning is successful. Note3:Click “Read both” show as follow picuture..If read SN and model name are same as before inputing as before that burning is successful.
  • Page 69 Note4:Appear fault as follow, please check the connection of LPT cable , Tool adapter cable and LCD power. Note5:Appear fault as follow,please check the connection of VGA and the connection of DVI...
  • Page 70 Note6: If the burn software is unsuccessfulll, appear fault: 1. For VGA,the resolution will be not the best achieve. 2. For DVI,No picture,no sound. If program failed, in VGA mode, you can’t use the optimal resolution. When Read is OK, program is NG, pls do take following action: 1.
  • Page 71 11.White- Balance, Luminance Adjustment Approximately 30 minutes should be allowed for warm up before proceeding white balance adjustment. How to setting MEM channel you can reference to chroma 7120 user guide or simple use “SC” key and “NEXT” Key to modify xyY value and use “ID” key to modify the TEXT description Following is the procedure to do white-balance adjust .
  • Page 72 C. Adjust Cool (9300K) color-temperature 1. Switch the Chroma-7120 to RGB-Mode (with press “MODE” button) 2. Switch the MEM. Channel to Channel 9 (with up or down arrow on chroma 7120) 3. The LCD-indicator on chroma 7120 will show x=283±30,y=297±30 4.
  • Page 73: Mechanical Instructions

    12.Mechanical Instructions 1. Put the monitor on the EPE pad. 2. Lay down the monitor and the bottom side faces to Yourself.
  • Page 74 3. Pinch the hook and remove the base. 4. Use fixture to leave off the stand.
  • Page 75 5. Use fixture to remove the hinge cover. 6. Remove the screws of the stand.
  • Page 76 7. Remove the screws of the back cover. 8. Overturn the monitor and the top towards to yourself, and then take apart the front frame with hands.
  • Page 77 9. Prize up the front frame use fixture. 10. Overturn the monitor and take off the back cover.
  • Page 78 11. According to the different defective area to take off the KEPC, light line, LVDS, Hexagon screws, CBPC or PWPC to repair. (1)Remove the KEPC. (2)Pull the light line out.
  • Page 79 (3)Remove the Hexagon screws. (4)Remove the LVDS.
  • Page 80 (5)Overturn the iron plate and remove the screws, PWPC and CBPC.
  • Page 81: Monitor Exploded View

    13. Monitor Exploded Views...
  • Page 82: Bom List

    LCD LM230WF5-TLD1 GZ LGD 2nd source E750 750GBG230W5D31N000 LCD LM230WF5-TLD3 KR LGD 808GE2350SDHKG E2350SD HongKong ASS'Y 2nd source 808GE2350SDRSA E2350SD South Africa ASS'Y 2nd source 808GE2350SDVIE E2350SD Viet Nam ASS'Y 2nd source A15G1587101 HINGE PLATE FOR 50TH A15G1597301102 MAIN FRAME FOR 50TH 23w...
  • Page 83 AC POWER CORD 1500 E08901 089G410A15N IS AC POWER CORD 1500 2nd source H40G 001624 2A CARTON LABEL BARCODE 2 H40G 24N61542A e2350Sd e2450Swd PRC ID LABEL H41G780961529A AP WARRANTY card 808GE2350SDRSA E2350SD South Africa ASS'Y E08902 089G 715CAAE01 SIGNAL CABLE...
  • Page 84 LNPCAC581GHD1 CONVERTER G4013-P01-002-X-3-101201 BD901 093G 50460515 BRIDGE KBP308G-C 3A 800V KBP CN402 033G3802 6B Y WAFER CN701 033G3802 9B Y CONN 2.0 9P CN408 033G801930F CH FFC CONNECTOR 30P 1.0pitch 040G 45762412B CBPC LABEL R707 061G152M47964L SY RST MOFR 4.7 OHM +-5% 2WS FUTABA CN101 088G 35315FVXH D-SUB CONN V/T 15P BLUE 1*1 V/T 30.8...
  • Page 85 C924 065G080510432K CAP CHIP 0805 0.1UF K 50V X7R C912 065G080510432K CAP CHIP 0805 100N 50V X7R +/-10% C926 065G080510432K CAP CHIP 0805 100N 50V X7R +/-10% C927 065G080547332K CAP CHIP 0805 47NF K 50V X7R C916 065G120622272K CER 1206 2N2 500V X7R 10% C917 065G120622272K CER 1206 2N2 500V X7R 10%...
  • Page 86 R137 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN R136 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN R135 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN R134 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN R123 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN...
  • Page 87 R702 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R132 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R131 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R115 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R114 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN...
  • Page 88 C110 065G040247312K CAP 0402 47NF 10% 16V X7R C108 065G040247312K CAP 0402 47NF 10% 16V X7R C107 065G040247312K CAP 0402 47NF 10% 16V X7R C105 065G040247312K CAP 0402 47NF 10% 16V X7R C104 065G040247312K CAP 0402 47NF 10% 16V X7R C102 065G040247312K CAP 0402 47NF 10% 16V X7R...
  • Page 89 J906 095G 90 23 JUMPER WIRE J905 095G 90 23 JUMPER WIRE J904 095G 90 23 JUMPER WIRE J908 095G 90 23 JUMPER WIRE J921 095G 90 23 JUMPER WIRE J903 095G 90 23 JUMPER WIRE J902 095G 90 23 JUMPER WIRE J901 095G 90 23...
  • Page 90 E715 715G4013P01002004S CONVERTER BOARD PCB SW005 077G603S AI CJ TACT SWITCH AI 2PIN SEALED SW004 077G603S AI CJ TACT SWITCH AI 2PIN SEALED SW003 077G603S AI CJ TACT SWITCH AI 2PIN SEALED SW002 077G603S AI CJ TACT SWITCH AI 2PIN SEALED SW001 077G603S AI CJ TACT SWITCH AI 2PIN SEALED...

Table of Contents
