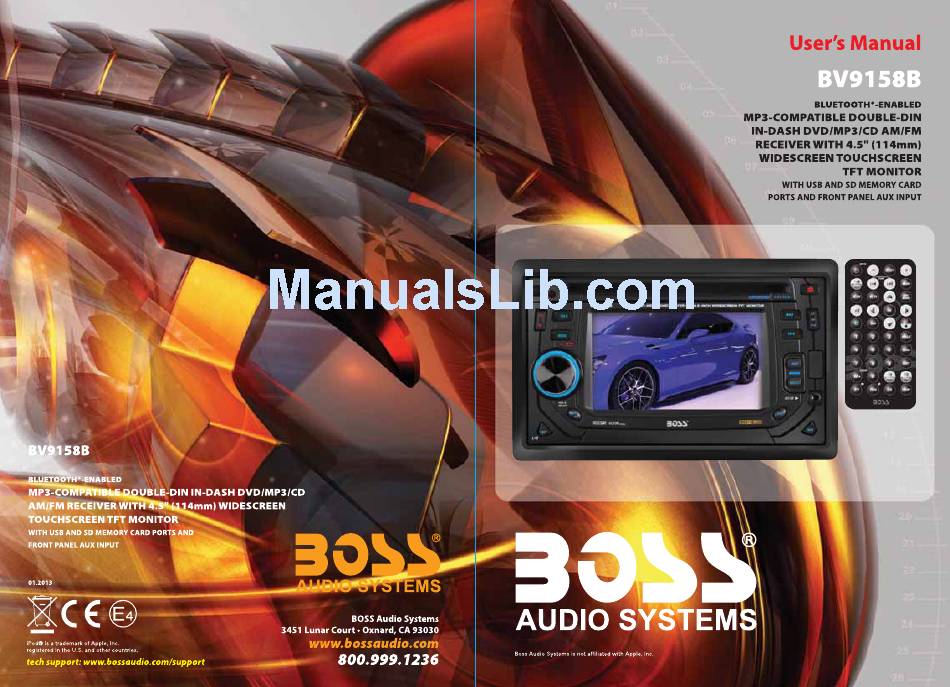

Boss Audio Systems BV9158B User Manual

Boss Audio Systems BV9158B User Manual

Bluetooth-enabled mp3-compatible double-din in-dash dvd/mp3/cd am/fm receiver with 4.5" (114mm) widescreen touchscreen tft monitor with usb and sd memory card ports and front panel aux input
Hide thumbs Also See for BV9158B:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BV9158B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Boss Audio Systems BV9158B

Summary of Contents for Boss Audio Systems BV9158B

  • Page 2 To ensure safety while driving and to comply with laws, drivers should not watch video or operate the video device while driving.
  • Page 3 4.5" Bluetooth-Enabled In-Dash Double-DIN DVD/MP3/CD Receiver with USB, SD Memory Card Ports and Front Panel AV Input...

  • Page 4: Handling Compact Discs

    1. HANDLING COMPACT DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

  • Page 5: Installation

    2. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

  • Page 6: Din Rear-Mount (Method B)

    DIN REAR-MOUNT (METHOD B) Installation using the screw holes on the sides of the unit. Fastening the unit to the factory radio mounting bracket. Note: the mounting box, outer trim ring,and half-sleeve are not Screw Factory radio mounting bracket used for this installation. Note: The mounting box, metal half sleeve, hook &...

  • Page 7: Electrical Connection

    3. ELECTRICAL CONNECTION a. Make sure your car battery is a 12 volt (6 filler caps) negative ground system (if not, a converter will be necessary). b. Before starting wiring connections, disconnect the power supply by removing the fuse from the fuse box.
  • Page 8 BAND/ LOUDNESS/ CANCEL/ PANEL POWER/ APL/NTSC TALK MODE RELEASE MUTE BUTTON BUTTON BUTTON BUTTON BUTTON ENCODER SCAN FUNCTION VOLUME BUTTON SELECT BUTTON KNOB DISPLAY BUTTON INFRARED BUTTON EJECT REMOTE BUTTON SENSOR DSP/ AMS/ TUNING / LEFT/ FM MONO / PLAY/PAUSE SEEK RIGHT STEREO...
  • Page 9 E - 6...

  • Page 10: Basic Operation

    5. BASIC OPERATION PANEL RELEASE BUTTON Press this button to remove the control panel. POWER BUTTON Press power button to turn on/off the unit. DISPLAY BUTTON( DISP ) Press this button briefly, the LCD will display the clock for about 3 seconds, MUTE BUTTON ( MUTE) Press MUTE button to mute the sound quickly.

  • Page 11: System Setup

    6. SYSTEM SETUP Basic operation of menu setup 1. General setup menu In main menu,touch to enter into SETTINGS mode. 2.Choose menu setup * Touch cursor and choose setup menu. 3.Enter or exit menu * Touch in the menu and enter into SETTINGS menu. * Touch in the SETTINGS menu to exit current setup menu.

  • Page 12: Radio Operation

    7. RADIO OPERATION RADIO FUNCTION KEY Touch the icon in any mode to go back to the main menu and select RADIO to enter the radio mode. 87.50MHZ 90.10MHZ 12:06 CH-00 98.10MHZ 87.50M 106.10MHZ 107.90MHZ 87.50MHZ Function description Serial number Name Information CURRENT BAND AND FREQUENCY...
  • Page 13 FM MONO / STEREO BUTTON (MONO) Use this control to select stereo or mono reception for FM radio stations. You can sometimes improve reception of distant stations by selecting mono mode. LOCAL / DX BUTTON (LOC) This control can be used to change between Local and Distant (-DX) tuning mode. Local mode improves reception in some areas where the signal is too strong.
  • Page 14 8. Bluetooth Hand Free Panel / Remote Control Function Key Matrix E - 11...

  • Page 15: Bluetooth Mode Operation

    BLUETOOTH MODE OPERATION INSTRUCTION FOR HANDSFREE FUNCTION 1. PAIR IT WITH YOUR PHONE (PAIRING) Before you use your Car HANDSFREE System,you need to pair it with your mobile phone. 1. The Bluetooth set system on the head unit will automatically go into pairing mode when the Ignition is being turned on and the Bluetooth symbol indicator on the display will Flash every 1 second.
  • Page 16 4. BLUETOOTH NOTICE Before you start to use our Bluetooth HEAD UNIT , Please pair the unit with your mobile phone completely. Please refer to the section of “PAIRING” To ensure the best reception for Pairing & Re-connection, please make sure the phone Battery is fully charged when making the pairing or Re-connection.
  • Page 17 Specifications for Bluetooth BLUETOOTH 200mA Max. Power Consumption 0 dBm (Class II) Output Power 2.4GHz ~ 2.4835GHz ISM Band Frequency Band 3 meters (free space) Range Bluetooth 2.0 specification Standard Specifications subject to change without notice. Remark: Our Bluetooth Handsfree System adapts to the Bluetooth spec V2.0 and higher. It is compatible with profiles such as Handsfree profile and Head Set profile.

  • Page 18: Name Function

    9. DISC/MULTIMEDIA FILES OPERATIONS The playing file is a Music file. The playing file is a Photo file. File Switch Region: Displays the file type of the playing and the switching. Function KEY AUDIO MENU TITLE DESCRIPTION NAME FUNCTION Menu CURRENT DIRECTORY NAME Information DISPLAY DISC INFO RMATION...
  • Page 19 MULTIMEDIA FILE OR FOLDER SEARCHING CD SLOT Insert the disc into CD slot. The CD will begin to play. EJECT BUTTON Press this button to eject the CD from the unit. The receiver will switches to radio mode automatically. PLAY/PAUSE BUTTON ( Press this button briefly to pause disc play, press again to resume play.
  • Page 20 GO TO BUTTON (GO TO) Using GO TO feature to select track number or specific time. A. Press GO TO button,the screen will display the following message: T R K 0 0 1 / 0 2 1 0 0 : 0 1 5 6 B.
  • Page 21 10. PLAY MULTIMEDIA FILES OPERATION Place a disc into the player, and the player will auto search the directories saved files. After searching, it will automatically go to the first directory saved files (to the disc containing both Music and Photo files; To the disc containing single type of files, it will automatically go to the first directory) and play the first song in the directory (“01:”...
  • Page 22 11. MMC/SD CARD & USB DEVICE OPERATIONS START THE USB DEVICE MODE USB SOCKET P .1 1.The USB mini socket is accessible as indicated in picture 1.(P .1) 2.Plug in the USB drive / device completely as indicated in picture 2(P .2) and display will show “USB” to indicate that the USB drive / device is being plugged in correctly &...

  • Page 23: Start The Sd/Mmc Mode

    START THE SD/MMC MODE P .4 1.Press panel release button to release the front panel.(P .4) 2.The SD/MMC card slot is located on top of the front panel as indicated in (P .5). 3. Insert the SD/MMC card into the card slot in the correct direction until a “CLICK”...
  • Page 24 12. VIDEO DISC OPERATIONS DVD TT 01/05 CH 011/018 01:11:56 AUDIO MENU TITLE Description Name Function Information bar DISPLAY DISC INFO. ANGLE BACK TO MAIN MENU MOVE CURSOR UP/DOWN/LEFT/RIGHT CONFIRM SELECTED INFORMATION PAUSE/PLAY BACK TO MAIN MENU OF DISC PREVIOUS MUSIC/ NEXT MUSIC BACKWARD/ FORWARD...

  • Page 25: Play Button

    10 11 HUE - / HUE + USER/STDY /BRIG/ SOFT /SHAR PLAY BUTTON ( Press this button briefly to pause disc play, press again to resume play. STOP BUTTON( Stop the current disc playback. Briefly press the STOP button to stop the unit playback,when the PLAY button is pressed,normal playback will continue.
  • Page 26 NUMERIC BUTTONS Use when playback disc which need numeric Selection or Input, like in the Goto function, etc. PAL/NTSC BUTTON (P/N) In order to achieve the best image display effect, you must adjust the player signal system to match your TV set. 3 types of TV color signal system are available: NTSC, PAL60 or Automatic mode.
  • Page 27 PBC FUNCTION BUTTON (PBC) Press the “PBC” button to turn on PBC function. The unit will show the song list on the screen of the monitor after the WARNING from the Video CD. Then you can choose the song by pressing the desired number key. Press PBC key return to manual of Video CD, NOTE:This only operates with the PBC function on VCD.

  • Page 28: Osd Button

    SUBTITLE BUTTON (SUBTITLE) 1. Press SUBTITLE button to bring up the subtitle information which will be shown on the top right corner of the screen. 2. Each time you press SUBTITLE, you can switch to another subtitle available in the disc. NOTE:This only operate if the disc with the SUB TITLE function.

  • Page 29: Setup Menu Operation

    13. SET UP MENU OPERATION General Steps of Setup Menu 1) Press the Setup button, the main setup menu appears. When the main menu displayed, the Video will auto pause. 2) Press the Left and Right arrow buttons to highlight the icon of the desired page, then press the Down or Right arrow button to activate that page;...
  • Page 30 4) Press the Arrow buttons to highlight the Exit Setup option, then press Enter or Setup again to exit Setup Menu. NOTE: When setup, the pressing setup buttons will turn off the setup menu, while the choices that have been changed will be saved. Setup Items Introduction 1) SYSTEM SETUP The system setup options are illustrated below:...

  • Page 31: Language Setup

    TV TYPE 16 : 9 (Wide Screen): Choose this setting if your Multimedia player is connected to a wide screen TV. If you choose this setting and you don't have a wide screen TV, the images on the screen may appear distorted due to vertical compression. 4 : 3 LB (Letter Box): Choosing this setting if your Multimedia player is connected to a normal...
  • Page 32 OSD LANGUAGE Highlight the OSD LANGUAGE option, and press the Arrow buttons to choose the OSD language you prefer. Press Enter to confirm, and it will display OSD in that language. AUDIO LANG Highlight the AUDIO LANG option, and press the Arrow buttons to choose the audio language you prefer.

  • Page 33: Specifications

    14. SPECIFICATIONS CD PLAYER Compact disc audio system System Compact disc, CD-R, CD-RW Usable disc 44.1KHz Sampling frequency 1bit No of quantization bits 5-20,000Hz Frequency 2 stereo Number of channels 70dB S/N Ration RADIO SECTION 87.5 -108 MHz (EURO) Frequency Range 87.5 -107.9 MHz (USA) 10.7 MHz Intermediate Frequency...
