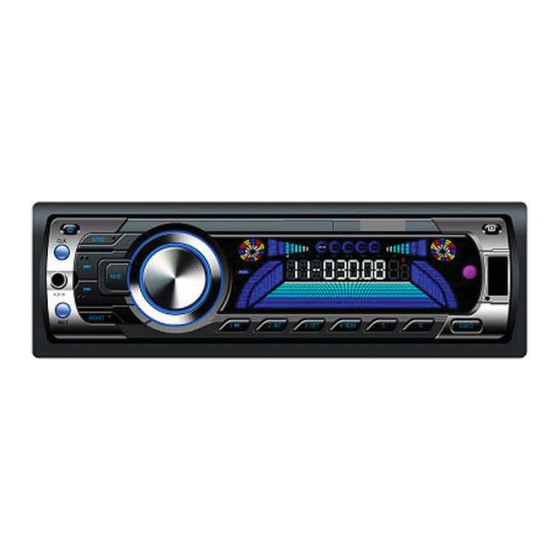

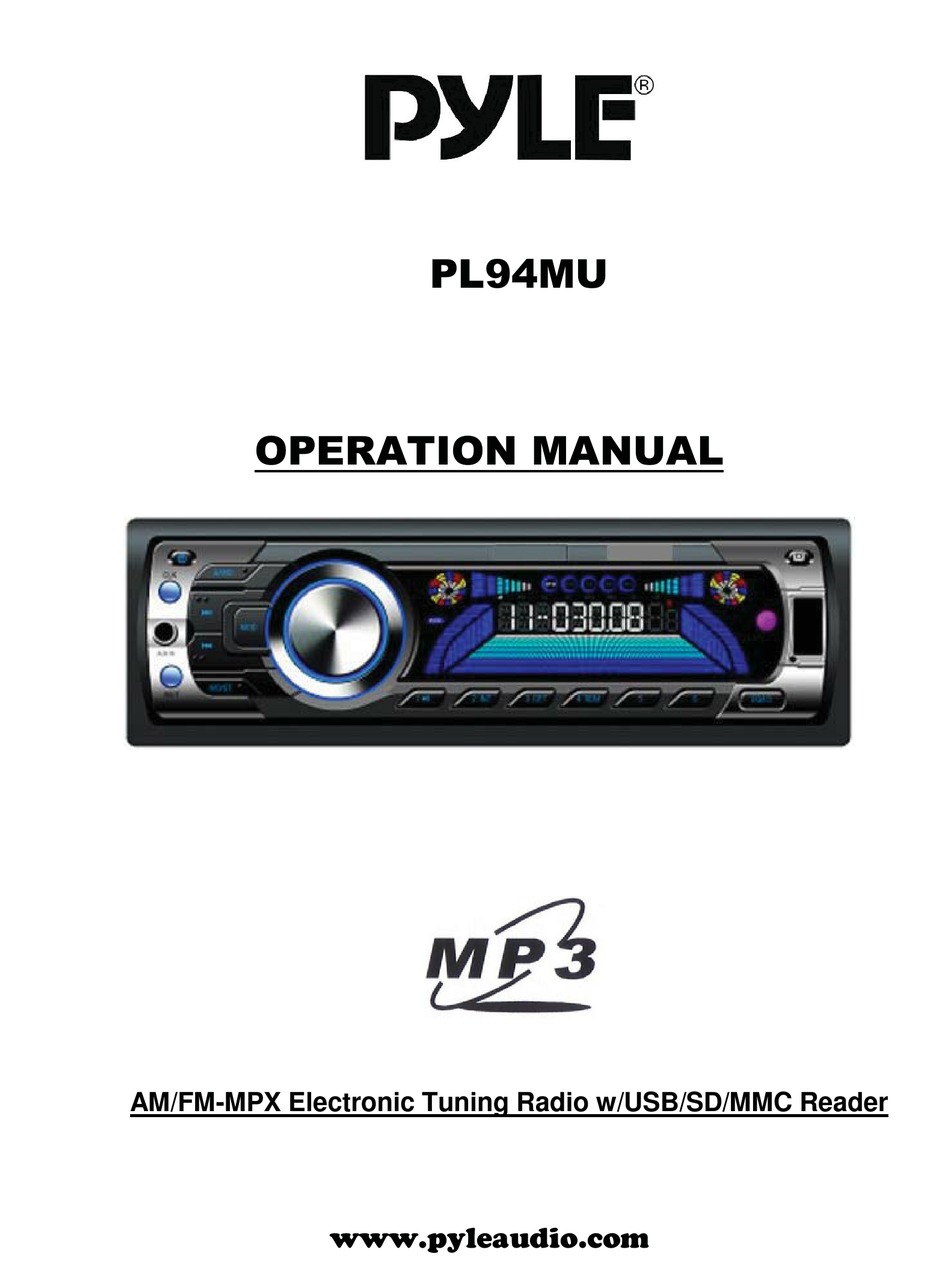

- Page 1 3/ 08 23(5$7,21 0$18$/ AM/FM-MPX Electronic Tuning Radio w/USB/SD/MMC Reader ZZZS\OHDXGLRFRP...
- Page 2 &217(176 Contents ------------------------------------------------------ 1 Welcome ----------------------------------------------------- Note on Installation ---------------------------------------- 2 Precautions -------------------------------------------------- 2 Installation --------------------------------------------------- 3 – 4 Wiring Diagram --------------------------------------------- 5 Main Unit – Controls Location -------------------------- Main Unit – General Operation ------------------------- 7 – 8 Main Unit – Radio Operation ---------------------------- 9 Main Unit –...
- Page 3 :(/&20( Thank you for purchasing our company multi-media player! To operate the unit correctly, please read the operation manual carefully before using. Keep this operation manual for future reference. 127( 21 ,167$//$7,21 The unit is designed for DC 12V negative ground operation system only. Before installing the unit, make sure your vehicle is connected to DC 12V negative ground electrical system.
- Page 4 ,167$//$7,21...
- Page 5 ,167$//$7,21 Mounting Method B This mounting method is used for most Japanese cars. The actual mounting method should depend on the type of cars and the supplied parts. Note: Store small articles in places not accessible to children Install only with supplied screws Installation...
- Page 6 :,5,1* ',$*5$0...
- Page 7 /2&$7,21 2) 0$,1 81,7 &21752/6 23 2 7 10 22 21 11 8 Unit Reset USB Slot SD/MMC Card Port Power On/Off Control ( Panel Open Button ( Play & Pause Control ( Remote Control Sensor (IR) Intro Play Control (INT) LCD Display Repeat Play Control (RPT) Audio Control / Function Selector...
-
Page 8: Remote Control Sensor
0$,1 81,7 ² *(1(5$/ 23(5$7,21 INITIAL SYSTEM SETUP (RESET OF UNIT) Operating the unit for the first time or after replacing the car battery, it is necessary to reset the unit. Press UNIT RESET (1) with a pointed object (such as a ball point pen) to reset the unit to its initial setting by the factory (default stage). -
Page 9: Function Selector
0$,1 81,7 ² *(1(5$/ 23(5$7,21 RELEASE OF FRONT PANEL Press (3) to fold down the front panel. After the folded down of front panel, you can detach the removable front panel from the main unit for anti-theft security purpose. FUNCTION SELECTOR Press and hold the FUNCTION SELECTOR (6) for two seconds will activate control on different functions. -
Page 10: Band Selection
0$,1 81,7 ² 5$',2 23(5$7,21 BAND SELECTION At radio mode, repeatedly pressing BND (7) to select the desired band in the following orders: > FM1 > FM2 > FM3 > AM1(MW1) > AM2(MW2) > AUTO MEMORY STORE At radio mode, press APS (9) for 2 seconds to start searching from the current frequency and storing the strongest signal stations into the corresponding preset station number 1 –... -
Page 11: Repeat Playback
0$,1 81,7 ² 86%6' ,1387 23(5$7,21 USB SLOT Insert USB device to the USB SLOT (13) to play MP3/WMA music files that recorded. The device will have playback automatically after the USB device inserted. SD / MMC CARD PORT Insert SD or MMC card to the SD/MMC CARD PORT (14) to play MP3/WMA music files that recorded. - Page 12 5(027( +$1'6(7 ² &21752/ /2&$7,21 (For unit with remote control only) Power On/Off Control Clock Display/Adjustment Mono/Stereo Selector Volume & Function Control Loudness Control Audio / Function Selector Local/Distant Selector Radio Band / MP3 ID3 Selector Radio Scan Control Tracks Play/Pause Control Tuning / Tracks Select Control Tracks Random Play Control APS / Music Search Control...
- Page 13 5(027( +$1'6(7 ² *(1(5$/ 23(5$7,21...
- Page 14 5(027( +$1'6(7 ² *(1(5$/ 23(5$7,21 POWER ON/OFF Press PWR (1) to turn on the unit. Press it again to turn off the unit. All the memorized setting will retain after the unit turned off. The unit can be turned on by pressing any key of the remote handset.
-
Page 15: Loudness Control
5(027( +$1'6(7 ² *(1(5$/ 23(5$7,21 LOUDNESS CONTROL Press LOUD (3) to increase the bass specially when listening at low volume level. “LOUD ON” will indicate shortly on LCD display. Press LOUD (3) again to shut down loudness and LCD display will show “LOUD OFF” shortly. 5(027( +$1'6(7 ²... - Page 16 5(027( +$1'6(7 ² 5$',2 23(5$7,21 PRESET MEMORY At radio mode, press any one of the preset number 1 – 6 (8) to select a station which had been stored in the memory. Press any one of the preset number 1 – 6 (8) for two seconds can store the current broadcasting station in the memory.
- Page 17 5(027( +$1'6(7 ² 86%6' ,1387 23(5$7,21 REPEAT PLAYBACK At USB/SD/MMC device playback mode, press RPT (19) to continuously repeat playback the same track. During repeat playback mode, “RPT” appears on the LCD display. Press it again to stop this repeat playback. RANDOM PLAYBACK At USB/SD/MMC device playback mode, press RDM (16) to play tracks on disc or device in random order and “RDM”...
- Page 18 63(&,),&$7,21 GENERAL Power Requirement --------------------------------------------- DC 12 Volts, negative ground Load Impedance ------------------------------------------------- 4 Ohms Maximum Power Output --------------------------------------- 60 watts x 4 channels Tone Control – Bass (at 100 Hz) ---------------------------- +/-8 dB Treble (at 10 KHz) -------------------------- +/-8 dB Chassis Dimension ---------------------------------------------- 178(W) x 140(D) x 50(H) mm Net Weight ---------------------------------------------------------...
- Page 19 6,03/( 7528%/( 6+227,1* *8,'( 352%/(06 &$86(6 62/87,216 No power - Check and make sure the connecting wires are connected correctly - Check whether the fuse is blown. Replace with the proper value fuse if necessary. No sound - Check and make sure the speaker wires are connected correctly. Unit hand-up - Press the RESET button to reset the unit to its default stage.
- Page 20 IB-B049-0007-00...
