Main Display - Behringer DIGITAL MIXER X32 PRODUCER Brochure

Powerful scene management
for convenient handling of
complex productions
48-channel Digital Snake ready**
via AES50 ports, featuring
KLARK TEKNIK's SuperMAC
networking capability for
ultra-low jitter and latency
USB type-A connector providing file
storage and uncompressed stereo
recordings plus show presets and
system updates
Dedicated and easy-to-use channel
strip section with direct access
controls and graphic user interface
for intuitive workflow
Additional user-definable control
section allows to set up short-cuts to
your favorite views or parameters
ULTRANET connectivity for
BEHRINGER's P-16 Personal
Monitoring System**
Networked remote control for show
setups with on-screen software
editor via Ethernet
Built-in expansion port for audio
interface cards or digital
networking bridges
MIDI In/Out for remote scene recall
or controlling other MIDI equipment
Future firmware updates, incl. new
FX "Plug Ins", downloadable from
behringer.com free of charge
Conceived and designed by
BEHRINGER Germany
*FireWire, iPod touch, iPhone, and iPad are trademarks of Apple Inc.,
registered in the U.S. and other countries. The AES50 trademark is a
property of the Audio Engineering Society, NY. All trademarks, including,
but not limited to HUI, Mackie, Lexicon, PCM, EMT, Quantec and QRS are
trademarks or registered trademarks of their respective owners. Their use
neither constitutes a claim of the trademark nor affiliation of the trademark
owners with MUSIC Group. Product names are mentioned solely as a
reference for X32 PRODUCER compatibility and effects.
**P16 Personal Monitoring System and Digital Snake are not included.

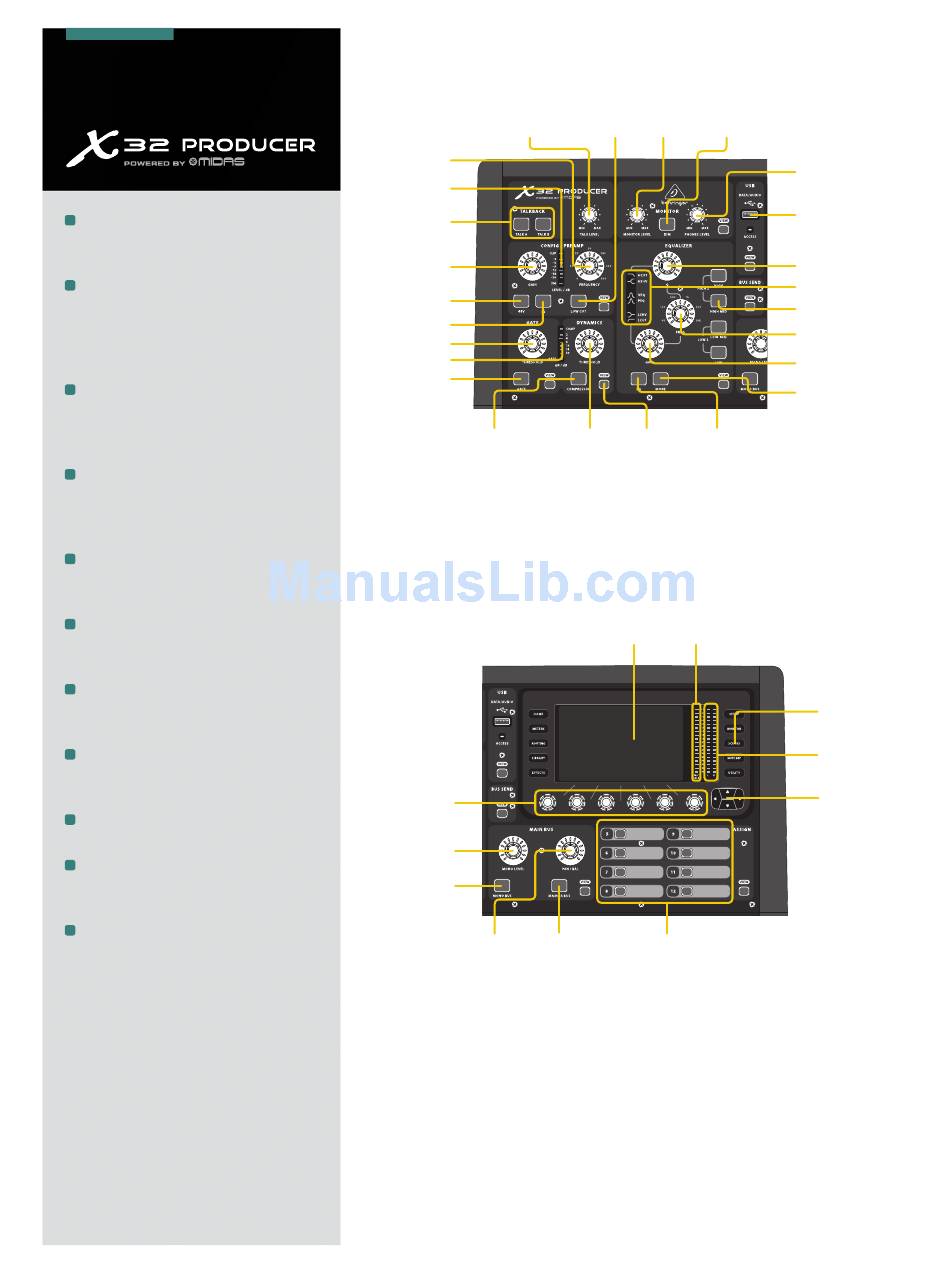

Input Channel Preamp, Dynamics and EQ Panel
Talkback
Level
control
Low Cut filter
frequency control
Input Level meter
Talkback mic
A and B controls
Input Gain control
+48 V Phantom
Power button
Phase Invert button
Gate Threshold control
Dynamics LED meter
Gate button
Compressor button

Main Display

TFT display rotary
encoders (include
button push capability)
Main/Mono Bus
Level control
Mono Bus button
Stereo Bus Balance
(pan) control
Dim button lowers
Low Cut Monitor control room/
filter Level phones outputs to
button control user defined levels
Dynamics View button per Equalizer
Threshold section shows button
control parameters on
main display
Mono Bus/Solo
Color display level meter
Stereo Bus Custom buttons
button (user-definable for
frequent tasks)
Page 2 of 5
Phones Level
control
USB socket
Equalizer control
EQ mode status
EQ band buttons
EQ frequency
controls
EQ Gain control
EQ Mode button
Display selection buttons
LR Bus level meter
Display navigation
