Summary of Contents for Gateway FPD2200

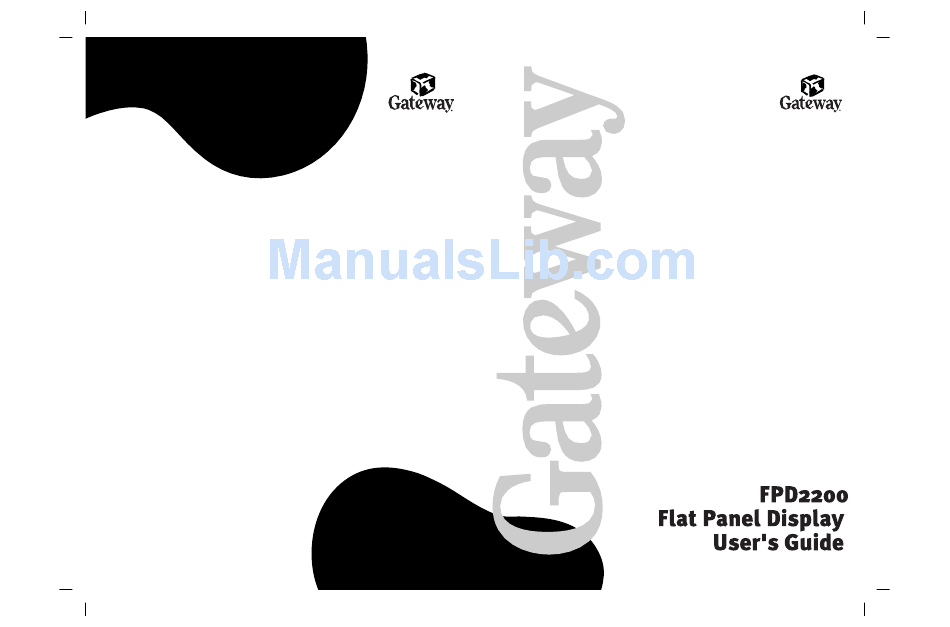

- Page 1 P/NO : 3828TUO197A (0203-Rev00) Printed in Korea...
-
Page 2: Table Of Contents
Contents Introduction ..............A1 Important Precautions . -
Page 3: Introduction
Introduction The FPD2200 Flat Panel Monitor has an active matrix TFT (Thin-Film Transistor) LCD (Liquid Crystal Display). Features FPD2200 is a 22-inch (55.8cm viewable) intelligent micro-processor based monitor. This monitor can be connected to a VCR or DVD. The monitor has two signal connectors (D-sub and DVI-D) so that it can support both an existing analog input (D-sub) and an advanced standard digital input (DVI-D). -
Page 4: Important Precautions
Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential e shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing. - Page 5 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
-
Page 6: Description Of Controls
Description of Controls Front Panel Controls MENU Button SOURCE MENU SOURCE Selection DOWN/UP ( Button Buttons Control SOURCE Selection SOURCE Button INPUT SELECT DIGITAL DSUB ANALOG (AV) MENU MENU Button DOWN/UP ( DOWN/UP Buttons LEFT/RIGHT ( LEFT/RIGHT Buttons SET Button Power Indicator Power Button SET Button... -
Page 7: Rear Panel Controls
Description of Controls Rear Panel Controls DC15V S-Video Video Sound PC Audio DC Power Connector DC15V DVI-D Connector Connected to another object (stand type and wall-mounted type – optional) Audio Locking slot connected to a locking cable that can be purchased separately at most computer stores. -
Page 8: Connecting The Monitor
Connecting the Monitor To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices. Connect the cables to the monitor with it lying on a cushion or a cloth. Follow these steps: Using the Computer Connect the signal cable. - Page 9 Connecting the Monitor DC Power D-sub connector connector Figure 2 DC15V AC adapter Power Cord Note : The figure shows the connection to an Apple Macintosh, using a separately purchased adapter. For more information on adapter requirements, contact your authorized dealer, reseller, or service provider. Connect the plug from the AC adapter into the back of the monitor.
-
Page 10: Connection Of External Equipment
Connection of external equipment Connecting the VCR/DVD Connect the audio/video output jacks of the VCR/DVD to the corresponding input ports of the set. If you connect the S-Video input port to external equipment, you can enjoy high definition display. • Monitor S-Video •... -
Page 11: On Screen Display (Osd) Control Adjustment
On Screen Display (OSD) Control Adjustment Making adjustments to the image size, position and operating parameters of the monitor are quick and easy with the On Screen Display Control system. A quick example is given below to familiarize you with the use of the controls. Following section is an outline of the available adjustments and selections you can make using the OSD. -
Page 12: On Screen Display(Osd) Selection And Adjustment
On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selection and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the items that are shown on the Menu. Adjusting the Screen when Using a Computer Note : When input is set as a digital signal, only the BRIGHTNESS, SETUP, and PIP items can be adjusted. -
Page 13: Elapsed Time
On Screen Display(OSD) Selection and Adjustment OSD Adjust TRACKING Image R G B AUTO Color CLOCK Position PHASE Tracking Setup SETUP Image R G B LANGUAGE ENGLISH Color IMAGE SIZE FULL OSD POSITION Position TRANSPARENCY BEEP Tracking ZOOM Setup 1024 x 768 48.3 kHz / 60Hz ELAPSED TIME 00000H Description AUTO... - Page 14 On Screen Display(OSD) Selection and Adjustment OSD Adjust Image R G B PIP ON/OFF Color PIP SOURCE V1 ( AV ) PIP SIZE LARGE Position PIP POSITION Tracking PIP IMAGE Setup Description This PIP (Picture-in-Picture) function allows the image from the VCR or DVD to be displayed on a sub-screen while you are using a computer.
- Page 15 On Screen Display(OSD) Selection and Adjustment Adjusting the Screen when Using VCR/DVD ( V1 / V2 ) OSD Adjust ADJUSTMENT Adjustment CONTRAST Setup BRIGHTNESS SHARPNESS COLOR TINT SETUP Adjustment LANGUAGE ENGLISH Setup IMAGE SIZE FULL OSD POSITION TRANSPARENCY BEEP Description CONTRAST Adjust the display to the contrast desired.
-
Page 16: Video Memory Modes
Video Memory Modes The display modes listed below are the most commonly used modes and are set as factory defaults. The monitor automatically recognizes most input data modes, and displays centered images with the proper sizing. If the screen size is inappropriately set or the display is not centered, you need to readjust the parameters of the monitor using the OSD (on-screen display). -
Page 17: Troubleshooting
Troubleshooting Check the following before calling for service. Display Position is incorrect. Select AUTO in the OSD menu. If the results are unsatisfactory, adjust the image position using the position icon in the on screen display. On the screen background, vertical bars or stripes are visible. Select AUTO in the OSD menu. -
Page 18: Specifications
Specifications Display Type Viewable Size Viewing Angle(max.) Pixel pitch True color Sync Input Horizontal Freq. Vertical Freq. Input form Signal input Video Input Input Form Resolution (max.) Power Normal Stand-by/Suspend ≤ 8W Consumption Power Off Dimensions Width Height Depth Power Input DC 15V 5.0A AC Adapter Input...
