• The Comfort Control System™ provides on-board diagnos-
tics and fault history for condensing units with single-phase
compressors by detecting system and electrical problems
without adding sensors. It can also communicate "fault
codes" to enabled "L terminal" thermostats. The integrated
diagnostics with Active Protection prevents compressor oper-
ation when damage would occur.
• 7-Segment LED Display is exclusive only to Rheem products.
The information-display quickly and accurately shows techni-
cians the source of malfunctions.
• Features a ten-year conditional unit replacement warranty
when properly installed with a new Rheem Air Handler or
Rheem Indoor Coil with a Rheem Gas Furnace. See product
warranty card for additional information.
• Compressor sound blanket is standard to provide quiet
operation.
• Reliable Two-Stage Scroll™ Compressor for precise tempera-
ture control providing ultimate comfort.
• Comfort Alert™ Diagnostics comes installed in each Rheem
Prestige Series™ model.
• All controls are accessible by removing one service panel.
Removable top grille provides access to the condenser fan
motor and condenser coil.

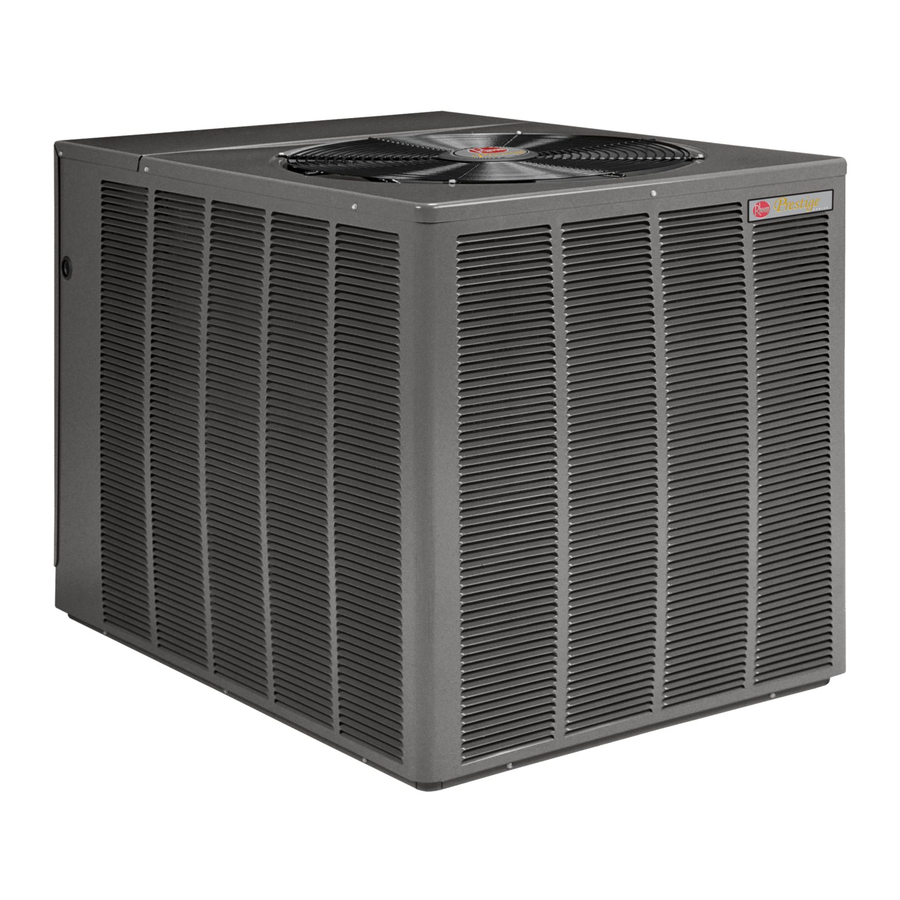

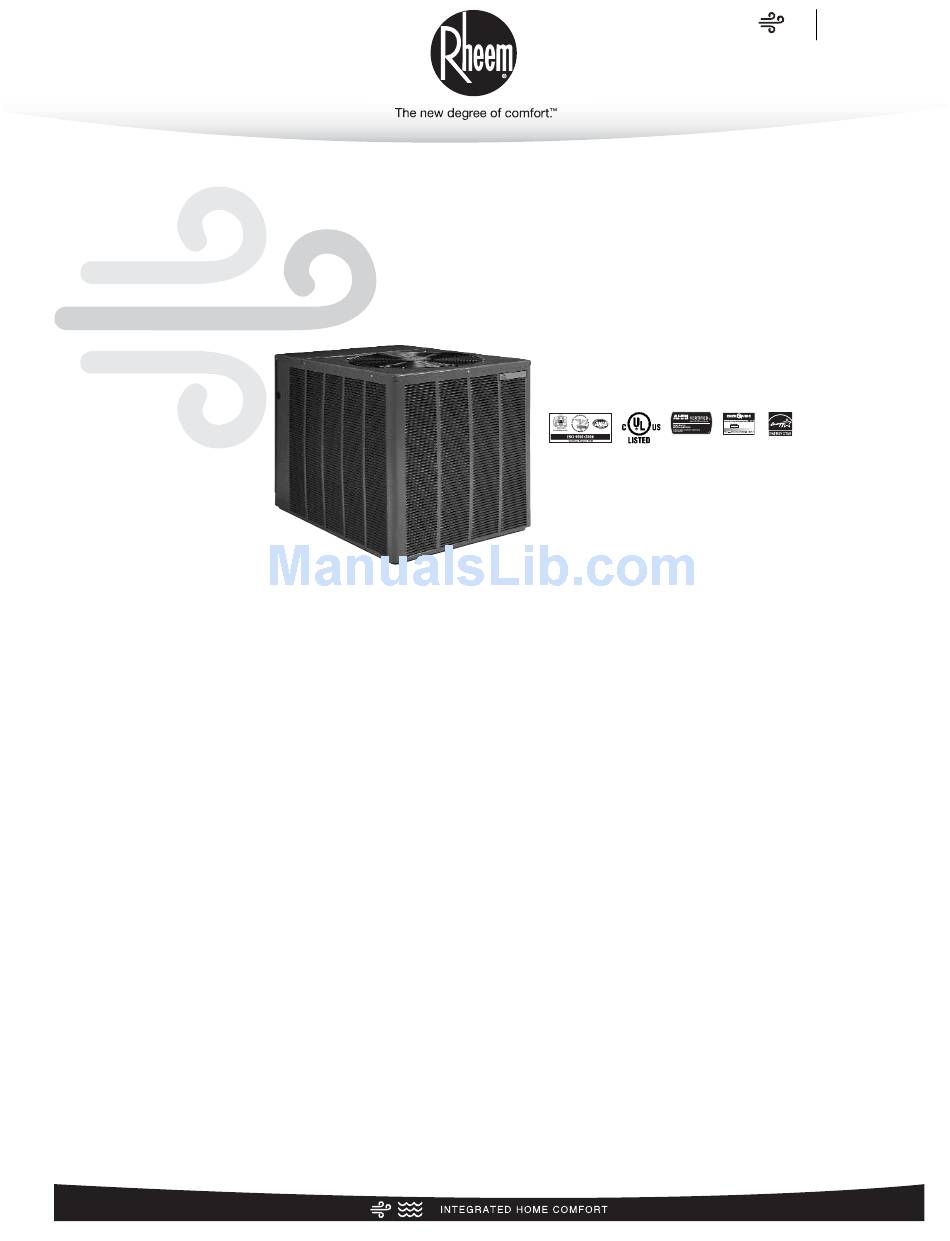

Rheem Prestige Series
Air Conditioners equipped with
the Comfort Control System
RARL- JEZ Series
Efficiencies up to 16.5 SEER/13.0 EER
Nominal Sizes 2 to 5 Ton [7 .03 to 17 .6 kW]
Cooling Capacities 25.2 to 59 kBTU
[7.38 to 17.29 kW]
"Proper sizing and installation of equipment is critical to achieve
optimal performance. Ask your Contractor for details or visit
www.energystar.gov."
• Attractive, louvered wrap-around jacket protects the coil from
yard hazards and weather extremes. Top grille is steel rein-
forced for extra strength. Cabinet is powder painted for all-
weather protection.
• Air is discharged upward away from bushes and shrubs. The
discharge pattern of the top grille provides minimum air
restriction, resulting in quiet fan operation.
• Exclusive Combination Grille/Motor Mount secures the motor
to the underside of the discharge grille. The grille protects the
motor windings and bearings from rain and snow.
• For quiet operation and improved efficiency, the 2, 3, and 4
ton models feature an 8-pole motor with a 3-blade outdoor
fan. The 5 ton model features the GE
with a 3-blade outdoor fan.
• All models meet or exceed a 1000-hour salt spray test per
ASTM B117 Standard Practice for Operating Salt Spray Test-
ing Apparatus.
• On-demand dehumidification terminal, when matched with a
Prestige Series™ Air Handler or premium ECM Gas Furnace
products, adjusts airflow to help control humidity, for unsur-
passed comfort in the cooling mode.
Air Conditioners
Air
RARL- JEZ Series
™ Two-Stage
™
16.0
® ECM two-speed motor
