Related Manuals for iHome iHome iBT20
Summary of Contents for iHome iHome iBT20

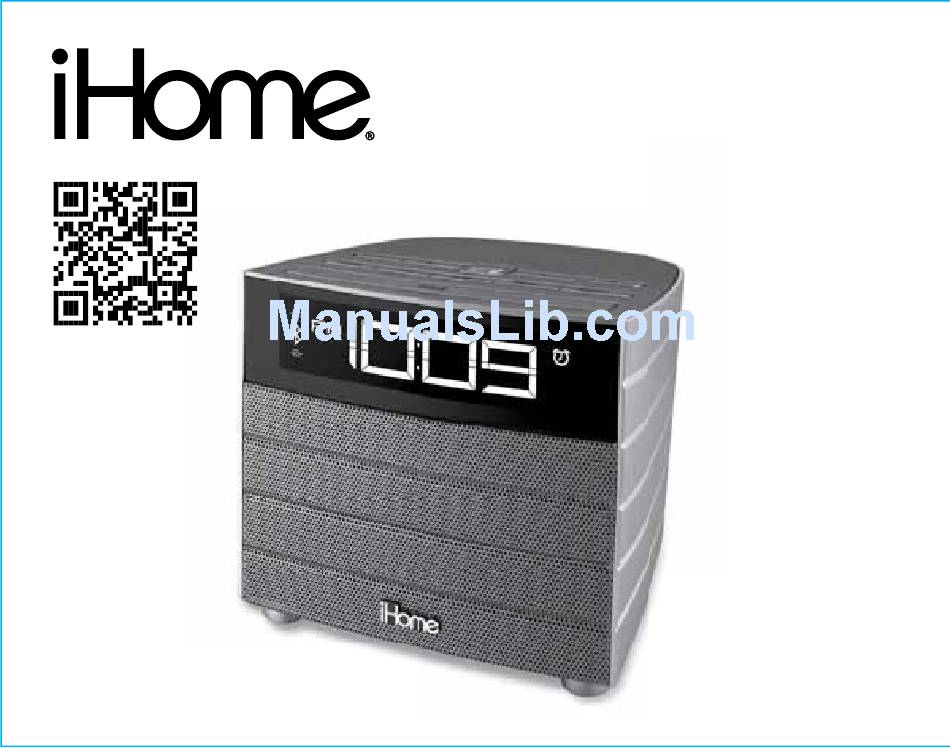

- Page 1 iBT20 Bluetooth Wireless FM Clock Radio with USB Charging instruction manual...
- Page 2 Introduction Thank you for purchasing the iHome iBT20. This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod or other Bluetooth audio device. Along with the included Quick Bluetooth Connection Guide this instruction booklet explains the basic operation and care of the unit.
- Page 3 iBT20 FCC Information FCC ID: EMOIBT20 IC: 986B-IBT20 FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This Device complies with RSS-210 of the IC Rules;...
-
Page 4: Table Of Contents
iBT20 Table of Contents Meet Your iBT20 ......................1-3 The Display/Setting Up the Unit ..................4 Setting the Clock/ FM Radio ....................5 Setting and Using FM Presets....................6 Setting and Using the Alarm/Previewing Alarm ..............7 Snooze/Dimmer Button/Sleep and Nap Modes FM Radio/ ...........8 Using Bluetooth: Pairing Your Device ...................9 Playing Audio Via Bluetooth/Playing Audio Via Aux-in............10 Charging Devices via USB Port ..................11... - Page 5 iBT20 Included • iBT20 system • 100V-240V universal AC adaptor • 3.5mm audio cable audio cable iBT20 power adaptor...
- Page 6 iBT20 Meet Your iBT20 Volume Down Button Power Button Volume Up Button Minus/ Plus Settings Buttons Play/ Pause and Presets Button Nap/ Clock Set Button Alarm Button Mode Button Sleep Button Snooze/ Dimmer Button...
-
Page 7: Meet Your Ibt20
iBT20 Meet Your iBT20 Back USB Charging Port Pairing Button Aux-in Jack DC Jack Antenna Bottom Backup Battery Compartment (pull battery tab before use) -
Page 8: The Display/Setting Up The Unit
iBT20 Using the The Display Low Backup Time Display Battery Indicator PM/AM Indicators Bluetooth Alarm Active Indicator Pairing FM Mode Indicator Indicator Aux-in Mode Indicator Snooze Mode Indicator Wake to Alarm Source Indicators: Bluetooth Audio Indicator Tone, Radio, Bluetooth device Setting Up the Unit Connect the included AC adaptor to the DC jack RESET... -
Page 9: Setting The Clock/ Fm Radio
iBT20 Using the Setting the Clock 1. Press and hold the Nap/Clock Set Button for 2 seconds until the clock display flashes and a beep sounds. 2. Press the – or + Buttons to adjust the clock to the current time (hold for rapid setting). Make sure you set the correct AM/PM time. -
Page 10: Setting And Using Fm Presets
iBT20 Using the Setting and Using FM Presets The unit allows you to store up to 6 FM radio station presets Button on the unit to turn it on. 1. Press the 2. Press and release the Mode Button as needed until the FM indicator icon and current FM radio station appear on the display. -
Page 11: Setting And Using The Alarm/Previewing Alarm
iBT20 Using the Setting and Using the Alarm Note: each step must be completed while display is flashing or step will time-out with any changes saved. 1. Press and hold the Alarm Button for 2 seconds until the time display and alarm icon flash. 2. -
Page 12: Snooze/Dimmer Button/Sleep And Nap Modes Fm Radio
iBT20 Using the Snooze/Dimmer Button 1. To program Snooze, press and hold the Snooze/Dimmer Button during normal operation (when no alarm is sounding). 2. Press the – or + Buttons to select the desired snooze time (between 01 and 29 minutes). 3. -
Page 13: Using Bluetooth: Pairing Your Device
“iHome iBT20” should appear on your device’s menu. If “Not Paired”, “Not Connected” or similar message appears, select “iHome iBT20” on the device to connect it. If your device asks for a password, enter 1234 on the keyboard of your device. If no device is paired within 2 minutes, a tone will sound and the unit will revert to its previous mode. -
Page 14: Playing Audio Via Bluetooth/Playing Audio Via Aux-In
iBT20 Using the Playing Audio Via Bluetooth 1. Press the Button to turn the unit ON. 2. Press and release the Mode Button as needed until the Bluetooth wave indicator icon appears on the display. Play Pause Button on the unit to play audio from your linked Bluetooth device. 3. -
Page 15: Charging Devices Via Usb Port
iBT20 Using the Charging Devices via USB Port 1. Connect the standard size end of a USB cable (not included) to the USB Port on back of the unit and connect the other end to the charging port on your device. 2. -
Page 16: Replacing/Installing Backup Batteries
iBT20 Using the Replacing and Installing Clock Backup Battery Note: The CR2450 lithium battery is included in the unit. Please pull out the battery pull tab before you use the unit. This model is equipped with a battery backup circuit that will maintain the time and alarm time settings in the event of a temporary power interruption (the display is NOT maintained). -
Page 17: Troubleshooting
Troubleshooting Unit doesn’t respond (no power) • Check that all connections are correct and properly plugged in. • Make sure your device is properly paired with the iBT20. • Make sure the Power is ON. Unit doesn’t respond (locked up or frozen) •... -
Page 18: Consumer Product Safety Guide
Consumer Product Safety Guide IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. - Page 19 8. Attachments – Do not use attachments not recommended by the product manufacturer. 9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time.
-
Page 20: Warranty
Limited 1 Year Warranty iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.
