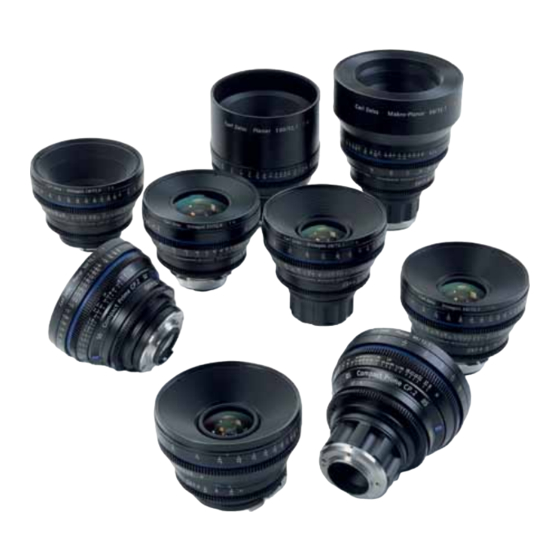

- Page 1 Compact Prime CP.2 Mount Change Instructions...
-
Page 2: General Instructions
• Please handle the shims carefully as they can easily kink or tear which makes them unusable. In this manual we take a Compact Prime CP.2 35mm/ T 2.1 with EF mount, scaled in feet as an example to explain how to change a lens mount and the subsequent matching of your General drawing lens to a DSLR camera. - Page 3 C. Changing the mount 1. Remove the rear lens cap. 4. Now you see the colored shims in the groove of the black lens barrel. 2. Remove the four torx screws of the silver EF mount with a T6 torque wrench 5.
- Page 4 2. Place the silver EF mount on the EF adapter ring in such a way that the blue dot on the mount has the same orientation as the ZEISS logo and the support bracket points to the serial number on the lens barrel.
- Page 5 Procedure In the following chapter we explain how to adjust your Compact Prime CP.2 to a DSLR camera. 1. Fasten the Carl Zeiss test chart on a wall at the appropriate test distance (see tables on page 12 – 16; the test distance is depending on the focal length) and ensure that the illumination is bright and uniform.
- Page 6 0.4 Nm. Example Using a Compact Prime CP.2 35mm/T2.1 lens with an EF mount, scaled in feet and a test chart at a test distance of 4 ft, an actual distance of 4 ft 1’ is measured.
- Page 7 Tables for adjusting the flange focal distance of Compact Prime CP.2 lenses Compact Prime CP.2 18/T3.6 All Compact Prime CP.2 lenses cover the full-frame image format (36 x 24 mm), Meter distance scale Feet distance scale ANSI Super 35 and Normal 35 image format, except the CP.2 18mm/T3.6. This lens covers...
- Page 8 1020 0,03 4ft 2 1/2' 0,05 Compact Prime CP.2 28/T2.1 Compact Prime CP.2 50/T2.1, CP.2 50/T2.1 Macro and CP.2 50/T1.5 Super Speed Meter distance scale Feet distance scale Meter distance scale Feet distance scale Distance to test chart [mm] 1000...
- Page 9 Compact Prime CP.2 85/T2.1 and CP.2 85/T1.5 Super Speed Compact Prime CP.2 135/T2.1 Meter distance scale Feet distance scale Meter distance scale Feet distance scale Distance to test chart [mm] 2000 Distance to test chart [ft] Distance to test chart [mm] 1500...
- Page 10 Compact Prime CP.2 – Accessories and spare parts All interchangeable mount sets include: mount, lens caps, adaption ring with support bracket, screws and a set of shims CP.2. EF mount Indent No. E mount Indent No. Interchangeable Mount Set EF (for CP.2 21/T2.9, CP.2 25/T2.1, CP.2 28/T2.1 or CP.2 35/T2.1) 1849-490 Interchangeable Mount Set E (for CP.2 21/T2.9, CP.2 25/T2.1, CP.2 28/T2.1 or CP.2 35/T2.1)
- Page 11 Carl Zeiss AG Phone +49 7364 20-6175 Camera Lens Division Fax: +49 7364 20-4045 73446 Oberkochen Germany www.zeiss.com/cine...
