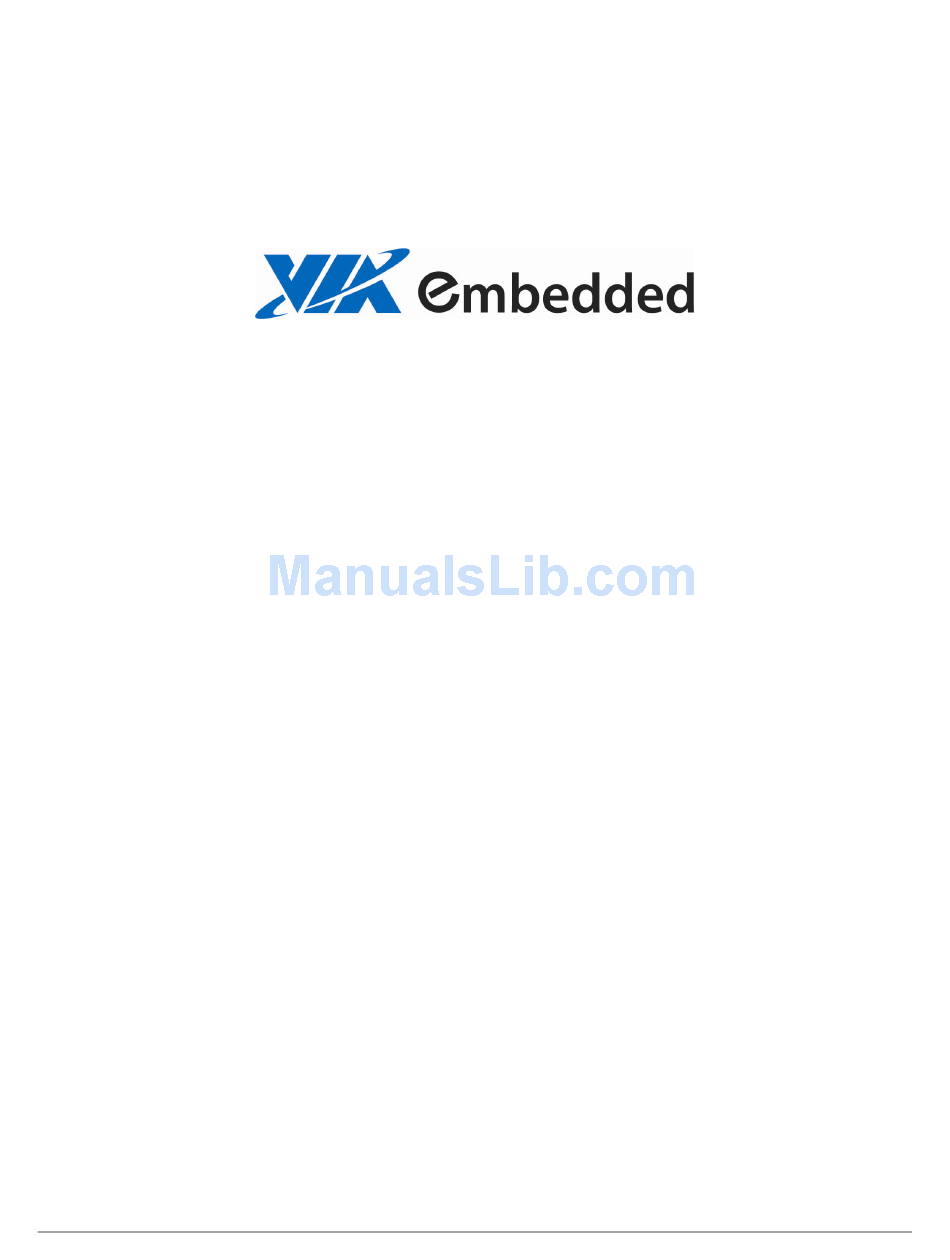

- Page 1 Operating Guide EPIA-M700 Mainboard May 23, 2008 Version 1.00...
-
Page 2: Table Of Contents
EPIA-M700 Operating Guide Table of Contents Table of Contents........................ i VIA EPIA-M700 Overview ....................1 VIA EPIA-M700 Layout......................2 VIA EPIA-M700 Specifications ....................3 VIA EPIA-M700 Processor SKUs ................... 4 VIA VX800 Chipset Overview ....................5 VIA EPIA-M700 Dimensions ....................6 VIA EPIA-M700 Height Distribution .................. -
Page 3: Via Epia-M700 Overview
EPIA-M700 Operating Guide VIA EPIA-M700 Overview The VIA EPIA-M700 Mini-ITX Mainboard is a compact native x86 mainboard optimized for entry level systems in embedded and productivity applications. The mainboard is based on the VIA VX800 Unified Digital Media IGP chipset featuring the VIA Chrome9™ HC3 with 2D/3D graphics and video accelerators for rich digital media performance. -
Page 4: Via Epia-M700 Layout
EPIA-M700 Operating Guide VIA EPIA-M700 Layout Figure 1: EPIA-M700 layout May 23, 2008 - 2 - Version 1.00... -
Page 5: Via Epia-M700 Specifications
EPIA-M700 Operating Guide VIA EPIA-M700 Specifications Model Name - EPIA-M700-15 - EPIA-M700-10E Processor - VIA C7 ® 1.5 GHz NanoBGA2 - VIA C7 ® 1.0 GHz NanoBGA2 processor (400 MHz FSB) processor (400 MHz FSB) with fanless heatsink Chipset - VIA VX800 Unified Digital Media IGP Chipset System Memory - 1 x DDR2 533/667 SODIMM slot - Up to 2 GB memory size... -
Page 6: Via Epia-M700 Processor Skus
EPIA-M700 Operating Guide VIA EPIA-M700 Processor SKUs The VIA EPIA-M700 is available in two speed grades as follows: ® • 1.5 GHz VIA C7 NanoBGA2 Processor ® • 1.0 GHz VIA C7 NanoBGA2 Processor May 23, 2008 - 4 - Version 1.00... -
Page 7: Via Vx800 Chipset Overview
EPIA-M700 Operating Guide VIA VX800 Chipset Overview The VIA VX800 Unified Digital Media Chipset is designed to enable high quality digital video streaming and DVD playback in a new generation of fanless, small form factor PCs and IA devices. The VIA VX800 features VIA Chrome9™ HC3 with 2D/3D graphics and video acceleration, DDR2 667/533 MHz support, motion compensation and dual display support to ensure a rich overall entertainment experience. -
Page 8: Via Epia-M700 Dimensions
EPIA-M700 Operating Guide VIA EPIA-M700 Dimensions Figure 3: EPIA-M700 mounting layout and dimensions May 23, 2008 - 6 - Version 1.00... -
Page 9: Via Epia-M700 Height Distribution
EPIA-M700 Operating Guide VIA EPIA-M700 Height Distribution Figure 4: EPIA-M700 height distribution May 23, 2008 - 7 - Version 1.00... -
Page 10: Via Epia-M700 Side Profile
EPIA-M700 Operating Guide VIA EPIA-M700 Side Profile Figure 5:EPIA-M700 back panel ports May 23, 2008 - 8 - Version 1.00... -
Page 11: Power Consumption
EPIA-M700 Operating Guide Power Consumption Power consumption tests were performed on the VIA EPIA-M700 for both processor options. The following tables are a comprehensive breakdown of the voltage, amp and wattage values while running common system applications. VIA EPIA-M700-15 A. Playing DVD – Power DVD 7.0 Measured Voltage Measure Amp Watts... -
Page 12: Idle
EPIA-M700 Operating Guide E. Idle Measured Voltage Measure Amp Watts Main Board +3.3V 3.330 1.047 3.487 Main Board +5V 5.005 1.678 8.398 Main Board 5VSB 5.119 0.137 0.701 Main Board +12V 11.982 0.089 1.066 Total Power Consumption 13.652 F. Running C.C. Winstone 2004 Measured Voltage Measure Amp Watts... -
Page 13: Via Epia-M700-10E
EPIA-M700 Operating Guide VIA EPIA-M700-10E A. Playing DVD – Power DVD 7.0 Measured Voltage Measure Amp Watts Main Board +3.3V 3.278 0.835 2.737 Main Board +5V 4.932 2.782 13.721 Main Board 5VSB 5.067 0.159 0.806 Main Board +12V 11.967 0.080 0.957 Total Power Consumption 18.221... -
Page 14: Running C.c. Winstone 2004
EPIA-M700 Operating Guide F. Running C.C. Winstone 2004 Measured Voltage Measure Amp Watts Main Board +3.3V 3.300 0.849 2.802 Main Board +5V 4.957 2.537 12.576 Main Board 5VSB 5.089 0.133 0.677 Main Board +12V 11.985 0.076 0.911 Total Power Consumption 16.966 G. -
Page 15: Power Specifications
EPIA-M700 Operating Guide Power Specifications The VIA EPIA-M700 mainboard utilizes utilizes an industry standard 20-pin ATX power connector for connecting to the power supply. Due to its ultra low power requirements, a 90 – 120 Watt ATX power supply is ample for even the heaviest of multimedia system applications. Signal Signal +3.3V... -
Page 16: Via Epia-M700 Microsoft And Linux Driver Support
EPIA-M700 Operating Guide VIA EPIA-M700 Microsoft and Linux Driver Support ICROSOFT RIVER UPPORT The VIA EPIA-M700 mainboard is compatible with Microsoft operating systems. The latest Windows 2000 and Windows XP drivers can be downloaded from the VEPD website at www.viaembedded.com. For embedded operating systems (Windows CE.NET and Windows XP Embedded), the related drivers can be found in the VIA Arena website at www.viaarena.com. -
Page 17: Contact
EPIA-M700 Operating Guide Contact For more information on the VIA EPIA-M700 Mini-ITX mainboard contact your sales representative or visit our website at www.viaembedded.com MERICA 940 Mission Court Fremont, CA 94539 Tel: (510) 683 3300 Fax: (510) 687 4654 Email: vpsd_sales@viatech.com TAIWAN 1F, No.
