Summary of Contents for Embedded EPIA-N700

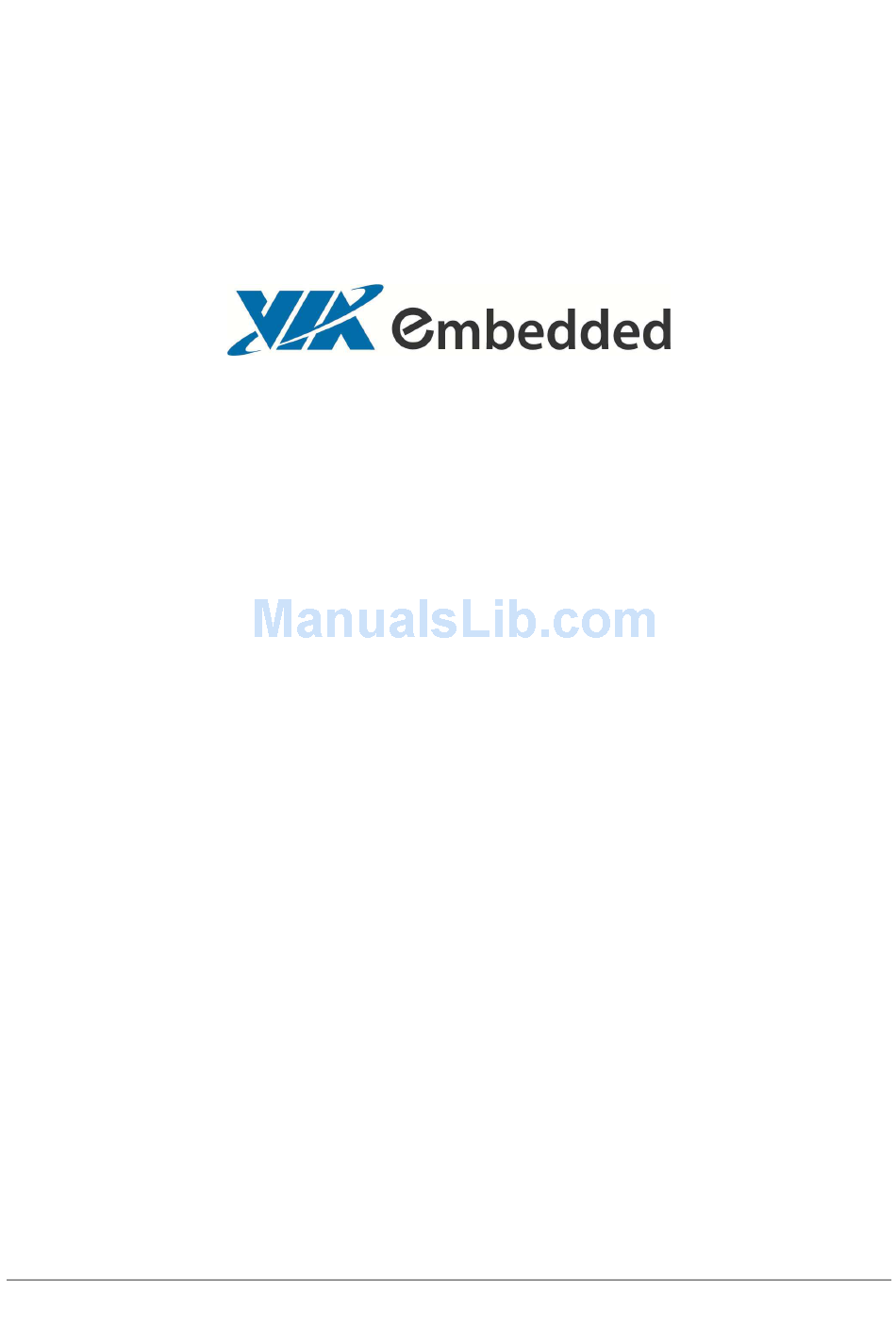

- Page 1 Operating Guide EPIA-N700 Mainboard March 22, 2018 Version 1.00...
-
Page 2: Table Of Contents
C. Running Network Application – Files Copy ..............11 D. Idle......................... 11 E. Running C.C. Winstone 2004 ..................12 F. S3 mode ........................12 VIA EPIA-N700 Microsoft and Linux Driver Support ..............13 Microsoft Driver Support....................13 Linux Driver Support ......................13 Contact ..........................14... -
Page 3: Via Epia-N700 Overview
Engine, VIA CoolStream™ Architecture, VIA StepAhead™ Technology Suite, and VIA TwinTurbo™ technology. The VIA EPIA-N700 supports up to 2 GB of 667/533 MHz DDR2 memory. The VIA EPIA-N700 provides support for high fidelity audio with its included VIA VT1708B High Definition Audio codec. -
Page 4: Via Epia-N700 Layout
EPIA-N700 Operating Guide VIA EPIA-N700 Layout Figure 1: EPIA-N700 layout March 22, 2018 - 2 - Version 1.00... -
Page 5: Via Epia-N700 Specifications
EPIA-N700 Operating Guide VIA EPIA-N700 Specifications Model Name - EPIA-N700-15L - EPIA-N700-05LE ® - VIA Eden ULV 500 MHz Processor - VIA C7 1.5 GHz NanoBGA2 processor (400 MHz FSB) NanoBGA2 processor (400 MHz FSB) Chipset - VIA VX800 Unified Digital Media IGP Chipset... -
Page 6: Via Epia-N700 Processor Skus
EPIA-N700 Operating Guide VIA EPIA-N700 Processor SKUs The VIA EPIA-N700 is available in two speed grades as follows: • ® 1.5 GHz VIA C7 NanoBGA2 Processor • 500 MHz VIA Eden ULV NanoBGA2 Processor March 22, 2018 - 4 -... -
Page 7: Via Vx800 Chipset Overview
MHz support, motion compensation and dual display support to ensure a rich overall entertainment experience. Outstanding connectivity features include USB 2.0, 10/100/1000 LAN, SATA (3.0 Gbps), and ATA/133. Figure 2: VX800 as implemented in EPIA-N700 March 22, 2018 - 5 -... -
Page 8: Via Epia-N700 Dimensions
EPIA-N700 Operating Guide VIA EPIA-N700 Dimensions Figure 3: EPIA-N700 mounting layout and dimensions March 22, 2018 - 6 - Version 1.00... -
Page 9: Via Epia-N700 Height Distribution
EPIA-N700 Operating Guide VIA EPIA-N700 Height Distribution Figure 4: EPIA-N700 height distribution March 22, 2018 - 7 - Version 1.00... -
Page 10: Via Epia-N700 Side Profile
EPIA-N700 Operating Guide VIA EPIA-N700 Side Profile Figure 5: EPIA-N700 back panel ports March 22, 2018 - 8 - Version 1.00... -
Page 11: Power Consumption
EPIA-N700 Operating Guide Power Consumption Power consumption tests were performed on the VIA EPIA-N700 for both processor options. The following tables are a comprehensive breakdown of the voltage, amp and wattage values while running common system applications. VIA EPIA-N700-15L A. Playing DVD – Power DVD 5.0... -
Page 12: Running C.c. Winstone 2004
EPIA-N700 Operating Guide E. Running C.C. Winstone 2004 Measured Voltage Measure Amp Watts Main Board +3.3V 3.390 1.368 4.638 Main Board +5V 4.990 0.597 2.979 Main Board +12V 11.94 0.423 5.051 DC Input +12V 11.960 1.368 16.361 Main Board Power Consumption 12.556... -
Page 13: Via Epia-N700-05Le
EPIA-N700 Operating Guide VIA EPIA-N700-05LE A. Playing DVD – Power DVD 5.0 Measured Voltage Measure Amp Watts Main Board +3.3V 3.363 1.038 3.491 Main Board +5V 4.980 0.671 3.342 Main Board +12V 12.080 0.067 0.809 DC Input +12V 12.090 0.831 10.047... -
Page 14: Running C.c. Winstone 2004
EPIA-N700 Operating Guide E. Running C.C. Winstone 2004 Measured Voltage Measure Amp Watts Main Board +3.3V 3.363 1.187 3.992 Main Board +5V 4.980 0.634 3.157 Main Board +12V 12.020 0.075 0.902 DC Input +12V 12.090 0.819 9.902 Main Board Power Consumption 8.054... -
Page 15: Via Epia-N700 Microsoft And Linux Driver Support
ICROSOFT RIVER UPPORT The VIA EPIA-N700 mainboard is compatible with Microsoft operating systems. The latest Windows 2000 and Windows XP drivers can be downloaded from the VEPD website at www.viaembedded.com. For embedded operating systems (Windows CE.NET and Windows XP Embedded), the related drivers can be found in the VIA Arena website at www.viaarena.com. -
Page 16: Contact
EPIA-N700 Operating Guide Contact For more information on the VIA EPIA-N700 Nano-ITX mainboard contact your sales representative or visit our website at www.viaembedded.com MERICA 940 Mission Court Fremont, CA 94539 Tel: (510) 683 3300 Fax: (510) 687 4654 Email: vpsd_sales@viatech.com TAIWAN 1F, No.
