ADLQM67HDS
Manual
rev. 1.6
ADL Embedded Solutions Inc. 4411 Morena Blvd., Suite 101 San Diego, CA 92117-4345
P. +1 858 490-0597 F. +1 858 490-0599
e-mail: sales@adl-usa.com; web:
http://www.adl-usa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADLQM67HDS and is the answer not in the manual?

Questions and answers

Related Manuals for Embedded ADLQM67HDS

Summary of Contents for Embedded ADLQM67HDS

  • Page 1 ADLQM67HDS Manual rev. 1.6 ADL Embedded Solutions Inc. 4411 Morena Blvd., Suite 101 San Diego, CA 92117-4345 P. +1 858 490-0597 F. +1 858 490-0599 e-mail: sales@adl-usa.com; web: http://www.adl-usa.com...

  • Page 3: Table Of Contents

    USB Configuration ......................51 4.3.7 Super IO Configuration ....................... 52 4.3.8 H/W Monitor ........................54 4.3.9 Serial Port Console Redirection..................56 4.3.10 Network Stack ........................58 4.3.11 CPU PPM Configuration ..................... 59 4.3.12 Intel(R) GigabitNetworkConnection ..................60 ADL Embedded Solutions ADLQM67HDS page 3...
  • Page 4 Environmental Conditions ......................91 Thermal Specifications ....................... 92 Annex: Post-Codes ..........................94 Annex: Resources ..........................95 IO Range ..............................95 Memory Range ............................95 Interrupt ..............................95 PCI Devices ............................96 SMB Devices ............................96 page 4 ADL Embedded Solutions ADLQM67HDS...
  • Page 5 Important Notes Chapter: Document History ADL Embedded Solutions ADLQM67HDS page 5...

  • Page 6: Document History

    LAN pinout All company names, brand names, and product names referred to in this manual are registered or unregistered trademarks of their respective holders and are, as such, protected by national and international law. page 6 ADL Embedded Solutions ADLQM67HDS...

  • Page 7: Introduction

    Via our website at www.adl-usa.com/support or www.adl-europe.com/support 1.3 Warranty This product is warranted to be free of defects in workmanship and material. ADL Embedded Solutions' sole obligation under this warranty is to provide replacement parts or repair services at no charge, except shipping cost.

  • Page 8: Description Of Safety Symbols

    OTE OR POINTER This symbol indicates information that contributes to better understanding. 1.6 RoHS The PCB and all components are RoHS compliant (RoHS = Restriction of Hazardous Substances Directive). The soldering process is lead free. page 8 ADL Embedded Solutions ADLQM67HDS...

  • Page 9: Overview

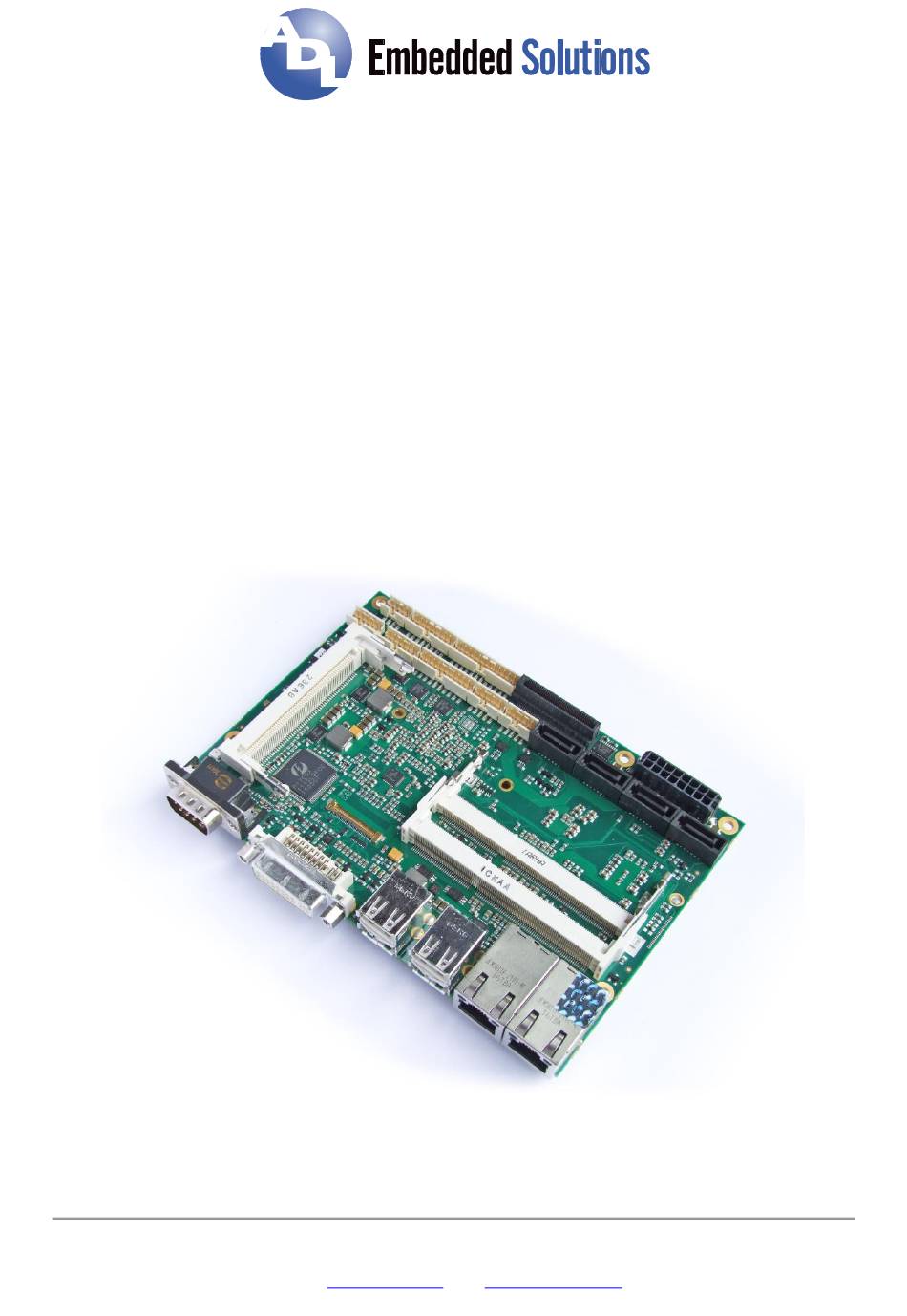

    2 Overview 2.1 Features The ADLQM67HDS is a highly complex 3,5-inch board which incorporates complete motherboard functionality. It's based on Intel®'s QM67 chipset combined with an rPGA988B CPU socket for Intel® CPUs of the 2nd Generation Core™ and Celeron® families. Modern DDR3 technology provides top-notch memory performance, accommodating up to 16 GByte of RAM (DDR3-1066/1333/1600) via SO-DIMM204.
  • Page 10 Two DVI/HDMI connectors (1x DVI-I, 1x I-PEX with DisplayPort capability) HDA compatible sound controller with SPDIF in and out 8x GPIO RTC with external CMOS battery 5V supply Format: 102 mm x 147 mm page 10 ADL Embedded Solutions ADLQM67HDS...

  • Page 11: Specifications And Documents

    Realtek® Chip Description ALC885/889 Datasheet www.realtek.com.tw  SMSC® Chip Description SCH3114 Datasheet www.smsc.com (NDA required)  American Megatrends® Aptio™ Text Setup Environment (TSE) User Manual www.ami.com  American Megatrends® Aptio™ 4.x Status Codes www.ami.com ADL Embedded Solutions ADLQM67HDS page 11...

  • Page 12: Connectors

    Chapter: Connectors Specifications and Documents 3 Connectors This section describes all the connectors found on the ADLQM67HDS. AUTION For most interfaces, the cables must meet certain requirements. For instance, USB 2.0 requires twisted and shielded cables to reliably maintain full speed data rates. Restrictions on maximum cable length are also in place for many high speed interfaces and for power supply.

  • Page 13: Connector Map

    37 P1402 "System" p. 16 P1500 "Serial Interface COM1" p. 29 P1503/5 "Serial Ports COM2 through COM4" p. 30 P1501/2 "USB 1-4" p. 24 P1504/6 "USB 5-10" p. 25 P1700 "Power Supply" p. 15 ADL Embedded Solutions ADLQM67HDS page 13...

  • Page 14: Cpu Socket

    CPU Socket 3.2 CPU Socket The ADLQM67HDS board has an rPGA988B CPU socket accomodating certain models of Intel®’s 2nd Generation Core™ and Celeron® family CPUs. The rPGA988B is a ZIF (Zero Insertion Force) socket, which means that you can insert the processor without there being any resistance. There is only one orientation in which the processor will fit into the socket.

  • Page 15: Power Supply

    COM3 receive data PSU on PS-ON PWRGD Powergood powerbutton PSU PWRBTN# SVCC standby-supply 5V 12 volt supply 12 volt supply ground ground ground ground 5 volt supply 5 volt supply 5 volt supply 5 volt supply ADL Embedded Solutions ADLQM67HDS page 15...

  • Page 16: System

    GPIOLED2 SMBALERT# SMB alert SMB Clock SMBCLKEX 7 SMBDATEX SMB data speaker to 5V SPEAKER SVCC standby supply 5V keyboard clock KCLK KDAT keyboard data ground 5V supply ground 5V supply ground 5V supply page 16 ADL Embedded Solutions ADLQM67HDS...

  • Page 17: Memory

    16 DQ16 DQ20 data 20 data 17 DQ17 DQ21 data 21 ground ground data strobe 2 - DQS2# data mask 2 data strobe 2 + DQS2 ground ground DQ22 data 22 ADL Embedded Solutions ADLQM67HDS page 17...
  • Page 18 45 data 41 DQ41 ground ground DQS5# data strobe 5 - data mask 5 DQM5 DQS5 data strobe 5 + ground ground data 42 DQ42 DQ46 data 46 data 43 DQ43 DQ47 data 47 page 18 ADL Embedded Solutions ADLQM67HDS...
  • Page 19 58 DQ58 DQ62 data 62 data 59 DQ59 DQ63 data 63 ground ground SPD address 0 EVENT# Event 3.3 volt supply 3.3V SMBus data SPD address 1 SMBus clock termination current termination current ADL Embedded Solutions ADLQM67HDS page 19...

  • Page 20: Vga/Dvi

    TMDSDAT0# DVI data 0 - TMDSDAT0 DVI data 0 + ground reserved reserved ground TMDS CLK DVI clock TMDS CLK# DVI clock VGA red GREEN VGA green BLUE VGA blue HSYNC VGA horizontal sync page 20 ADL Embedded Solutions ADLQM67HDS...
  • Page 21 VGA/DVI Chapter: Connectors Name Description ground ADL Embedded Solutions ADLQM67HDS page 21...

  • Page 22: Dvi/Hdmi/Displayport

    DVI/HDMI/DisplayPort 3.7 DVI/HDMI/DisplayPort The ADLQM67HDS provides a second DVI interface which is realized as a 30pin flat cable header (I-PEX Cabline-VS 20455-030E-12). Analog VGA is not available on this connector. However, an HDMI device or DisplayPort device can be connected. This custom connector also carries an additional USB interface.
  • Page 23 DVI/HDMI/DisplayPort Chapter: Connectors Name Description 5V supply 5V supply 5V supply ADL Embedded Solutions ADLQM67HDS page 23...

  • Page 24: Usb 1-4

    Every USB interface provides up to 500 mA current and is protected by an electronically resettable fuse. Pinout USB connector for channel X: Name Description 5 volt for USBX USBX# minus channel USBX USBX plus channel USBX ground page 24 ADL Embedded Solutions ADLQM67HDS...

  • Page 25: Usb 5-10

    5 volt for USB8 Pinout USB 9/10 Name Name Description Description 5 volt for USB9 5 volt for USB10 minus channel USB9 USB9- USB10- minus channel USB10 plus channel USB9 USB9+ USB10+ plus channel USB10 ground ground ADL Embedded Solutions ADLQM67HDS page 25...

  • Page 26: Lan

    LAN channel 0 minus LAN-1 LAN channel 1 plus LAN-2 LAN channel 2 plus LAN-2# LAN channel 2 minus LAN-1# LAN channel 1 minus LAN-3 LAN channel 3 plus LAN-3# LAN channel 3 minus page 26 ADL Embedded Solutions ADLQM67HDS...

  • Page 27: Audio

    AUX input right / AUXA_R / AUXA_L / AUX input left / rear output right REAR_R REAR_L rear output left microphone input 1 / MIC1 / MIC2 / microphone input 2 / center output CENTER LFE output ADL Embedded Solutions ADLQM67HDS page 27...

  • Page 28: Sata Interfaces

    3.12 SATA Interfaces The ADLQM67HDS provides four SATA interfaces from which SATA 3 and 4 allow transfer rates of up to 3 Gb/s. Additionally SATA 1 and 2 allow transfer rates up to 6 Gb/s. All these interfaces are made available via a 7pin connector and support RAID 0/1/5/10.

  • Page 29: Serial Interface Com1

    The port address and the interrupt are set via the BIOS setup. Pinout serial port (DSUB connector): Name Name Description Description data carrier detect data set ready receive data request to send transmit data clear to send data terminal ready ring indicator ground ADL Embedded Solutions ADLQM67HDS page 29...

  • Page 30: Serial Ports Com2 Through Com4

    COM4 receive data COM4 RXDD RTSD request to send COM4 transmit data COM4 TXDD CTSD clear to send COM4 data terminal ready COM4 DTRD ring indicator COM4 ground SVCC 5 volt supply page 30 ADL Embedded Solutions ADLQM67HDS...
  • Page 31 When the module is ordered in standard configuration, the 2x5pin connector offers mouse and keyboard signals. Alternative pinout of COM-connector: Name Name Description Description keyboard clock KCLK MCLK mouse clock keyboard data KDAT MDAT mouse data reserved reserved reserved reserved ground 3.3V 3.3 volt supply ADL Embedded Solutions ADLQM67HDS page 31...

  • Page 32: Pci-Express

    PCI-Express 3.15 PCI-Express The ADLQM67HDS offers a 2x40pin custom connector for the PCI-Express bus. You can connect one PCIe4x device here. Alternatively, up to four PCIe1x devices can be connected. Adapter cards featuring standard PCIe sockets or a PCIe Mini Card connector are available. Please contact your sales representative for these cards.
  • Page 33 4 + PET4 PECLK3# PCIe clock 3 - transmit lane 4 - PET4# ground ground PER4 receive lane 4 + clock enable 4 PE3CLKEN# 77 PER4# receive lane 4 - PCIe configure x1/x4 PECONF# ground ADL Embedded Solutions ADLQM67HDS page 33...

  • Page 34: Mini-Pci

    Chapter: Connectors Mini-PCI 3.16 Mini-PCI The ADLQM67HDS allows you to add expansion cards complying to the Mini-PCI standard (type III). One such card can be inserted into the Mini-PCI slot available on the board. Name Name Description Description reserved reserved...
  • Page 35 5 volt supply reserved address/data 1 reserved ground ground reserved ground reserved reserved reserved reserved reserved reserved reserved reserved reserved ground reserved reserved reserved reserved reserved reserved lock PLOCK# reserved reserved S3.3V 3.3 volt supply ADL Embedded Solutions ADLQM67HDS page 35...

  • Page 36: Gpio

    GP input/output 10 GPIO10 GPIO14 GP input/output 14 GP input/output 11 GPIO11 GPIO15 GP input/output 15 GP input/output 12 GPIO12 GPIO16 GP input/output 16 GP input/output 13 GPIO13 GPIO17 GP input/output 17 ground ground page 36 ADL Embedded Solutions ADLQM67HDS...

  • Page 37: Fan Connectors

    12V regulated fan 1 FANON1 FANON2 12V regulated fan 2 monitoring signal fan 1 FANCTL1 FANCTL2 monitoring signal fan 2 12V regulated fan 3 FANON3 FANCTL3 monitoring signal fan 3 ground ground ADL Embedded Solutions ADLQM67HDS page 37...

  • Page 38: Bios Settings

    They do not represent the recommended settings or the default settings. Determination of the appropriate settings is dependent upon the particular application scenario in which the board is used. page 38 ADL Embedded Solutions ADLQM67HDS...

  • Page 39: Main

     Name Options: none  Brand String Options: none  Frequency Options: none  Processor ID Options: none  Stepping Options: none  Number of Processors Options: none  Microcode Revision Options: none ADL Embedded Solutions ADLQM67HDS page 39...
  • Page 40 Options: none  Total Memory Options: none  Memory Frequency Options: none  System Date Options: The system date can be adjusted here.  System Time Options: The system time can be adjusted here. page 40 ADL Embedded Solutions ADLQM67HDS...

  • Page 41: Advanced

     Super IO Configuration Sub menu: see "Super IO Configuration" (page 52)  H/W Monitor Sub menu: see "H/W Monitor" (page 54)  Serial Port Console Redirection Sub menu: see "Serial Port Console Redirection" (page 56) ADL Embedded Solutions ADLQM67HDS page 41...
  • Page 42  Network Stack Sub menu: see "Network Stack" (page 58)  CPU PPM Configuration Sub menu: see "CPU PPM Configuration" (page 59)  Intel(R) Gigabit Network Connection Sub menu: see "Intel(R) GigabitNetworkConnection" (page 60) page 42 ADL Embedded Solutions ADLQM67HDS...

  • Page 43: Pci Subsystem Settings

    Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.  Above 4G Decoding Options: Enabled / Disabled  PCI Latency Timer Options: 32, 64,...224, 248 PCI Bus Clocks  PCI Express Settings Sub menu: see "PCI Express Settings" (page 44) ADL Embedded Solutions ADLQM67HDS page 43...

  • Page 44: Maximum Payload

     Extended Synch Options: Enabled / Disabled  Link Training Retry Options: Disabled / 2 / 3 / 5  Link Training Timeout (uS) Options: 10...1000  Unpopulated Links Options: Keep Link ON / Disable Link page 44 ADL Embedded Solutions ADLQM67HDS...

  • Page 45: Acpi Settings

     Enable ACPI Auto Configuration Options: Enabled / Disabled  Enable Hibernation Options: Enabled / Disabled  ACPI Sleep State Options: Suspend Disabled / S1 (CPU Stop Clock)  Lock Legacy Resources Options: Enabled / Disabled ADL Embedded Solutions ADLQM67HDS page 45...

  • Page 46: Cpu Configuration

     Processor Cores Options: none  Intel HT Technology Options: none  Intel VT-x Technology Options: none  Intel SMX Technology Options: none  64-bit Options: none  L1 Data Cache Options: none page 46 ADL Embedded Solutions ADLQM67HDS...
  • Page 47  Execute Disable Bit Options: Enabled / Disabled  Intel Virtualization Technology Options: Enabled / Disabled  TCC Activation Offset Options: 0...15  Primary Plane Current value Options: 0...255  Secondary Plane Current value Options: 0...255 ADL Embedded Solutions ADLQM67HDS page 47...

  • Page 48: Sata Configuration

     Software Preserve Options: none  Port X Options: Enabled / Disabled  Hot Plug Options: Enabled / Disabled  External SATA Options: Enabled / Disabled  Spin Up Device Options: Enabled / Disabled page 48 ADL Embedded Solutions ADLQM67HDS...

  • Page 49: Power Controller Options

     Temperature (Min/Max) Options: none  ext. USB-Port Voltage Options: Off in S3-5 / by SVCC  int. USB-Port Voltage Options: Off in S3-5 / by SVCC  WatchDogTimer Mode Options: Normal Mode / Compatibility Mode ADL Embedded Solutions ADLQM67HDS page 49...
  • Page 50 Chapter: BIOS Settings Advanced  WDT OSBoot Timeout Options: Disabled / 45 Seconds ... 255 Seconds page 50 ADL Embedded Solutions ADLQM67HDS...

  • Page 51: Usb Configuration

    5 sec / 10 sec / 20 sec  Device reset time-out Options: 10 sec / 20 sec / 30 sec / 40 sec  Device power-up delay Options: Auto / Manual  Device power-up delay in seconds Options: 1..40 ADL Embedded Solutions ADLQM67HDS page 51...

  • Page 52: Super Io Configuration

    │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.  Super IO Chip Options: none  Serial Port X Configuration Sub menu: see "Serial Port Configuration" (page 53) page 52 ADL Embedded Solutions ADLQM67HDS...

  • Page 53: Serial Port

    Options: none  Change Settings Options: Auto / IO=3F8h; IRQ=4 / IO=3F8h; IRQ=3, ...12 / IO=2F8h; IRQ=3, ...12 / IO=3E8h; IRQ=3, ...12 / IO=2E8h; IRQ=3, ...12  Device Mode Options: Normal / High Speed ADL Embedded Solutions ADLQM67HDS page 53...

  • Page 54: H/W Monitor

    Options: none  CPU FAN Speed Options: none  AUX FAN Speed Options: none  +1.05V Options: none  VccCore Options: none  +3.3V Options: none  Vcc Options: none  +12V Options: none page 54 ADL Embedded Solutions ADLQM67HDS...
  • Page 55 Advanced Chapter: BIOS Settings  VTR Options: none  Vbat Options: none ADL Embedded Solutions ADLQM67HDS page 55...

  • Page 56: Serial Port Console Redirection

    │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.  Console Redirection Options: Enabled / Disabled  Console Redirection Settings Sub menu: see "Console Redirection Settings" (page 57) page 56 ADL Embedded Solutions ADLQM67HDS...

  • Page 57: Terminal Type

    Disabled / Enabled  Resolution 100x31 Options: Disabled / Enabled  Legacy OS Redirection Resolution Options: 80x24 / 80x25  Putty KeyPad Options: VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400 ADL Embedded Solutions ADLQM67HDS page 57...

  • Page 58: Network Stack

    │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.  Network Stack Options: Disabled / Enabled  Ipv4 PXE Support Options: Disabled / Enabled  Ipv6 PXE Support Options: Disabled / Enabled page 58 ADL Embedded Solutions ADLQM67HDS...

  • Page 59: Cpu Ppm Configuration

     Turbo Mode Options: Enabled / Disabled  Config TDP LOCK Options: Disabled / Enabled  Long duration power limit Options: 0-255  Long duration power maintained Options: 1-120  Short duration power limit Options: 0-255 ADL Embedded Solutions ADLQM67HDS page 59...

  • Page 60: Intel(R) Gigabitnetworkconnection

    Options: none  Adapter PBA: Options: none  Chip Type Options: none  PCI Device ID Options: none  PCI Bus:Device:Function Options: none  Link Status Options: none  Factory MAC Adress Options: none page 60 ADL Embedded Solutions ADLQM67HDS...

  • Page 61: Nic Configuration

    Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.  Link Speed Options: Auto Negotiated / 10Mbps Half / 10Mbps full / 100Mbps Half / 100Mbps Full  Wake On LAN Options: Enabled / Disabled ADL Embedded Solutions ADLQM67HDS page 61...

  • Page 62: Chipset

    │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.  PCH-IO Configuration Sub menu: see "PCH-IO Configuration" (page 63)  System Agent (SA) Configuration Sub menu: see "System Agent (SA) Configuration" (page 70) page 62 ADL Embedded Solutions ADLQM67HDS...

  • Page 63: Pch-Io Configuration

     PCH LAN Controller Options: Disabled / Enabled  LAN1 MAC address Options: none  Wake on LAN Options: Disabled / Enabled  Second LAN Controller Options: Disabled / Enabled  LAN2 MAC address Options: none ADL Embedded Solutions ADLQM67HDS page 63...
  • Page 64  CLKRUN# Logic Options: Disabled  SB CRID Options: Disabled / Enabled  High Precision Timer Options: Disabled / Enabled  Restore AC Power Loss Options: Power Off / Power On / Last State page 64 ADL Embedded Solutions ADLQM67HDS...

  • Page 65: Dmi Link Aspm Control

     DMI Link Extended Synch Control Options: Disabled / Enabled  PCIe-USB Glitch W/A Options: Disabled / Enabled  Subtractive Decode Options: Disabled  PCI Express Root Port X Sub menu: see "PCI Express Settings" (page 66) ADL Embedded Solutions ADLQM67HDS page 65...
  • Page 66 Disabled / Enabled  CTO Options: Disabled / Enabled  SEFE Options: Disabled / Enabled  SENFE Options: Disabled / Enabled  SECE Options: Disabled / Enabled  PME SCI Options: Disabled / Enabled page 66 ADL Embedded Solutions ADLQM67HDS...
  • Page 67 Auto / Gen1 / Gen2  Extra Bus Reserved Options: 0...7  Reserved Memory Options: 1...20  Prefetchable Memory Options: 1...20  Reserved I/O Options: 4 / 8 / 12 / 16 / 20 ADL Embedded Solutions ADLQM67HDS page 67...
  • Page 68 Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.  EHCI1 Options: Enabled  EHCI2 Options: Enabled  USB Ports Per-Port Disable Control Options: Disabled / Enabled  USB Port #x Disable Options: Disabled / Enabled page 68 ADL Embedded Solutions ADLQM67HDS...

  • Page 69: Azalia Internal Hdmi Codec

     Azalia Options: Disabled / Enabled / Auto  Azalia PME Options: Disabled / Enabled  Azalia Internal HDMI Codec Options: Disabled / Enabled  Azalia HDMI codec Port X Options: Disabled / Enabled ADL Embedded Solutions ADLQM67HDS page 69...

  • Page 70: System Agent (Sa) Configuration

    Disabled / Enabled  BDAT ACPI Table Support Options: Disabled / Enabled  Graphics Configuration Sub menu: see "Graphics Configuration" (page 71)  NB PCIe Configuration Sub menu: see "NB PCIe Configuration" (page 73) page 70 ADL Embedded Solutions ADLQM67HDS...

  • Page 71: Primary Display

    32M / 64M ... 480M / 512M / 1024M  DVMT Total Gfx Mem Options: 128M / 256M / MAX  Gfx Low Power Mode Options: Disabled / Enabled  LCD Control Sub menu: see "LCD Control" (page 72) ADL Embedded Solutions ADLQM67HDS page 71...
  • Page 72 VBIOS Default / CRT / EFP / LFP / EFP3 / EFP2 / LFP2  LCD Panel Type Options: VBIOS Default / 640x480 LVDS ...1920x1080 LVDS / 2048x1536 LVDS  Spread Spectrum Clock Chip Options: Off / Hardware / Software  ALS Support Options: Disabled / Enabled page 72 ADL Embedded Solutions ADLQM67HDS...

  • Page 73: Enable Peg

    Sub menu: see "PEG Gen3 Root Port Preset Value for each Lane" (page 75)  PEG Gen3 Endpoint Preset Value for each Lane Sub menu: see "PEG Gen3 Endpoint Preset Value each Lane" (page 76) ADL Embedded Solutions ADLQM67HDS page 73...
  • Page 74 Disabled / Enabled  Fast PEG Init Options: Disabled / Enabled  RxCEM Loop back Options: Disabled / Enabled  RxCEM Loop back lane Options: Lane 0...15  PCIe Gen3 RxCTLEp Setting Options: 0...15 page 74 ADL Embedded Solutions ADLQM67HDS...
  • Page 75 │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.  Gen3 Root Port Preset Value for each Lane Options: 1..11 ADL Embedded Solutions ADLQM67HDS page 75...
  • Page 76 │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.  Gen3 Endpoint Preset Value each Lane Options: 0..11 page 76 ADL Embedded Solutions ADLQM67HDS...
  • Page 77 │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.  PEG Gen3 Endpoint Hint Value each Lane Options: 0..11 ADL Embedded Solutions ADLQM67HDS page 77...

  • Page 78: Boot

    Disabled / Enabled  CSM16 Module Version Options: none  GateA20 Active Options: Upon Request / Always  INT9 Trap Response Options: Immediate / Postponed  Boot mode select Options: Legacy / UEFI / DUAL page 78 ADL Embedded Solutions ADLQM67HDS...
  • Page 79 Options: Review or change the sequence of available boot devices  Boot Option Priorities Options: Review or change the sequence of available boot devices  CSM Parameters Sub menu: see "CSM Parameters" (page 80) ADL Embedded Solutions ADLQM67HDS page 79...

  • Page 80: Csm Parameters

    Do not launch / UEFI only / Legacy only  Launch Video OpROM policy Options: Do not launch / UEFI only / Legacy only  Other PCI device ROM priority Options: UEFI OpROM / Legacy OpROM page 80 ADL Embedded Solutions ADLQM67HDS...

  • Page 81: Security

     Administrator Password Options: Press [Enter]  Secure Boot control Options: Disabled / Enabled  Secure Boot Policy Sub menu: see "Secure Boot Policy" (page 82)  Key Management Sub menu: see "Key Management" (page 83) ADL Embedded Solutions ADLQM67HDS page 81...

  • Page 82: Secure Boot Policy

    Always Execute / Always Deny / Allow Execute / Defer Execute / Deny Execute / Query User  Fixed Media Options: Always Execute / Always Deny / Allow Execute / Defer Execute / Deny Execute / Query User page 82 ADL Embedded Solutions ADLQM67HDS...

  • Page 83: Key Management

    Press [Enter]  Delete the KEK Options: Press [Enter]  Append an entry to KEK Options: Press [Enter]  Set DB from File Options: Press [Enter]  Get DB to File Options: Press [Enter] ADL Embedded Solutions ADLQM67HDS page 83...
  • Page 84 Options: Press [Enter]  Get DBX to File Options: Press [Enter]  Delete the DBX Options: Press [Enter]  Append an entry to DBX Options: Press [Enter]  Install Factory Defaults Options: Press [Enter] page 84 ADL Embedded Solutions ADLQM67HDS...

  • Page 85: Save & Exit

     Restore Defaults Options: Press [Enter]  Save as User Defaults Options: Press [Enter]  Restore User Defaults Options: Press [Enter]  Boot Override Options: Press [Enter]  IBA GE Slot 00C8 v1381 Options: none ADL Embedded Solutions ADLQM67HDS page 85...

  • Page 86: Bios-Update

    If you try to update the BIOS using the wrong file the board will not start up again. page 86 ADL Embedded Solutions ADLQM67HDS...

  • Page 87: Mechanical Drawings

    PCB: Mounting Holes Chapter: Mechanical Drawings 5 Mechanical Drawings 5.1 PCB: Mounting Holes A true dimensioned drawing can be found in the PC/104 specification. All dimensions are in mil (1 mil = 0,0254 mm) ADL Embedded Solutions ADLQM67HDS page 87...

  • Page 88: Pcb: Pin 1 Dimensions

    Chapter: Mechanical Drawings PCB: Pin 1 Dimensions 5.2 PCB: Pin 1 Dimensions All dimensions are in mil (1 mil = 0,0254 mm) page 88 ADL Embedded Solutions ADLQM67HDS...

  • Page 89: Pcb: Die Center

    PCB: Die Center Chapter: Mechanical Drawings 5.3 PCB: Die Center All dimensions are in mil (1 mil = 0,0254 mm) ADL Embedded Solutions ADLQM67HDS page 89...

  • Page 90: Heat Spreader: Chassis Mount

    The figure below includes all hole spacing for each heat spreader available and can be used to aid in mating the heat spreader to a bulkhead or chassis. Dimensions are in inch (1 in = 2.54cm; 1 mil = 0.0254 mm) page 90 ADL Embedded Solutions ADLQM67HDS...

  • Page 91: Technical Data

    5 up to 9Hz, 3.5mm amplitude 9 up to 500Hz, 10m/s , for packaged boards AUTION Shock and vibration figures pertain to the motherboard alone and do not include additional components such as heat sinks, memory modules, cables etc. ADL Embedded Solutions ADLQM67HDS page 91...

  • Page 92: Thermal Specifications

    The end customer has the responsibility to ensure that the die temperature of the processor does not exceed 100°C. Permanent overheating may destroy the board! In case the temperature exceeds 100°C the environmental temperature must be reduced. Under certain circumstances sufficient air circulation must be provided. page 92 ADL Embedded Solutions ADLQM67HDS...
  • Page 93 Annex: Post-Codes ADL Embedded Solutions ADLQM67HDS page 93...

  • Page 94: I Annex: Post-Codes

    (POST code card). The meaning of these codes is described in the document "Aptio™ 4.x Status Codes" by American Megatrends®, which can be downloaded from their website http://www.ami.com. The following additional OEM POST codes are generated: Description Code BIOS-API started PCA9535 started PWRCTRL-Firmware started page 94 ADL Embedded Solutions ADLQM67HDS...

  • Page 95: Annex: Resources

    The exclusivity is not given and not possible on the PCI side. Function Address IRQ0 Timer IRQ1 PS/2 Keyboard IRQ2 (9) COM3 IRQ3 COM1 IRQ4 COM2 IRQ5 COM4 IRQ6 IRQ7 IRQ8 IRQ9 IRQ10 IRQ11 IRQ12 PS/2 Mouse IRQ13 ADL Embedded Solutions ADLQM67HDS page 95...

  • Page 96: Pci Devices

    Function Address 10-11 Standard slave address 40-41 GPIO 60-61 BIOS internal 70-73 POST code output 88-89 BIOS-defined slave address A0-A1 DIMM 1 A2-A3 DIMM 2 A4-AF BIOS internal B0-BF BIOS internal D2-D3 Clock page 96 ADL Embedded Solutions ADLQM67HDS...
