HArDWAre INSTAll ATIoN AND CoNNeCTIoNS

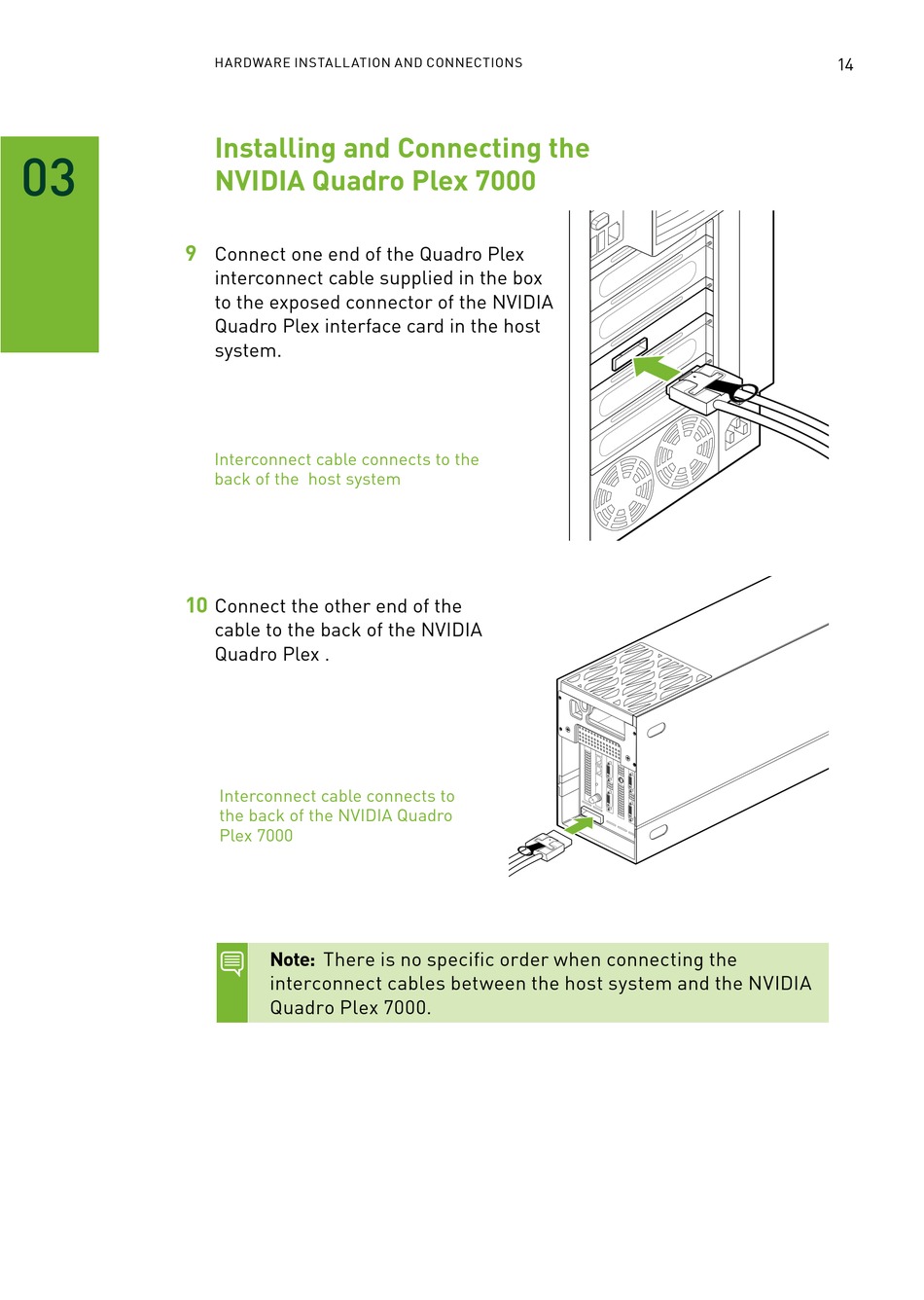

Installing and Connecting the
NVIDIA Quadro Plex 7000
Connect one end of the Quadro plex
interconnect cable supplied in the box
to the exposed connector of the NVIDIA
Quadro plex interface card in the host
system.
Interconnect cable connects to the
back of the host system
Connect the other end of the
cable to the back of the NVIDIA
Quadro plex .
Interconnect cable connects to
the back of the NVIDIA Quadro
plex 7000
Note: There is no specific order when connecting the
interconnect cables between the host system and the NVIDIA
Quadro plex 7000.
14
