ASROCK IMB-171-D Settings Manual

IMB-171-D
IMB-171-L
IMB-161-D
IMB-161-L
1 : USB2.0 Header (USB8_9)
2 : USB2.0 Header (USB6_7)

3* : LVDS Panel Connector

(For IMB-171-L and
IMB-161-L only)
PIN Signal Name PIN
2 LCD_VCC 1
4 LDDC_CLK 3
6 LVDS_A_DATA0# 5
8 GND 7 LVDS_A_DATA0
10 LVDS_A_DATA1 9 LVDS_A_DATA1#
12 LVDS_A_DATA2# 11
14 GND 13 LVDS_A_DATA2
16 LVDS_A_DATA3 15 LVDS_A_DATA3#
18 LVDS_A_CLK# 17
20 GND 19
22 LVDS_B_DATA0 21 LVDS_B_DATA0#
24 LVDS_B_DATA1# 23
26 GND 25 LVDS_B_DATA1
28 LVDS_B_DATA2 27 LVDS_B_DATA2#
30 LVDS_B_DATA3# 29
32 GND 31 LVDS_B_DATA3
34 LVDS_B_CLK 33
36 CON_LBKLT_EN 35
38 LCD_BLT_VCC 37 CON_LBKLT_CTL
40 LCD_BLT_VCC 39

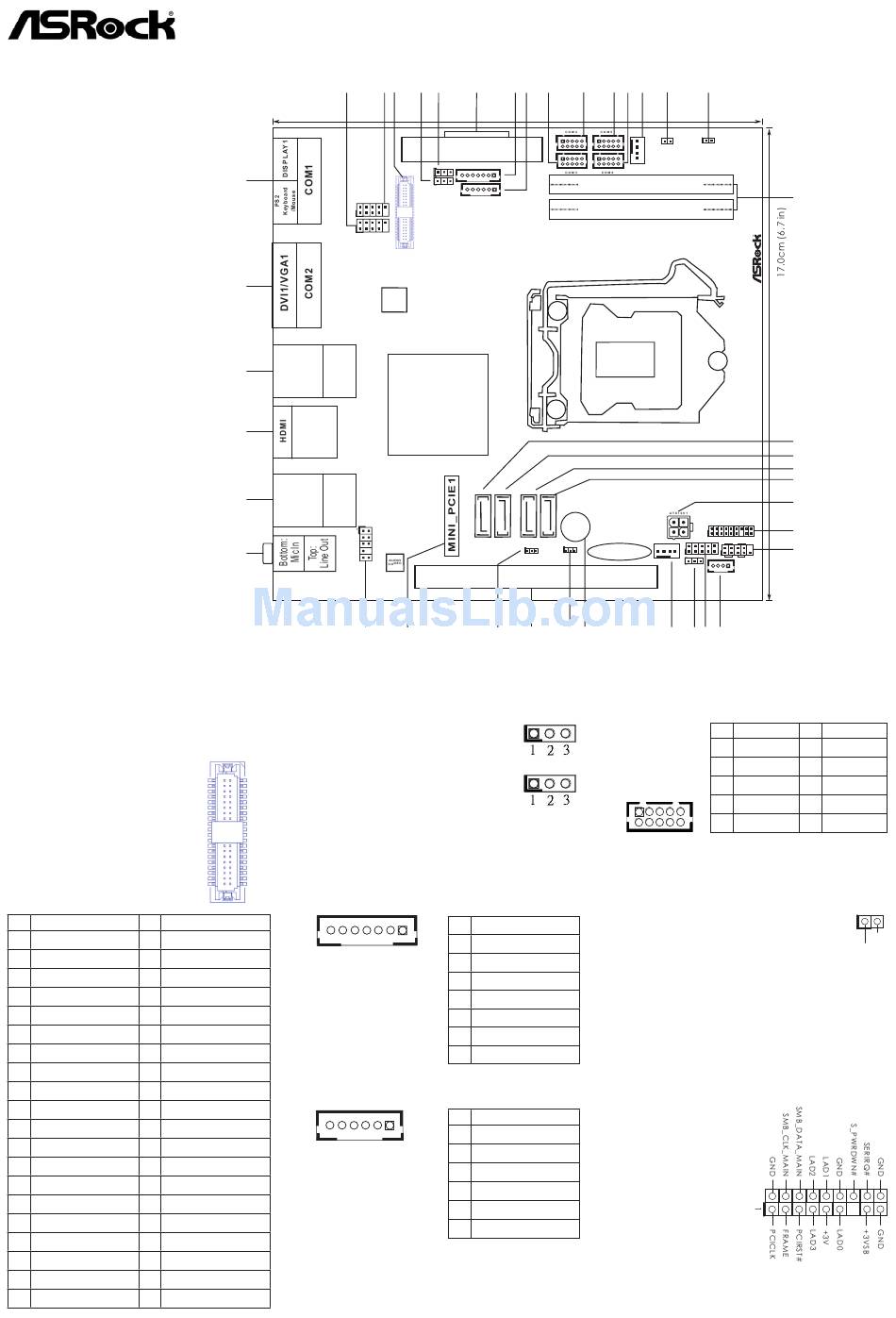

Jumpers and headers setting guide

1
17.0cm (6.7 in)
39*
38*
USB
3.0/2.0 Top:
37*

RJ-45

T: USB0
B: USB1

USB 2.0

36 T: USB2
B: USB3
USB
3.0/2.0 Top:
35*
RJ-45
T: USB4
B: USB5
34

4 : Panel Power Selection (LCD_VCC)

1-2 : +3V
2-3 : +5V
5 : Backlight Power Selection
39 40
(LCD_BLT_VCC)
1-2 : +5V
2-3 : +12V

6 : 24-pin ATX Power Input Connector

1 2
7 : Backlight & Amp Volume Control
Signal Name
LCD_VCC
+3V
LDDC_DATA
GND
8 : Inverter Power control Wafer
GND
LVDS_A_CLK
GND
DPLVDD_EN
LVDS_B_CLK#
GND
LCD_BLT_VCC
2 3* 4 5 6 7
ATXPWR1
BLT_VOL1
BKT_PWR1
1
1
1
PNL_PWR1
1
BLT_PWR1
USB6_7
1
1
USB8_9
1
LVDS1
BIOS
ROM
Intel
Q77/H61
SATA_0 SATA_1
HD_AUDIO1
1
PCIE1
33 32 31
PIN Signal Name
1
1 GPIO_VOL_UP
2 GPIO_VOL_DW
3 PWRDN
4 GPIO_BLT_UP
5 GPIO_BLT_DW
6 GND
7 GND
PIN Signal Name
1
1 GND
2 GND
3 CON_LBKLT_CTL
4 CON_LBKLT_EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC
8 9 10 11 12 13 14
1 1
1
CI2
1 1

CPU_FAN1

DDR3_B1
DDR3_A1
SATA_2 SATA_3
BUZZ1
CLRCMOS1
PWR_JP1
CMOS
1
1
Battery
CHA_FAN1
1
JGPIO_PWR1
30 29 28 27 26

COM Port Headers

9 : COM3
10 : COM4
11 : COM5
12 : COM6
1
2
13 : 4-Pin CPU FAN Connector (+12V)
14 : Chassis Intrusion Header 2
15 : Chassis Intrusion Header 1
16 : 2 x SO-DIMM
17,18* : IMB-171-D/IMB-171-L: SATA3
IMB-161-D/IMB-161-L: SATA2
19,20 : SATA2
21 : 4-pin ATX Power Input Connector
22 : TPM Header
15
1
CI1
16
17*
18*
19
20
21
TPM1
22
1
JGP IO1
PLED PWRBTN
23
1
PANEL1
HDLED RESET
1
SPEAKER1
25 24*
PIN Signal Name PIN Signal Name
2 RRXD1 1 DDCD#1
4 DDTR#1 3 TTXD1
6 DDSR#1 5 GND
8 CCTS#1 7 RRTS#1
10 NC 9 COM PWR
1
Signal
GND
