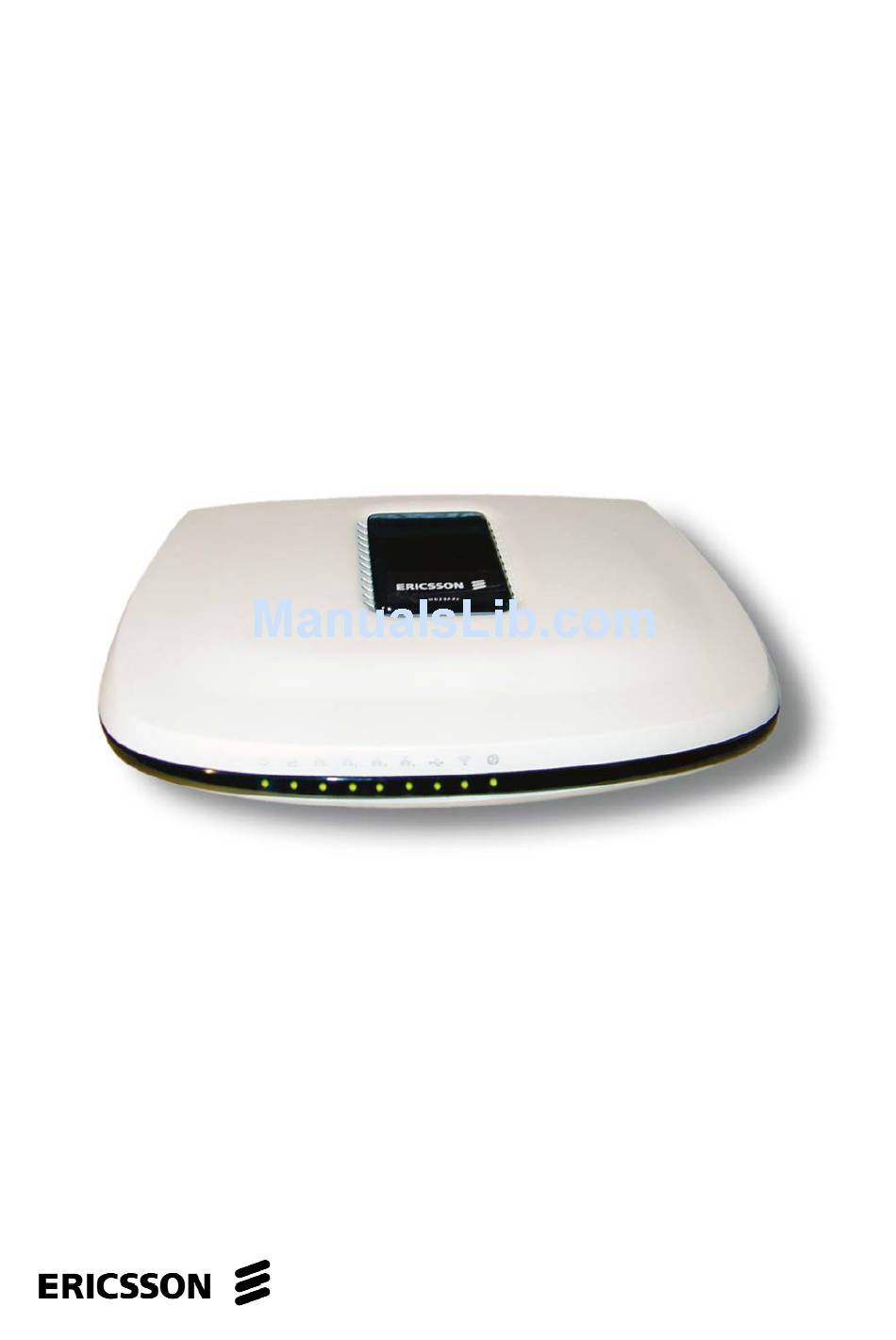

  • Page 1 ADSL Wireless Router HN294dp/di User Guide...

  • Page 2: User Guide

    This User Guide provides general information about the installation of the Ericsson ADSL Wireless Router HN294d, as well as information about configuration possibilities. Trademark List Windows Enclosure List ADSL Wireless Router Windows is a registered trademark of Microsoft Corporation EN/LZT 108 6377 R4 – September 2003 HN294dp/di User Guide...

  • Page 3: Table Of Contents

    Contents 1.2.1 1.2.2 1.2.3 1.2.4 2.1.1 2.1.2 2.2.1 2.2.2 2.4.1 2.4.2 2.5.1 2.5.2 EN/LZT 108 3377 R4 – September 2003 Introduction About this User Guide About the ADSL Wireless Router HN294d Ease of Use Wireless Features Security Advanced Possibilities Hardware Description and Installation Before You Start Package Contents Subscription for ADSL Service...
  • Page 4 Contents 9.2.1 9.3.1 9.4.1 9.4.2 9.4.3 9.4.4 9.4.5 IP Addresses Assigned by PPPoE IP Addresses Assigned by DHCP Static IP Addresses ADSL-mode – RFC1483 Router Description IP Addresses Assigned by DHCP Static IP Addresses ADSL-mode – RFC1483 MER Router Description IP Addresses Assigned by DHCP ADSL-mode –...
  • Page 5 9.4.6 9.5.1 9.5.2 9.5.3 9.5.4 9.5.5 9.5.6 9.6.1 9.6.2 9.6.3 9.6.4 9.6.5 9.6.6 9.6.7 9.6.8 9.6.9 9.6.10 10.1 10.2 10.2.1 10.2.2 10.3 10.4 10.5 10.6 11.1 11.2 EN/LZT 108 6377 R4 - September 2003 Reset Router Status DSL Connection WAN Connection Traffic Counter Routing Table DHCP Table...
  • Page 6 Contents 11.2.1 11.2.2 11.2.3 11.2.4 11.2.5 11.2.6 11.3 11.3.1 11.3.2 11.3.3 11.3.4 11.3.5 11.3.6 11.3.7 11.3.8 11.3.9 Glossary 88 License Term Limited Warranty Intended Use Limitation of Liability Governing Law Regulatory Information EU Directives Safety Approvals EMC Approvals Telecom Approval Access Point Frequency Band Caution Power Supply...

  • Page 7: Introduction

    Introduction About this User Guide This User Guide provides general information about the installation of the Ericsson ADSL Wireless Router HN294d, as well as information about configuration possibilities. The following chapters are included in this guide: Chapter 1 – “Introduction” - provides information about the ADSL Wireless Router HN294d.

  • Page 8: Ease Of Use

    Introduction HN294d is a powerful addition to your home; HN294d stands for Ericsson quality, Wireless (WLAN) stands for freedom from cables, ADSL stands for high-speed access to the Internet, Router stands for security/convenience and they altogether stands for the future. The HN294d is available in two versions: HN294dp and HN294di.

  • Page 9: Security

    find the HN294d and assign your computer an IP address. Now, you are ready to surf and use the Internet anywhere in your home. Since a wireless network is more vulnerable to attacks than a traditional wired network it is recommended to make some configuration that will make it impossible for another user than you to access the wireless network.

  • Page 10: Advanced Possibilities

    Introduction tunnel where the information inside the tunnel is encrypted so that only the intended target at the end of the tunnel can read the information. 1.2.4 Advanced Possibilities The HN294d also offers sophisticated router functionality making it possible for advanced users to create customized network scenarios as desired. This includes the ability to set up static routes, multiple subnets, a DMZ, etc.

  • Page 11: Hardware Description And Installation

    Hardware Description and Installation This chapter provides a hardware description of the product and detailed instructions about how to install the HN294d in a PC/Windows environment. Before You Start 2.1.1 Package Contents Check the contents of the package against the shipping contents checklist (and figure) below.

  • Page 12: Subscription For Adsl Service

    Hardware Description and Installation ADSL Line Cable Ethernet Cable USB Cable Quick Installation Guide Your HN294d package may also include other materials provided by your ADSL operator. 2.1.2 Subscription for ADSL Service To use the ADSL Wireless Router HN294d, you will require an ADSL service subscription from your broadband service provider.

  • Page 13: Back Panel And Connectors

    Symbol WLAN 2.2.2 Back Panel and Connectors The following figure illustrates the back panel of your HN294d: Description of connectors and buttons: DSL – The DSL port is used for connecting the HN294d to the ADSL service port (splitter/filter or phone outlet) using the supplied ADSL line cable (RJ11 –...

  • Page 14: Choose A Place For The Router

    Hardware Description and Installation POWER button – To power ON/OFF your HN294d. PWR – The PWR socket is used for connecting the supplied power supply adapter. Choose a Place for the Router The HN294d can be mounted on the wall or simply placed on a flat surface. NOTE! Proper ventilation is necessary to prevent the product from over-heating.

  • Page 15: Connect The Hn294D

    Connect the HN294d This chapter describes how to connect the HN294d to your Wireless LAN and/or to your LAN computer(s) using the Ethernet and/or USB interface(s). 2.4.1 Connect Wireless Computer(s) To be able to communicate with the HN294d in a wireless LAN your computer(s) need some kind of wireless adapter installed.

  • Page 16: Connect Computer(S) Via Cables

    Hardware Description and Installation wireless MAC address (can be found on an information sticker on the bottom of the router). 6. Now, the HN294d must be configured for your specific ADSL mode and other settings. This is described in chapter 3 “Initial Configuration”.
  • Page 17 The LAN connection to either a Ethernet NIC or a USB port. 5. Now, the HN294d must be configured for your specific ADSL mode and other settings. This is described in chapter 3 – “Initial Configuration”. 2.4.2.1 Install USB Drivers NOTE! This should only be done if you have connected a computer via the USB interface.
  • Page 18 Hardware Description and Installation 3. Select Install USB Driver and wait until the following window is displayed: 4. Click Next>. Files will now be copied to your hard disk and when completed the following window appears: 5. Connect the provided USB cable to the USB port of your HN294d. Connect the other end to the USB port on your client PC.
  • Page 19 NOTE! If the Digital Signature Not Found window (or similar) appears, you should click Yes (or Continue Anyway) to continue the installation. This is a warning from Microsoft that the installation software is not a digitally signed version, but since Ericsson has tested the software in different Windows versions this is not necessary.

  • Page 20: Configure Client Pcs

    Hardware Description and Installation Configure Client PCs This chapter describes how you can check (and maybe change) the TCP/IP settings in your computer(s) if you have problems to access the Internet. Refer to information from your Internet Service Provider. 2.5.1 Use DHCP If you have not been provided any IP settings from your ISP/service provider, you should use DHCP that is the most common used method.

  • Page 21: Use Static Ip Addresses

    7. Close the “Network and Internet Connections” window. In Windows XP: 1. From the Start menu select Control Panel and double-click on Network Connections (Classic View) or double-click on the link Network and Internet connections followed by Network Connections (Category View). 2.
  • Page 22 Hardware Description and Installation 6. Some configuration files may be copied to your hard disk and if a “Settings Changes” message asks you to restart your PC, you should answer Yes. In Windows 2000: 1. From the Start menu select Settings > Control Panel and double- click on the Network and Dial-up Connections icon.

  • Page 23: Initial Configuration

    Initial Configuration This chapter describes how to access the built-in Configuration tool and run the Configuration Wizard in order to perform the initial configuration. Introduction The HN294d is an advanced ADSL router with several features and supported modes that make it ideal for advanced home networking. Most routers with similar features require complex configuration routines, but the HN294d offers a Configuration Wizard that enables you to easily configure the HN294d through a user friendly GUI.

  • Page 24: Access The Configuration Wizard

    Initial Configuration The HN294 still offers the possibility for advanced users to set up special network scenarios themselves or to modify the existing ones. Refer to the “Advanced Configuration” chapter for further information. TIP: For advanced network scenarios, select the ADSL-mode that is closest to your requirements and then modify it to meet your needs.

  • Page 25: Access The Internet

    4. The welcome page of the Configuration tool is displayed: 5. Click on the Configuration Wizard button and follow the instructions given on-screen. 6. When you have completed the wizard and reached the last page (step 4) it is important that you click the Save Configuration button to save all configuration settings to non-volatile memory.

  • Page 26: Adsl-Mode - Rfc1483 Bridge

    ADSL-mode – RFC1483 Bridge ADSL-mode – RFC1483 Bridge Description RFC1483 (2684) Bridged Mode (single PVC) In this mode the HN294d will act only as a “bridge”, meaning that the routing functionality (firewall, NAT, UPnP, etc) will be disabled. This mode is suitable when you only want to connect a single computer to the Internet and want to perform all special functionality in the computer instead of the HN294d.

  • Page 27: Ip Addresses Assigned By Dhcp

    IP Addresses Assigned by DHCP The PCs on the LAN/WLAN use the DHCP protocol. The IP addresses are dynamically assigned to the PCs from the DHCP server at the ISP. Verify that your TCP/IP settings are set to “Obtain an IP address automatically”. Refer to section xxx “Use DHCP”...

  • Page 28: Adsl-Mode - Rfc1483 Router

    ADSL-mode – RFC1483 Router ADSL-mode – RFC1483 Router Description RFC1483 (2684) Routed Mode (single PVC) The RFC1483 Router mode allows a simple routed connection to the Internet. This ADSL-mode can also be used together with NAT to let the end-user connect an almost unlimited number of PCs on the LAN/WLAN with only one IP address from the ISP.

  • Page 29: Static Ip Addresses

    “Obtain an IP address automatically”. Refer to section xxx “Use DHCP” for instructions. Static IP Addresses The PCs on the LAN/WLAN are manually configured with static IP addresses provided by your ISP/service provider. Refer to section xxx “Use Static IP Addresses” for instructions. EN/LZT 108 6377 R4 - September 2003 ADSL-mode –...

  • Page 30: Adsl-Mode - Rfc1483 Mer Router

    ADSL-mode – RFC1483 MER Router ADSL-mode – RFC1483 MER Router Description RFC1483 (2684) Bridged Mode (single PVC) with router functionality enabled. A new feature of the HN294d is bridge-router mode. In this mode the user can connect an almost unlimited number of PCs to the LAN/WLAN but still only require one IP address from the ISP (which is the standard offering of most ISPs today).

  • Page 31: Ip Addresses Assigned By Dhcp

    PCs on the LAN/WLAN will be assigned private IP addresses from the built- in DHCP server and the NAT will route the traffic to/from the WAN. The HN294d offers several automatic features (such as ALG, Smart tracking, UPnP, Firewall etc) to make Internet surfing, downloading files, and playing network games a pleasant and trouble-free experience.

  • Page 32: Adsl-Mode - Pppoe Router

    ADSL-mode – PPPoE Router ADSL-mode – PPPoE Router Description This ADSL-mode, much like the “RFC1483 MER Router” mode, allows the user to connect an almost unlimited number of PCs on the LAN/WLAN with only one IP address from the ISP. All traffic from the LAN/WLAN uses the same PVC.

  • Page 33: Pppoe Termination And Pppoe Passthrough

    PPPoE Termination and PPPoE Passthrough The “PPPoE Router” mode also allows user to connect directly from the PC to the BRAS at the ISP. This means that the user can choose if he/she wants to use the built-in PPPoE client, a PPPoE client installed on the PC, or a combination of the two.

  • Page 34: Adsl-Mode - Pppoa Router

    ADSL-mode – PPPoA Router ADSL-mode – PPPoA Router Description This ADSL-mode, much like the “RFC1483 MER Router” mode, allows the user to connect an almost unlimited number of PCs on the LAN/WLAN with only one IP address from the ISP. All traffic from the LAN/WLAN uses the same PVC.

  • Page 35: Ip Addresses Assigned By Dhcp

    IP Addresses Assigned by DHCP The PCs on the LAN/WLAN normally use the DHCP protocol. The IP addresses are dynamically assigned to the PCs from the DHCP server in the HN294d. If DHCP Relay is enabled, the IP addresses can be assigned from a DHCP server at the ISP.

  • Page 36: Advanced Configuration

    Advanced Configuration Advanced Configuration Introduction The HN294 offers the possibility for advanced users to set up special network scenarios themselves or to modify the existing ones. TIP: For advanced network scenarios, use the Configuration Wizard and select the ADSL-mode that is closest to your requirements and then modify it to meet your needs.

  • Page 37: Outline Of The Web Manager

    3. Type admin in both the “User name” and “Password” fields that are the default settings for the HN294d, and click OK. 4. The welcome page of the Configuration tool is displayed: 5. Click on the Advanced Configuration button to enter the Web Manager.

  • Page 38: Overview

    Advanced Configuration Overview This is the start page of the Web Manager: On this page you can see the current configuration of your HN294d. For ADSL-modes that use PPP as connection type, you need to Connect/Disconnect when you want to access the Internet. This is shown in the “Action”...
  • Page 39 1. Click the Connect button in the “Action” column. The following page appears: 2. Enter the User Name and Password provided by your ISP and click on the Connect button. 3. Once the connection is successfully established you will return to the Overview page where you can keep track on the “On-Line Time”.

  • Page 40: System

    Advanced Configuration System 9.4.1 Device Information The System > Device Info page provides a general overview of your HN294d including the hardware board, firmware version, and information about the Ethernet, USB and Wireless interfaces. 9.4.2 Administration 9.4.2.1 Account On the System > Administration > Account page you can change the default User Name and/or Password which is recommended to avoid unauthorized access to the configuration pages.
  • Page 41 To change the default User Name and/or Password, just type your new information in the fields. If you only want to change the password, keep admin in the “User Name” field and type your new password (in both fields). Confirm by clicking the Apply button. The login window then appears and you are prompted to make a new login with your new User Name and/or Password.

  • Page 42: Backup Configuration

    Advanced Configuration Select Unlimited time if you always want to have access to your HN294 d from the Internet. 2. Click the Enable button. Information about “Seconds remaining for remote access” is now displayed. 3. In order to disable this function, simply click the Disable button. 4.
  • Page 43 9.4.3.1 Backup To save a backup file of your current configuration proceed as follows: 1. Click the Backup button. 2. An information window is displayed. Click OK to continue.. 3. Enter a filename (or keep the default MyConfiguration) and select a destination folder where you want to save the backup file.

  • Page 44: Save Configuration

    Advanced Configuration 4. When the restoring is completed the following window appears: 5. Click the Save button to save the configuration (otherwise the new settings are only valid until next reboot). 9.4.4 Save Configuration From the System > Save Configuration page you can save all current configuration to non-volatile memory.

  • Page 45: Reset Router

    The HN294d supports firmware upgrades via HTTP. To transfer a new firmware file and upgrade the HN294d, follow the steps below: 1. Download and unzip the new firmware file to your local PC. 2. In the File Name of Firmware field, click the Browse button to locate the upgrade file.
  • Page 46 Advanced Configuration Click the Restart button. When restarting the system, your browser session will be disconnected. Please wait until the device has finished restarting before attempting to reconnect to the device. 9.4.6.1 Reset to Factory Default If Reset to factory default settings is checked before you click the Restart button, the settings will return to factory default settings, including the User Name and Password.

  • Page 47: Status

    Status 9.5.1 DSL Connection The Status > DSL Connection page shows the DSL line connection status: By clicking the Refresh link (above the table) all values will be updated. The table below describes the included parameters: Parameter Line Mode Line State DS / US Speed EN/LZT 108 6377 R4 - September 2003 Description...

  • Page 48: Wan Connection

    Advanced Configuration Parameter DS / US Latency Trellis coding Line Attenuation Noise Margin Loss os Signal / Frame CRC Error Error Second Line / System Up Time 9.5.2 WAN Connection The Status > WAN Connection page shows the ATM PVC interface(s) currently defined.

  • Page 49: Traffic Counter

    Parameter PVC Name Data Encap Local WAN IP 9.5.3 Traffic Counter The Status > Traffic Counter page shows the records of data going through the LAN, WLAN and WAN interfaces. For each interface, cumulative totals are displayed for Transmitted (Tx) / Received (Rx) packets and Transmitted (Tx) / Received (Rx) bytes.

  • Page 50: Routing Table

    Advanced Configuration 9.5.4 Routing Table The Status > Routing Table page shows the routing rules of data packets going through the HN294d while in routing mode. By clicking the Refresh link (above the table) all the values will be updated. 9.5.5 DHCP Table The Status >...
  • Page 51 Advanced Configuration For each wireless client, the MAC Address and the On-Line Time are indicated. By clicking the Refresh link (above the table) all the values will be updated. EN/LZT 108 6377 R4 - September 2003...

  • Page 52: Configuration

    Advanced Configuration Configuration 9.6.1 DSL Configuration The Configuration > DSL page allows you to define the DSL Line Mode. The DSL Line Mode you specify will be applied to the entire HN294d meaning that all ATM PVC provides created will use the same line mode. Consult your ISP/service provider to find out which option applies to your DSL line.
  • Page 53 9.6.2.1 IP Address On the Configuration > LAN > IP Address page you can define the IP addresses over the LAN interface on which you can access the HN294d. The table below describes the parameters: Parameter Primary IP Address Secondary IP Address Enter your IP settings and click the Apply button.
  • Page 54 Advanced Configuration 9.6.2.2 DHCP Server The Configuration > LAN > DHCP Server page allows you to configure the built-in DHCP Server. The HN294d incorporates a DHCP (Dynamic Host Configuration Protocol) server, which dynamically assigns IP addresses and serves as a DNS server to the PCs on the LAN/WLAN.
  • Page 55 The table below describes the parameters: Parameter Interface Start IP Address End IP Address DHCP lease time Default Gateway EN/LZT 108 6377 R4 - September 2003 Description Select the appropriate interface from the drop-down list. NOTE! “Primary LAN” is the only selection in this version.
  • Page 56 Advanced Configuration Parameter Domain Name Servers Enter details for the DHCP Server configuration and click the Apply button. Select System > Save Configuration and click the Save button to save your new settings. Enable and configure the DHCP Relay Agent: Select the Relay Agent radio button and click the Configure button.

  • Page 57: Wlan Configuration

    9.6.3 WLAN Configuration 9.6.3.1 Basic Setup On the Configuration > WLAN > Basic Setup page you can make some basic security configuration for your Wireless LAN. EN/LZT 108 6377 R4 - September 2003 Advanced Configuration...
  • Page 58 Advanced Configuration The table below describes the parameters: Parameter Wireless SSID Hide SSID Desired Channel Authentication Type Description The Wireless SSID (Service Set IDentification) is the name of your wireless network. The HN294d comes preconfigured with a unique name, HN294- xxxxxx, where xxxxxx is the last six digits of its wireless MAC address.
  • Page 59 Wired Equivalent Privacy Mechanism Make your basic security configuration for you wireless LAN as described below: 1. Make your settings for Wireless SSID, Desired Channel and Authentication Type. 2. In order to benefit from the increased security (optional) you can enable WEP as the following: Click the Apply button.
  • Page 60 Advanced Configuration NOTE! If you are using a wireless client when configuring WEP, after pressing the Apply button you will not be able to have contact with the router until you have configured your wireless clients as well. This is fully normal and is a proof that your network is now protected. Remember to enter the same keys at every device on the wireless network.
  • Page 61 00:90:96:1A:2B:3C and only number 0 through 9 and letters a through f are allowed. 2. Click the Apply button and the following page appears: 3. Verify that the correct MAC address is shown in the list of authorized clients. 4. Select System > Save Configuration and click the Save button to save your new settings.

  • Page 62: Wan Configuration

    Advanced Configuration 3. Select System > Save Configuration and click the Save button to save your new settings. To remove a client, simply click Delete in the list of approved clients. 9.6.4 WAN Configuration On the Configuration > WAN page you can create, modify and delete ATM PVC interfaces.
  • Page 63 selected: 4. Fill in the parameters according to information from your ISP/service provider and click the Apply button. 5. Select System > Save Configuration and click the Save button to save your new settings. The parameters for creating a new ATM PVC Interface are described below.
  • Page 64 Advanced Configuration Parameter ATM Service Type PCR (Peak Cell Rate) Encapsulation Type IP Configuration Local WAN IP Address PPP Configuration: User Name/Password Service Name Service Server Session established by Description Identifies the VCI (Virtual Channel Identifier). The valid range is from 32 to 4095 (1 to 31 are reserved for well-known protocols).

  • Page 65: Ip Route

    Enable NAT on this interface NOTE! When you initially add a PVC for the PPP connection to your ISP, a default routing of 0.0.0.0 is added automatically to the IP Static Routing. If you set up more than one PVC profile and the first PVC is deleted, you will have to manually add the default routing.
  • Page 66 Advanced Configuration 1. Click the Create a new route button. The following page appears: 2. Enter parameters according to information in the table below and click the Apply button. 3. Select System > Save Configuration and click the Save button to save your new settings.

  • Page 67: Dns

    By default RIP is disabled and you can enable RIP on both the WAN and Primary LAN interfaces. The RIP values can be customized for both Receive and Transmit mode. Receive Mode incorporates the RIP information when receiving RIP packets and Transmit Mode broadcasts the routing table.
  • Page 68 Advanced Configuration To enable DNS Relay or modify the current settings proceed as follows: 1. Select the Enabled radio button and click the Configure button. The following page appears: 2. Specify up to three DNS Server IP addresses and click the Apply button.
  • Page 69 9.6.6.2 DNS Server On the Configuration > DNS > Server page you can disable/enable the DNS Server function. If you have established settings before, the page will show a table containing all current DNS clients created. To disable/enable the DNS Server, select the appropriate radio button and click the Apply button.

  • Page 70: Security

    Advanced Configuration Select System > Save Configuration and click the Save button to save your new settings. 9.6.7 Security 9.6.7.1 Firewall On the Configuration > Security > Firewall page you can select the desired security level for the built-in firewall. To simplify the configuration you can select a general security level (Low, Medium or High) for the firewall.
  • Page 71 Advanced Configuration Set an appropriate security level for the firewall and click the Apply button. Select System > Save Configuration and click the Save button to save your new settings. EN/LZT 108 6377 R4 - September 2003...
  • Page 72 Advanced Configuration Modify or delete existing rules 1. Select the Advanced (User Define) option and click the Apply button. The following page appears: 2. At the bottom of the page, select between which interfaces you want to modify or delete the existing rules. If you have not created a secondary LAN (see Configuration >...
  • Page 73 3. Click the Modify link next to the rule you want to modify. 4. To delete an existing rule, click the Delete link. NOTE! If you delete any of the predefined entries, the service type of the deleted entry will be blocked. This means that the LAN PCs will not be able to access its corresponding service.
  • Page 74 Advanced Configuration 6. Enter parameters according to the descriptions below and click the Apply button. 7. Select System > Save Configuration and click the Save button to save your new settings. Description of parameters when creating a new filtering rule: Parameter Protocol Type Local Side...

  • Page 75: Intrusion Detection

    Parameter Port Range Direction 9.6.7.2 Intrusion Detection On the Configuration > Security > Intrusion Detection you can enable/disable the intrusion detection function and also see and modify the existing rules. To enable/disable the intrusion detection function select the appropriate radio button and click the Apply button. EN/LZT 108 6377 R4 - September 2003 Description Enter the starting and ending port numbers that...

  • Page 76: Virtual Server

    Advanced Configuration To modify the existing rules, click the Modify Rules button and the following page appears: Make your changes and click the Apply button. Select System > Save Configuration and click the Save button to save your new settings. 9.6.8 Virtual Server The Configuration >...
  • Page 77 want to make them publicly accessible. With NAT applied, the internal IP addresses of these servers will be translated to a single IP address that is unique on the Internet. The NAT function not only eliminates the need for multiple public IP addresses, but also provides a measure of security for your LAN/WLAN.
  • Page 78 Advanced Configuration 3. Select System > Save Configuration and click the Save button to save your new settings. Description of parameters when creating a new virtual server: Parameter ATM PVC Name External Packet Protocol TCP/IP Port Internal Host IP Address TCP/IP Port Create a DMZ zone With the help of the Virtual Server you can also create a DMZ zone for one...

  • Page 79: Igmp Proxy

    1. Click the Setup DMZ host button and the following page appears: 2. Enter parameters according to the description in the table below and click the Apply button. 3. Select System > Save Configuration and click the Save button to save your new settings.

  • Page 80: Upnp

    Advanced Configuration Select System > Save Configuration and click the Save button to save your new settings. 9.6.10 UPnP On the Configuration > UPnP page you can enable the UPnP function. Universal plug and play (UPnP) is a networking architecture that provides compatibility among networking equipment, software and peripherals of the 400+ vendors that are part of the Universal Plug and Play Forum.

  • Page 81: Troubleshooting

    Troubleshooting This chapter provides tips and solutions for resolving some of the problems you might encounter when using your HN294d. If the suggested solutions do not resolve your issue, contact your system administrator or Internet Service Provider. 10.1 Basic Functions Indication/Symptom No LEDs light up on my HN294d and it will not turn...

  • Page 82: How To Use Winipcfg

    Troubleshooting 10.2.1 How to use WINIPCFG Use WINIPCFG if your PC is running Windows 95, 98 or Me: 1. From the Start menu select Run… . 2. Type winipcfg and click OK. The “IP Configuration” dialog box appears. 3. From the scroll down menu at the top, select the network card that you are using.

  • Page 83: Wan Connection

    10.3 WAN Connection Indication/Symptom I can access the HN294d but cannot connect to my ISP. 10.4 WLAN Connection Indication/Symptom I cannot find the MAC address of my WLAN adapter. I have problems getting a wireless connection EN/LZT 108 6377 R4 - September 2003 What to do Make sure that the HN294d is connected properly according to the installation instructions.

  • Page 84: Reset The Hn294D

    Troubleshooting 10.5 Reset the HN294d Failure to access your HN294d may occur if the router is configured incorrectly or if you simply forget your login Username and Password. You may end up in a situation where restoring the original default settings is the only option.
  • Page 85 3. In the File Name of Firmware field, click the Browse button to locate the upgrade file. 4. Click the Upgrade button. DO NOT turn off your HN294d during the firmware upgrade. The process may take a while due to extensive testing of the software. After upgrading, the original configuration settings will remain.

  • Page 86: Important Information

    Important Information Important Information 11.1 Product Care and Maintenance NOTE! These are important guidelines for safe and efficient use of your device. Read this information before using your Ericsson ADSL Wireless Router HN294d. Your ADSL Wireless Router HN294d is a highly sophisticated electronic device.

  • Page 87: License Agreement

    11.2 License Agreement This is a legal agreement, Agreement, between you, Licensee, the recipient of the enclosed Software on compact disc, diskette or any other media and any upgrades thereof, and Ericsson AB, the Vendor. By opening the sealed software package and/or using the software you are agreeing to be bound by the terms of this Agreement.

  • Page 88: Intended Use

    Important Information and your exclusive remedy under this warranty (which is subject to you returning the Software to an certified reseller with a copy of your receipt) will be, at Vendor's option, to replace the disc(s)/ diskette(s) or refund the purchase price for the Software and terminate this Agreement.

  • Page 89: Regulatory Information

    11.3 Regulatory Information 11.3.1 EU Directives The HN294d meet the following EU directives for the CE-mark: 73/23/EEC, Low Voltage Directive (LVD) 89/336/EEC, Electromagnetic Compatibility Directive (EMC) 1999/5/EC, Radio Equipment and Telecommunication Terminal Directive (R&TTE). 11.3.1.1 Declaration of Conformity 11.3.2 Safety Approvals The HN294d is approved according to the following safety standards: UL 1950, 3 EN/LZT 108 6377 R4 - September 2003...

  • Page 90: Emc Approvals

    Important Information CAN/CSA C22.2 No. 950-95 IEC 60950 2 11.3.2.1 UL 1950 Statement When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1.

  • Page 91: Telecom Approval

    EN 300328-2 V1.2.1:2001 11.3.3.1 FCC Part 15 Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 92 Important Information FCC Part 68 11.3.4.1 FCC Part 68 Statement The Federal Communications Commission (FCC) has established Rules which permit this device to be directly connected to the telephone network. Standardized jacks are used for these connections. This equipment should not be used on party lines or coin phones.

  • Page 93: Access Point Frequency Band

    Company: ASKEY International Corp. Address: 1751 Yeager Ave, La Verne, CA 91750, USA Tel: 909-596-5180. 11.3.5 Access Point Frequency Band 2412 MHz to 2472 MHz (subject to local regulations). 11.3.6 Caution Changes or modifications to this product not authorized by the manufacturer could void your authority to operate the equipment and invalidate approvals.

  • Page 94: Glossary

    Important Information Glossary Access Point An Access Point (AP) is a hardware device or a computer's software that acts as a communication hub for users of a wireless device to connect to a wireless LAN (WLAN). The HN294dp has an integrated WLAN access point which complies to the 802.11b standard.
  • Page 95 Bandwidth A measure of capacity of communications media. Greater bandwidth allows communication of more information in a given period of time. Bandwidth is generally described either in terms of analog signals in units of Hertz (Hz), which describes the maximum number of cycles per second, or in terms of digital signals in units of bits per second.
  • Page 96 Important Information Short for Domain Name System (or Service), an Internet service that translates domain names into IP addresses. Because domain names are alphabetic, they're easier to remember. The Internet however, is really based on IP addresses. Every time you use a domain name, therefore, a DNS service must translate the name into the corresponding IP address.
  • Page 97 Important Information - E - Encapsulation A technology that enables one network to send its data via another network's connections. Encapsulation works by encapsulating a network protocol within packets carried by the second network. Encapsulation is also called tunneling. Ethernet A local-area network (LAN) architecture that uses a bus topology and supports data transfer rates of 10 Mbps.
  • Page 98 Important Information G.lite A kind of asymmetric DSL technology, based on DMT modulation, that offers up to 1.5 megabits per second downstream bandwidth, 384 Kilobits per second upstream, does not usually require a splitter and is easier to install than other types of DSL. "G.lite" is a nickname for the standard officially known as G.992.2.
  • Page 99 Important Information router, using Host Membership Reports, that it wants to receive messages addressed to a specific multicast group. Intranet A network based on TCP/IP protocols (an internet) belonging to an organization, usually a corporation, accessible only by the organization's members, employees, or others with authorization.
  • Page 100 Important Information Short for Network Address Translation, which is an Internet standard that translates a private IP address within one network to a public IP address, either a static or dynamic. NAT provides a type of firewall by hiding internal IP addresses and it also enables a company to use more internal IP addresses.
  • Page 101 broadband medium, such as a single DSL line, wireless device or cable modem. All the users over the Ethernet share a common connection, so the Ethernet principles supporting multiple users in a LAN combine with the principles of PPP, which apply to serial connections. Short for Permanent Virtual Circuit, which is a logical point-to-point circuit between customer sites.
  • Page 102 Important Information device will not be permitted to join the BSS unless it can provide the unique SSID. Because an SSID can be sniffed in plain text from a packet it does not supply any security to the network. An SSID is also referred to as a Network Name because essentially it is a name that identifies a wireless network Stateful Inspection Stateful inspection is a firewall architecture that works at the network layer.
  • Page 103 Sort for Unspecified Bit Rate. A type of ATM service that does not guarantee any throughput levels. This is used for applications, such as file transfers, that can tolerate delays. Short for User Datagram Protocol, which is a connectionless transport service that dispenses with the reliability services provided by TCP.
  • Page 104 Important Information many virtual servers reside on the same computer, or if one virtual server starts hogging resources, Web pages will be delivered more slowly. VPI and VCI A VPI (Virtual Path Identifier) is an 8-bit field while VCI (Virtual Channel Identifier) is a 16-bit field in the ATM cell header.
