UNPACKING AND INSPECTION
Check the contents of the shipping carton
Be careful when unpacking the Sub Phatty so that nothing is lost or damaged. Moog recommends
saving the carton and all packing materials in case you ever need to ship the instrument for any reason.
The Moog Sub Phatty ships with the following items:
1. Sub Phatty synthesizer
2. Power cord
3. Owner's manual
4. Registration card
What you will need:
1. A stand or table sufficient to support the Sub Phatty
2. Either a 1/4 inch instrument cable and amplified speakers or headphones with a 1/4" inch plug
3. A properly wired AC outlet
SETUP AND CONNECTIONS

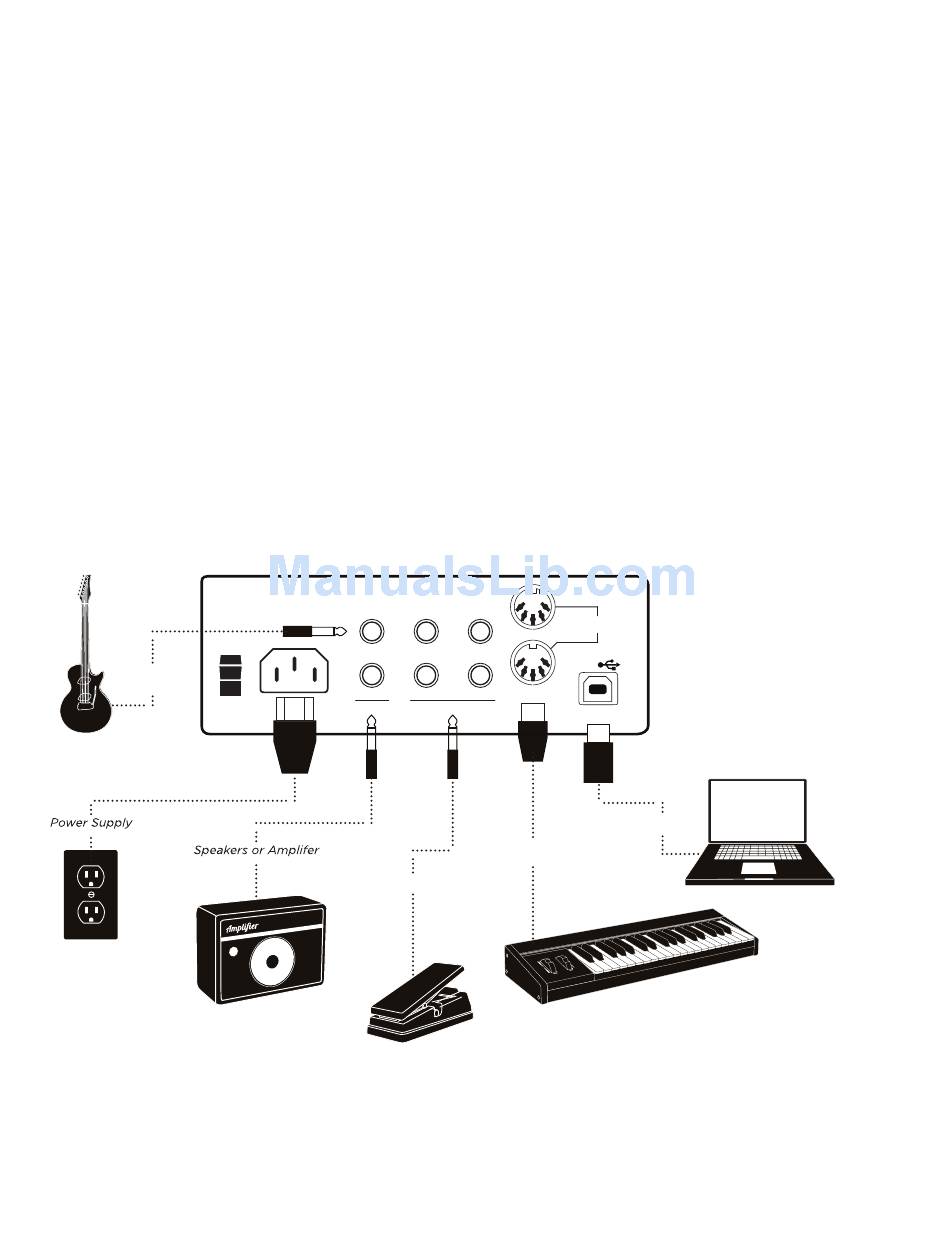

Place the Sub Phatty on a stable surface such as a table or keyboard stand at a height suitable for
playing comfortably.
External
I
Audio in
O
EXT IN
PITCH CV VOL CV
FILTER CV KB GATE
OUT
AUDIO INPUT
5 Pin DIN MIDI
Control Voltage
7
OUT
MIDI
IN
USB
USB MIDI
