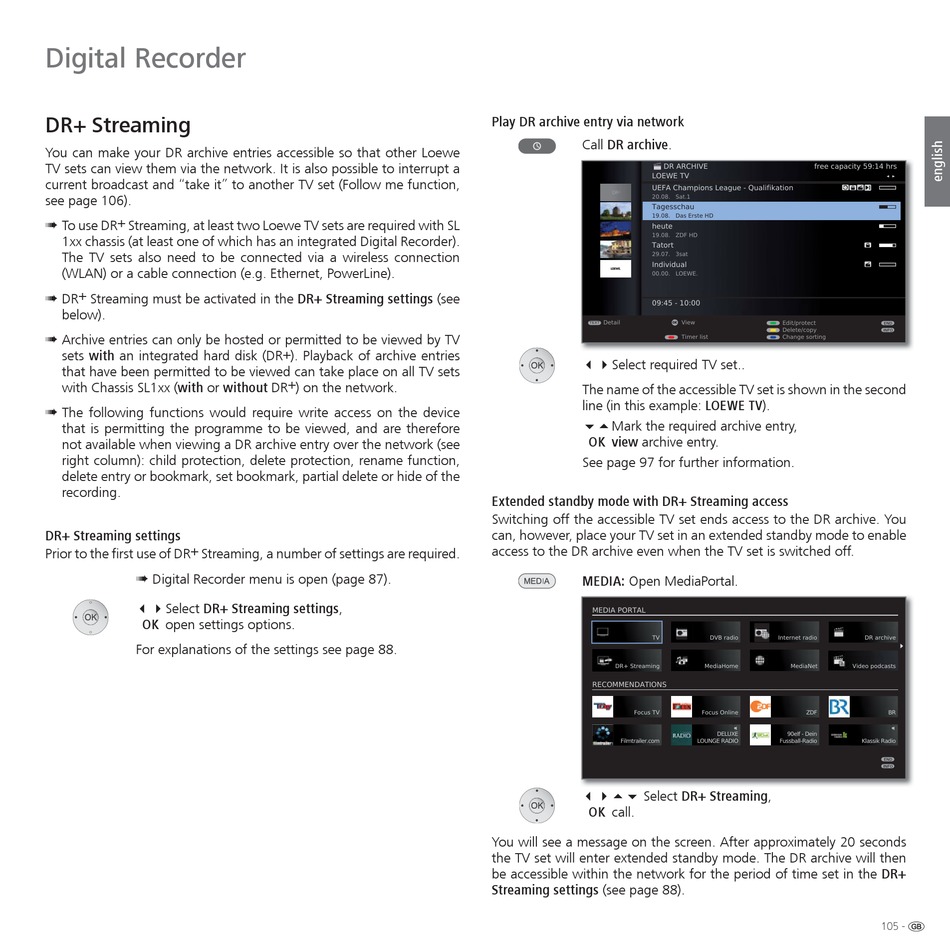

Digital Recorder

DR+ Streaming

You can make your DR archive entries accessible so that other Loewe
TV sets can view them via the network. It is also possible to interrupt a
current broadcast and "take it" to another TV set (Follow me function,
see page 106).
➠ To use DR + Streaming, at least two Loewe TV sets are required with SL
1xx chassis (at least one of which has an integrated Digital Recorder).
The TV sets also need to be connected via a wireless connection
(WLAN) or a cable connection (e.g. Ethernet, PowerLine).
➠ DR + Streaming must be activated in the DR+ Streaming settings (see
below).
➠ Archive entries can only be hosted or permitted to be viewed by TV
sets with an integrated hard disk (DR + ). Playback of archive entries
that have been permitted to be viewed can take place on all TV sets
with Chassis SL1xx (with or without DR + ) on the network.
➠ The following functions would require write access on the device
that is permitting the programme to be viewed, and are therefore
not available when viewing a DR archive entry over the network (see
right column): child protection, delete protection, rename function,
delete entry or bookmark, set bookmark, partial delete or hide of the
recording.
DR+ Streaming settings
Prior to the first use of DR + Streaming, a number of settings are required.
➠ Digital Recorder menu is open (page 87).
Select DR+ Streaming settings,
OK open settings options.
For explanations of the settings see page 88.
Play DR archive entry via network
Call DR archive.
DR ARCHIVE
LOEWE TV
UEFA Champions League - Qualifikation
20.08. Sat.1
Tagesschau
19.08. Das Erste HD
heute
19.08. ZDF HD
Tatort
29.07. 3sat
Individual
00.00. LOEWE.
09:45 - 10:00
Detail
TEXT
Select required TV set..
The name of the accessible TV set is shown in the second
line (in this example: LOEWE TV).
Mark the required archive entry,
OK view archive entry.
See page 97 for further information.
Extended standby mode with DR+ Streaming access
Switching off the accessible TV set ends access to the DR archive. You
can, however, place your TV set in an extended standby mode to enable
access to the DR archive even when the TV set is switched off.
MEDIA: Open MediaPortal.
MEDIA PORTAL
TV
DR+ Streaming
RECOMMENDATIONS
Focus TV
Filmtrailer.com
Select DR+ Streaming,
OK call.
You will see a message on the screen. After approximately 20 seconds
the TV set will enter extended standby mode. The DR archive will then
be accessible within the network for the period of time set in the DR+
Streaming settings (see page 88).
free capacity 59:14 hrs
{,-=
View
Edit/protect
OK
Delete/copy
Timer list Change sorting
DVB radio Internet radio
MediaNet
MediaHome
Focus Online ZDF
DELUXE 90elf - Dein
LOUNGE RADIO Fussball-Radio
,
-
DR archive
Video podcasts
BR
Klassik Radio
105 -
