Yukon 30x50 Instructions

SPECIFICATIONS

Model

Objective Lens, mm

Magnification, x

Field of view m/ft @ 1000 m/yds

Length, mm/in

Weight, kg/oz

INSTRUCTIONS

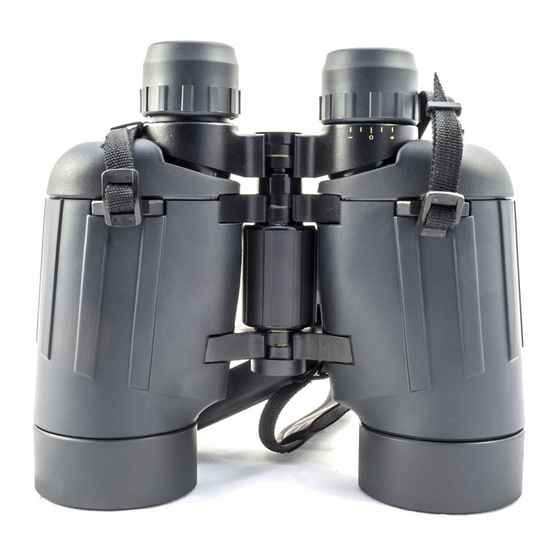

These instructions will help familiarize you with the Yukon Newtonian Reflector Binocular.

The new Yukon binoculars utilize a Newtonian-style reflecting mirror and lens optical

system. The folded light path system allows our binocular to provide high resolution and

magnification in a compact frame. Yukon Binocular is sold with a tripod mount adapter.

1. Remove the binocular from the carrying case.

2. Remove protective lens caps from the front lenses (1) and the eye pieces (3).

3. Set the interpupillary distance (2) by moving the lens barrels of the binocular until you

can see one circle of view.

4. Focus the left eye by turning the center focus wheel (4).

5. Adjust the right eye by turning the right eyepiece (3) until the image is clear.

6. When using the binocular it is recommended to use the tripod with mount adapter (5)

which can be attached to the socket under the removable cover (6).

30x50

32/105

204 / 8

1.1/39

Table of Contents

Do you have a question about the 30x50 and is the answer not in the manual?

Page 1 The new Yukon binoculars utilize a Newtonian-style reflecting mirror and lens optical system. The folded light path system allows our binocular to provide high resolution and magnification in a compact frame. Yukon Binocular is sold with a tripod mount adapter. FOCUSING 1.
Page 2 CARE AND MAINTENANCE 1. With proper care and handling your Yukon binocular will provide problem free performance for many years to come. 2. When cleaning the binocular lenses, use a light coating of a lens cleaning solution and a soft cotton cloth. Do not pour lens cleaner directly on the lens itself as the solution may enter the binocular body.
