Yukon Futurus Pro 7x50WA Instructions

SPECIFICATIONS

Model 7x50WA
Objective Lens, 50
mm
Magnification, x 7
Eye Relief, mm 21
Field of view 115/377
m/ft @ 1000
m/yds
Length, mm/in 200/7.9
Weight, kg/oz 1.03/36.3
INSTRUCTIONS

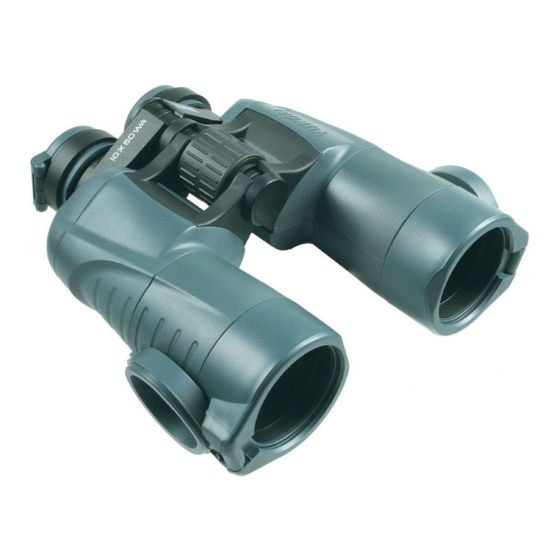

These instructions will familiarize you with the Futurus prismatic binoculars.
This range of the Futurus binoculars has a wide field of view, long eye relief and zoom
capability with smooth adjustment for magnification.
The Futurus binoculars will be your perfect companion for:
· studying wild life
· observing sporting events
· tourism and leisure purposes
· and security measures etc.
WARNING: Do not look at the sun through these binoculars. Do not disassemble.

OPERATION

1. Open protective cups from objective lenses (1) and eyepieces (3).
2. Adjust binoculars for your eye span by bringing optical axes (2) closer or moving them further
apart.
3. Set up your preferred dioptrical setting, focusing the left eye by turning the central focusing
wheel (4) until the image is sharp. Adjust the right eye for the sharpest picture by rotating the
right eyepiece (3). Dioptrical adjustment usually needs to be set up only once, and should not
require readjustment.
4. To focus binoculars use the central focusing wheel.
5. Design of eyepiece cushions prevents light leakage from the sides. The eyepiece cushions can
be rotated as well as can be taken off as required.
10x50WA 12x50WA
50 50
10 12
14 12
114/374 96/315
193/7.6 185/7.3
1.03/36.3 1.0/35.3
16x50 20x50
50 50
16 20
10 10
70/230 56/184
185/7.3 185/7.3
1.02/36.0 0.99/34.9
