Table of connect Important Safety Instructions..................4 Precautions........................5-6 Quick Guide Getting to Know Your Portable DVD Player Unpacking......................7 Front View Diagram…………………………………………………………………….7 Left Side Diagram....................8 Front Side Diagram....................8 Right Side Diagram....................8 Remote Control Diagram……………………………………………………………..9 Battery Installation for the Remote Control…………………………………………9 Remote Control Operation Range…………………………………………………...10 Quick Operation Guide Quick Operation……………………………………………………………………11-12...
Page 3
Convenient function Changing Audio Soundtrack Language..………………………………..…….…..17 Changing Substitute Language……………………………….………………..…..17 Viewing Form Another Angle…………….………………….………………..…..18 Using the Title Function……….………………………….…...………………..…..18 Using the Menu Function…………….………………….…..………………..…..18 Selecting Scenes by Title / Chapter Number………….…..………………..…..19 Selecting Scenes by Time………….………………….…..………………..…..19 Chapter 2. Setup 2-1 Language Setup Language Setting….………………………….……………...…….………….…..20 Video Setup Aspect Ratio………………………………….……………...…….………….…..21 View Mode….……………………………….……………...…….………….…..21...
Safety Precautions WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION: THIS DVD EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS OWNER’S MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE.
Precautions Note on handling When shipping the DVD player, always use the original shipping carton and ● packing materials. For maximum protection, repack the unit as it was originally packed at the factory. ● Do not use volatile liquids, such as insect spray, near the DVD player. Do not ●...
Page 6
Precautions To Obtain a Clear Picture The DVD player is a high technology, precision device. If the optical pick up lens ● and disc drive parts are dirty or worn down, the picture quality becomes poor. To obtain a clear picture, we recommend regular inspection and maintenance (cleaning or parts replacement) every 1,000 hours of use depending on the operating environment.

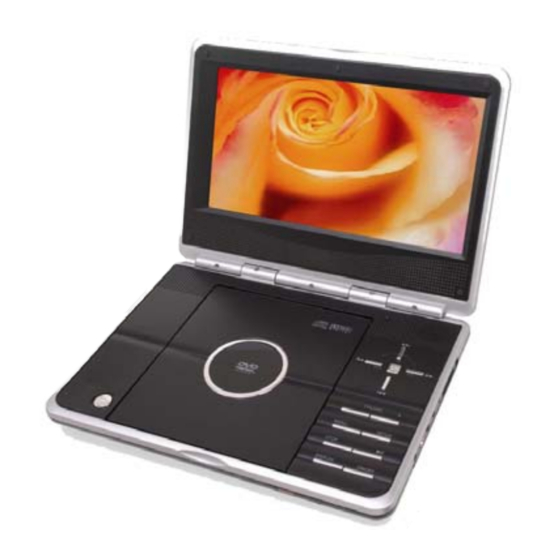

Getting to Know Your Portable DVD Player Quick Guide will instruct you to install your Portable DVD Player in a quick and easy way. Please carefully follow the instructions to set up your Portable DVD Player. Unpacking First inventory the contents of your Portable DVD player package. Portable DVD Player Battery Pack Audio Cable (white, red)
Getting to Know Your Portable DVD Player-continued Remote Control Diagram Power 11. Left choice and 21. Volume decrease Display Rapid Reverse 22. Volume increase Title 12. D-SW 23. Setup Zoom 13. Numeric buttons 24. Right choice and Search 14. Angle Rapid Advance Mute 15.
Getting to Know Your Portable DVD Player-continued Battery Installation for the Remote Control Insert the battery and match the (+) and (-) on battery to the marks inside the battery compartment. First-time use: Remember to remove the insulating Mylar Tape from the battery compartment. Service life of battery The battery normally lasts for about one year although this depends on how often and for what operations the remote...
Quick Operation Guide Quick Operation STEP 1. Connect it to Power Please connect the applied adaptor to the DC IN jack on the Right side of this Portable DVD Player. STEP 2. Connect it with headphones or connect it to external equipment. If you want to enjoy higher listening and viewing quality, you can connect this Portable DVD player to external equipment, such as a TV or an amplifier.
Page 12
Note: Make sure the external equipment supports the audio/video input feature. 1. Left audio jack of TV or amplifier. 2. Right audio jack of TV or amplifier. 3. Video jack on TV 4. S-video jack of digital amplifier To playback, select your input source based on your connections.
DVD Playback Preparation Connect the portable DVD player with the AC adaptor and / or battery pack, and playback through headphones, speakers, or home theater system. To connect to home theater or stereo system: Turn on the TV set, and select “Video” as the TV input. ●...
DVD Playback-continued Stopping Playback Press <STOP>, the play will temporarily stop. When play is temporarily stopped, the unit records the point where STOP was pressed. Press <PLAY> and play will resume from this point. When play is temporarily stopped, press <STOP> again, the player will stopped fully. Press <PLAY>...
DVD Playback-continued Volume Adjusting Press <VOL - > button to decrease volume Press <VOL +> button to increase volume Mute Playback Press <MUTE > button to turn off volume, press this button again to turn volume on. Repeat Viewing Press <REPEAT> during playback. Each time you press, the disc will repeat a chapter or title.
DVD Playback-continued Playing in a favourite Order Press <PROGRAM> during playback. Program menu displays on the screen Use <UP>, <DOWN>, <LEFT>, <RIGHT> to select the desired Title/Chapter, then press <ENTER> to confirm. Use the <RIGHT> button to select “Play”, then press <ENTER> to start. Clearing the program Select “Clear”...
Convenient functions Changing Audio Soundtrack Language Press <AUDIO> during playback. Press it until the preferred language is selected. For your reference: If the preferred language is not selected even after pressing the button several ● times, it may indicate that language is not available on the disc. You can also change the audio language during initial setup to a different ●...
Convenient functions-continued Viewing from another Angle Some special featured DVD discs may contain scenes which have been shot simultaneously from a number of different angles. For these discs, the same scenes can be viewed from different angles using the <ANGLE> button. (The recorded angles vary depending on the disc programming.) Press <ANGLE>...
Convenient functions-continued Selecting Scenes by Title/Chapter Number Allows you to locate specific titles/chapters of scenes to playback. Press <SEARCH> during playback. Press <DOWN> button, <LEFT> button and <RIGHT> button to highlight the title or chapter item. Press the number buttons to specify the desired title or chapter. Press <ENTER>...
Language Setup Allows you to set various languages for the on screen display (OSD). You can select a preferred DVD menu, subtitle, MPEG4 subtitle, audio language or DVD menu among various languages that have been recorded on certain DVD discs. Press <SETUP>...
Video Setup You can also adjust the Brightness and the Sharpness. Press <SETUP> Press <DOWN> button to select “VIDEO”, and then press <RIGHT>. Press <UP> / <DOWN> button to select the desired items, then press <ENTER> Press <UP> button/ <DOWN> direction button to select the desired item. Press <ENTER>...
Picture Allow you to select the picture modes among: Standard, Bright, Soft or Dynamic. If you select “Dynamic”, the screen will display another menu: You can press <UP> and <DOWN> button to select preferred items, then press <LEFT> and <RIGHT> button to adjust.
Rating Setup Parental Control Setting [DVD] A built-in viewer rating setting enables you to lockout video programming that you do not want children to view. For example, if you set it to PG-13, then the portable DVD player will not play any videos rated R, NC-17 or Adult unless the correct password is entered.
Password Setting [DVD] You can change the password setting of the portable DVD player by selections. In the Rating Setup menu, press <UP> and <DOWN> to highlight the Set Password item, then press <ENTER>. The screen will display a menu allow you input a 4-digit password.
Misc Setup Press <SETUP>. Press <DOWN> button to select “Misc”, and then press <RIGHT>. Press <UP> or <DOWN> button to select desired items, then press <ENTER> To complete the setup operation, press <SETUP> to exit setup menu screen. Use Default Settings If you select “YES”...
Troubleshooting Guide Before requesting service for this portable DVD player, check the chart below for a possible cause of the problem you are experiencing. Some simple checkups or a minor adjustment on your part may eliminate the problem and restore problem and restore proper operation. SYMPTOM(COMMON) REMEDY •...
Disc Handling and Maintenance Handling Precautions • Hold the disc by the edges to avoid fingerprints. (A) • Fingerprints, dirt and scratches can cause skipping and distortion. • Do not write on the label side with a ball-point pen or other writing utensils. •...
Definition of Terms Angle Recorded onto certain special edition DVD discs are scenes that have been simultaneously shot from a number of different angles (the same scene is shot from the front, from the left side, from the right side, etc.). With such discs, the ANGLE button can be used to view the scene from different angles.
Specifications Portable DVD Video Player Power Supply ~120V-240V. 60Hz Power Consumption Mass 1.0kg External Dimensions 240(W)x175(D)x33.5(H) (mm) Laser Semiconductor Laser, wavelength 655nm Outputs CVBS Output 1.0V(p-p), 75ohms, negative sync Audio Output (analog audio) 2.0V(rms), 10Komhs Inputs Input Formats MS/ SD/ MMC card USB Port This product incorporates copyright protection technology that is protected by U.S.
