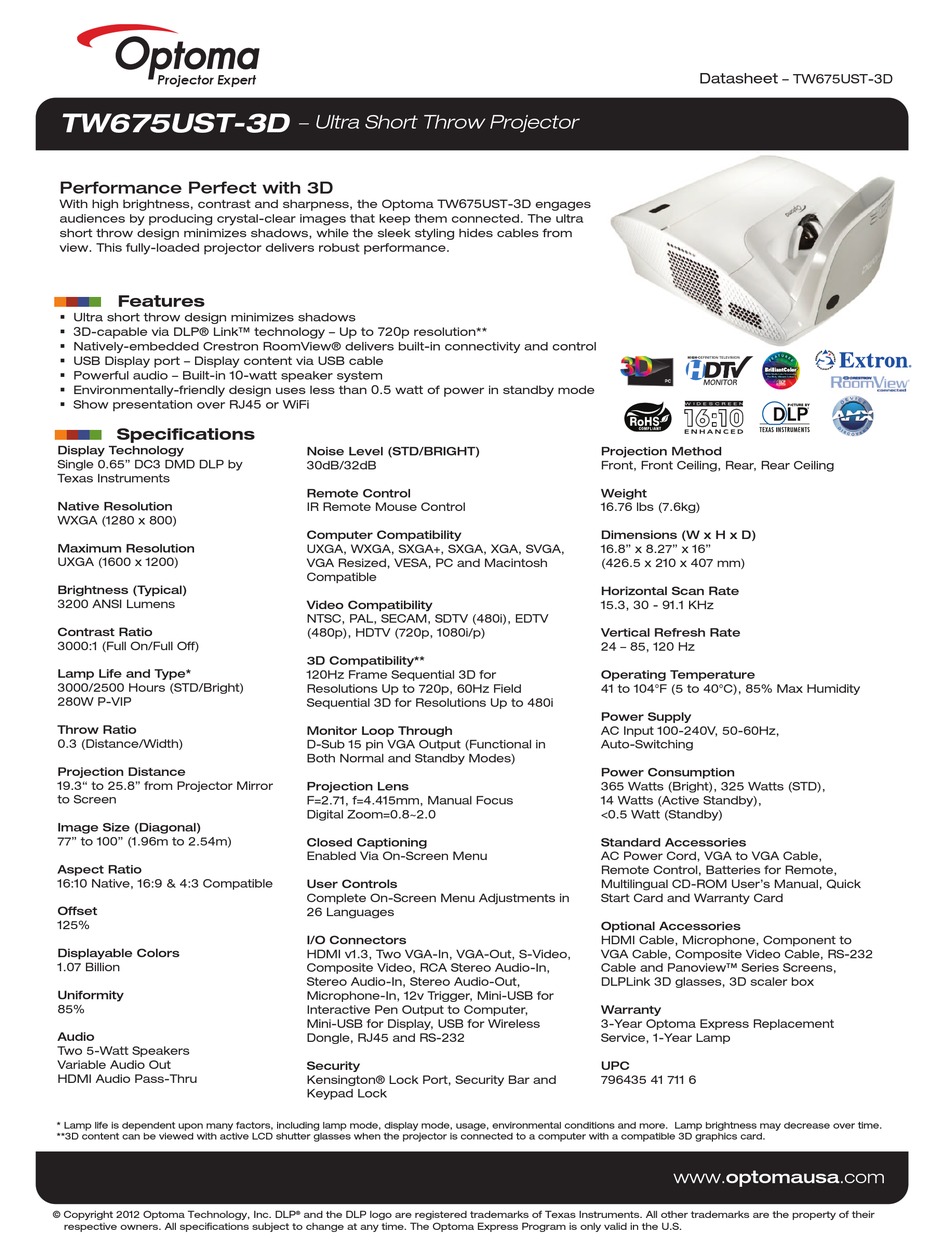

Optoma TW675UST Specification

Projector Expert
TW675UST-3D
Performance Perfect with 3D
With high brightness, contrast and sharpness, the Optoma TW675UST-3D engages
audiences by producing crystal-clear images that keep them connected. The ultra
short throw design minimizes shadows, while the sleek styling hides cables from
view. This fully-loaded projector delivers robust performance.
Features
 Ultra short throw design minimizes shadows
 3D-capable via DLP® Link™ technology – Up to 720p resolution**
 Natively-embedded Crestron RoomView® delivers built-in connectivity and control
 USB Display port – Display content via USB cable
 Powerful audio – Built-in 10-watt speaker system
 Environmentally-friendly design uses less than 0.5 watt of power in standby mode
 Show presentation over RJ45 or WiFi

Specifications

Display Technology
Single 0.65" DC3 DMD DLP by
Texas Instruments
Native Resolution
WXGA (1280 x 800)
Maximum Resolution
UXGA (1600 x 1200)
Brightness (Typical)
3200 ANSI Lumens
Contrast Ratio
3000:1 (Full On/Full Off)
Lamp Life and Type*
3000/2500 Hours (STD/Bright)
280W P-VIP
Throw Ratio
0.3 (Distance/Width)
Projection Distance
19.3" to 25.8" from Projector Mirror
to Screen
Image Size (Diagonal)
77" to 100" (1.96m to 2.54m)
Aspect Ratio
16:10 Native, 16:9 & 4:3 Compatible
Offset
125%
Displayable Colors
1.07 Billion
Uniformity
85%
Audio
Two 5-Watt Speakers
Variable Audio Out
HDMI Audio Pass-Thru
* Lamp life is dependent upon many factors, including lamp mode, display mode, usage, environmental conditions and more. Lamp brightness may decrease over time.
**3D content can be viewed with active LCD shutter glasses when the projector is connected to a computer with a compatible 3D graphics card.
© Copyright 2012 Optoma Technology, Inc. DLP
respective owners. All specifications subject to change at any time. The Optoma Express Program is only valid in the U.S.
− Ultra Short Throw Projector
Noise Level (STD/BRIGHT)
30dB/32dB
Remote Control
IR Remote Mouse Control
Computer Compatibility
UXGA, WXGA, SXGA+, SXGA, XGA, SVGA,
VGA Resized, VESA, PC and Macintosh
Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV (480i), EDTV
(480p), HDTV (720p, 1080i/p)
3D Compatibility**
120Hz Frame Sequential 3D for
Resolutions Up to 720p, 60Hz Field
Sequential 3D for Resolutions Up to 480i
Monitor Loop Through
D-Sub 15 pin VGA Output (Functional in
Both Normal and Standby Modes)
Projection Lens
F=2.71, f=4.415mm, Manual Focus
Digital Zoom=0.8~2.0
Closed Captioning
Enabled Via On-Screen Menu
User Controls
Complete On-Screen Menu Adjustments in
26 Languages
I/O Connectors
HDMI v1.3, Two VGA-In, VGA-Out, S-Video,
Composite Video, RCA Stereo Audio-In,
Stereo Audio-In, Stereo Audio-Out,
Microphone-In, 12v Trigger, Mini-USB for
Interactive Pen Output to Computer,
Mini-USB for Display, USB for Wireless
Dongle, RJ45 and RS-232
Security
Kensington® Lock Port, Security Bar and
Keypad Lock
and the DLP logo are registered trademarks of Texas Instruments. All other trademarks are the property of their
®
Datasheet
Projection Method
Front, Front Ceiling, Rear, Rear Ceiling
Weight
16.76 lbs (7.6kg)
Dimensions (W x H x D)
16.8" x 8.27" x 16"
(426.5 x 210 x 407 mm)
Horizontal Scan Rate
15.3, 30 - 91.1 KHz
Vertical Refresh Rate
24 – 85, 120 Hz
Operating Temperature
41 to 104°F (5 to 40°C), 85% Max Humidity
Power Supply
AC Input 100-240V, 50-60Hz,
Auto-Switching
Power Consumption
365 Watts (Bright), 325 Watts (STD),
14 Watts (Active Standby),
<0.5 Watt (Standby)
Standard Accessories
AC Power Cord, VGA to VGA Cable,
Remote Control, Batteries for Remote,
Multilingual CD-ROM User's Manual, Quick
Start Card and Warranty Card
Optional Accessories
HDMI Cable, Microphone, Component to
VGA Cable, Composite Video Cable, RS-232
Cable and Panoview™ Series Screens,
DLPLink 3D glasses, 3D scaler box
Warranty
3-Year Optoma Express Replacement
Service, 1-Year Lamp
UPC
796435 41 711 6
www.optomausa.com
– TW675UST-3D
