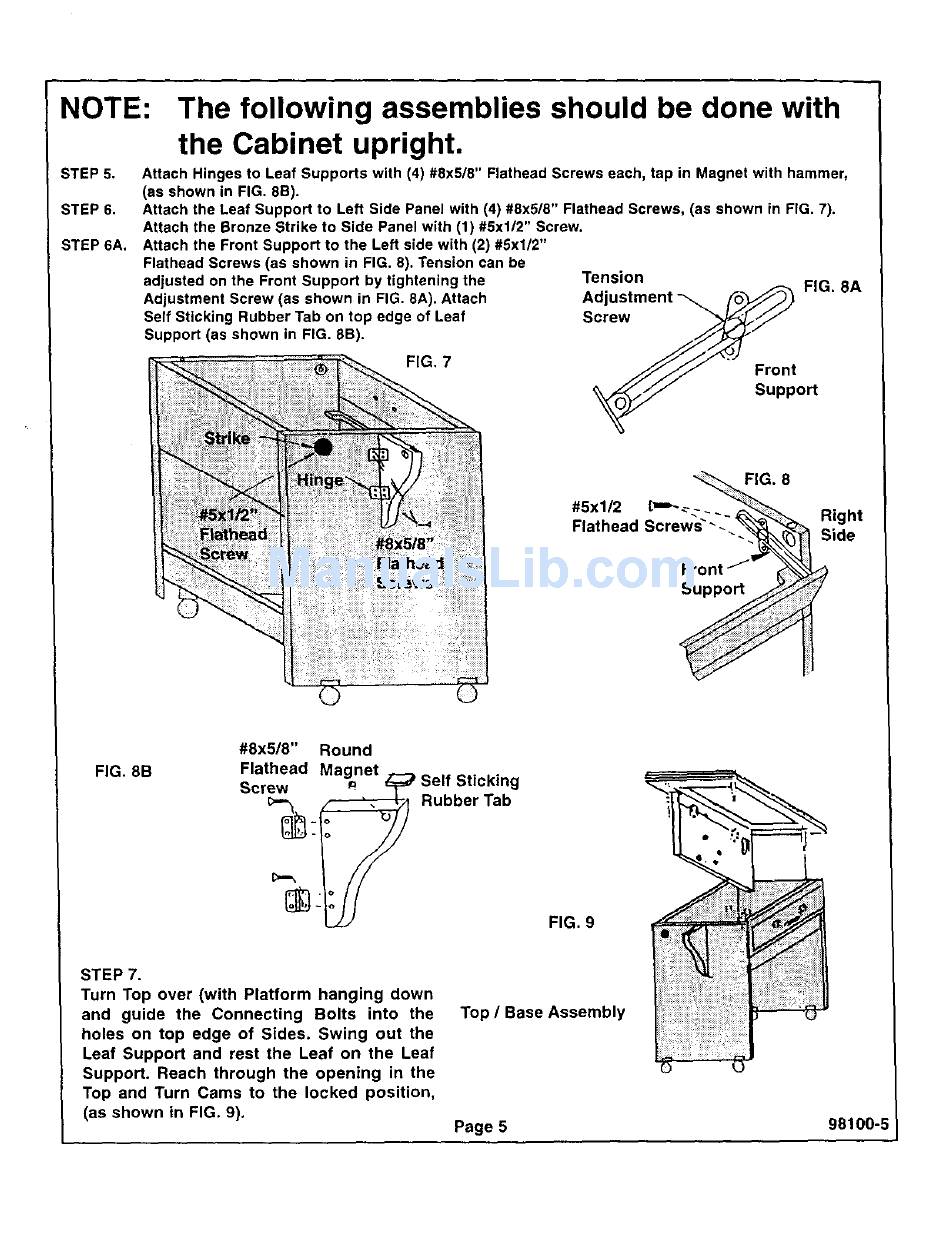

NOTE:
STEP5.
STEP 6.
STEP 6A.
The following assemblies should be done with
the Cabinet upright.
Attach Hinges to Leaf Supports with (4) #8x5/8" Flathead Screws each, tap in Magnet with hammer,
(as shown in FIG. 8B).
Attach the Leaf Support to Left Side Panel with (4) #8x5/8" Flathead Screws, (as shown in FIG. 7).
Attach the Bronze Strike to Side Panel with (1) #5x1/2" Screw.
Attach the Front Support to the Left side with (2) #5x112"
Flathead Screws (as shown in FIG. 8). Tension can be
adjusted on the Front Support by tightening the
Adjustment
Screw (as shown in FIG. 8A). Attach
Self Sticking Rubber Tab on top edge of Leaf
Support (as shown in FIG. 8B).
FIG, 7
Tension
Adjustment
_
_
FIG. 8A
Screw
Fron
Support
_FIG.
8
#5X1/2
[1"_ _ ,_.__ _'_'_._
Flatheed
Sc rews'_'---_.._
Right
Side
FIG. 8B
#8x5/8"
Round
Flathead
_gnet
Screw
Self Sticking
Rubber Tab
FIG. 9
STEP 7.
Turn Top over (with Platform hanging
down
and guide the Connecting
Bolts
into the
holes on top edge of Sides. Swing out the
Leaf Support and rest the Leaf on the Leaf
Support. Reach through the opening
in the
Top and Turn Cams to the locked
position,
(as shown in FIG. 9).
Top / Base Assembly
Page 5
98100-5
