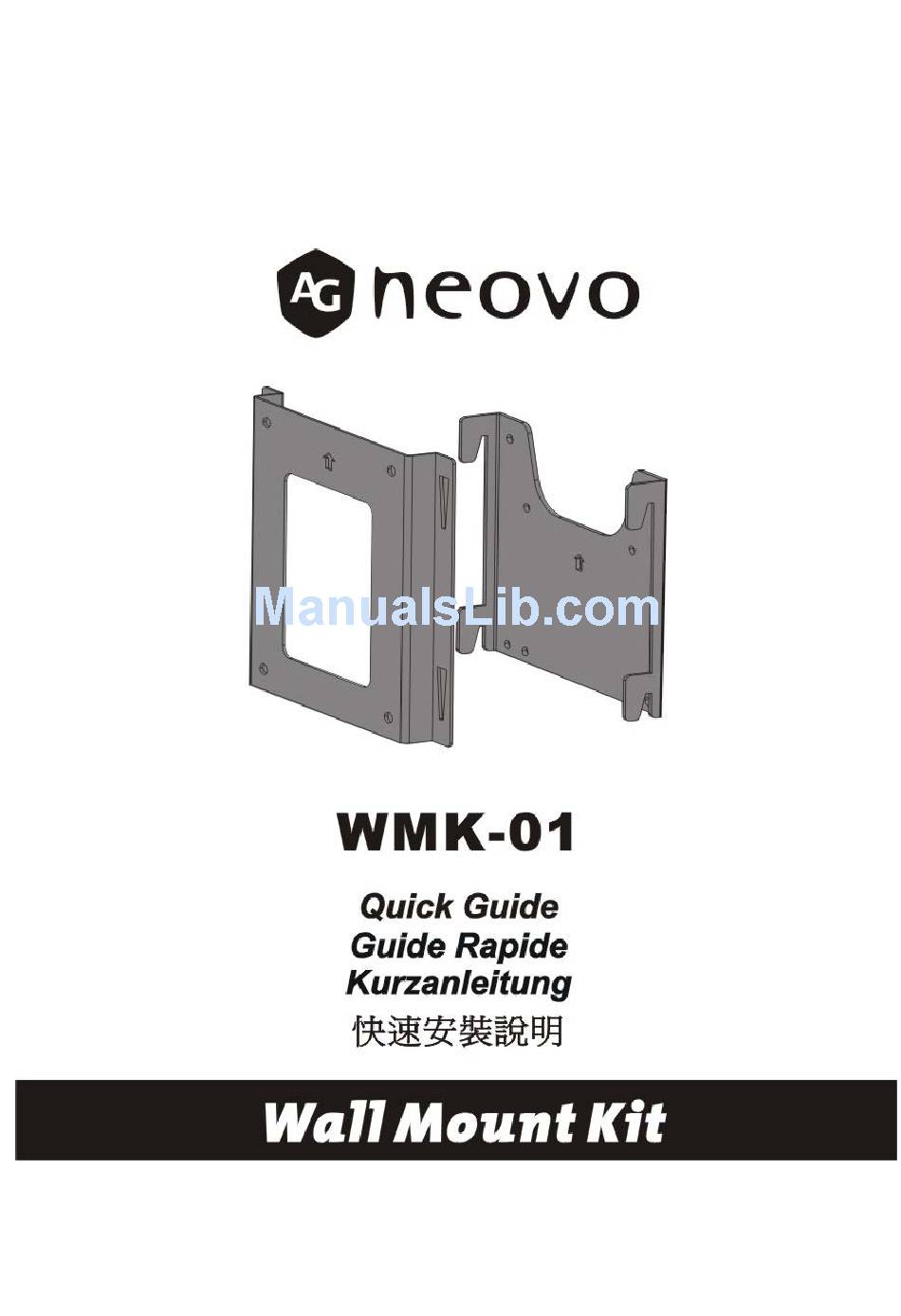

AG Neovo WMK-01 Quick Manual

Wall mount kit

Table of Contents

Need help?

Do you have a question about the WMK-01 and is the answer not in the manual?

Page 2: Package Contents
Display Bracket (x1) Wall Bracket (x1) Screw A*：M4-8mm (x4) Screw B*：M4-15mm (x4) * Suitable for other AG Neovo * Only for M - Series displays Screw C*：M4-18mm (x2) * Only for S-15E Screw D：4-19mm (x4) Wall anchor：1/4”-1”...
Page 3 Applicable LCD Display Models This wall mount kit complies with VESA’s (Video Electronics Standards Association) FPMPMI (Flat Panel Display Physical Mounting Interface) Standard. All AG Neovo displays are suitable for this wall mount kit. Tools you will need You may need the following tools to complete wall mount installations.
Page 4 English Setup Please follow the steps one by one to mount your display on the wall. Step 1: Installing the Wall Bracket onto the Wall Consult with appropriate engineering or construction personnel to ensure the wall mount kit is mounted properly to handle applied loads.
Page 5 English Step 2: Installing the Display Bracket to the rear of the LCD display 75mm 100mm Use screw A、B or screw C to secure Display Bracket to the rear of display. Line up the holes of the Bracket with the holes in the rear of the display.
