AG Neovo Neovo PMK PMK-01 PMK-01 Specification Sheet

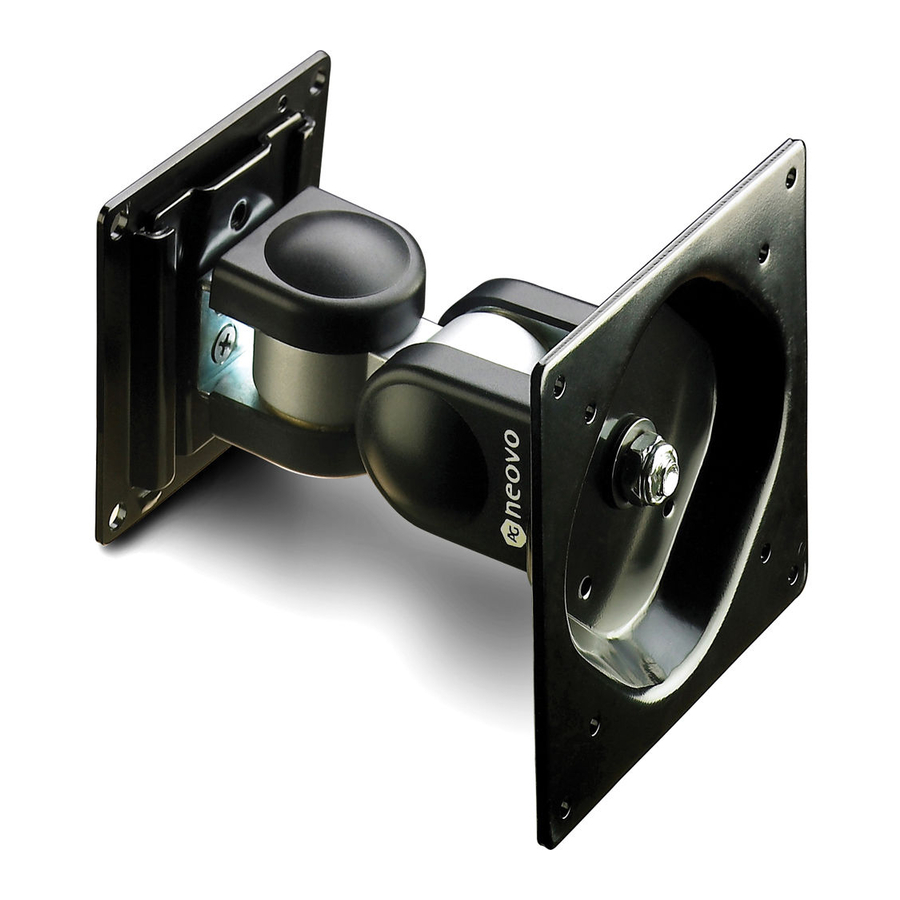

Pivot Mounting Kit
PMK-01
FEATURES
Easy-to-use yet rugged design
Matches any AG Neovo displays
Firmly fix on solid wall
Slide in and out wall mount bracket
Three knuckles for adjustments
Swivel left and right for 180°
Pivot upwards and downwards for 180°
Display pivot for 270°
Compatible with VESA standard (75 x 75mm
and 100 x 100mm)
Weight capacity: 7~14Kg
SPECIFICATION
Mounting Wall
Display
Loading Weight Capacity
Pivot Left
Right
Up
Down
Display Pivot
Exterior Material
Surface Finish
Color
Dimensions Net (W x H x D)
Packing (W x H x D)
Weight Net Weight
Gross Weight
Packing 1 Carton
All specifications are subject to change without prior notice.
The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
Slide in and out bracket
VESA standard
(75 x 75mm & 100 x 100mm)
7~14Kg (15.4~30.9lbs)
90°
90°
90°
90°
270°
Steel and die-cast aluminum
Electronic dipping
Black
115 x 135 x 115mm
(4.5" x 5.3" x 4.5")
123 x 123 x 161mm
(4.8" x 4.8" x 6.3")
1.5Kg (3.3lbs)
1.6Kg (3.5lbs)
12 Sets
www.agneovo.com
Copyright © 2005 AG Neovo. All rights reserved.
Version 1.0, 20050812
