ADTRAN NetVanta 834 Information

Product Features

Supports Carrier Ethernet
■
services over Copper
MEF 9/14 certified supporting
■
standard Ethernet OAM
Enhanced SHDSL data
■
rate performance up to
15 Mbps per loop (60/120 Mbps
symmetrical total)
Auto-failover and recovery for
■
improved service robustness
Symmetrical data transfer
■
rates for upstream/down-
stream VLAN Management
Plug-and-play auto line
■
detection for easy installation
Autosensing 10/100Base-T
■
Ethernet
Small Form-factor Pluggable
■
(SFP) 1000Base-X Ethernet
Spectral compatibility for
■
robust operation alongside
other DSL services
Supports Terminal and Facility
■
MAC-Swap Loopback to
validate service turn up
and trouble-shooting
Firmware upgrades through
■
the LTU
DC power supply
■
Deskmount and
■
rackmount options
Smart Solutions for a
Connected World.

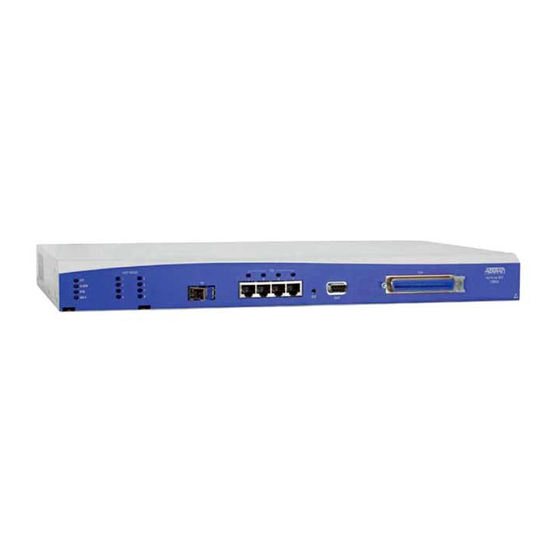

NetVanta 834/838
Four/eight-Port, SHDSL EFM Ethernet NTU
The NetVanta 834/838 is a Carrier Ethernet
®
Network Termination Unit (NTU) that
terminates up to four/eight e.SHDSL copper
pairs. Four 10/100 Ethernet ports are provided
for customer use. The NetVanta 834/838 are
designed for cost-effective deployment of
voice and data services to small- and
medium-sized businesses, supporting
bandwidth indoors of up to 60/120.
However, typical deployments using outside
plant copper for extended distances will be
closer to 8/16 Mbps (2 Mbps per loop) service
offering. The NetVanta 834/838 are designed
for LAN, WAN and MetroEthernet extension
as well as supporting Voice over IP (VoIP)
applications with voice, video and data traffic.
Enterprise customers, as well as integrated
communications providers like CLECs, ILECs
and ISPs, will benefit from this intuitive, easy
to install, plug-and-play unit. A key feature of
this unit is auto line detection, which enables
synchronization with data rates from 192 Kbps
to 15 Mbps without operator intervention.
Total Access 5000
NxGigE
9 RU
NetVanta 834
4 x 10/100Base-T
In the event that a single loop fails, the
NetVanta 834/838 will continue to operate
on the remaining loop, providing additional
resiliency. Once the failed loop is operational
again, the NetVanta 834/838 will automatically
detect its availability and will auto-recover to
the original configuration.
The EIA-232 craft port enables local access
for configuration and status information. The
SHDSL Ethernet over Copper provides carriers
a management channel to remotely configure
and collect status information.
The compact design provides safety and
reliability required for customer premises
installations. It can be wall or rack mounted
depending on customer preference. When wall
mounted, the NetVanta 834/838 only occupies
a ten-inch by 17-inch area of the customer's
telephone wiring closet. For rack mount
installations, custom 19-inch rackmount
shelves are available.
Metro Ethernet
4 x 10/100Base-T
& IP Core
or GigE SFP
Total Access 838
1-4 EFM Bonded
e.SHDSL Pairs
Router Small/Medium
or GigE SFP
LAN
1– 8 EFM Bonded
e.SHDSL Pairs
NetVanta 838
4 x 10/100Base-T
or GigE SFP
Business
DSLAM
