Page 1: Operation Manual

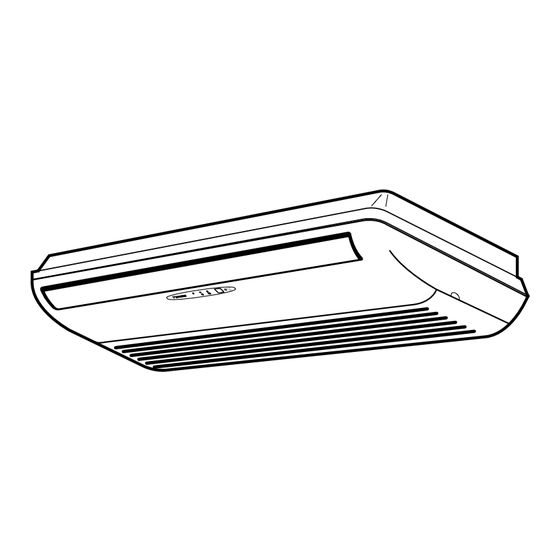

DAIKIN ROOM AIR CONDITIONER MODELS FLX25AVMA FLK25AVMA Operation Manual FLX35AVMA FLK35AVMA FLX50AVMA FLK50AVMA FLX60AVMA FLK60AVMA English Español Portugues Turkish... -
Page 2: Table Of Contents
CONTENTS READ BEFORE OPERATION Safety precautions ......... 2 Names of parts..........4 Preparation Before Operation ......7 OPERATION AUTO · DRY · COOL · HEAT · FAN Operation ............. 10 Adjusting the Air Flow Direction ....12 POWERFUL Operation ........ 14 OUTDOOR UNIT SILENT Operation .. -
Page 3: Safety Precautions
• Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work will cause electric shocks, fire etc. For repairs and reinstallation, consult your Daikin dealer for advice and information. • The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for some reason any refrigerant happens to leak into the room, make sure it does not come in contact with any flame as of gas heaters, kerosene heaters or gas range. -
Page 4: Installation Site
• Do not stand or sit on the outdoor unit. Do not place any object on the unit to avoid injury, do not remove the fan guard. • Do not place anything under the indoor or outdoor unit that must be kept away from moisture. In certain conditions, moisture in the air may condense and drip. -
Page 5: Names Of Parts
Names of parts I Indoor Unit The indoor unit can be installed either to the ceiling or to a wall. The descriptions contained in this manual show the case when installation is being carried out to the ceiling. (The methods of operation used are the same when installing to a wall.) I Opening the front grille How to open the front grille : (page 22) -
Page 6: I Outdoor Unit
I Outdoor Unit I I I I Indoor Unit 1. Louvres (vertical blades) 13. Indoor unit ON/OFF switch (page 10.) The louvres are inside of the air outlet. • Push this switch once to start operation. (page 13.) Push once again to stop it. •... -
Page 7: Remote Controller
I Remote Controller HOME LEAVE ON/OFF TEMP POWERFUL MODE SWING SILENT CANCEL TIMER < > ARC433A5, A6 1. Signal Transmitter: 7. MODE selector button: • It sends signals to the indoor unit. • It selects the operation mode. (AUTO/DRY/COOL/HEAT/FAN) (page 10.) 2. -
Page 8: Preparation Before Operation
Preparation Before Operation I To set the batteries Position + and – correctly! 1. Press with a finger and slide the front cover to take it off. 2. Set two dry batteries (AAA). 3. Set the front cover as before. ATTENTION I I I I About batteries •... - Page 9 Preparation Before Operation I To operate the remote controller • To use the remote controller, aim the transmitter at the indoor unit. If there is anything to block signals between the unit and the remote control- ler, such as a curtain, the unit will not operate. •...
- Page 10 I To set the clock 1. Press “CLOCK button”. is displayed. blinks. 2. Press “TIMER setting button” to set the clock to the present time. HOME LEAVE ON/OFF Holding down “ ” or “ ” button rap- TEMP POWERFUL idly increases or decreases the time dis- play.
-
Page 11: Auto · Dry · Cool · Heat · Fan Operation
OPERATION AUTO · DRY · COOL · HEAT · FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. I To start operation 1. -
Page 12: To Change Airflow Rate Setting
I To change the air flow rate setting 5. Press “FAN setting button”. DRY mode AUTO or COOL or HEAT or FAN mode Five levels of air flow rate setting from “ ” to “ ” plus “ ” “ ”... -
Page 13: Adjusting The Air Flow Direction
Adjusting the Air Flow Direction You can adjust the air flow direction to increase your com- fort. I To adjust the horizontal blade (flap) 1. Press “SWING button”. The display will light up and the flaps will begin to swing. HOME LEAVE ON/OFF 2. - Page 14 I To adjust the vertical blades (louvres) • When adjusting the louvre, use a robust and stable stool and watch your steps carefully. Hold the knob and move the louvres. (You will find a knob on the left side and the right side blades.) Notes on flap and louvres angles •...
-
Page 15: Powerful Operation
POWERFUL Operation POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. You can get the maximum capacity . I To start POWERFUL operation 1. Press “POWERFUL button”. • POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the settings which were used HOME LEAVE ON/OFF... -
Page 16: Outdoor Unit Silent Operation
OUTDOOR UNIT SILENT Operation OUTDOOR UNIT SILENT operation lowers the noise level of the outdoor unit by changing the frequency and fan speed on the outdoor unit. This function is conve- nient during night. I To start OUTDOOR UNIT SILENT operation 1. -
Page 17: Home Leave Operation
HOME LEAVE Operation HOME LEAVE operation is a function which allows you to record your preferred temperature and air flow rate settings. I To start HOME LEAVE operation 1. Press “HOME LEAVE button” . • The HOME LEAVE lamp lights up. I To cancel HOME LEAVE 1, 2 HOME LEAVE... -
Page 18: Use As Energy-Saving Mode
I What’s the HOME LEAVE operation Is there a set temperature and air flow rate which is most comfortable, a set temperature and air flow rate which you use the most? HOME LEAVE operation is a function that allows you to record your favorite set temperature and air flow rate. -
Page 19: Timer Operation
TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use OFF TIMER and ON TIMER in combination. I To use OFF TIMER opera- tion • Check that the clock is correct. If not, set the clock to the present time. - Page 20 I To use ON TIMER operation • Check that the clock is correct. If not, set the clock to the present time (page 9.). 1. Press “ON TIMER button”. is displayed. blinks. 2. Press “TIMER Setting button” until the time setting reaches HOME LEAVE ON/OFF the point you like.
-
Page 21: Note For Multi System
Note for Multi System 〈〈 〈〈 〈〈 〈〈 What is a “Multi System”? 〉〉 〉〉 〉〉 〉〉 This system has one outdoor unit connected to multiple indoor units. room Outdoor unit room Living room room I Selecting the Operation Mode 1. - Page 22 I Cooling / Heating Mode Lock (Available only for heat pump models) The Cooling / Heating Mode Lock requires initial programming during installation.Please consult your retailer or dealer for assistance. The Cooling / Heating Mode Lock sets the unit forcibly to either Cooling or Heating Mode.
-
Page 23: Care And Cleaning
CARE Care and Cleaning Before cleaning, be sure to stop the operation and CAUTION turn the breaker OFF. Units I Indoor unit, Outdoor unit and Remote controller 1. Wipe them with dry soft cloth. I Front grille 1. Open the front grille. •... -
Page 24: I Air Filter
Filters 1. Open the front grille. (page 22) 2. Pull out the air filters. • Push upwards the tab at the center of each air fil- ter, then pull it down. 3. Take off the air purifying filter, photocatalytic deodorizing filter. •... -
Page 25: Before A Long Idle Period
Check Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded. Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit. Check that the earth wire is not disconnected or broken. Check that the drain comes smoothly out of the drain hose during COOL or DRY operation. -
Page 26: Trouble Shooting
TROUBLE SHOOTING Trouble Shooting These cases are not troubles. The following cases are not air conditioner troubles but have some reasons. You may just continue using it. Case Explanation Operation does not start soon. • This is to protect the air conditioner. •... -
Page 27: Check Again
Check again. Please check again before calling a repair person. Case Check The air conditioner does not • Hasn’t a breaker turned OFF or a fuse blown? operate. • Isn’t it a power failure? (OPERATION lamp is off) • Are batteries set in the remote controller? •... -
Page 28: Call The Service Shop Immediately
Call the service shop immediately. WARNING I I I I When an abnormality (such as a burning smell) occurs, stop operation and turn the breaker OFF. Continued operation in an abnormal condition may result in troubles, electric shocks or fire. Consult the service shop where you bought the air conditioner. - Page 29 MEMO...
- Page 30 3P077961-5K M01B040B (0507) HT...
