I Outdoor Unit
18
I I I I
Indoor Unit
1. Air filter
2. Air purifying filter with photocatalytic
deodorizing function:
• These filters are attached to the inside of the air
filters.
3. Air inlet
4. Front grille
5. Grille tab
6. INTELLIGENT EYE sensor:
• It detects the movements of people and
automatically switches between normal operation
and energy saving operation. (page 18.)
7. Display
8. Air outlet
9. Flap (horizontal blade): (page 12.)
10. Louvers (vertical blades):
• The Louvers are inside of the air outlet.
(page 12.)
11. Operation lamp (green)
12. TIMER lamp (yellow): (page 20.)

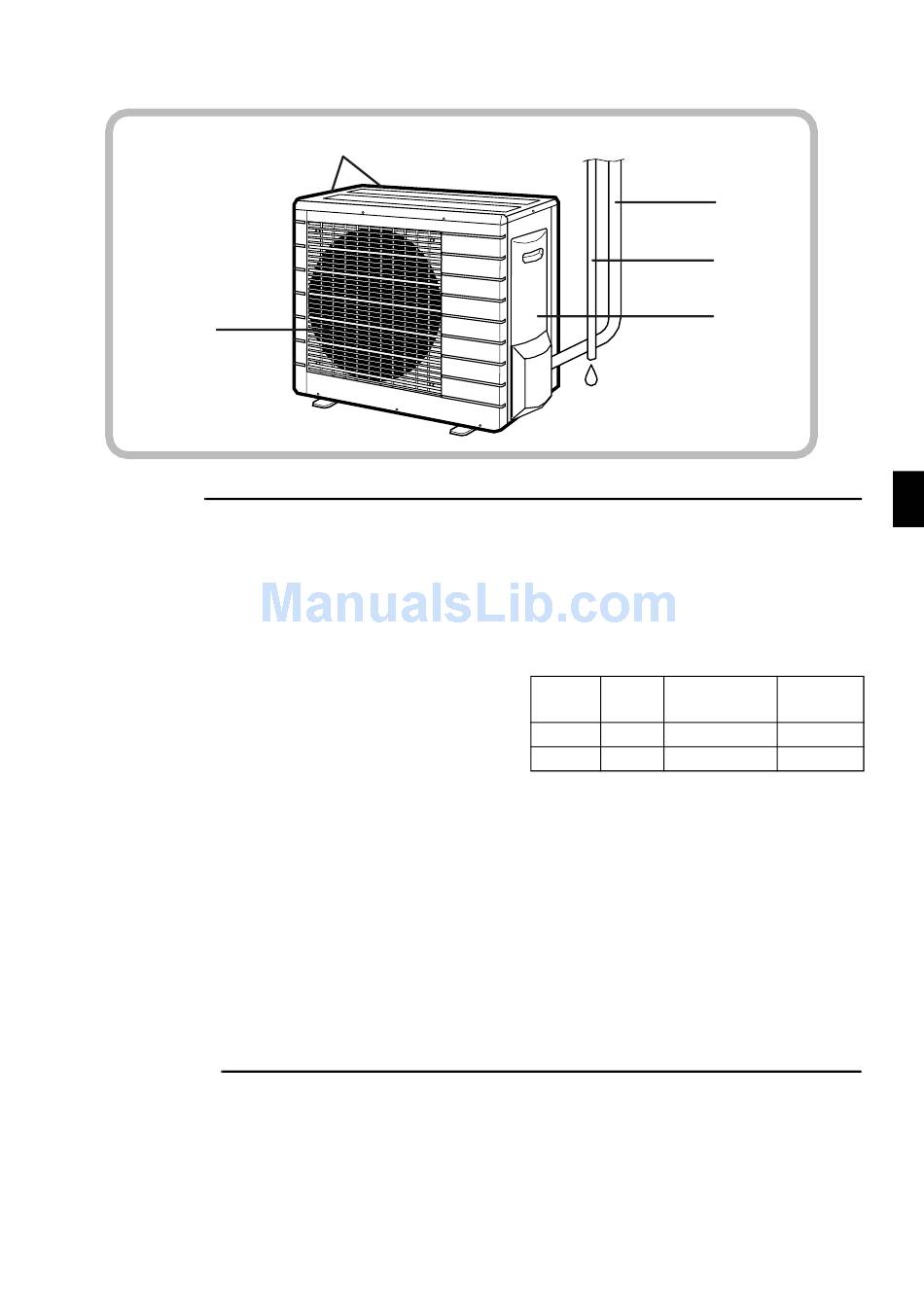

I I I I Outdoor Unit
17. Air inlet: (Back and side)
18. Air outlet
19. Refrigerant piping and inter-unit cable
Appearance of the outdoor unit may differ from some models.
17
13. HOME LEAVE lamp (red):
14. Indoor Unit ON/OFF switch:
15. Room temperature sensor:
16. Signal receiver:
20. Drain hose
21. Earth terminal:
• Lights up when you use HOME LEAVE
Operation. (page 16.)
• Push this switch once to start operation.
Push once again to stop it.
• The operation mode refer to the following table.
Temperature
Mode
FTKD
COOL
FTXD
AUTO
• This switch is useful when the remote controller
is missing.
• It senses the air temperature around the unit.
• It receives signals from the remote controller.
• When the unit receives a signal, you will hear a
short beep.
• Operation start .............beep-beep
• Settings changed..........beep
• Operation stop ..............beeeeep
• It is inside of this cover.
19
20
21
Air flow
setting
rate
22°C
AUTO
25°C
AUTO
5
