Summary of Contents for CyberPower OR1500PFCRT2U

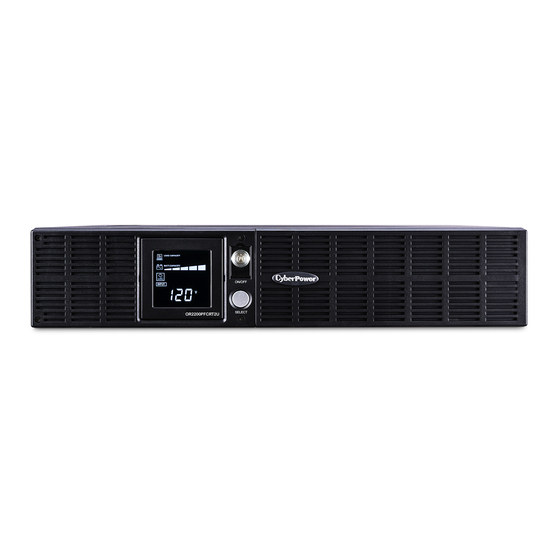

- Page 1 User’s Manual OR1500PFCRT2U / OR2200PFCRT2U / OR2200PFCRT2Ua K01-0000206-00...
-
Page 2: Important Safety Instructions
CAUTION! To avoid electric shock, turn off the unit and unplug it from the AC power source before servicing the battery or installing a computer component. CAUTION! To reduce the risk of fire, connect only to a circuit provided with 20 (OR1500PFCRT2U and OR2200PFCRT2U) or 30 (OR2200PFCRT2Ua) amperes maximum branch circuit over current protection in accordance with the National Electric Code, ANSI/NFPA 70. - Page 3 SUPPORTS PFC POWER SUPPLIES This CyberPower UPS system supports High Efficiency power supplies with Power Factor Correction (PFC). ® PFC is used to improve the efficiency of power delivery. The current US Energy Star Program Requirements for Computers (version 5.0) mandates PFC for all power supplies over 100 watts. Additionally, programs such ®...
-
Page 4: Basic Operation
5. Press the power switch to turn the unit on. The Power On indicator light will illuminate and the unit will “beep”. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this, turn the UPS off and unplug at least one piece of equipment from the battery power supplied outlets. - Page 5 1. Power Switch Master on/off switch for equipment connected to the UPS. 2. Power On Indicator This LED is illuminated when the utility power is normal and the UPS outlets are providing power, free of surges and spikes. 3. LCD module display Intelligent LCD panel shows all the UPS information using icons and messages.
-
Page 6: Battery Replacement
1. When replacing batteries, replace with the same number of the following battery: CyberPower RBP433 for the OR1500PFCRT2U; CyberPower RBP435 for the OR2200PFCRT2U and OR2200PFCRT2Ua. 2. CAUTION! Risk of Energy Hazard, 12 V, maximum 7(for the OR1500PFCRT2U) or 8.5 (for the OR2200PFCRT2U and OR2200PFCRT2Ua) Ampere-hour battery. Before replacing batteries, remove conductive jewelry such as chains, wrist watches, and rings. - Page 7 To clear the overload, unplug some of your equipment from the battery-supplied outlets until the icon turns off and the alarm stops. 9. FAULT icon: This icon appears if there is a problem with the UPS, Contact CyberPower Systems at tech@cyberpowersystems.com for further help and support.
- Page 8 Status Display screen without changing any settings.) The Mode details are described in the following table. Press Display button to choose the mode you prefer. When the mode is chosen, press 8 seconds to save the setting. If the Display button is not touched for 3 minutes, you will leave Setup Mode and return to UPS LCD Status Display screen.
-
Page 9: Troubleshooting
UPS on. Recharge the battery by leaving the UPS Battery not fully charged. plugged in. The UPS does not perform Contact CyberPower Systems about expected runtime. Battery is worn out. replacement batteries at tech@cyberpowersystems.com The on/off switch is designed Turn the UPS off. -
Page 10: Technical Specifications
55.1lbs / 25kg 59.3lbs / 26.9kg 60lbs / 27.2kg 12V, 7Ah 12V, 8.5Ah 12V, 8.5Ah Battery Type (RBP433 / CyberPower) (RBP435 / CyberPower) (RBP435 / CyberPower) Typical Battery 8 hours from total discharge Recharge Time Typical Battery Life 3 to 6 years, depending on number of discharge/recharge cycles... -
Page 11: Limited Warranty And Connected Equipment Guarantee
3. You must provide a dated purchase receipt (or other proof of the original purchase) and provide a description of the damage to your connected equipment. 4. Pack and ship the product to CyberPower and, if requested, the item(s) of Connected Equipment, a repair... - Page 12 If the Product is defective in material or workmanship, CyberPower will repair or replace it at CyberPower's expense, or, if CyberPower is unable to or decides not to repair or replace the Product (if defective) within a reasonable time, CyberPower will refund to you the full purchase price you paid for the Product (purchase receipt showing price paid is required).
- Page 13 Risk Activities"). CyberPower expressly disclaims any express or implied warranty of fitness for High Risk Activities or with aquariums. CyberPower does not authorize use of any Product in any High Risk Activities or with Aquariums. ANY SUCH USE IS IMPROPER AND IS A MISUSE OF THE PRODUCT.
