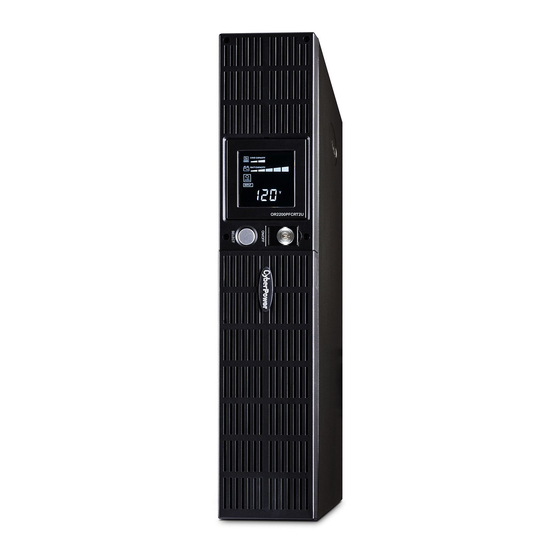

- Page 1 USER’S MANUAL PFC SINEWAVE SERIES OR1000PFCRT2U/OR1500PFCRT2U/ OR2200PFCRT2U K01-0000488-01...
-
Page 2: Important Safety Instructions
CAUTION! DO NOT INSTALL THE UPS WHERE IT WOULD BE EXPOSED TO DIRECT SUNLIGHT OR NEAR A STRONG HEAT SOURCE! CAUTION! DO NOT BLOCK OFF VENTILATION OPENINGS AROUND THE HOUSING! CAUTION! DO NOT CONNECT DOMESTIC APPLIANCES SUCH AS HAIR DRYERS TO UPS OUTPUT SOCKETS. Copyright © 2016 CyberPower Systems, Inc. -
Page 3: Automatic Voltage Regulator(Avr)
(f) Warranty registration card x1 AUTOMATIC VOLTAGE REGULATOR(AVR) The OR1000PFCRT2U/OR1500PFCRT2U/OR2200PFCRT2U can stabilize inconsistent utility power. Incoming utility power fluctuations may be damaging to important data and hardware but Automatic Voltage Regulation (AVR) helps protect the computer against experiencing dangerous voltage levels. AVR automatically adjusts low or high voltages to keep equipment working at safe AC power levels (110/120V) without switching to battery. - Page 4 In case of an emergency, it can be used to immediately cut-off power from the UPS unit. OPTION 1: USER SUPPLIED NORMALLY OPEN SWITCH (RECOMMENDED) N.O.EPO SWITCH RJ11 PLUG NO CONNECTION OPTION 2: USER SUPPLIED NORMALLY CLOSED SWITCH 3-4 JUMPER RJ11 N.C.EPO SWITCH PLUG NO CONNECTION Copyright © 2016 CyberPower Systems, Inc.
-
Page 5: Basic Operation
The serial port allows communication between the UPS and the computer. The UPS can control the computer’s shutdown in case of an emergency, and the computer can monitor the UPS and alter its various programmable parameters. Copyright © 2016 CyberPower Systems, Inc. -
Page 6: Battery Replacement
CAUTION! RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. CAUTION! When replacing batteries, replace with the same number of the following battery: CyberPower (RB1290X2C) for model OR1000PFCRT2U, CyberPower (RB1270X4G) for model OR1500PFCRT2U and CyberPower (RB1290X4H) for model OR2200PFCRT2U. - Page 7 Connect BLACK battery cable/connector to BLACK connector (negative to negative) on battery pack. REMINDER! The used batteries are considered hazardous waste and must be disposed through recycling. Most retailers that sell lead-acid batteries collect used batteries for recycling, as required by the local regulations. Copyright © 2016 CyberPower Systems, Inc.
- Page 8 BATT. CAPACITY: BATT. CAPACITY is shown as a bar chart; each segment indicates approximately a 20% of battery capacity. LOAD CAPACITY: Load CAPACITY is shown as a bar chart; each segment indicates approximately a 20% of load capacity. Copyright © 2016 CyberPower Systems, Inc.
-
Page 9: General Mode
If the utility voltage is usually high 139V and the connected equipment can work with this condition, you can set High 142V Transfer Point higher to avoid UPS going High Transfer Point to battery mode too often. Copyright © 2016 CyberPower Systems, Inc. - Page 10 When OFF is chosen, the LCD will never enter sleeping mode. LCD Sleeping Mode Note: In Battery Mode, the LCD is always Restore the UPS factory default settings. Back to Default Return to General Mode. Copyright © 2016 CyberPower Systems, Inc.
-
Page 11: Fault Warning Display And Alarm
The Error code appears with Fault icon and a constant tone. Slightly press the Display toggle button once, the constant beep will be cancelled. To solve the problems, please refer to TROUBLESHOOTING section or contact CyberPower Systems at tech@cpsww.com for further help and support. - Page 12 CYBERPOWER GREENPOWER UPS™ TECHNOLOGY Advanced Energy-Saving Patented Bypass Technology CyberPower’s patented GreenPower UPS™ with Bypass Technology are ENERGY STAR complainant ensuring lower power consumption and energy costs compared to conventional UPS models. Even when utility power is normal, conventional UPS models constantly pass power through a transformer.
-
Page 13: Technical Specifications
2U Rack, 17” x 3.5” x 15.3” / 433 x 88 x 388 mm Weight (lb) (kg) 37.5 lbs / 17kg 50.7 lbs / 23kg 57.3 lbs / 26kg SAFETY Conformance Approvals UL1778, cUL, FCC/Doc Class A *For fully charged batteries. Copyright © 2016 CyberPower Systems, Inc. -
Page 14: Troubleshooting
Shutdown your computer and turn the UPS The unit is not providing off. Wait 10 seconds and turn the UPS back power of batteries. on. This should reset the unit. Additonal troubleshooting information can be found at www.cyberpowersystems.com/support. Copyright © 2016 CyberPower Systems, Inc. -
Page 15: Limited Warranty And Connected Equipment Guarantee
Connected Equipment, and all claim forms that CyberPower provides to you. Show the Claim Number on the shipping label or include it with the product. You must prepay all shipping costs, you are responsible for packaging and shipment, and you must pay the cost of the repair estimate. - Page 16 If the Product is defective in material or workmanship, CyberPower will repair or replace it at CyberPower's expense, or, if CyberPower is unable to or decides not to repair or replace the Product (if defective) within a reasonable time, CyberPower will refund to you the full purchase price you paid for the Product (purchase receipt showing price paid is required).
- Page 17 (collectively, "High Risk Activities"). CyberPower expressly disclaims any express or implied warranty of fitness for High Risk Activities or with aquariums. CyberPower does not authorize use of any Product in any High Risk Activities or with Aquariums. ANY SUCH USE IS IMPROPER AND IS A MISUSE OF THE PRODUCT.
-
Page 18: Safety Compliance Statement
Important: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CAN ICES-3 (A)/NMB-3(A) Copyright © 2016 CyberPower Systems, Inc. - Page 20 For more information, contact us at CyberPower Systems, Inc. Website: www.cyberpower.com ENTIRE CONTENTS COPYRIGHT © 2016 CYBERPOWER SYSTEMS, INC. ALL RIGHTS RESERVED. REPRODUCTION IN WHOLE OR IN PART WITHOUT PERMISSION IS PROHIBITED.
