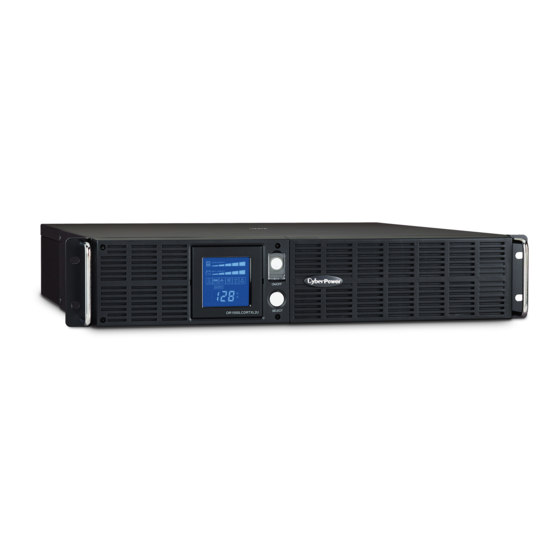

CyberPower OR1500LCDRTXL2U User Manual
  1. Manuals
  2. Brands
  3. CyberPower Manuals
  4. UPS
  5. OR1500LCDRTXL2U
  6. User manual

CyberPower OR1500LCDRTXL2U User Manual

Hide thumbs Also See for OR1500LCDRTXL2U:
Table of Contents

Advertisement

Quick Links

Download this manual

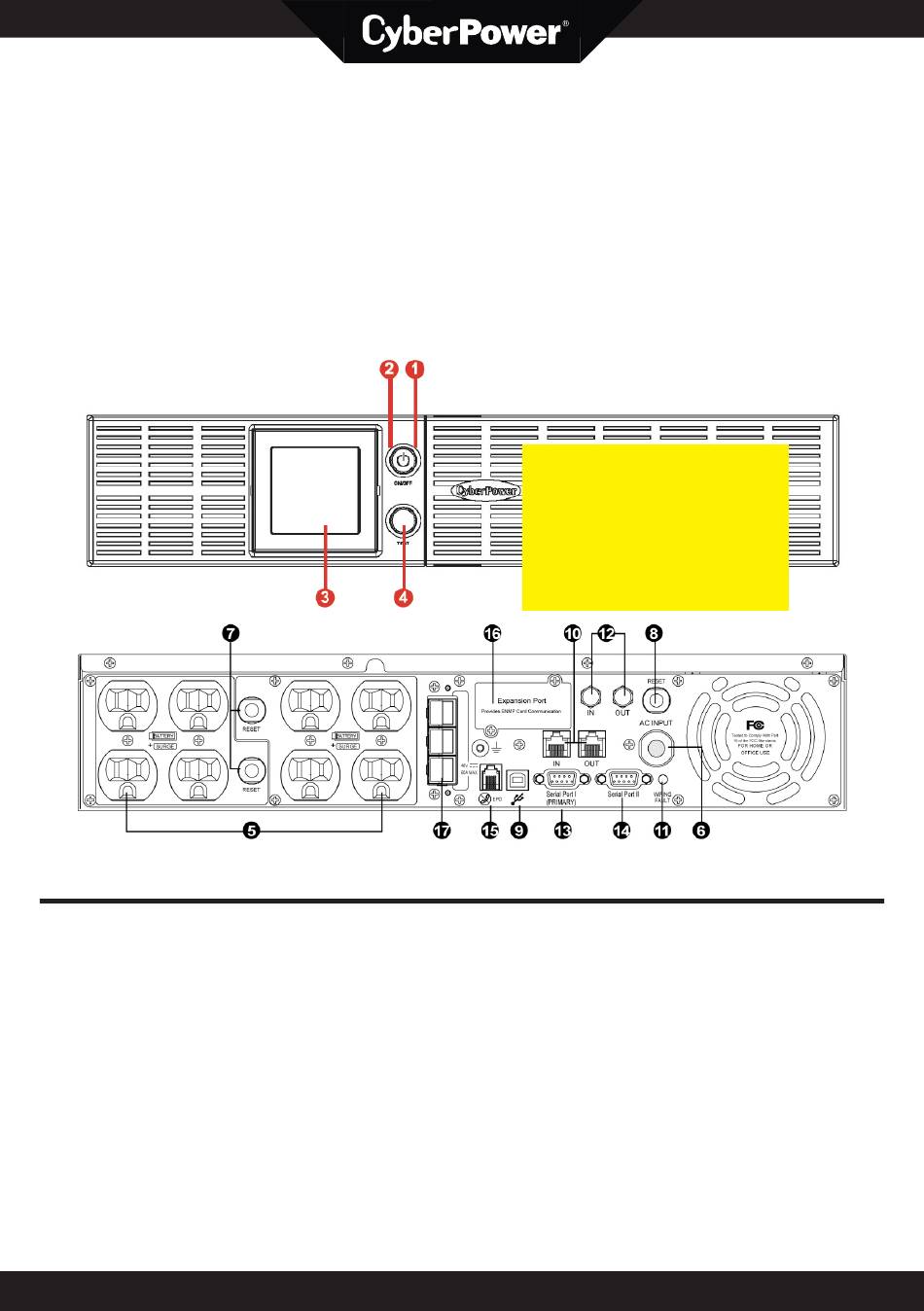

FEATURES
1.
Power Switch
2. Power On Indicator (Blue)
3. LCD Module Display
4. LCD Function Selection Switch
5. 8 Full-Time Battery Powered and Surge
Protected Outlets
6. AC Power Cord
7. Output Circuit Breaker
8. Input Circuit Breaker
4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com
YOUR ULTIMATE ALLY IN POWER
INTELLIGENT UPS SERIES
OR1500LCDRTXL2U / OR2200LCDRTXL2U
USER MANUAL
Cyber Power Systems (USA), Inc.
FPO
9. USB Port
10. Communication Protection Ports RJ45
11. Wiring Fault Indicator (Red)
12. Coax.Cable.DSS Surge Protection
13. Serial Port I (Primary)
14. Serial Port II (Dry Contact)
15. EPO (Emergency Power Off) Port
16. SNMP / HTTP Network Slot
17. External Battery Pack Connector

Advertisement

Table of Contents
loading

Related Manuals for CyberPower OR1500LCDRTXL2U

Summary of Contents for CyberPower OR1500LCDRTXL2U

  • Page 1 YOUR ULTIMATE ALLY IN POWER INTELLIGENT UPS SERIES OR1500LCDRTXL2U / OR2200LCDRTXL2U USER MANUAL FEATURES Power Switch 9. USB Port 2. Power On Indicator (Blue) 10. Communication Protection Ports RJ45 3. LCD Module Display 11. Wiring Fault Indicator (Red) 4. LCD Function Selection Switch 12.

  • Page 2: Product Registration

    PRODUCT REGISTRATION Thank you for purchasing a CyberPower product. This UPS is designed to provide unsurpassed power protection, operation, and performance during the lifetime of the product. Please take a few minutes to register your product at: www.CyberPowerSystems.com/registration. Registration certifies your product’s warranty, confirms your ownership in the event of a product loss or theft, and entitles you to free technical support.

  • Page 3: Installing Your Ups System

    The upon receipt. However, OR1500LCDRTXL2U features 1840 Joules of recharging the battery surge protection and the OR2200LCDRTXL2U for at least 8 hours is features 2060 Joules of surge protection.
  • Page 4 INSTALLING YOUR UPS SYSTEM - continued 3. To protect a fax, phone or modem, connect 6. To maintain optimal battery charge, a telephone cable or network cable from leave the UPS plugged into an AC outlet the wall jack outlet to the IN jack of the at all times.

  • Page 5: Basic Operation

    9. USB Port 17. External Battery Pack Connector The USB port allows connection and Use to connect the optional CyberPower communication between the USB port on external battery packs for extended the computer and the UPS unit.

  • Page 6: Replacing The Battery

    2. CAUTION! Risk of Energy Hazard, 12 V, Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery. maximum 7(for the OR1500LCDRTXL2U) or Service the battery under the supervision of 9 (for the OR2200LCDRTXL2U) Ampere- personnel knowledgeable of batteries and hour battery.

  • Page 7: Definitions For Illuminated Lcd Indicators

    DEFINITIONS FOR ILLUMINATED LCD INDICATORS 1. INPUT Voltage Meter: This meter measures the AC voltage that the UPS system is re- ceiving from the utility wall outlet. The UPS is designed, through the use of automatic voltage regulation, to continuously correct output voltage to connected equipment to a safe 110/120 voltage output range.

  • Page 8: Troubleshooting

    The UPS will not turn on. Contact CyberPower Systems The battery is worn out. about replacement batteries at: cyberpowersystems.com/support. Contact CyberPower Systems at: Mechanical problem. cyberpowersystems.com/support. Connect the USB/serial cable to the UPS unit and an open USB/ The USB/Serial cable is not serial port on the back of the com- connected.

  • Page 9: Technical Specifications

    433 x 478 x 88 mm (2U Rack) / 17 x 18.8 x 3.5 in. Net Weight 59.5 lbs. / 27 kg 66.1 lbs. / 30 kg Battery Type CyberPower / RBP834 CyberPower / RBP844 Typical Battery 8 hours Recharge Time...

  • Page 10: Fcc Compliance Statement

    State of California to cause reproductive harm and cancer. For more information, go to www.P65Warnings.ca.gov. © 2022 CyberPower Systems (USA), Inc. PowerPanel® Personal is a trademark of Cyber Power Systems(USA) Inc. All rights reserved. All other trademarks are the property of their respective owners.

This manual is also suitable for:

Or2200lcdrtxl2u
