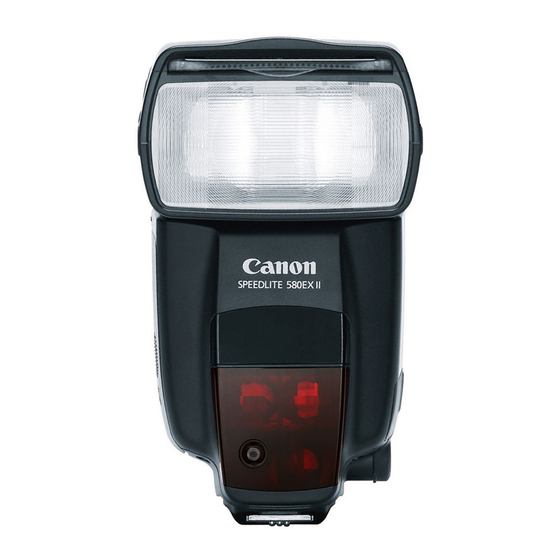

Canon
SPEEDLITE
580EXII
I
I
I
INSTRUCTION MANUAL
MODE D'EMPLOI
MANUAL DE INSTRUCCIONES

   Summary of Contents for Canon 580EXII

  • Page 1

    Canon SPEEDLITE 580EXII INSTRUCTION MANUAL MODE D'EMPLOI MANUAL DE INSTRUCCIONES...

  • Page 2

    Canon SPEEDLITE SBOEXII...

  • Page 3

    Thank you for purchasing a Canon product. The Canon Speedlite 580EX II is an EOS-dedicated, high-output flash unit automatically compatible with E-TTL II, E-TTL, and TTL autoflash. It can serve as an on-camera flash as well as a master unit or a slave unit in a wireless, multiple-Speedlite system.

  • Page 4

    Contents 111111 II Getting Started and Basic Operation Using Flash Wireless Flash Reference Conventions Used in this Manual • The symbol in the text refers to the Select Dial. < > symbol in the text refers to the Select/Set button. <...

  • Page 5

    Nomenclature Flash head/ Wireless transmitter Contact cover Wireless sensor External power source socket -----~r~: (p.49) ~~~. ~ 'y\l] Mounting foot (p.9) PC terminal Bracket mounting Contacts hole Case Mini stand...

  • Page 6

    Bounce angle LCD panel <MODE>-------- Flash model <~H/~> Slave setting button (p.11, 22, 24/45, 46) '\ /' High-speed sync Ir=J ~~g/p~~';,7i11Uminationl -J--:~:~~~1~:~::::::n Custom Function setting \ cover (p.8) r~ZOOM/+z. button (p.6/27) '---Battery compartment ~ II lock lever (p.8) PILOT -----+---,~ ~OF\O~ <PILOT>...

  • Page 7

    LCD Panel <ISO> ISO speed < > Manual zoom (i!J Manual flash output level Aperture Flash exposure FEB status compensation amount Stroboscopic flash count FEB compensation amount Stroboscopic flash frequency Manual flash 1/3-stop <~> High-speed sync increment indicator (FP flash) Custom Function No.

  • Page 8

    Getting Started and Basic Operation Installing the Batteries Attaching to the Camera......... 9 Turning on the Power Switch........ 10 Fully Automatic Flash Shooting Using E-TTL II and E-TTL Autoflash in the Shooting Modes............ 12 __ Cautions for firing continuous flashes •...

  • Page 9

    Installing the Batteries Install four size-AA batteries. Open the cover. • Use your thumb to press the battery compartment lock lever, then slide it as shown by the arrow CD to open the cover. Install the batteries. • Make sure the + and - battery contacts are properly oriented as shown in the compartment.

  • Page 10

    Attaching to the Camera "I Attach the Speedlite. • Slip the Speed lite's mounting foot into the camera's hot shoe all the way. Secure the Speed lite. • On the mounting foot, slide the lock lever to the right. ..- When the lock lever clicks in place, it will be locked.

  • Page 11

    Turning on the Power Switch ,II 11111 III 1111 111111111111111 <ON>. Set the power switch to l'" The flash recycling starts. Check that the flash is ready. • The pilot lamp will first turn green (ready for quick flash), then red (flash ready). Pressing the pilot lamp will fire a test flash.

  • Page 12

    Fully Automatic Flash Shooting •• "\\\1\\"\1&\"." When you set the camera's shooting mode to (Program AE) or < > (Full Auto), E-TTL II/E-TTL fully automatic flash will make it as < > easy as normal AE shooting in the < and <...

  • Page 13

    Using E-TTL II and E-TTL Autoflash in the Shooting Modes Just set the camera's shooting mode to (aperture-priority AE), < > <Tv> <M> (shutter-priority AE), or (manual) and you can use E-TTL 11/ E-TTL autoflash. Select this mode when you want to set the shutter speed manually. The camera will then automatically set the aperture matching the shutter speed to obtain a standard exposure.

  • Page 14: Table Of Contents

    Using Flash Flash Exposure Compensation FE L: FE Lock............16 High-speed Sync..........17 Bounce Flash..ZOOM: Setting the Flash Coverage and Using the Wide Panel............. 20 Manual Flash..........22 Stroboscopic Flash MULTI: r::I> Second-Curtain Sync C.Fn: Setting Custom Functions External Flash Metering........30 Speedlite Control with the Camera's Menu Screen...

  • Page 15: Flash Exposure Compensation

    Flash Exposure Compensation l. 1111 II 111I LII In the same way as normal exposure compensation, you can set exposure compensation for flash. The flash exposure compensation amount can be set up to ±3 stops in 1/3-stop increments. (If the camera's exposure compensation is in 1/2-stop increments, flash exposure compensation will be in 1/2-stop increments.) <~>.

  • Page 16

    ,1iI1I"1 i;;;11 11'11;;;11 lllii! 1'11,;;11 U'iliiU111 1I1111111~1 You can take three flash shots while automatically changing the flash output for each shot up to ±3 stops in 1/3-stop increments (1/2-stop increments if the camera enables only 1/2-stop increments). This is called FEB (Flash Exposure Bracketing).

  • Page 17: Fel: Fe Lock

    FEL: FE Lock III1III[ FE (flash exposure) lock locks the correct flash exposure setting for any part of the scene. ETTL With displayed on the LCD panel, you press the camera's > < <FEL > <FEL > button. If the camera does not have the button, press the <*>...

  • Page 18: High-speed Sync

    High-speed Sync With high-speed sync (FP flash), the flash can synchronize with all shutter speeds. This is convenient when you want to use aperture priority for fill-flash portraits. <~>. Select Zoom SOmm ~H / ~ Press the button so that <...

  • Page 19: Bounce Flash

    Bounce Flash IIJI.llIlIIIlIll.1I111111111II11II111111 1 1111111111 • •111111111111111_1.' By pointing the flash head toward a wall or ceiling, the flash will bounce off the surface before illuminating the subject. This can soften shadows behind the subject for a more natural-looking shot. This is called bounce flash.

  • Page 20

    Creating a Catchlight With the catchlight panel, you can create a catchlight in the subject's eyes to add life to the facial expression. Point the flash head upward by ' 1 ' , : 90°. Pull out the wide panel. ..

  • Page 21: The Wide Panel

    ZOO M : Setting the Flash Coverage and Using the Wide Panel The flash coverage can be set to match the lens focal length from 24mm to 105mm. The flash coverage can be set automatically or manually. Also, with the built-in wide panel, the flash coverage can be expanded for 14mm wide-angle lenses.

  • Page 22

    Auto Zoom for Image Size EOS DIGITAL cameras have one of three image sizes. The lens' effective focal length will differ depending on the camera's image size. The Speed lite automatically recognizes the EOS DIGITAL camera's image size and automatically sets the flash coverage for lens focal lengths from 24mm to 105mm.

  • Page 23

    Man uaI F Iash 1\ 1 1111111111111111111IlI1III1IlI1IlI1III1IlI1I11I11IlI1I11I111111 You can set the flash output from 1/128 power to 1/1 full power in 1/3- stop increments. Use a hand-held flash meter to determine the required flash output to obtain a correct flash exposure. <MODE>...

  • Page 24

    Metered Manual Flash Exposures When the Speed lite is attached to an EOS-1 0 series camera, you can set the flash level manually for closeup subjects. Set the camera and Speed lite. • Set the camera's shooting mode to < >...

  • Page 25

    •• i~l.'l"'.lI' Stroboscopic FIash ULTI: l\II'.\• • 'lliIIIl With stroboscopic flash, a rapid series of flashes is fired. It can be used to capture multiple images of a moving subject in a single photograph. You can set the firing frequency (number of flashes per sec. expressed as Hz), the number of flashes, and the flash output.

  • Page 26

    -- To avoid overheating and deteriorating the flash head, do not use stroboscopic flash more than 10 times in succession. After 10 times, allow the Speedlite to rest for at least 15 min. If you try to use the stroboscopic flash more than 10 times in succession, the firing might stop automatically to protect the flash head.

  • Page 27

    Second-Curtain Sync ,11111111 11111111 II I III II With a slow shutter speed, you can create a light trail following the subject. The flash fires right before the shutter closes. ~H / ~ < > Press the button so that ETTL Zoom SOmm <~>...

  • Page 28: C.fn: Setting Custom Functions

    1"'\\'1.\'\\.'\\~\".'1\.' C.Fn: Setting Custom Functions You can customize features to suit your shooting preferences. Speed lite You do this with Custom Functions. Custom Reference Function Function Settings & Description page Meters (m) C.Fn-OO Distance indicator display Feet (ft) Enabled C.Fn-01 Auto power off p.10 Disabled...

  • Page 29

    Hold down the <:,C?:-JC.Fn> button <CIiD> until is displayed. Fn []: Select the Custom Function No. Turn the dial to set the Custom > < Function No. Change the setting. €J Press the button. < > The Custom Function No. blinks. Turn the dial to set the desired >...

  • Page 30

    C.Fn-02-3: Convenient when you want to check the depth of field. (p.44) C.Fn-12: If an external power source is used, the flash recycling is powered concurrently by the internal batteries and external power source. In this case, when the internal batteries become exhausted first, shooting might not be possible.

  • Page 31: External Flash Metering

    External Flash Metering '"IRlln II The flash reflected off the subject is metered by an external metering sensor in real time. When the standard flash exposure is attained, the flash output is cutoff automatically. Auto external metering compatible with the EOS-1 0 Mark III and manual external metering compatible with all EOS cameras are provided.

  • Page 32

    Set the Speedlite to the camera's aperture setting. Press the button so the < > aperture setting blinks. <@> Turn the dial to set the <@> aperture, then press the button. After completing the settings, press the shutter button halfway. The effective flash range will be displayed on the Speedlite's LCD panel.

  • Page 33: Speedlite Control With The Camera's Menu Screen

    Speedlite Control with the Camera's Menu Screen If the Speedlite is attached to an EOS camera which has a Speedlite control function, it can control the Speedlite as shown below. For the menu operation procedure, refer to your camera's instruction manual. •...

  • Page 34: Wireless Flash

    Wireless Flash About Wireless Flash Wireless Settings..........36 Fully Automatic Wireless Flash......37 Flash Ratio with E-TTL II Setting the Flash Output for Each Slave....45 Setting Manual Flash and Stroboscopic Flash with the Slave...

  • Page 35

    About Wireless Flash .IIIIIIIIIIIIIIIIIU.IIIIIIUIIII_I.._ . With multiple Canon Speed lites having the wireless flash feature, you can create various lighting effects with the same ease as using normal E-TTL II autoflash. The settings you input with the 580EX II (master unit) attached to the camera are also automatically transmitted to the slave units which are controlled by the master unit via wireless.

  • Page 36

    Multi-Speedlite, Wireless Lighting Configurations You can create two or three slave groups and set the flash ratio for E- TTL II autoflash shooting (p.41 - 45). Wireless flash with two slave groups (p.41) Indoors 8m (26.2ft.) 12m (39.4ft.) Wireless flash with three slave groups (p.43) Indoors 8m (26.2ft.) 12m (39.4ft.)

  • Page 37

    Wi reless 5 etti n9s 1.\\\'\'\"""'11'.'\"""\I\\\II\1\\I\""\ll1\"\""'\""IlIill1l You can switch between normal flash and wireless flash. For normal shooting, be sure to set the wireless setting to OFF. Master Unit Setting <ZOOM> Press the button for 2 ETTL sec. or longer until the display blinks as shown on the left.

  • Page 38

    Fully Automatic Wireless Flash This method has all the Speedlites fire at the same flash output with E- TTL II autoflash controlling the total flash output. Set the camera-attached 580EX II 2'-1mm ETTL mJZoom as the master unit. Set the other 580EX II 2'-1mm ETTL mJZoom...

  • Page 39

    Check the flash operation . • Press the master unit's test firing button. The slave unit will fire. If the flash does not fire, adjust the slave unit's angle toward the master unit and distance from the master unit. Set the camera and shoot. .' Set the camera in the same way as with normal flash shooting.

  • Page 40

    []] • The Speedlite's zoom setting will be set automatically to 24mm. It is possible to change the master unit's zoom setting. However, note that the master unit transmits wireless signals to the slave unit(s} with the preflash. Therefore, the flash coverage must cover the slave unit's position.

  • Page 41

    Setting the Communication Channel If there is another Canon wireless flash system nearby, you can change the channel No. to prevent signal confusion. Both the master and slave units must be set to the same channel No.

  • Page 42

    Flash Ratio with E-TTL II With one master unit and one slave unit or two slave groups, you can set the flash ratio for E- TTL II autoflash shooting. The example below has two slave units and the master unit disabled from firing.

  • Page 43

    Set the slave 10. • Press the < > button. <A> Slave 10 will be set. • For the other slave unit, do steps 1 @> and 2, turn the < dial to select then press the button. >, > <...

  • Page 44

    [l] • The flash ratio range of 8: 1 - 1:1 - 1:8 is equivalent to 3: 1 - 1: 1 - 1:3 in stops (1/2-stop increments). • The flash ratio under the • mark is shown in parentheses below the scale. -------------_ 8:1 •...

  • Page 45

    Set the master unit and shoot. Follow "Setting the Master Unit and Shooting" on page 42. In step 4, <A: B C>. select IIlmmJI A: B> C> If < is set, the slave unit in slave group < will not fire. If you point the slave unit in slave group toward the subject, the <...

  • Page 46

    Setting the Flash Output for Each Slave With manual flash and multiple Speed lites, you can set a different flash output for each slave unit. All settings are done with the master unit. <MODE> Press the button so (l!i)Zoom 2Ymm <M>...

  • Page 47

    Setting Manual Flash and Stroboscopic Flash with the Slave Manual flash or stroboscopic flash can be set manually with the slave unit. As with studio flash units, you can set the flash output individually with the slave units for wireless or manual flash. Manual Flash <MODE>...

  • Page 48: Reference

    Reference 580EX II System Troubleshooting Guide......... 50 Specifications............52 Using a Type-B Camera........55...

  • Page 49

    Provides the same level of dust- and water-resistance as the 580EX II. All of the EOS camera's automatic functions can be used. ® Speed lite Bracket SB-E2 -- For the external power pack, use above. If a non-Canon, external power pack is used, it may cause malfunction.

  • Page 50

    About Color Temperature Information Transmission When the flash fires, the color temperature information is transmitted to the EOS DIGITAL camera. This feature optimizes the flash picture's m!i!l3 white balance. When the camera's white balance is set to < > it will work automatically. >, <...

  • Page 51

    Troubleshooting Guide II III If there is a problem, refer to this Troubleshooting Guide. The Speedlite does not fire. • The batteries are installed in the wrong orientation . .. Install the batteries in the correct orientation. (p.8) • The Speedlite's internal batteries are exhausted. If the flash recycling time takes 30 sec.

  • Page 52

    Auto zoom does not work. • The Speed lite is -not attached securely to the camera. • ' Attach the Speed lite's mounting foot securely to the camera. (p.9) The flash range scale bars blink. • The flash head has been tilted down by 7°. Change the bounce position.

  • Page 53

    Specifications -Type Type: On-camera, E-TTL II/E-TTL/TTL autoflash Speedlite Compatible cameras: Type-A EOS cameras (E-TTL II/E-TTL autoflash) Type-B EOS cameras (TTL autoflash) Guide No.: 58/190 (at 105mm focal length, ISO 100 in meters/feet) Flash coverage: 24 - 105mm (14mm with wide panel) ·...

  • Page 54

    (W x H x D): (excluding dust- and water-resistant adapter) • Weight 405 g / 14.3 oz. (Speedlite only, excluding batteries) (Approx.): All specifications above are based on Canon's testing standards. Product specifications and external appearance are subject to change without notice.

  • Page 55

    Guide No. (at ISO 100, in meters/feet) Normal Flash (Full Output) and Quick Flash Flash Coverage (mm) Normal Flash (Full output) 49.2 91.9 98.4 118.1 137.8 173.9 190.3 Quick Flash Same as 1/2 to 1/6 manual flash output Manual Flash Flash Coverage (rnrn) Flash Output 49.2...

  • Page 56

    Using a Type-B Camera 110111 1.11•.• 1 1.11 11111..I.II.IIII.U.1. ; If you use the 580EX II with a Type-B camera (TTL autoflash camera), note the available features and restrictions below. When a Type-B camera is used with the 580EX II set to autoflash, <TTL>...

  • Page 57

    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions.

  • Page 58

    WEEE scheme or your household waste disposal service. For more information regarding return and recycling of WEEE products, please visit www.canon- europe.com/environment. (EEA: Norway, Iceland and Liechtenstein)

  • Page 59

    Canon This Instructions booklet is dated February 2007. For information on the camera's compatibility with system accessories marketed after this date, contact your nearest Canon Service Center.

  • Page 60

    Canon CANON INC. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan U.S.A. - - - - CANON U.S.A. INC. One Canon Plaza, Lake Success, NY 11042-1198, U.S.A. For all inquires concerning this product, call toll free in the U.S. 1-800-0K-CANON CANADA - - - CANON CANADA INC. HEADQUARTERS 6390 Dixie Road, Mississauga, Ontario L5T 1P7, Canada CANON CANADA INC.

  • Page 61

    Canon Photographic Product International Service Network du Certificat de Garantie (avec la marque ffi du Systeme de Garantie Internationale Canon) dans les centres de service apres-vente indiques par la marque ffi dans les pays Service of your Canon product will be provided at any of the listed authorized service facilities. Warranty service of products with international Warranty certificate (with the ou regions autres que celui ou Ie produil a ete achete.

  • Page 62

    UN USAGE PARTICULIER) QUE GARANTIE E::NONCEE CI·DESSUS, A MaiNS EXCEPT TO THE EXTENT THAT ANY SUCH EXCLUSION WOULD CONTRAVENE ANY STATUTE OR CAUSE THIS TERM TO BE VOID, CANON COMPANY EXCLUDES ALL LIABILITY OU'UNE TELLE CLAUSE D'EXCLUSION N'ENFREGNE TOUTE LOI APPLICABLE NE RENDE LA PRE::SENTE MODALrTE:: NULlE.
