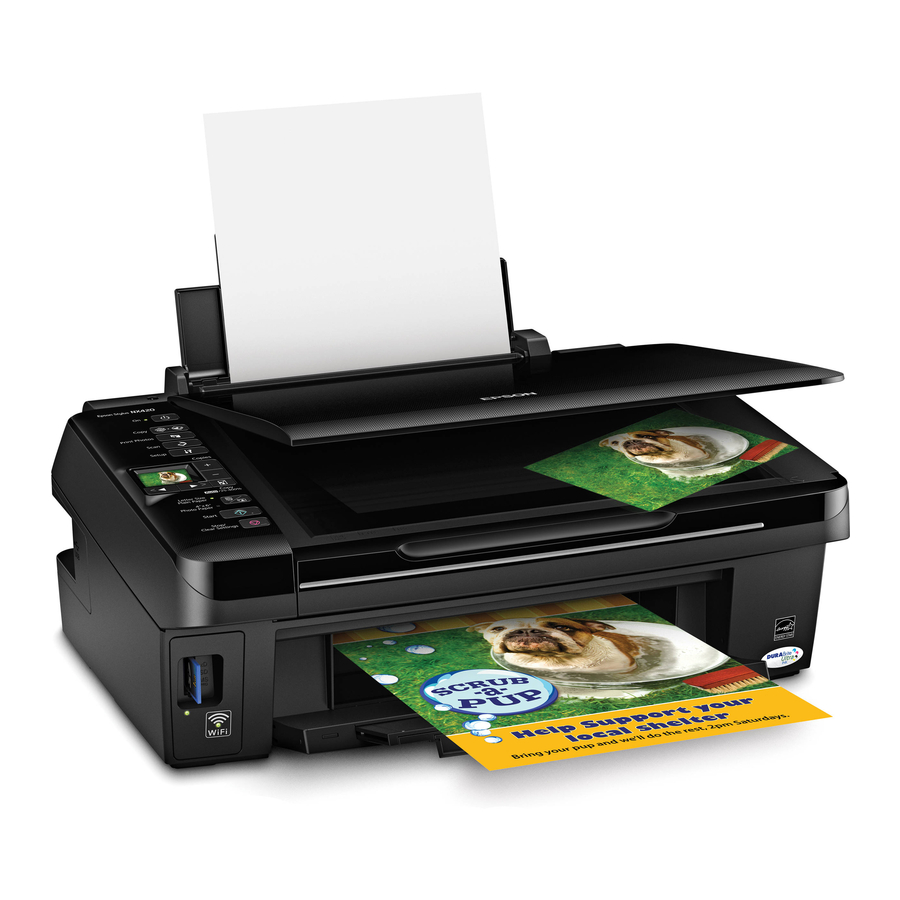

Epson Stylus
NX420 Series
®
Start Here
Read these instructions before using your product.
1
Unpack
Power cord
Caution: Do not open ink cartridge packages until you are ready to
install the ink. Cartridges are vacuum packed to maintain reliability.
Remove all protective materials.
2
Turn on
1
Connect the power cable.
Caution: Do not connect to your computer yet.
2
Press the
On button.
*411841500*
*411841500*
3
1
4
Note: Do not load paper yet.
French control
1
panel stickers
(included for
Canada only)
2
3
Select language
T o select English as your language, press
N
ote: If you want to change the language, press
Start.
select it, then press
Install ink cartridges
L ift up the scanner, then open the cartridge cover.
S hake the ink cartridges gently 4 or 5 times, then unpack
them.
Remove only the yellow tape from each cartridge.
C
aution: Don't remove any other seals or the cartridges may
leak.
Start.
or
to
Advertisement
Related Manuals for Epson Stylus NX420 Series
Summary of Contents for Epson Stylus NX420 Series
- Page 1 Epson Stylus NX420 Series ® Start Here Read these instructions before using your product. Unpack Power cord Caution: Do not open ink cartridge packages until you are ready to install the ink. Cartridges are vacuum packed to maintain reliability. Remove all protective materials. Turn on Connect the power cable. Caution: Do not connect to your computer yet. Press the On button. *411841500* *411841500* Select language T o select English as your language, press ote: If you want to change the language, press select it, then press Install ink cartridges Note: Do not load paper yet. French control panel stickers L ift up the scanner, then open the cartridge cover.
- Page 2 Insert the cartridges in the holder for each color. Press each cartridge down until it clicks. Close the cartridge cover. Press down until it clicks. Lower the scanner. P ress the Start button to charge the ink. Priming takes about 2 minutes. ote: Your printer ships with full cartridges and part of the ink from the first cartridges is used for priming the printer. aution: Don’t turn off the printer while it is priming or you’ll waste ink. Load paper O pen the paper support and pull up the extensions. O pen the output tray, pull out the extensions, and raise the stopper. Squeeze the edge guide as you slide it all the way to the left. L oad letter or A4-size paper against the right edge and behind the tab, with the printable side face up. S lide the edge guide over. Continue with section 6 to choose your connection type.
- Page 3 If you don’t have this information, contact the person who set up your network. Direct USB Connection Make sure you have a USB cable (not included). Do not connect the printer to your computer until you’re instructed to do so. Install software M ake sure the printer is NOT CONNECTED to your computer. W indows : If you see a Found New Hardware screen, click ® Cancel and disconnect the USB cable. You can’t install your software that way. Insert the NX420 Series software CD. indows: If you see the AutoPlay window, click Run Setup.exe. If you see the User Account Control screen, click Yes or Continue. M acintosh : Double-click the ® Control panel overview Any problems? If you experience problems during setup, see below: Network setup was unsuccessful. • Make sure you select the right network name. • If your network has security enabled, make sure Epson icon, if necessary.
-
Page 4: Epson Technical Support
Epson authorized reseller. To find the nearest one, call 800-GO-EPSON (800-463-7766). Genuine Epson Paper Epson offers a wide variety of papers to meet your needs; visit Epson Supplies Central for more information. Premium Presentation Paper Matte H eavy weight, non-glare card stock for school and business projects plus photos. Genuine Epson Inks Look for the numbers below to find your cartridges. It’s as easy as remembering your number! NX420 Series Ink Cartridges Moderate-capacity Color (For lighter use) Black Cyan Magenta Yellow Epson and Epson Stylus are registered trademarks, Epson Exceed Your Vision is a registered logomark, and Supplies Central is a service mark of Seiko Epson Corporation. Designed for Excellence is a trademark and DURABrite is a registered trademark of Epson America, Inc. General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.
