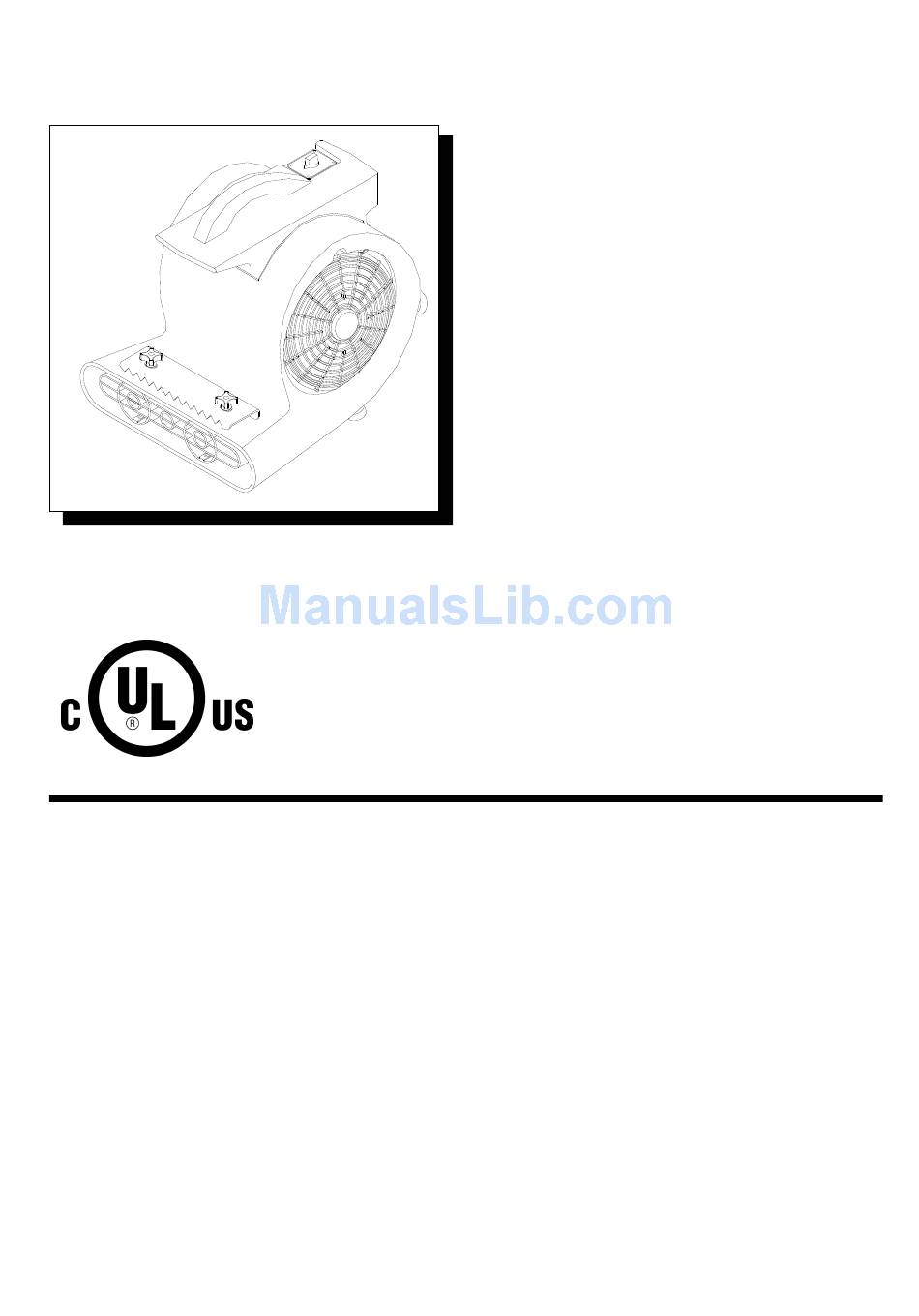

- Page 1 Operating Instructions (ENG) MODEL: 115 V UL LISTING FOR 1/2 HP MODELS ONLY Read instructions before operating the machine. 86038980-J 07/05/07 PRV NO. 98946...
-
Page 2: Machine Data Log/Overview
DATE OF PURCHASE __________________________ SERIAL NUMBER ______________________________ SALES REPRESENTATIVE # _____________________ DEALER NAME ________________________________ OPERATIONS GUIDE NUMBER ___________________ PUBLISHED __________________________________________ YOUR DEALER Name: __________________________________________________________________________________________________ Address: _______________________________________________________________________________________________ For the name and address of your dealer contact: Windsor Industries Phone Number: _________________________________________________________________________________________ 86038980 03/05/07... -
Page 3: How To Use This Manual
HOW TO USE THIS MANUAL The PARTS LIST section contains assembled This manual contains the following sections: parts illustrations and corresponding parts list. The parts lists include a number of columns of HOW TO USE THIS MANUAL information: SAFETY OPERATIONS REF –... -
Page 4: Table Of Contents
TABLE OF CONTENTS Machine Data Log/Overview......2 HOW TO USE THIS MANUAL How to use this Manual........3 Table of Contents .........4 SAFETY Important Safety Instructions ......5 Hazard Intensity Level........6 Grounding Instructions........7 OPERATION Set Up..........……….8 On/Off Procedure......……….8 MAINTENANCE Power Cord.......... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. WARNING: To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual. -
Page 6: Hazard Intensity Level
Unless Operation Guide is Read and understood. In Flammable or Explosive areas. In areas with possible falling objects. WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Windsor approved replacement parts. 86038980 03/05/07... -
Page 7: Grounding Instructions
USE ONLY. ELECTRICAL: In the USA this machine operates on a standard 15 amp 115V, 60 hz, A.C. power circuit . The amp, hertz, and voltage are listed on the data label found on each machine. Using voltages above or below those indicated on the data label will cause serious damage to the motors. -
Page 8: Operation
OPERATION & MAINTENANCE OPERATION 1. Open the doors or windows if possible to aid in ventilation. 2. Ensure that the unit is turned off, plug the power cord into the outlet. 3. Turn the switch to the desired speed. 4. Turn the unit off before un-plugging the power cord from the outlet. -
Page 9: Wiring Diagram
WIRING DIAGRAM 4-POSITION SWITCH (86225090) (PRV NO. 72176) POWER (86217020) (PRV NO. 23696) CAPACITOR (86216620) (86136310) (PRV NO. 27943) (PRV NO. 57086) (86288710) MOTOR (PRV NO. (86247130) 70769) (PRV NO. 53149) (86173350) (PRV NO. 87515) REAR VIEW OF SWITCH 86038980 07/05/07... -
Page 10: Body Assembly
AIR BLOWER BODY ASSEMBLY 32AB 86038980 07/05/07... - Page 11 86218420 36212 GUARD, FRONT AB 86136730 70763 SCR, M6-1 X 40MM 86219710 48085 KNOB, CARPET CLAMP 86247130 53149 MOTOR, 115V 3SPD 1/2 HP 86136240 53803 MOTOR, 115V 3SPD 1 HP 86216760 20100 CLAMP, CARPET 86198450 20005 CLAMP, 5/16 NYLON 86079800...
-
