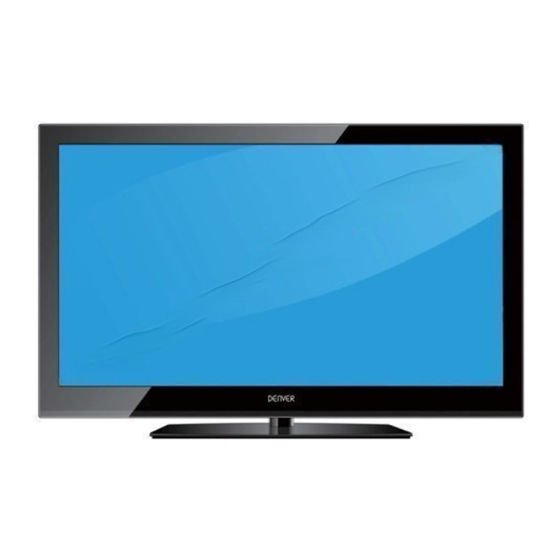

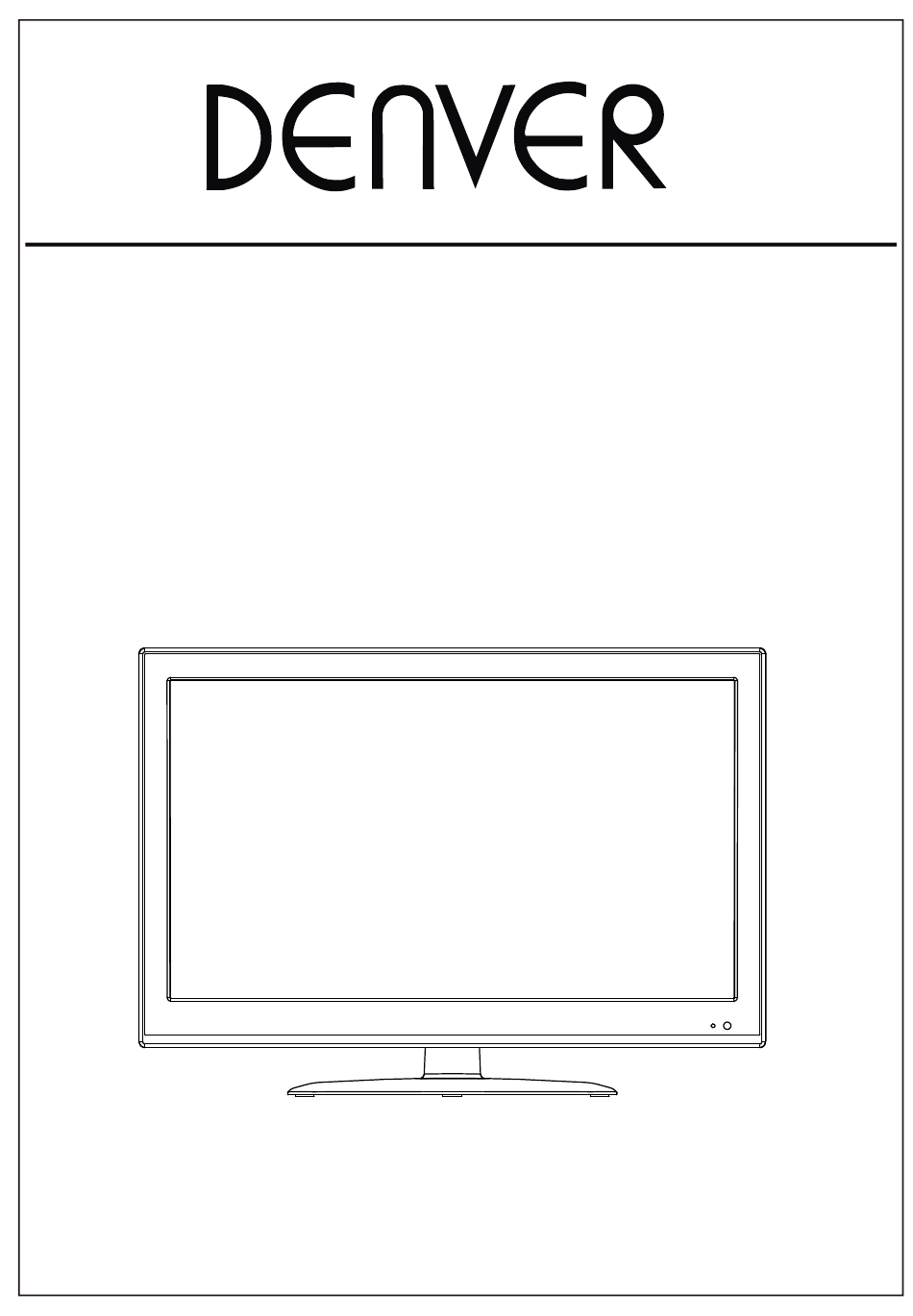

- Page 1 22” LED TV WITH DVB-T2/DVB-C Model NO.: LED-2259TC Instruction Manual www.facebook.com/denverelectronics...
-
Page 2: Table Of Contents
Contents Caution Safety Information Accessories Technical Specification Product Introduction Front View Connections Remote Control 8-10 OSD Menu 11-27 1. INPUT 2. VIDEO 12-13 3. AUDIO 4. TV 15-17 5. SETUP 6. Time Setup 19-20 2-23 Menu 10. VGA PHOTO MUSIC VIDEO TEXT... -
Page 3: Caution
Caution The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Safety Information
Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below . Electrical safety To prevent overload, don't share the same mains supply socket with too many other items of equipment. -
Page 5: Accessories
Accessories Converter cable for AV Mains cable Mains adaptor User’s Manual Remote control AV Cable Converter cable for YPbPr * Note: The configuration of the components may look different from the following illustration Technical Specification - TV System PAL BG/DK/I SECAM BG/DK L/L’ - Screen Size 22 inch(diagonal) - Resolution... -
Page 6: Product Introduction
Product Introduction Introduction Front View Remote Control window POWER to turn on and off. off Null The effective receiving range for the signal is 5-8 metres from the front of the remote control window, and 30 to the left or right side and 20 above or below the remote control window. -
Page 7: Connections
Connections USB: USB jack for update, media and PVR. RJ45: For automatic upgrades for MHEG5(Digital Text interactive services) and HD services. Common Interface: CI slot. RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal. Coax: Digital coaxial output. SCART MINI YPbPr MINI AV... -
Page 8: Remote Control
Remote Control The remote control is using Infrared(IR). Point it towards the front of the LED TV. The remote control may not work correctly if it is operated out of range or out of angle. -
Page 9: Input
Remote Control NUM. BUTTON&FUNCTION POWER Press this button to switch on the TV when at standby mode or enter standby mode. MUTE Press this button to mute or restore sound. CH-/CH+ Changes the channels up and down. [0-10+] Directly elect a TV channel CH-List - Display the channel list(only in DTV). - Page 12 Scan...
- Page 18 Display the recorder shedule.
- Page 20 Aspect Ratio Choose from , 4:3, 16:9, Zoom1,Zoom2, and Panorama. Set the channel to interaction or not when having no signal. Interaction Channel Set the MHENG PIN Protection or not when having no signal. MHEG PIN Protection...
- Page 21 OSD Timer: Allows you to select the time for OSD menu displays on the screen.
- Page 24 Hotel Mode Source Lock: MAX V...
-
Page 26: V R Menu
PVR Menu VR function is only available for DTV,includes Record and Playback function. Note When PVR function is in progress, please don’t unplug the power and the external USB device at well. When PVR function is active, the power indicator will blink with red and green consecutively. Before start recording a program, please make sure the external USB device is connected. - Page 27 After disk setup then press / button on remove control start timeshift, the screen is to stop and have time to show -00:00:01 ... moving around: After timeshift some time, if you want to watch the program, press the / key to enter the play mode. Press the button exit to time shift menu .
- Page 28 Schedule Type Press bl e button enter to sub-menu. Repeat Type Press button select the repeat type as Once, Daily and Week. There is a scheduler record CH1 do you want to start record? In record mode, status bar does not any o perating , it will start automatically...
-
Page 30: Usb
Photo... -
Page 31: Photo
PHOTO Play Rotate Rotate the photo clockwise/counterclockwise. ZOOM Zoom out/in the movie screen. - Page 35 Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check all connections to the TV.
- Page 37 Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly. Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below.
