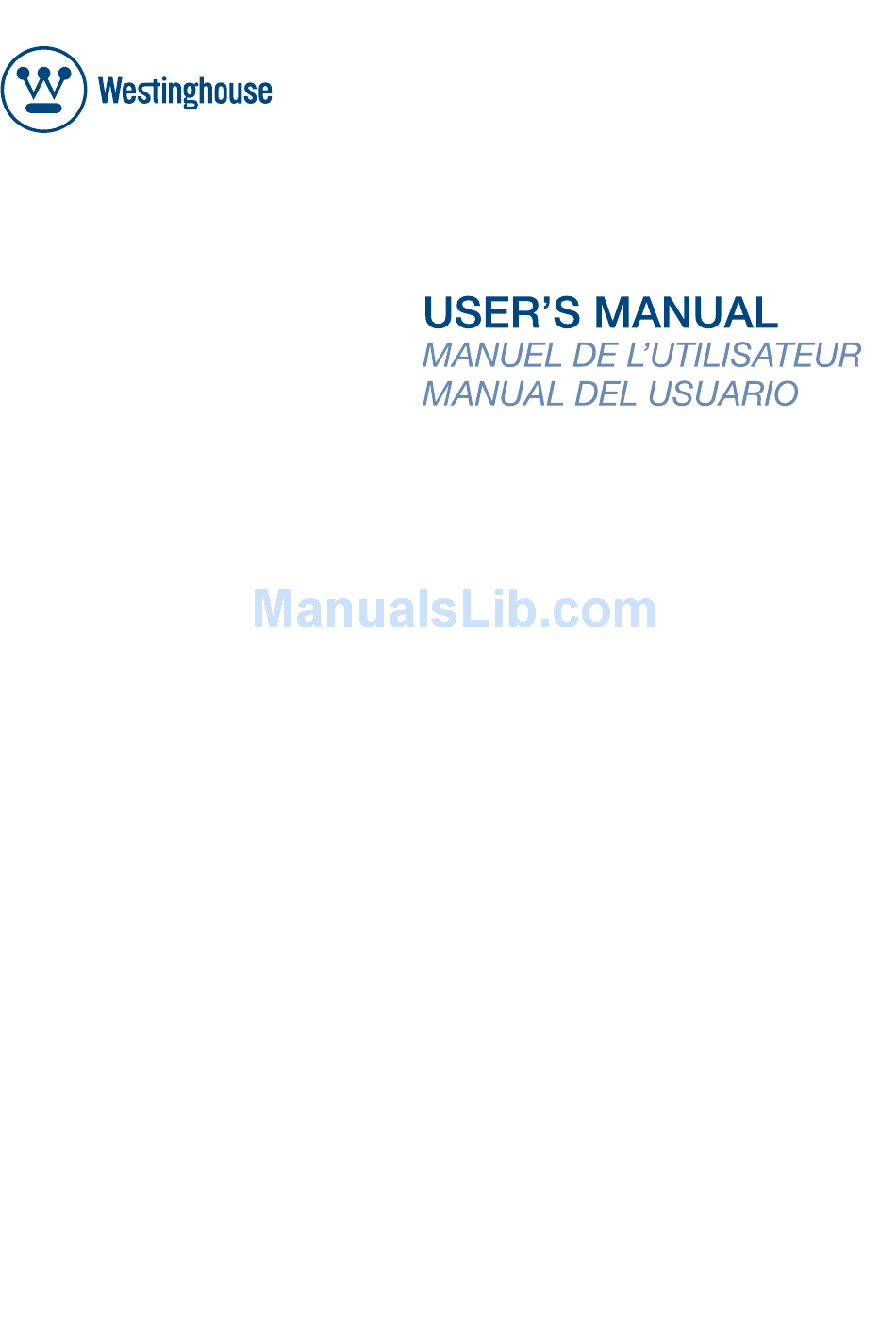

  • Page 1 EW39T6MZ...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS..............i DIGITAL TELEVISION TRANSITION NOTICE ......1 ENERGY STAR DISCLAIMER ............. 1 IMPORTANT INFORMATION............2 Warnings .................. 2 NOTICES ................. 3 FCC COMPLIANCE STATEMENT .......... 4 IMPORTANT SAFETY INSTRUCTIONS ......... 5 Circuit Overload................

  • Page 4: Table Of Contents

    TABLE OF CONTENTS POWER CONNECTION ............. 21 CONNECTING AC POWER........... 21 INITIAL SETUP ..............21 ANTENNA OR COAXIAL CABLE CONNECTION SETUP ..22 CABLE OR SATELLITE BOX CONNECTION SETUP ..24 OTHER INPUT SOURCE CONNECTION SETUP ....25 BASIC OPERATIONS..............27 TURNING THE POWER ON AND OFF .........

  • Page 5: Digital Television Transition Notice

    DIGITAL TELEVISION TRANSITION NOTICE DIGITAL TELEVISION TRANSITION NOTICE This device contains a digital television tuner, so it should receive digital over the air TV programming, with a suitable antenna, after the end of full-power analog TV broadcasting in the United States on June 12, 2009. The nationwide switch to digital television broadcasting will be complete on June 12, 2009, but your local television stations may switch sooner.

  • Page 6: Important Information

    IMPORTANT INFORMATION IMPORTANT INFORMATION Warnings To reduce the risk of fire or electric shock: • Do not expose this product to rain or moisture. • Do not remove the rear cover. There are no user-serviceable parts inside. Refer all servicing requirements to qualified service personnel. •...

  • Page 7: Notices

    IMPORTANT INFORMATION NOTICES Important Notices Concerning Power Cord Selection The specific power cord for this LED TV is enclosed and has been selected according to the country of destination. Use the enclosed power cord to prevent electric shock. Observe the following guidelines if it is necessary to replace the original cord set, or if there is no cord set enclosed.

  • Page 8: Fcc Compliance Statement

    IMPORTANT INFORMATION FCC COMPLIANCE STATEMENT This equipment has been tested and complies with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and may cause harmful interference to radio communications if not installed and used in accordance with the instructions.

  • Page 9: Important Safety Instructions

    IMPORTANT INFORMATION IMPORTANT SAFETY INSTRUCTIONS Make sure to note and follow all warnings and instructions marked on the LED TV. Observe the following safety instructions. • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. •...

  • Page 10: Circuit Overload

    IMPORTANT INFORMATION Circuit Overload Do not overload wall outlets, extension cords, or power strips. This can result in a fire or electronic shock. Power Cord Protection Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them.

  • Page 11: Warnings And Precautions

    IMPORTANT INFORMATION WARNINGS AND PRECAUTIONS • Do not orient the LED TV towards direct sunlight to reduce glare. • If the LED TV will not be used for a long period of time, unplug the unit and remove the batteries from the remote control. •...

  • Page 12: Antenna Installation Safety

    IMPORTANT INFORMATION ANTENNA INSTALLATION SAFETY Outdoor Antenna Grounding If an outside antenna or cable system is connected to the LED TV, be sure the antenna or cable system is grounded to prevent voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANS/NFPA 70, provides information on proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

  • Page 13: Cleaning The Led Tv

    IMPORTANT INFORMATION CLEANING THE LED TV • Make sure the LED TV is turned off and the power cord is disconnected from the power outlet. • Never spray or pour any liquid directly onto the screen or the case. To clean the screen: 1 Wipe the screen with a clean, soft, lint-free cloth.

  • Page 14: Package Contents

    PACKAGE CONTENTS PACKAGE CONTENTS 39” LED TV Unit Remote Control (with 2x AAA batteries) LED TV Base User Manual Power Cord Warranty Card AC Adapter Warranty Brochure Screws for Base M4x12*4pcs M4x16L*4pcs M4x16 *4pcs TV stand Stand cover TV column...

  • Page 15: Control Panel

    CONTROL PANEL CONTROL PANEL CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL Item Description 1. INPUT •...

  • Page 16: Terminals

    TERMINALS TERMINALS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL DC IN TUNER AUDIO IN VIDEO Item Function 1.

  • Page 17: Remote Control

    REMOTE CONTROL REMOTE CONTROL Item Description Mutes the sound. Press again to toggle the 1. Mute sound back on. Toggles the TV power on or off. 2. Power 3. Channel keys Use to key in the channel number. 4. Enter ENT Executes a channel entry.

  • Page 18: Remote Control Operation

    REMOTE CONTROL OPERATION REMOTE CONTROL OPERATION INSTALLING THE REMOTE CONTROL BATTERIES CAUTIONS: • Only use AAA batteries. • Do not mix new and old batteries. This may result in cracking or leakage, which may pose a fire risk or lead to personal injury. •...

  • Page 19: Led Tv Base

    LED TV BASE LED TV BASE CAUTION: The LED TV unit may be too heavy for one person to lift. If this is the case, make sure to ask for assistance in handling the LED TV to prevent physical injury and/or damage to the unit. INSTALLING THE LED TV BASE 1 Open the LED TV carton box.
  • Page 20 LED TV BASE 11 Attach the TV column with the foot stand and use four M4 x 16 screws to secure it. 12 Carefully orient the LED TV in an upright position. 13 Place the LED TV on the desk. Be sure to place the TV at a higher location (at least 75 cm high).

  • Page 21: Removing The Led Tv Base

    REMOVING THE LED TV BASE REMOVING THE LED TV BASE If you intend to repack the LED TV unit (for shipping or storage) or you want to change the installation to a wall mount option, you must first remove the LED TV base.

  • Page 22: Antenna Connection

    ANTENNA CONNECTION ANTENNA CONNECTION OUTDOOR ANTENNA CONNECTION Cable TV lead in VHF, UHF or VHF/UHF combination antenna 75 ohm coaxial cable (round) RF IN 300-75 ohm ADAPTER 300 ohm twin-lead (flat) (Not supplied) Separate VHF/UHF Antenna VHF Antenna UHF Antenna Home Antenna terminal (75 ohm) 300 ohm twin-lead...

  • Page 23: External Device Connections

    EXTERNAL DEVICE CONNECTIONS • A position on the RF switch (not supplied) – You can view all unscrambled channels by using the TV's channel keys. • B position on the RF switch (not supplied) – You can view the scrambled channels via the converter/descrambler by using the converter's channel keys.
  • Page 24 EXTERNAL DEVICE CONNECTIONS The following diagram shows the external device connections. Audio amplifier AUDIO OUT 3.5 mm stereo mini jack cable Audio cable RGB cable SPDIF cable DC IN TUNER AUDIO IN VIDEO Antenna cable / AC to DC Cable TV line adapter Composite AV cable...

  • Page 25: Power Connection

    POWER CONNECTION POWER CONNECTION CONNECTING AC POWER IMPORTANT: The LED TV is designed to be powered via an AC adapter. Use ONLY the AC adapter included in the package. Turn off all connected devices before plugging the AC adapter into the power outlet. Connect the power cord of the AC adapter to the LED TV then to a proper AC outlet.

  • Page 26: Antenna Or Coaxial Cable Connection Setup

    POWER CONNECTION ANTENNA OR COAXIAL CABLE CONNECTION SETUP Select Language Select Language Select Language Select Language Use the keys on your remote Follow this guide to help you set up your TV. Use the Up and Down arrows on your remote control and select the Language control to select the language to be used for you want to use for menus and message screens.
  • Page 27 POWER CONNECTION Select Channel Scan Type Scan Channels from Antenna or coaxial cable input Scan Channels from Antenna or coaxial cable input Scan Channels from Antenna or coaxial cable input Use the keys on your remote Use the Up or Down key arrows on you remote control to select ther channel scan type control to select the channel scan type.

  • Page 28: Cable Or Satellite Box Connection Setup

    POWER CONNECTION CABLE OR SATELLITE BOX CONNECTION SETUP Select Language Select Language Select Language Select Language Use the keys on your remote Follow this guide to help you set up your TV. Use the Up and Down arrows on your remote control and select the Language control to select the language to be used for you want to use for menus and message screens.

  • Page 29: Other Input Source Connection Setup

    POWER CONNECTION RF Warning RF Warning RF Warning RF Warning Select “Proceed” and then press SELECT Note:We don’t recommend RF as your connection because to continue. its poor video signal and quality; Go back to choose another source; If you don’t have a Cable Box that can provide High Definition quality signals, We recommend you call your Cable Press to return to the previous screen.

  • Page 30: Select Input Source

    POWER CONNECTION Let’s Get Connected Let’s Get Connected... Let’s Get Connected... Let’s Get Connected... Select “Game, Blu-Ray, DVD, or other player” and press SELECT to continue. Cable Box or Satellite Box Press to return to the previous screen. Game, Blu-Ray, DVD, or other player Antenna or coaxial cable input Back :Return...

  • Page 31: Basic Operations

    BASIC OPERATIONS BASIC OPERATIONS TURNING THE POWER ON AND OFF Turning on the power Press on the control panel or on the remote control to turn on the LED TV. Turning off the power Press on the control panel or on the remote control to turn off the LED TV. The LED behavior will depend on the enabled Power settings.

  • Page 32: Changing Channels

    BASIC OPERATIONS CHANGING CHANNELS Follow the instructions below to change channels. Using the Ch Buttons Browse channels To browse through the available channels, press CH the remote control or CH +/- on the control panel. Using the Channel Keys Selecting channel To change to a certain channel, key in the channel number using the channel keys and press ENT.

  • Page 33: Adjusting The Display Format

    BASIC OPERATIONS Using the Input Key Select source using Input Key 1 Press INPUT. A list of supported video sources is displayed. 2 Press the keys to select the preferred source. 3 Press SELECT to switch to the selected input source. ADJUSTING THE DISPLAY FORMAT The input source can sometimes affect the way images are displayed on-screen.

  • Page 34: Setup Menus

    SETUP MENUS SETUP MENUS SETUP MENU OPERATION Use the setup menus to configure the various operational settings of the LED TV. Displaying the setup menu screen Press on the remote control or MENU on the control panel to display the setup menu screen.

  • Page 35: Picture

    SETUP MENUS PICTURE Use the Picture sub-menus to configure the display quality. Press on the remote control or MENU on the control panel to display the setup menu screen then select PICTURE to display the Picture sub-menu. The following options are available: Picture Settings, Screen Size, VGA Settings, Color temperature, Advanced Picture Settings.

  • Page 36: Picture Mode

    SETUP MENUS Picture mode Use this sub-menu to select one of four preset view options optimized for different viewing conditions. The following options are available: • Standard: Select for standard picture. • Movie: Select for a finely detailed picture. • User: Select for standard picture.
  • Page 37 SETUP MENUS Color Use Color to adjust the color intensity. Adjusting Color Color 1 Use the keys to select Color and press or SELECT. 2 Press the keys on the remote control to adjust the Color level. 3 Press or SELECT to save and exit the screen. Tint Use Hue to adjust the balance of the red, green, and blue colors in the display.

  • Page 38: Screen Size

    SETUP MENUS 2 Press the keys on the remote control to adjust the sharpness level. 3 Press or SELECT to save and exit the screen. Screen Size Use Screen Size to select the display aspect ratio till the picture is fit onto the screen. The available options are: •...

  • Page 39: Auto Adjust

    SETUP MENUS VGA Settings VGA Settings Menu is available only in PC DB15 or DVI mode. When DVI signal input, only Horizontal Position and Vertical Position can be adjusted. Press the keys to highlight one of the following options, then press SELECT to select it.

  • Page 40: Color Temperature

    SETUP MENUS Clock Adjust the DB15 picture signal sampling clock rate. Clock Phase Adjust the DB15 picture signal sampling phase. It maybe affect the definition. Wrong value maybe result the interference. Phase Reset Reset the parameters of current menu to default value. Adjusting VGA Settings 1 Use the keys to select VGA Settings and press...

  • Page 41: Advanced Picture Settings

    SETUP MENUS 3 Press or SELECT to save and exit the screen. Advanced Picture Settings ADVANCED PICTURE SETTINGS ADVANCED PICTURE SETTINGS ADVANCED PICTURE SETTINGS Dynamic Contrast Film Mode Noise Reduction MPEG Noise Reduction :Return :Return :Move :Move :Change Setting :Change Setting MENU MENU MENU...

  • Page 42: Sound

    SETUP MENUS SOUND Use the Sound sub-menus to configure the sound quality. Press on the remote control or MENU on the control panel to display the setup menu screen then select SOUND to display the Sound sub-menu. The following options are available: Sound Settings, Surround Mode, AVL, Analog Sound, Digital Sound, Digital Audio Output, and Equalizer Settings.

  • Page 43: Sound Mode

    SETUP MENUS Sound mode Use this sub-menu to select one of four preset view options optimized for different listening conditions. The following options are available: • Standard: Select for standard picture. • Soft: Select for a finely detailed picture. • User: Select for standard picture.

  • Page 44: Surround Mode

    SETUP MENUS Balance Use Balance to adjust the sound balance between the L/R speakers. Adjusting Balance Balance 1 Use the keys to select Balance and press or SELECT. 2 Press the keys on the remote control to adjust the Balance level. 3 Press or SELECT to save and exit the screen.

  • Page 45: Equalizer Settings

    SETUP MENUS Analog Sound (SAP/Stereo/Mono) Available at analog TV channels. Set the preferred sound track of analog channels. Stereo and SAP exist on some channels. Generally SAP is a second language sound or help the people with hearing impair. Digital Sound (English/French/Spanish) Available at digital TV channels.

  • Page 46: Channel

    SETUP MENUS CHANNEL Use the Channel sub-menus to configure the channel. Press on the remote control or MENU on the control panel to display the setup menu screen then select CHANNEL to display the Channel sub-menu. The following options are available: Channel List, Favorite List, Channel Settings, Signal Type, Auto Channel Search.

  • Page 47: Favorite List

    SETUP MENUS Favorite List All of your favorite channels are listed in this menu, and you can choose them quickly. FAVORITE LIST FAVORITE LIST FAVORITE LIST Page 1/1 :Return :Return :Move :Move :Page :Page :Select :Select MENU MENU MENU ENTER ENTER ENTER Channel Settings...

  • Page 48: Signal Type

    SETUP MENUS Change the settings • Skip & Favorite Press the keys to select the channel you want to set. Press the keys to highlight corresponding item, and press SELECT to set or cancel. • Label Press the keys to select the channel and SELECT to enter the edit state. Press the keys to select the character, press the keys to move the...

  • Page 49: Parental Control

    SETUP MENUS PARENTAL CONTROL Use the Parental Control sub-menus to configure the parental control. Press on the remote control or MENU on the control panel to display the setup menu screen then select PARENTAL to display the Parental Control sub-menu. The following options are available: Lock Parental Control, V-CHIP, Change Password, Keypad Lock, and Source Lock.
  • Page 50 SETUP MENUS Rating Description Contains nothing most parents will consider offensive for even their youngest children to see or hear; suitable for young children. May contain some material parents might not like to expose to their young children-material that will clearly need to be examined or inquired about before children are allowed to view the film.
  • Page 51 SETUP MENUS Rating Description TV-Y7 May not be suitable for children under 7. TV-G Suitable for all audiences. TV-PG Parental guidance suggested. TV-14 Parental guidance suggested for children under 14. Suitable for mature audiences only; may be unsuitable for children TV-MA under 17.
  • Page 52 SETUP MENUS – French Rating: Use this sub-menu to select the ratings of allowable TV programs and movies. These ratings are based on the classification categories determined by La Régie du cinéma du Québec. FRENCH RATING FRENCH RATING FRENCH RATING 8 ans+ 13 ans+ 16 ans+...

  • Page 53: Change Password

    SETUP MENUS Change Password Change Password allows you to change your current password. CHANGE PASSWORD CHANGE PASSWORD CHANGE PASSWORD Old PIN New PIN(N/A) confirm(N/A) :Return :Return :Enter password :Enter password MENU MENU MENU Changing Password 1 Use the keys to select Change Password and press SELECT.

  • Page 54: Source Lock

    SETUP MENUS Source Lock Press the keys to select the source you want to block, then press SELECT to confirm. A icon indicates the selected input source has been blocked. SOURCE LOCK SOURCE LOCK SOURCE LOCK Page 1/1 YPbPr HDMI1 HDMI2 :Return :Return...

  • Page 55: Setup

    SETUP MENUS SETUP Use the Setup sub-menus to configure the LED TV operational. Press on the remote control or MENU on the control panel to display the setup menu screen then select SETUP to display the Setup sub-menu. The following options are available: Closed Caption, Menu Language, Clock, OSD Timer, and Power Light.
  • Page 56 SETUP MENUS • Digital CC Style This function is only available if Digital CC Preset is set to Custom. DIGITAL CC STYLE DIGITAL CC STYLE DIGITAL CC STYLE CC Size Default CC Font Default CC Opacity Default Text Color Default CC Background Opacity Default CC Background Color...

  • Page 57: Menu Language

    SETUP MENUS Menu Language Use Menu Language to select the language to display on the screen: English, French, or Spanish. Adjusting Menu Language 1 Use the keys to select Menu Language. 2 Press the keys on the remote control to select English, French, or Spanish.

  • Page 58: Osd Timer

    SETUP MENUS • Daylight Saving Time Set to turn on/off daylight saving. This option is only available if Auto Clock is disabled. OSD Timer Set the duration OSD menu stays visible on the screen. Adjusting OSD Timer 1 Use the keys to select OSD Timer.

  • Page 59: Others

    SETUP MENUS OTHERS Use the Others sub-menus to configure other general settings. Press on the remote control or MENU on the control panel to display the setup menu screen then select OTHERS to display the Others sub-menu. The following options are available: Blue Back, No Signal Power Off, No Operation Power Off, and All Reset.

  • Page 60: Wall Mount Option

    WALL MOUNT OPTION WALL MOUNT OPTION The LED TV has been fitted with VESA FPMPMI compliant mounting holes. These 200 x 100 mm mounting holes allow the unit to be mounted on a wall. Use the four M6 x 12 mm screws to wall mount the LED TV. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN...

  • Page 61: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING Problem Corrective Action • Make sure the power indicator is illuminated blue. • Make sure the power cord is securely connected to the AC-in jack and is plugged No power into a functional AC outlet. You may want to plug in another electrical device to the power outlet to verify that it is supplying the proper voltage.
  • Page 62 TROUBLESHOOTING Problem Corrective Action • Make sure the VGA cable is properly No picture or the No connected to the LED TV’s VGA port. Signal message appears when a • Decrease the video resolution setting on the VGA cable is computer and try again.
  • Page 63 TROUBLESHOOTING Problem Corrective Action • Make sure the audio input cable is properly connected to the correct terminal, and that the correct input mode is enabled. No sound • The volume may be muted. Press again or press VOL+ key to turn on the volume. •...

  • Page 64: Specifications

    SPECIFICATIONS Item Specification Model Name EW39T6MZ Active Area 853.92 (H) x 480.33 (V) (Diagonal, mm) Resolution 1920 (H) x 1080 (V) Contrast Ratio 5000:1 (typ) Panel Response Time 8ms (g-g) (typ) Aspect Ratio 1.77 (16:9) Display color 16.7M • HDMI x2 •...
  • Page 65 SPECIFICATIONS Item Specification With stand: 888.2mm x 577.34mm x 249.94mm Dimensions (WxHxD) Physical Without stand: Specifications 888.2mm x 518.72mm x 52.52mm Weight (Net) 11.02kg Weight (Gross) 13.9kg NOTES: • These product specifications are subject to change without user notification. • Do not set your computer graphics card to exceed the unit’s refresh rates;...
  • Page 66 SE-UM-3901-0101 Orange, CA 1509-03EQ000...
