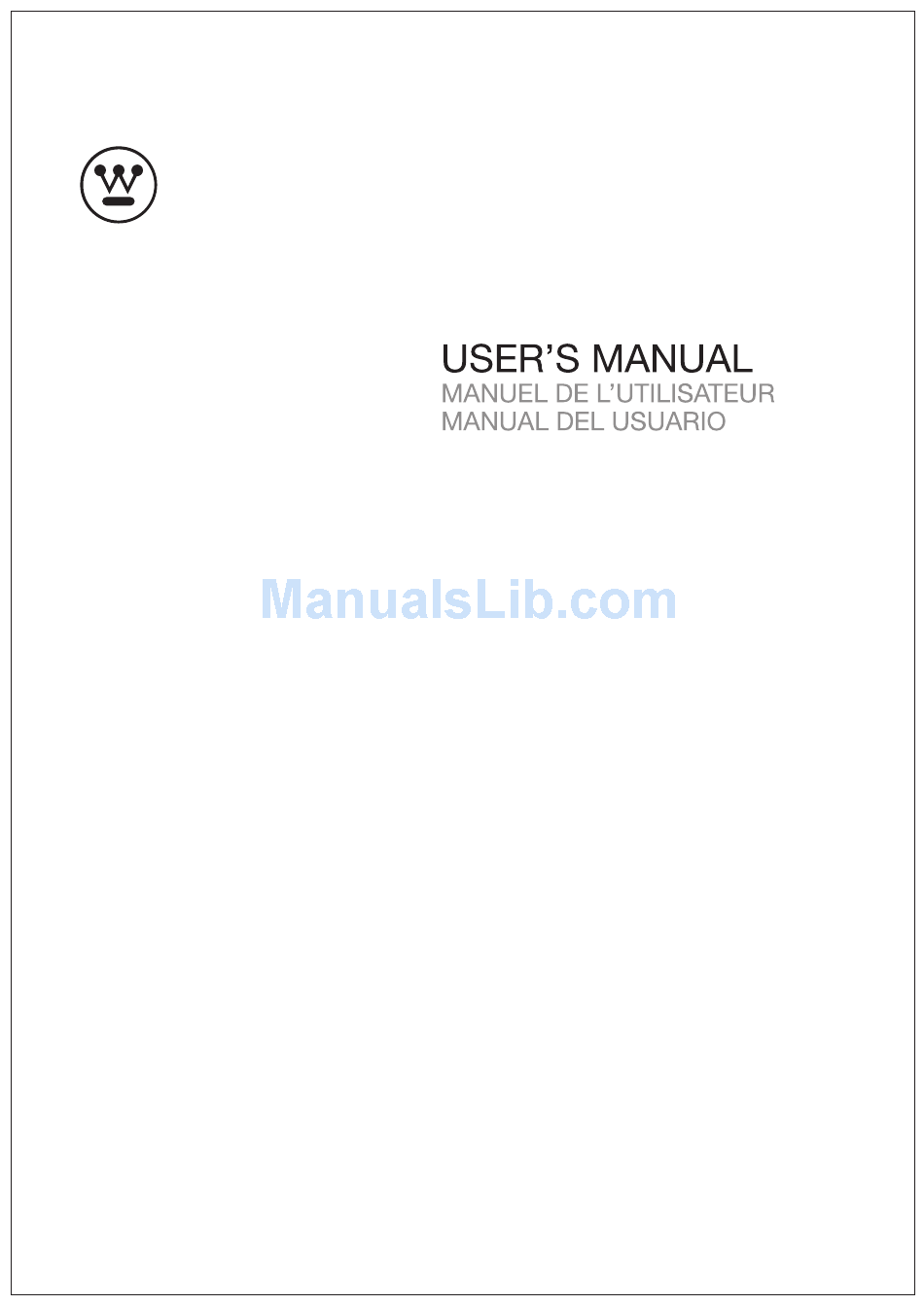

- Page 1 EW37S5KW...
-
Page 2: Table Of Contents
Contents Safety and warnings..................2-3 Introduction.....................4 Stand installation guide..................5 Installation....................6-9 Remote Control....................10 Operation....................11-13... -
Page 3: Safety And Warnings
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTION The symbol indicates that there are important operating and maintenance 1) Read these instructions. instructions in the literaturaccompanying this 2) Keep these instructions. unit. 3) Heed all warnings. 4) Follow all instructions. WARNING: 5) Do not use this Television near water. To reduce the risk of fire or electric shock, do 6) Clean only with dry cloth. -
Page 4: Safety And Warnings
SAFETY AND WARNINGS High voltages are used in the operation of this television Never stand on, lean on, or suddenly push the television or receiver. Do not open the cabinet. its stand. You should pay special attention to children. Refer servicing to qualified service personnel. Serious injury may result if it falls. -
Page 5: Introduction
INTRODUCTION Main features Accessories Accessories Integrated ATSC TV tuner for HDTV broadcast reception Power cable........■ High brightness provides a vivid and brilliant picture ■ Infrared Remote Control....Deeper blacks and brighter whites with high contrast ■ Wide Screen aspect ratio (wide) for a complete home ■... -
Page 6: Stand Installation Guide
Base Stand Assembly Instruction Attach the stand base plate to the stand pole by firmly tightening the supplied screw to be a completed stand. 2. Place the TV with the display side down on a flat surface. Use a cloth to protect the display Position the completed stand into the hole on the TV set. -
Page 7: Installation
INSTALLATION Side panel Front panel 1. SOURCE: Display the input source menu. 2. MENU: Display main MENU. 3. CH+/CH-: In TV mode, press "CH+" or "CH-" to change the channel up and down. In MENU mode, press "CH+" or "CH-" to select items in standby mode, press 1: Remote control sensor. - Page 8 INSTALLATION ANTENNA Note: Aerial connections: IEC (female). Input impendance:75 unbalanced. STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to PC mode. 4.Power on the PC.
- Page 9 INSTALLATION PRESET MODE V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 720*400 31.47 640*480 31.47 37.50 640*480 800*600 37.88 800*600 46.88 1024*768 48.36 1024*768 56.48 1024*768 60.02 1280*1024 63.98 1280*1024 80.00 1366*768 67.50...
-
Page 10: Installation
INSTALLATION AV EQUIPMENT You can use the input terminals on TV set rear as follows. HEADPHONE HDMI1 HDMI2 PC AUDIO COAXIAL HDMI VIDEO EQUIPMENT with YPbPr Yellow (video) White(audio L) Red(audio R or Pr) Blue(Pb) Green(Y) COMPOSITE COMPONENT AC-INPUT VIDEO 100-240V~50/60HZ VIDEO EQUIPMENT TO VIDEO... -
Page 11: Remote Control
REMOTE CONTROL 1: POWER To turn the TV on. 2: NUMBER KEY For direct access to channels Displays the main on-screen menu. 4: CURSOR To move within the menu. 5: EXIT To exit the menu. 6: VOL+/- To adjust sound level. 7: P.M To switch picture mode. -
Page 12: Operation
OPERATION 1. PICTURE MENU Surround Sound: In this menu,you can adjust the picture effect here, SRS TSHD: Set the Surround Sound mode to SRS such as contrast, brightness, etc. TSHD mode. Press to select, press OK to adjust. Off: Turn off the Surround Sound mode. Note: 1). - Page 13 OPERATION 1).CC Mode: Switching close caption mode. Content 2). Advanced selection: only ATSC program is Rating Content (Fantasy (Violence) (Sexual (Adult (Sexually available. violence) situation) language) suggestive 3).Option: Used to edit CC font. dialog) TV-Y (All children) Note: TV-Y7(Direct to 1).Restore Default: Restore Default will clear all the order children) Suggested...
- Page 14 SE-UM-3702-1201...
