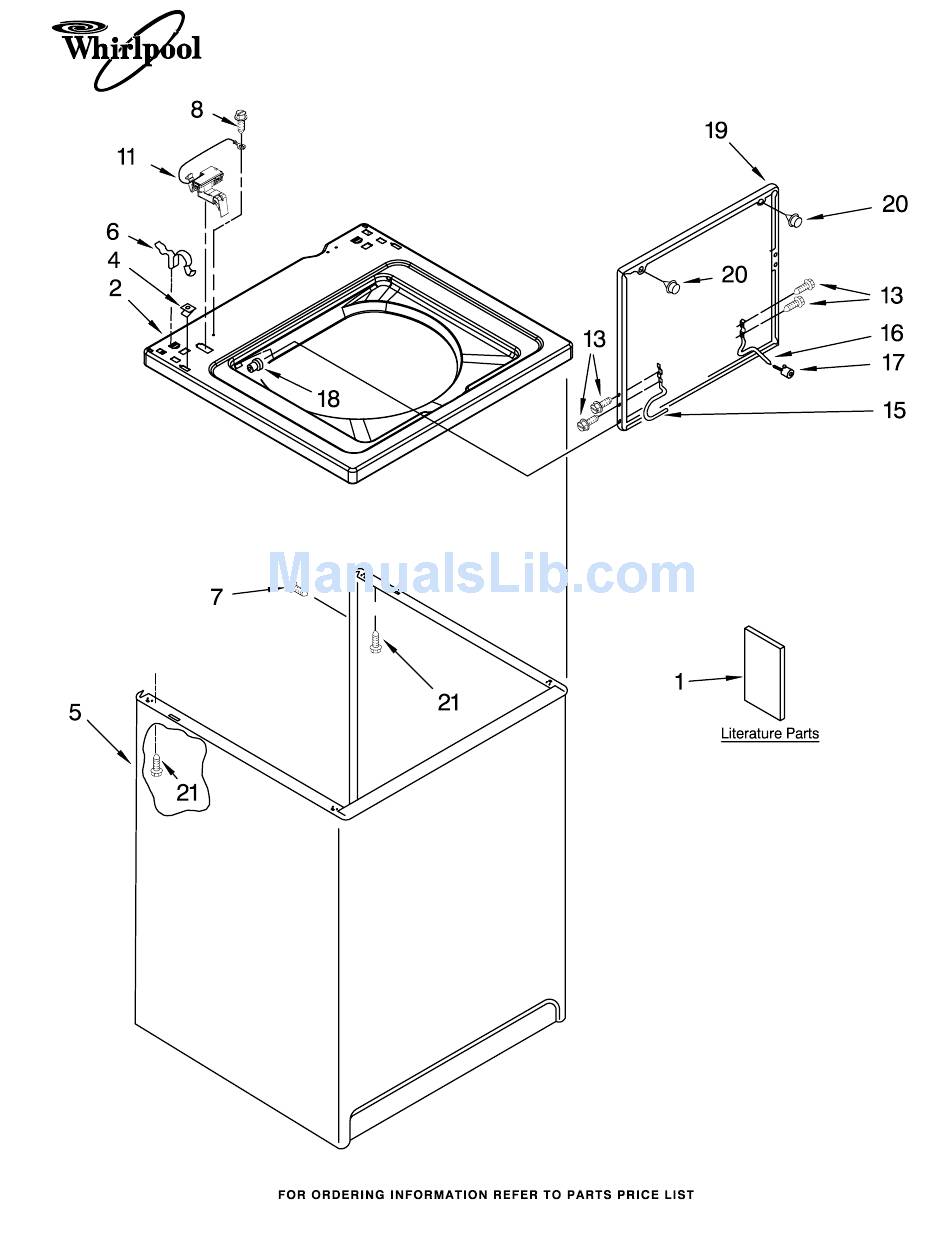

Page 1: Top And Cabinet Parts
TOP AND CABINET PARTS AUTOMATIC For Models: LBR5432PQ2, LBR5432PT2 WASHER (Designer White) (Biscuit) Part No. 8180897 11−05 Litho in U.S.A. (drd) - Page 2 TOP AND CABINET PARTS For Models: LBR5432PQ2, LBR5432PT2 (Designer White) (Biscuit) Illus. Part DESCRIPTION Literature Parts 3958075 Installation Instructions 3955901 Feature Sheet 8578232 Use & Care Guide 8557228 Wiring Diagram 3957458 Energy Guide Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS...
-
Page 3: Controls And Rear Panel Parts
CONTROLS AND REAR PANEL PARTS For Models: LBR5432PQ2, LBR5432PT2 (Designer White) (Biscuit) 8180897... - Page 4 CONTROLS AND REAR PANEL PARTS For Models: LBR5432PQ2, LBR5432PT2 (Designer White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Cap, End (L.H.) 3976300 Washer, Water 3400818 Screw, Timer 8271365 White Inlet Hose (4) Mounting 3400073 Screw, Ground 8271368 Biscuit...
-
Page 5: Agitator, Basket And Tub Parts
AGITATOR, BASKET AND TUB PARTS For Models: LBR5432PQ2, LBR5432PT2 (Designer White) (Biscuit) 8180897... - Page 6 AGITATOR, BASKET AND TUB PARTS For Models: LBR5432PQ2, LBR5432PT2 (Designer White) (Biscuit) Illus. Part DESCRIPTION 3352483 Cap, Agitator 358237 Screw & Washer (5/16−24 x 1) 63377 Agitator 3360611 Tub Ring & Gasket Assembly 3359586 Gasket, Tub Ring 8519815 Clip, Balance...
-
Page 7: Brake, Clutch, Gearcase, Motor And Pump Parts
BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS For Models: LBR5432PQ2, LBR5432PT2 (Designer White) (Biscuit) Illus. Part Illus. Part DESCRIPTION DESCRIPTION 388951 Brake & Drive 3357334 Screw, Gearcase Tube (Complete) To Base (3) (Refer to Page 11 62611 Plate, Motor For Further... -
Page 8: Machine Base Parts
MACHINE BASE PARTS For Models: LBR5432PQ2, LBR5432PT2 (Designer White) (Biscuit) Illus. Part DESCRIPTION 3400076 Screw, Bracket Mounting (10−32 x 5/8) 64067 Bracket, Spring Outer (2) 63907 Spring (3) 8575214 Support & Brake, 64065 Bracket, Spring Outer (L.F.) 63138 Link, Leveling... -
Page 9: Wiring Harness Parts
WIRING HARNESS PARTS For Models: LBR5432PQ2, LBR5432PT2 (Designer White) (Biscuit) 8180897... - Page 10 WIRING HARNESS PARTS For Models: LBR5432PQ2, LBR5432PT2 (Designer White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3349557 Clip, Harness 353424 Plug, Terminal 3347730 Receptacle 388498 Clip, Harness (3−Way) (6−Way) 3347812 Clip, Harness (Power Cord) (Use Term. 94613) 3352501 Clip, Harness (Use Term.94613)
-
Page 11: Brake And Drive Tube Parts
BRAKE AND DRIVE TUBE PARTS For Models: LBR5432PQ2, LBR5432PT2 (Designer White) (Biscuit) Illus. Part DESCRIPTION 388951 Brake And Drive Tube (Complete) 62658 Ring, Thrust 356427 Seal, Drive Tube 64027 Tube, Basket Drive (Includes Illus. 3, 4, 5 & 9) 64035 Ring, Retaining 64232 Shoe, Brake (2) 62703 "T"... -
Page 12: Gearcase Parts
GEARCASE PARTS For Models: LBR5432PQ2, LBR5432PT2 (Designer White) (Biscuit) Illus. Part DESCRIPTION 1 3360630 Gearcase (Complete) 285202 Cover, Gearcase 3 3349985 Seal, Gearcase Cover 285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml) 63320 Pinion, Spin (Includes Illus. 25) 356427 Seal, Spin... -
Page 13: Water System Parts
WATER SYSTEM PARTS For Models: LBR5432PQ2, LBR5432PT2 (Designer White) (Biscuit) Illus. Part DESCRIPTION 285442 Connector Kit, Plastic Drain Hose 285321 Sleeve Kit, (Contains 2 Sleeves) 370447 Clamp, Hose 16272 Connector, Straight 285320 Siphon Break (Not Included) 65349 Clamp, Hose 367031... -
Page 14: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) For Models: LBR5432PQ2, LBR5432PT2 (Designer White) (Biscuit) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 4392899 Biscuit PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White 4392901 Biscuit PAINT, BULK (1 qt.) 799344 White (Uncut)
