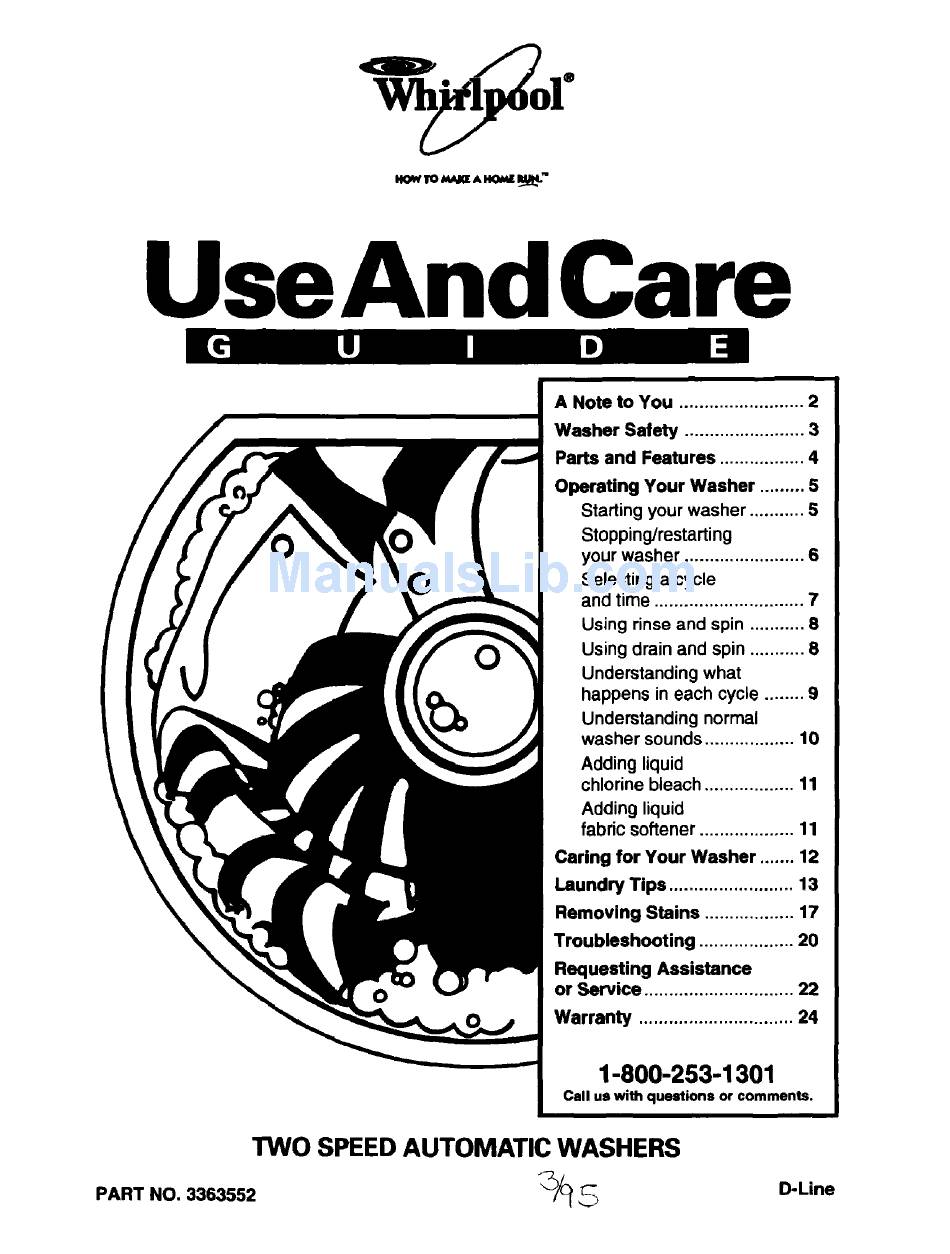

Page 1: Table Of Contents
UseAndCare A Note to You ......2 Washer Safety ......3 Parts and Features ....4 Operating Your Washer ..5 Starting your washer ... 5 Stopping/restarting your washer ......6 Selecting a cycle and time ......Using rinse and spin ... 8 Using drain and spin ...
Page 2: A Note To You
Whirlpool ® appliance. Because your life is getting busier and more complicated, Whirlpool washers are easy to use, save time, and help you manage your home better. To ensure that you enjoy years of trouble- free operation, we developed this Use and Care Guide. It contains valuable information about how to operate and maintain your washer propedy and safely.
Page 3: Washer Safety
Washer Safety Your safety is important to us. This guide contains safety statements under warning symbols. Please pay special attention to these symbols and follow any instructions given, Here is a brief explana- tion of the symbol. IMPORTANT SAFETY INSTRUCTIONS •...
Page 4: Parts And Features
Parts and Features The parts and features of your washer are illustrated on this page. Become familiar with all parts and features before using your washer. NOTES: • The drawings in this book may vary from your washer model. They are designed to show the different features of all models covered by this book.
Page 5: Operating Your Washer
Operating Your Washer To obtain the best washing results, you must operate your washer properly. This section gives you this important information. Page references are included for more information. Starting your washer 1. Add measured detergent to the washer. Then place a sorted load of clothes in the washer.
Page 6: Stopping/Restarting Your Washer
5. Push in Cycle Control Knob and turn it clockwise to the wash cycle you want. See page 7. 6. Pull out Cycle Control Knob to start washer. 7. (OPTIONAL STEP) If desired, add measured liquid chlorine bleach after the washer starts agitating. See page 11.
Page 7: Selecting A Cycle And Time
Selecting a cycle and time This section illustrates and describes the • The washer pauses briefly throughout wash cycles you can select with the Cycle each cycle. These pauses are normal for Control Knob. Use this information to help washer operation. you make the best cycle selections for your •...
Page 8: Using Rinse And Spin
Using rinse and spin When using extra detergent for heavily- soiled clothes, or washing special-care items, you may want an extra rinse and spin. 1. Push in the Cycle Control Knob and turn clockwise to RINSE, as illustrated, 2. Pull out the Cycle Control Knob. The washer fills to selected load size, agi- tates, drains, and spins.
Page 9: Understanding What Happens In Each Cycle
Understanding what happens in each cycle NOTES: When the Cycle Control Knob is set to a number and putted out, the washer fills (to • The washer pauses briefly throughout the selected load size) before agitation and each cycle. These pauses are normal for timing start.
Page 10: Understanding Normal Washer Sounds
Understanding normal washer sounds Your new washer may make sounds that your old one didn't. Because the sounds are unfamiliar, you may be concerned about them. Don't be; most of them are normal. The following describes some of the sounds you may hear and what causes them.
Page 11: Adding Liquid Chlorine Bleach
Adding liquid chlorine bleach Always measure liquid chlorine bleach. Do not guess. Never use more than 1 cup (250 mL) for a full load. Follow manu- facturer's directions for safe use. Use a cup with a pouring spout to avoid spilling. 1.
Page 12: Caring For Your Washer
Caring for Your Washer Proper care of your washer can extend its life. This section explains how to care for your washer properly and safely. Cleaning your washer Interior Exterior Clean interior with 1 cup (250 mL) of chlo- Wipe up detergent, bleach, and other spills rine bleach mixed with 2 cups (500 mL) of with a soft, damp cloth or detergent.
Page 13: Laundry Tips
Laundry Tips This section reviews proper laundering techniques and gives you additional washing information. Preparing clothes for washing • Close zippers, snaps, and hooks to avoid • Tie strings and sashes so they will not tangle. pins, buckles, and other hard •...
Page 14 Loading suggestions For these suggested full-sized loads, set the Load Size Selector to the highest load size setting. LARGE CAPAClTY WASHERS Towels Permanent Press Mixed Load Heavy Work Clothes 1 double sheet 2 double or 8 bath towels 8 hand towels 1 tablecloth 2 pair pants 1 king size sheet(s)
Page 15 Water guidelines Selecting water temperatures WASH WATER TEMPERATURE* SUGGESTED FABRICS COMMENTS • Work clothes • Best cleaning for heavily soiled items 130 °F (54°C) • Removes oils, perspiration, greasy • Sturdy whites/colorfast or above pastels soils, and stains • Prevents graying or yellowing •...
Page 16 Washing special-care items Most garments and household textiles have care labels with laundering instructions. Always follow care label directions when they are available. Below are general washing instruc- tions for some special washables. ITEM CARE INSTRUCTIONS Blankets Pretreat spots and stains. Select water temperature, cycle, and (electric or woolen) time according to the type of blanket being washed.
Page 17: Removing Stains
Removing Stains Stained, heavily-soiled, or greasy items may need to be prewashed or soaked for best results. Soaking helps remove protein-type stains like blood, milk, or grass. Prewashing helps loosen soil before washing. Stain removal rules • When bleach is recommended, use a •...
Page 18 STAIN TOREMOVE Deodorants Light stain: Treat with liquid detergent or your regular laundry detergent. andanti- Wash in hottest water safe for fabric. perspiranta Heavy stain: Place face down on towel and treat with a paste of ammo- nia and all-fabric bleach. Let stand for 30 minutes. Wash in hottest water safe for fabric.
Page 19 STAIN TO REMOVE Meat juice, Scrape off excess with a dull knife. Soak in cold or warm water with enzyme presoak at least 30 minutes, or treat stains with a nonflammable fabric cleaner. Wash. Mildew Wash in hottest water safe for fabric. If stain remains, soak in warm water and an all-fabric bleach for 15 to 30 minutes.
Page 20: Troubleshooting
Troubleshooting Most laundering problems are easily solved if you understand the cause. Check the following list for common laundry problems and the next page for common washer problems. If you need further assistance, see page 22. Common laundry problems PROBLEM CAUSE Brown, yellow •...
Page 21 Common washer problems Before calling for service, check these: lS the lid closed? Is the Cycle Control Knob set and pulled out? Is the power cord firmly plugged into a live outlet with proper voltage? Have you blown a household fuse or tripped a circuit breaker? Are both the hot and cold water faucets turned on? Are the water hoses kinked or clogged? Is the drain hose lower than the water level in the washer? It must be higher.
Page 22: Requesting Assistance
To locate FSP replacement parts in your recommend a qualified service company in area, refer to Step 2 or call the Whirlpool your area. Consumer Assistance Center number in If you prefer, write to: Step 1.
Page 23: Warranty
Outside the United States, a different warranty may apply. For details, please contact your authorized Whirlpool distributor or military exchange. If you need service, first see the =Requesting Assistance or Service" section of this book.
