Summary of Contents for Whirlpool LBT6133AW1
-

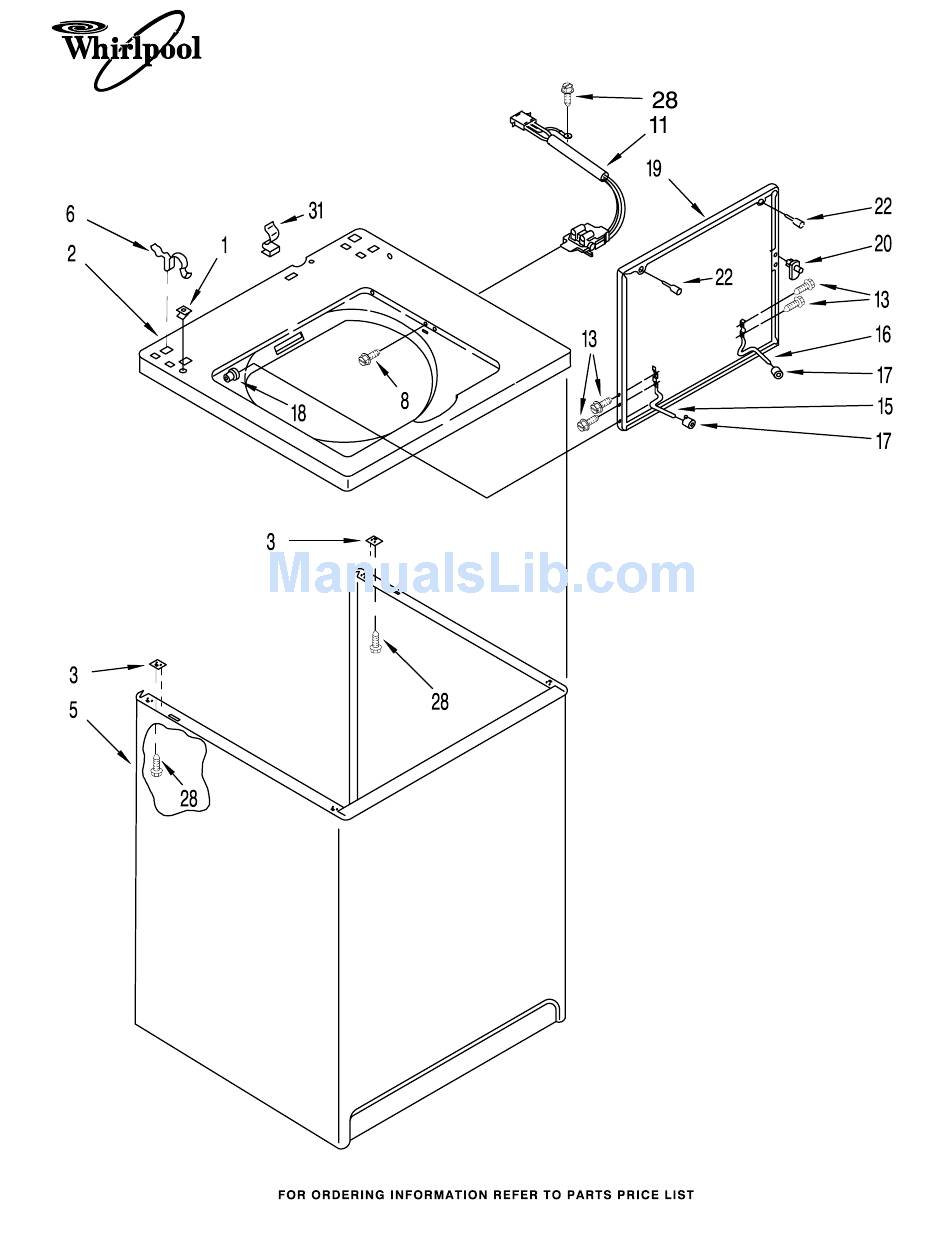

Page 1: Top And Cabinet Parts
TOP AND CABINET PARTS AUTOMATIC WASHER For Model: LBT6133AW1 (White) 3−95 Litho in U.S.A. (L.T.) Part No. 881185... - Page 2 TOP AND CABINET PARTS For Model: LBT6133AW1 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 19119 Bumper, Lid Hinge 357213 Nut, Push−In (2) 62780 Clip, Top & Cabinet 21258 Bearing, Lid & Rear Panel (2) Hinge (2) 3356311 Screw & Washer,...
-
Page 3: Controls And Rear Panel Parts
CONTROLS AND REAR PANEL PARTS For Model: LBT6133AW1 (White) 881185... - Page 4 CONTROL AND REAR PANEL PARTS For Model: LBT6133AW1 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 660628 Clamp, Hose 16123 Washer, Water Cap, End (L.H.) 272858 (Alt.) Inlet Hose (4) 3358531 White/Chrome 370447 (Alt.) (1−1/16 x 5/8) 96160 Screen, Filter (2) 353097 (Alt.)
- Page 5 AGITATOR, BASKET AND TUB PARTS For Model: LBT6133AW1 (White) 881185...
-
Page 6: Miscellaneous Parts
AGITATOR, BASKET AND TUB PARTS For Model: LBT6133AW1 (White) Illus. Part DESCRIPTION 3355758 Cap, Agitator 358237 Screw & Washer (5−16−24 x 1) 3349019 Clothes Mover 3350830 Agitator 3360611 Tub Ring 3359586 Gasket, Tub Ring 387867 Clip, Balance Ring (8) 387868 Balance Ring... - Page 7 BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS For Model: LBT6133AW1 (White) Illus. Part Illus. Part DESCRIPTION DESCRIPTION 388951 Brake & Drive 62611 Plate, Motor Tube (Complete) Mount To (Refer to Page 10 Gearcase For Further 62691 Grommet, Motor (4) Breakdown)
-
Page 8: Machine Base Parts
MACHINE BASE PARTS For Model: LBT6133AW1 (White) Illus. Part DESCRIPTION 343641 Screw, Bracket Mounting (10−16 x 1/2) 64067 Bracket, Spring Outer (2) 63907 Spring (3) 3362087 Support & Brake, 64065 Bracket, Spring Outer (L.F.) 3348725 Link, Leveling Mechanism (2) 62597 Spring, Leveling... -
Page 9: Wiring Harness Parts
WIRING HARNESS PARTS For Model: LBT6133AW1 (White) WH2D Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 3349557 Clip, Harness 353424 Plug, Terminal 19 3390423 Block, Disconnect 388498 Clip, Harness (3−Way) (12−Way) 3 3347812 Clip, Harness (Power Cord) (Timer) -
Page 10: Brake And Drive Tube Parts
BRAKE AND DRIVE TUBE PARTS For Model: LBT6133AW1 (White) Illus. Part DESCRIPTION 388951 Brake And Drive Tube (Complete) 62658 Ring, Thrust 91939 Seal, Oil 356427 Seal, Drive Tube 356937 Spacer, Drive Tube 64027 Tube, Basket Drive (Includes Illus. 3, 4, 5 & 9) -
Page 11: Gearcase Parts
GEARCASE PARTS For Model: LBT6133AW1 (White) Illus. Part DESCRIPTION 1 3360630 Gearcase (Complete) 285202 Cover, Gearcase 3 3349985 Seal, Gearcase Cover 285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml) 63320 Pinion, Spin (Includes Illus. 25) 356427 Seal, Spin Pinion 389387... -
Page 12: Water System Parts
WATER SYSTEM PARTS For Model: LBT6133AW1 (White) Illus. Part DESCRIPTION 285442 Connector Kit, Plastic Drain Hose 285321 Sleeve Kit, (Contains 2 Sleeves) 370447 Clamp, Hose 16272 Connector, Straight 285320 Siphon Break (Not Included) 65349 Clamp, Hose 367031 Drain Protector (Not Included)
