Trailer, Fifth Wheel
Assembly Instructions
Treker 4200/4400 NT/ST and 4210/4410 ST Series
Before You Start
When you see this symbol, the subsequent
!
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
IMPORTANT: Before you begin, read these
instructions and check to be sure all parts and tools
are accounted for. Please retain these installation
instructions for future reference and parts ordering
information.
Your Trailer, Fifth Wheel is exclusively designed for your
Land Pride NT & ST Treker. Please read these
installation instructions and your NT & ST Treker
Operator's Manual thoroughly before beginning.
Especially read information relating to safety concerns.
Also included in the Operator's Manual is important
information on operation, adjustment, troubleshooting,
and maintenance for this attachment (some manual
sections do not apply to all accessories).

General Information

These assembly instructions apply to the following
Trailer, Fifth Wheel Accessories listed below:
701-154A
Trailer Fifth Wheel
Further Assistance
Your dealer wants you to be satisfied with your new
Trailer, Fifth Wheel. If for any reason you do not
understand any part of this manual or are not satisfied
with the service received, the following actions are
suggested:
1. Discuss the matter with your dealership service
manager making sure he is aware of any problems
you may have and that he has had the opportunity to
assist you.
2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
problem and request assistance.
3. For further assistance write to:
Land Pride Service Department
1525 East North Street
P.O. Box 5060
Salina, Ks. 67402-5060
E-mail address
lpservicedept@landpride.com
© Copyright 2007
Printed
06/25/07
Manual No. 701-154M
Assembly Instructions
A detailed listing of parts for this accessory kit is provided
on page 4. Use the list as a checklist to inventory parts
received. Please contact your local Land Pride dealer for
any missing hardware.
ALL DIRECTIONS REFERRING TO THE RIGHT AND
LEFT ARE WHEN THE OPERATOR IS ON THE
MACHINE.
!
WARNING
Due to reduced ground clearance, remove Trailer Hitch
assembly before trail riding and when the Trailer is not in use.
Do not exceed 5 Mph when the Trailer is installed.
Use Extreme Caution on inclines or slopes
.This trailer is for cargo only.
Failure to follow these warnings could cause serious injury or
possibly death.
ASSEMBLY INSTRUCTIONS:

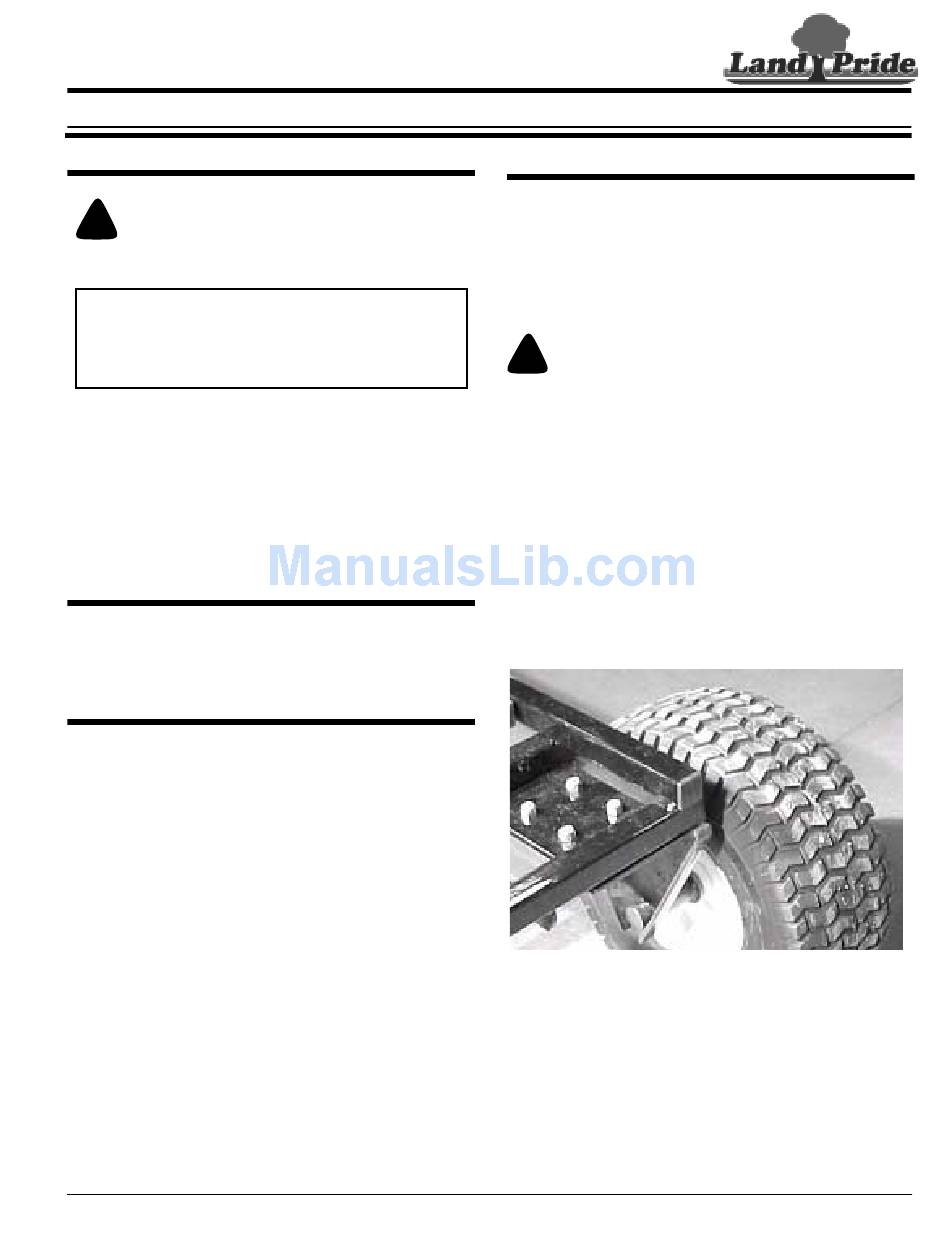

1. Using 5/16" x 3/4" Bolts (#21) and Nylock Locknuts,
provided in the parts bag, attach the Wheel Mounts (#17)
to the Trailer Bed (#4). See pictures below. Do not fully
tighten attaching hardware at this time.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TREKER 4200/4400 NT/ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Land Pride TREKER 4200/4400 NT/ST

  • Page 1: General Information

    When you see this symbol, the subsequent on page 4. Use the list as a checklist to inventory parts instructions and warnings are serious - follow received. Please contact your local Land Pride dealer for without exception. Your life and the lives of any missing hardware.
  • Page 2 Land Pride Assembly Instructions Must Pivot At These two Points Two Machine Bushings (# 18) 3. Place the Pivot Tube (#3) between the front support rails as shown in the picture above and attach using one of the 3/8" x 2-1/4" Bolts (#12) and Nylock Locknuts provided.
  • Page 3 Land Pride Assembly Instructions 5. The hitch comes already assembled. Mount the Hitch (#1) in the manner that will position the trailer pin hole at 11 inches or more from the ground. Note: On most machines the hitch will be mounted as shown above.
  • Page 4 Land Pride Listing of Parts Kit No. 701-034A BACK SCREEN NT Item Part No. Part Description PTL102 HITCH PTL103 TRAILER TONGUE PTL104 PIVOT TUBE PTL105 TRAILER BED PTL106 BED EXTENSION PTL107 TAIL GATE 805-212C PIN WIRE SNAP LOCK 3/8 X 2 1/2 EB516WD 5/16"...
