Gondo
4400EX Heavy Duty Off Road Utility Vehicle
21341

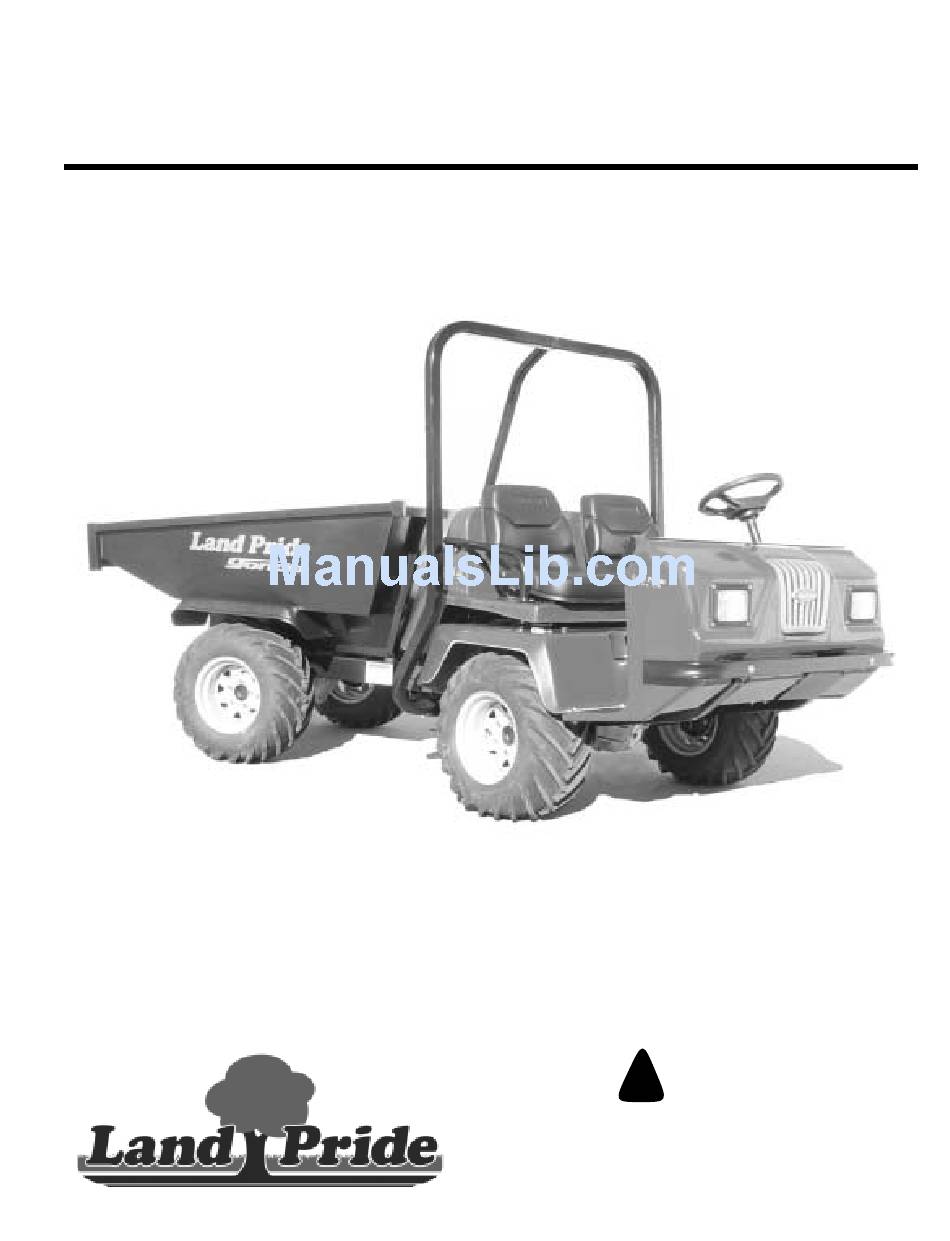

Cover illustration may show optional equipment not supplied with standard unit
Table of Contents
720-051M
Operator's Manual
!
Read the Operator's manual entirely. When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
© Copyright 2004 Printed
Cover photo may show optional equipment
not supplied with standard unit.
6/30/05
