Electric Bed Lift
Assembly Instructions
Treker 4200/4400 ST / NT & 4210/4410 ST Series

Before You Start

When you see this symbol, the subsequent
!
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
These optional assembly instructions contain only
information required to assemble the Electric Bed Lift to
the ST and NT Series Treker. A detailed Operator's
Manual was supplied with the Treker. Refer to the
Operator's Manual for additional specific information
especially information relating to safety concerns. Also
included in the Operator's Manual is important
information on operation, adjustment, troubleshooting,
and maintenance for this attachment (some manual
sections do not apply to all options).
A separate Parts Manual for replacement parts can be
purchased from your dealer or available free of charge at
www.landpride.com. Have model and serial numbers
handy when placing an order.
Manual Part Numbers:
• Operator's Manual (All NT & ST Series) . . 700-108M
• Parts Manual (4200/4400 NT/ST Series). . 700-108P
• Parts Manual (4210/4410 ST Series). . . . . 700-109P

General Information

Instructions for 4210ST & 4410ST Trekers begin on
page 1. Instructions for 4200/4400 NT & ST Trekers with
serial number 418339 and up begin on page 7.
Instructions for 4200/4400 NT & ST Trekers with serial
number 418338 and below begin on page 11.
These assembly instructions apply to the Electric Bed Lift
Kit for the following options listed below:
701-071A Treker ST Series (S/N 418339+)
701-072A Treker NT Series (S/N 418339+)
701-044A Treker ST Series (S/N 418338-)
701-045A Treker NT Series (S/N 418338-)
© Copyright 2005 Printed 8/15/05
Manual No. 701-055M
Assembly Instructions for
4210ST & 4410ST Series Trekers
On page 6 is a detailed listing of parts included in this kit.
Use this list as a checklist to inventory parts received.
Tools required:
•
Standard Blade Screwdriver
•
Two - 7/16" wrenches
•
One - 1/2" wrench
•
Needle Nose Pliers
•
Work Gloves
Initial Preparations
1. Park vehicle on a level surface. Don't work under or
around a vehicle parked on an incline.
2. Make the following gear and park brake selections:
a. 4200/4400 NT & ST Trekers:
•Set shift selector in forward gear.
•Set park brake.
b. 4210ST & 4410ST Trekers.
•Set shift selector in Park.
3. Turn ignition switch off and remove switch key.
Rocker Switch Installation

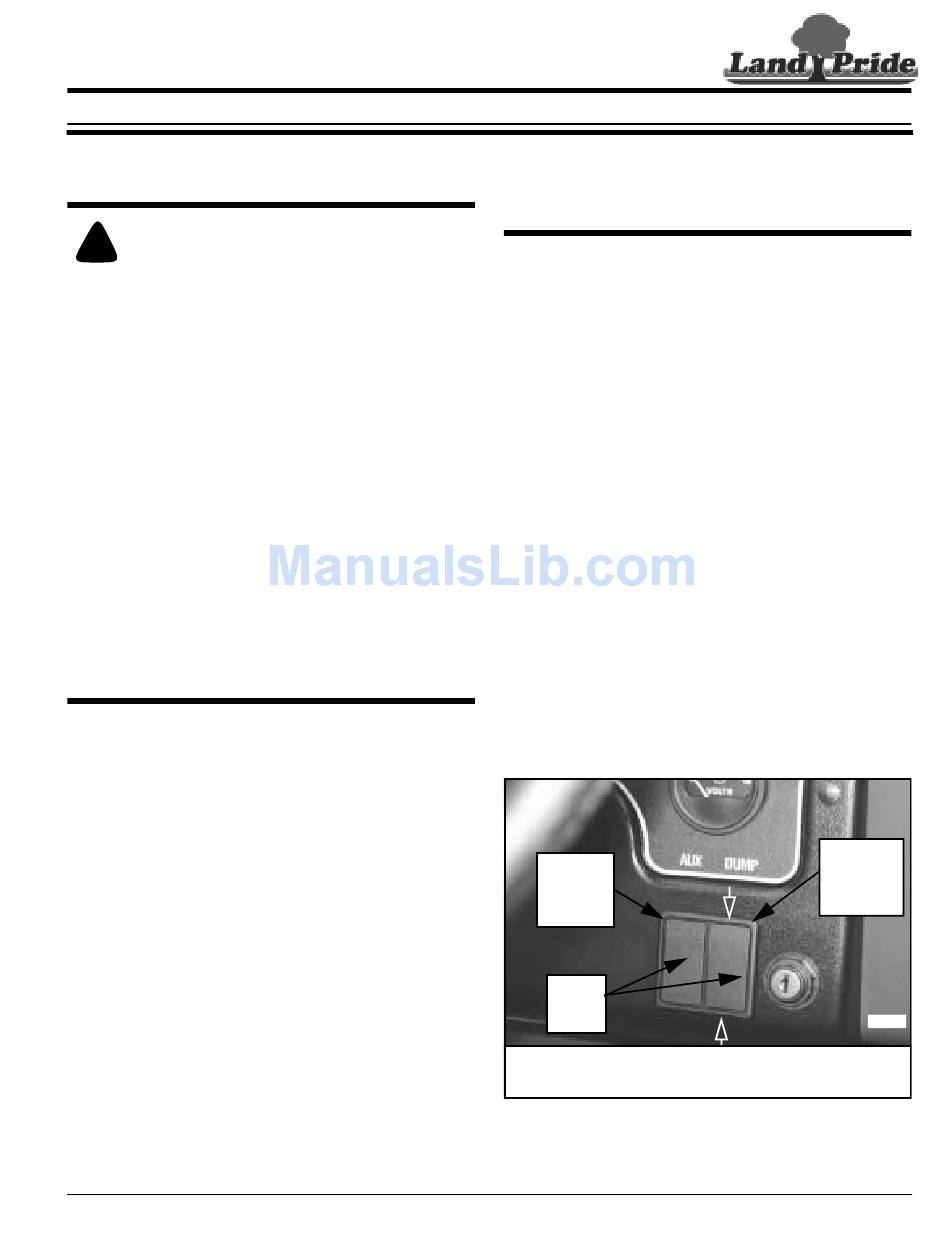

Refer to Figure 1A:
1. Remove panel plug from dump mounting panel by
prying with a straight bladed screwdriver under the
panel plug.
Aux
Mounting
Panel
Panel
Plugs
NOTE:
Insert a straight bladed screwdriver under panel plug
as indicated by white arrows to pry panel plug out.
Aux and Dump Panel Plugs
Figure 1A
Dump
Mounting
Panel
21470
1
