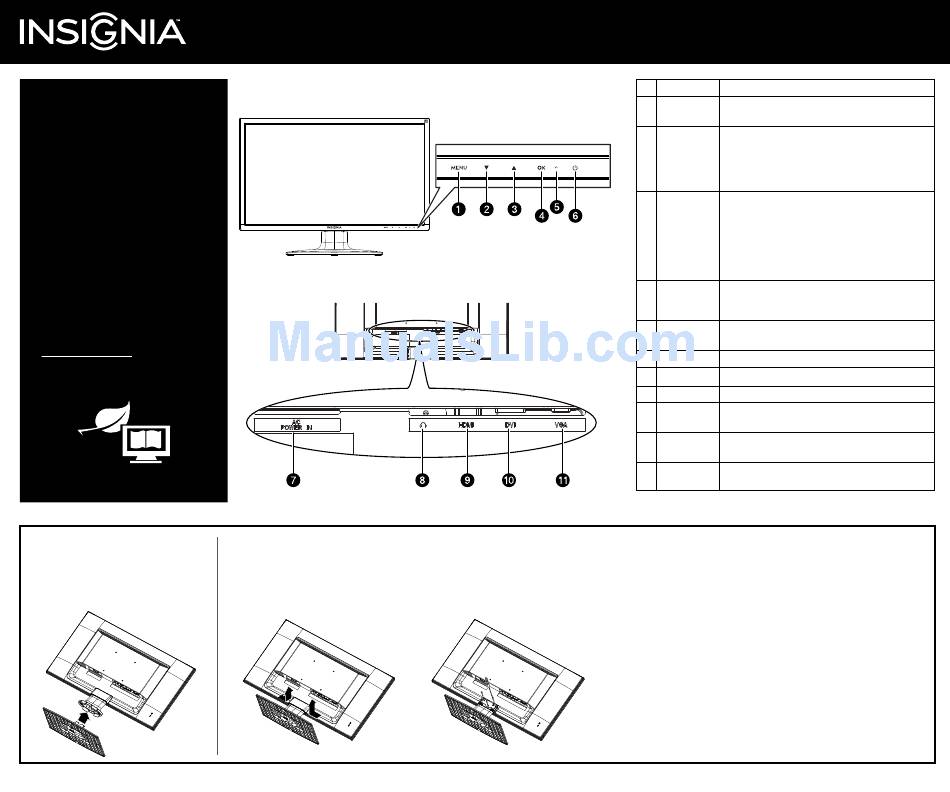

Insignia NS-24EM51A14 Quick Setup Manual

Congratulations on your purchase of this
high-resolution color monitor. This color
monitor represents the state of the art in
monitor design, and is designed for
reliable and trouble-free performance.
Please read this guide thoroughly before
installation.

Package contents

• 24" Widescreen LED monitor
• Power cable
• VGA cable
• Quick Setup Guide
FIND YOUR USER GUIDE ONLINE!
We are going green so a copy of your User Guide is not
provided in the box but is available online. Go to
www.insigniaproducts.com, then click Support &
Service. Enter your model number in the box under
Manual, Firmware, Drivers & Product Information,
then click .
Before using your new product, please read these
instructions to prevent any damage.

Installing the stand base

1 Remove the monitor from the box and lay
it face down on a table, with a soft cloth
or towel beneath it to protect the screen.
2 Insert the base into the stand column
until it clicks into place.

Features

Front view
Rear view

Removing the stand base and column for mounting to a wall

1 Lay the monitor face down on a table,
with a soft cloth or towel beneath it to
protect the screen.
2 Squeeze the sides of the column cover
and pull to remove it.
24" Widescreen LED Monitor | NS-24EM51A14
3 Using a Philips screwdriver, remove the
three screws that secure the column to
the monitor.
# Component Description
1 MENU Press to open the on-screen display (OSD) menu and enter menu
mode. Press again to exit the OSD and return to display mode.

2 In menu mode, press to scroll down or decrease settings in the OSD menus.
In normal operation mode, press to access the Color Vision Mode menu.
In normal operation mode, when using a VGA connection, push and
hold this button for three seconds to automatically adjust the image
on the screen.

3 In menu mode, press to scroll up or increase settings in the OSD menus.
In normal operation mode, press to access the Audio Adjust menu.
In normal operation mode, when using an HDMI connection, push and
hold this button for three seconds to automatically mute or unmute
the sound.
Note: The Audio Adjust menu is only available when using an HDMI
connection.
4 OK In menu mode, press to confirm a selection or setting in the OSD menus.
In normal operation, press the button to enter the input select menu.
You can choose the input source from VGA, DVI, HDMI or Auto.
5 LED indicator Turns blue when the monitor is on. After the monitor is turned off, the
LED turns off.
6 Power On/Off Press to turn the monitor on. Press again to turn the monitor off.
7 Power connector Plug the AC power cord into this connector.
8 Headphone jack Plug headphones (optional) into this jack.
9 HDMI jack If your computer has an HDMI jack, connect an HDMI cable (not
included) to your computer and this jack.
10 DVI jack If your computer has a DVI jack, connect a DVI cable (not included) to
your computer and this jack.
11 VGA jack If your computer has a VGA jack, connect the VGA cable (included) to
your computer and this jack.
4 Wiggle the column loose from the monitor.
5 Follow the instructions that came with your
mounting kit (not included) to mount your
monitor on the wall.
Note: To mount your monitor, purchase a mounting
kit that is compatible with a 100 × 100 mm VESA
pattern and contains screws that are M4 × L10 mm.
Quick Setup Guide
