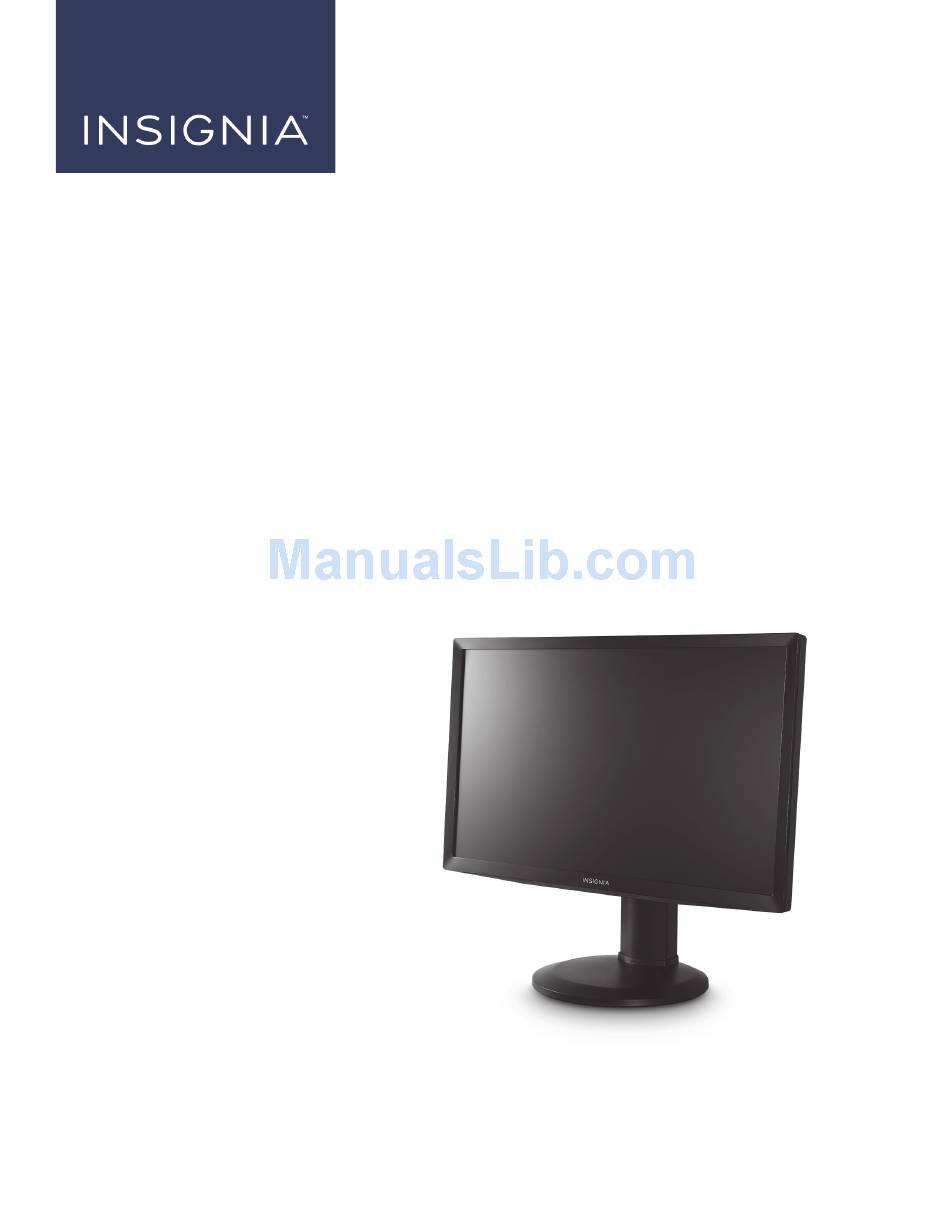

- Page 1 USER GUIDE 24" FHD LED Backlit Gaming Monitor NS-PMG248 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents CHILD SAFETY ................3 Important Safety Instructions . -
Page 3: Child Safety
CHILD SAFETY PROPER MONITOR PLACEMENT MATTERS THE CONSUMER ELECTRONICS INDUSTRY CARES Manufacturers, retailers, and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable. As you enjoy your monitor, please note that all monitors - new and old - must be supported on proper stands or installed according to the manufacturer's recommendations. -
Page 4: Important Safety Instructions
NS-PMG248 Important Safety Instructions WARNING Electric shock hazard 1 Read these instructions. To reduce the risk of fire or electric shock, do not 2 Keep these instructions. remove any cover or expose the device to rain or 3 Heed all warnings. - Page 5 • If your monitor has been exposed to rain or water. Special notes on LCD monitors • If your monitor does not operate normally by The following symptoms are normal with LCD following the operating instructions. Adjust only monitors and do not indicate a problem. those controls covered by the operating •...
-
Page 6: Introduction

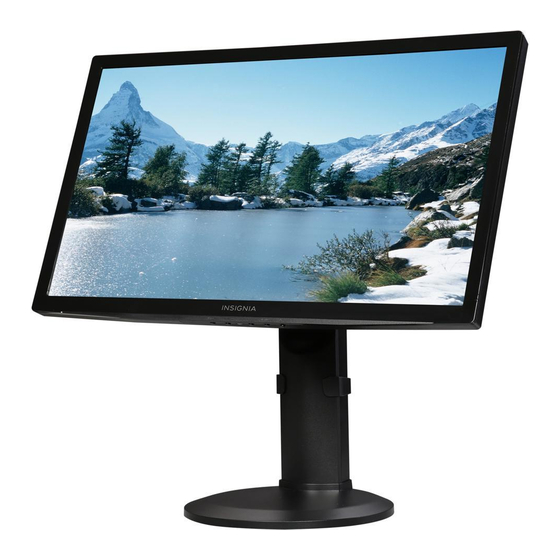

24" FHD LED Backlit Gaming Monitor Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-PMG248 represents the state of the art in gaming monitor technology and is designed for reliable and trouble-free performance. • 24" FHD LED Backlit Gaming Monitor •... -
Page 7: Installing The Stand Or Wall-Mount Bracket
24" FHD LED Backlit Gaming Monitor Installing the stand or wall-mount bracket • If you want to place your monitor on a table or in an entertainment center, go to Installing the stand. • If you want to mount your monitor on a wall, go to Installing a wall-mount bracket. -
Page 8: Installing A Wall-Mount Bracket
NS-PMG248 Installing a wall-mount bracket Warnings • Your monitor has four VESA mounting holes on the back. If you attach a wall-mount bracket to the back of your monitor, the bracket must be securely attached, using all four holes. If you do not use all four mounting holes, your monitor may fall and cause property damage or personal injury. - Page 9 24" FHD LED Backlit Gaming Monitor 3 Attach the wall-mount bracket to your monitor using the mounting holes on the back of your monitor. See the instructions that came with the wall-mount bracket for information about how to correctly hang your monitor. Notes •...
-
Page 10: Monitor Components
NS-PMG248 Monitor components Front controls This section contains information about: • Package contents • Front controls • Back ports Package contents • 24" FHD LED Backlit Gaming Monitor • Monitor stand base • Displayport cable • HDMI cable • Power cord •... -
Page 11: Back Ports
24" FHD LED Backlit Gaming Monitor Back ports Item Description Slide a lock cable through this slot to secure your monitor to another 1 Cable lock slot object. Plug the power cord into this 2 Power connector and into a power outlet. Connect a computer or game controller with an HDMI jack to one HDMI1 and... -
Page 12: Making Connections
NS-PMG248 Making connections Connecting a device using the HDMI port 1 Plug the included HDMI cable into one of the HDMI jacks on the back of your monitor and into an HDMI jack on a device. 2 Turn on the connected device, then press AUTO. The video input menu opens. -
Page 13: Connecting The Usb Ports
24" FHD LED Backlit Gaming Monitor Connecting the USB ports You can connect your computer or a video game console to the USB upstream port using a USB cable with a Type B connector on one end and a Type A connector on the other end. You can connect USB devices, such as a keyboard and mouse, to the USB downstream ports. -
Page 14: Connecting The Power Cable
NS-PMG248 Connecting the power cable • Plug the power cord into the power connector on the back of your monitor and into a three-prong power outlet. Caution • Your monitor should only be operated from the power source indicated on the label. -
Page 15: Using Your Monitor
24" FHD LED Backlit Gaming Monitor Using your monitor Tilt forward or backward -5° to 23° Turning your monitor on and off 1 Press (power). Your monitor turns on and the power indicator lights blue. 2 Press (power) again. Your monitor turns off and the power indicator turns off. -
Page 16: Adjusting Menu Options
NS-PMG248 Adjusting menu options You can adjust the monitor’s screen to get the best picture display. 1 Make sure that your monitor is on, then press MENU. The monitor menu is displayed. 2 Press + or – to highlight a menu icon, then press MENU. - Page 17 24" FHD LED Backlit Gaming Monitor Menus, options, and reset values Icon Menu Option Sub option Settings Contrast Adjusts the brightness of the light areas of the picture. You can adjust the value from 0 to 100 by pressing + or –. The reset value is 50.
-
Page 18: Locking Or Unlocking The Menu
NS-PMG248 Icon Menu Option Sub option Settings Warm Warm enhances the reds. Normal does not enhance colors. Normal Cool enhances the blues. Cool The default value is Warm. User Adjusts the colors in the image. You can adjust each color Color Temp. -
Page 19: Troubleshooting
The brightness or contrast are poor. • If adjusting the Brightness or Contrast option does not solve the problem, contact Insignia Support or take your monitor to an authorized service repair center. • Make sure that sound is turned on the connected device. -
Page 20: Error Messages
NS-PMG248 Error messages Symptom Solution Your monitor is not receiving a video signal. • Make sure that you have selected the correct video input. • Make sure that the video cable is connected correctly and NO SIGNAL securely. • Make sure that no pins on the video cable are bent. -
Page 21: Factory Preset Timing Table
24" FHD LED Backlit Gaming Monitor Factory preset timing table H. Frequency V. Frequency Mode Resolution ± 0.5kHz ± 1Hz 640 × 480 @ 60Hz 31.469 59.94 640 × 480 @ 72Hz 35.748 71.927 640 × 480 @ 75Hz 37.5 800 ×... -
Page 22: Legal Notices
NS-PMG248 Legal notices HDMI® The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are FCC Statement trademarks or registered trademarks of HDMI Licensing LLC in the United States and other Note: This equipment has been tested and found to comply with countries. -
Page 23: One-Year Limited Warranty
Insignia repair center or store personnel, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON Insignia will (at its sole option): (1) repair the Product with new or HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE rebuilt parts;... - Page 24 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2017 Best Buy. All rights reserved.
